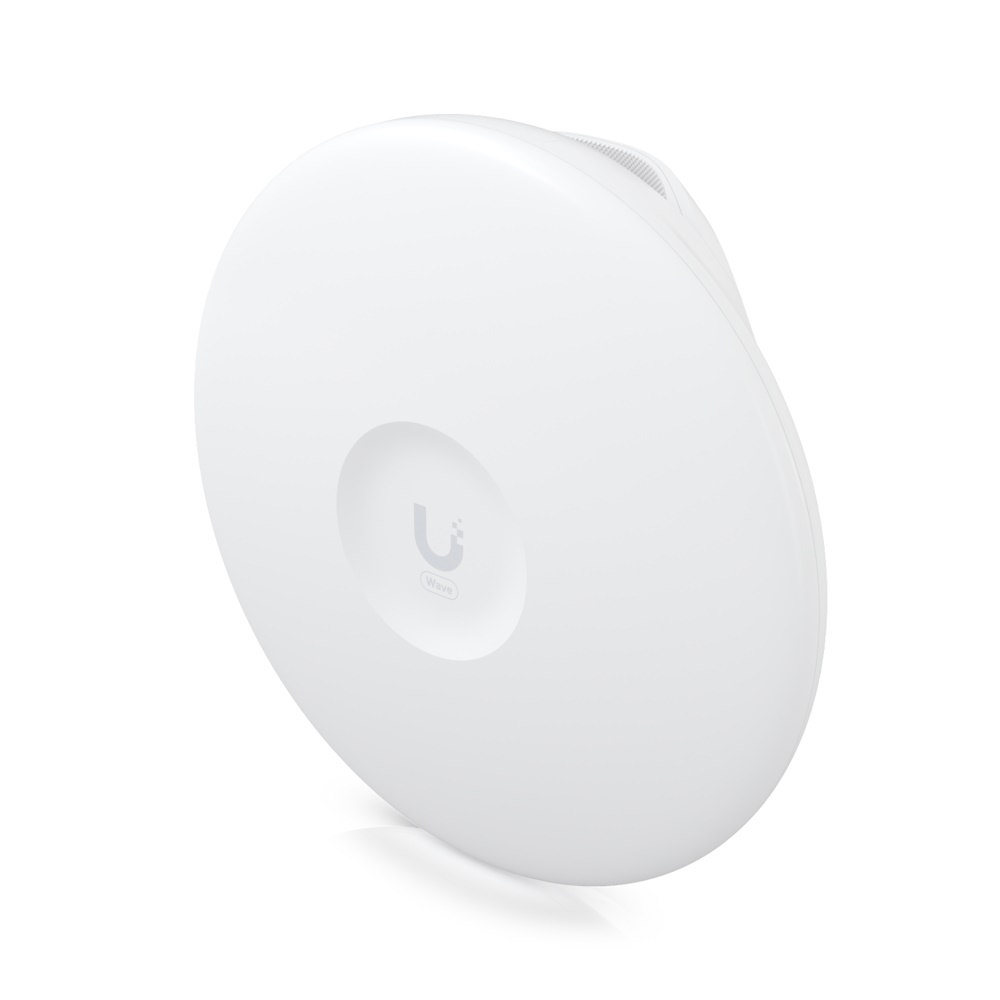

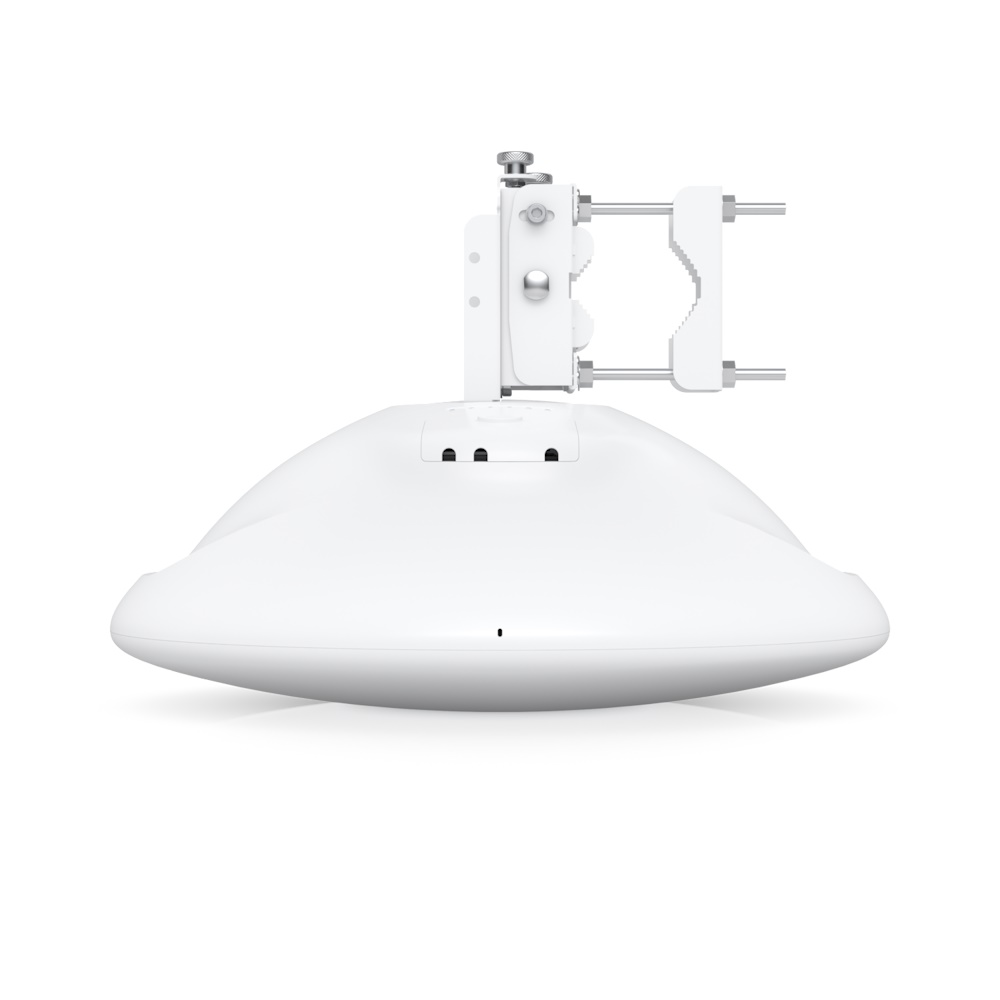

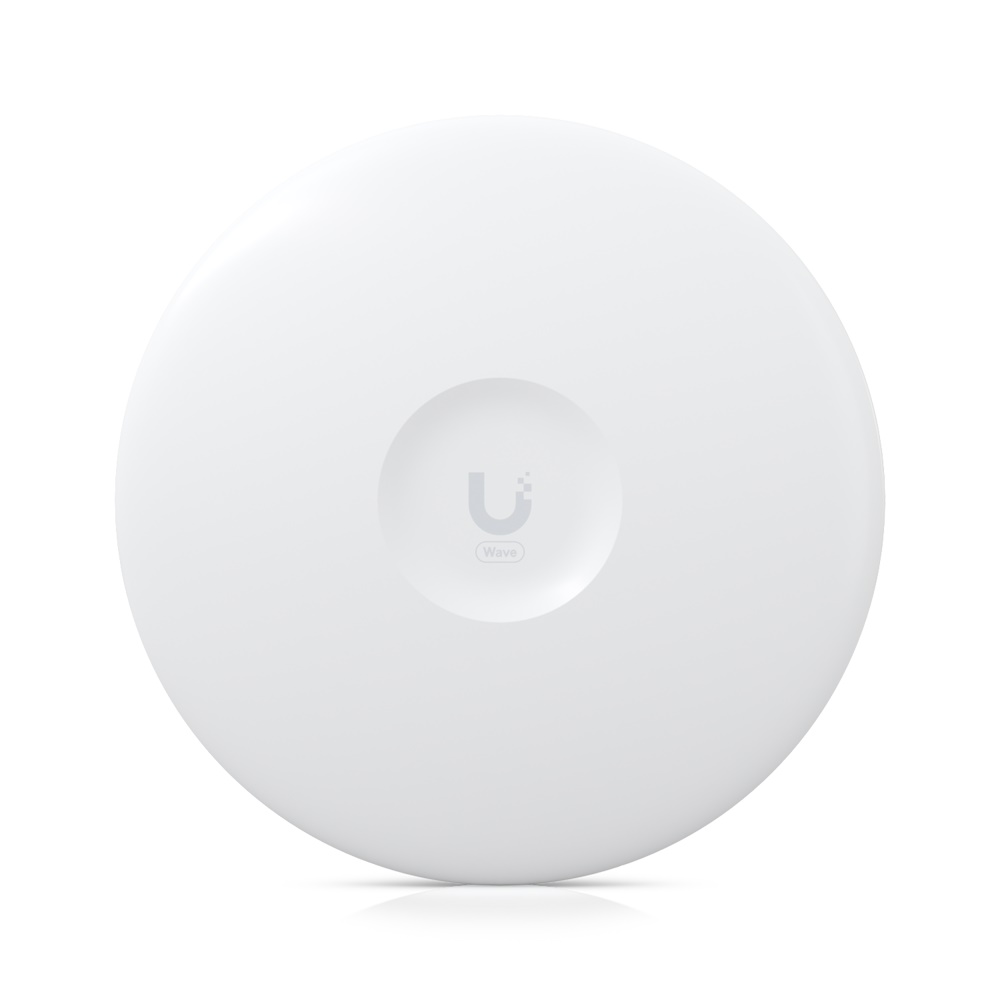

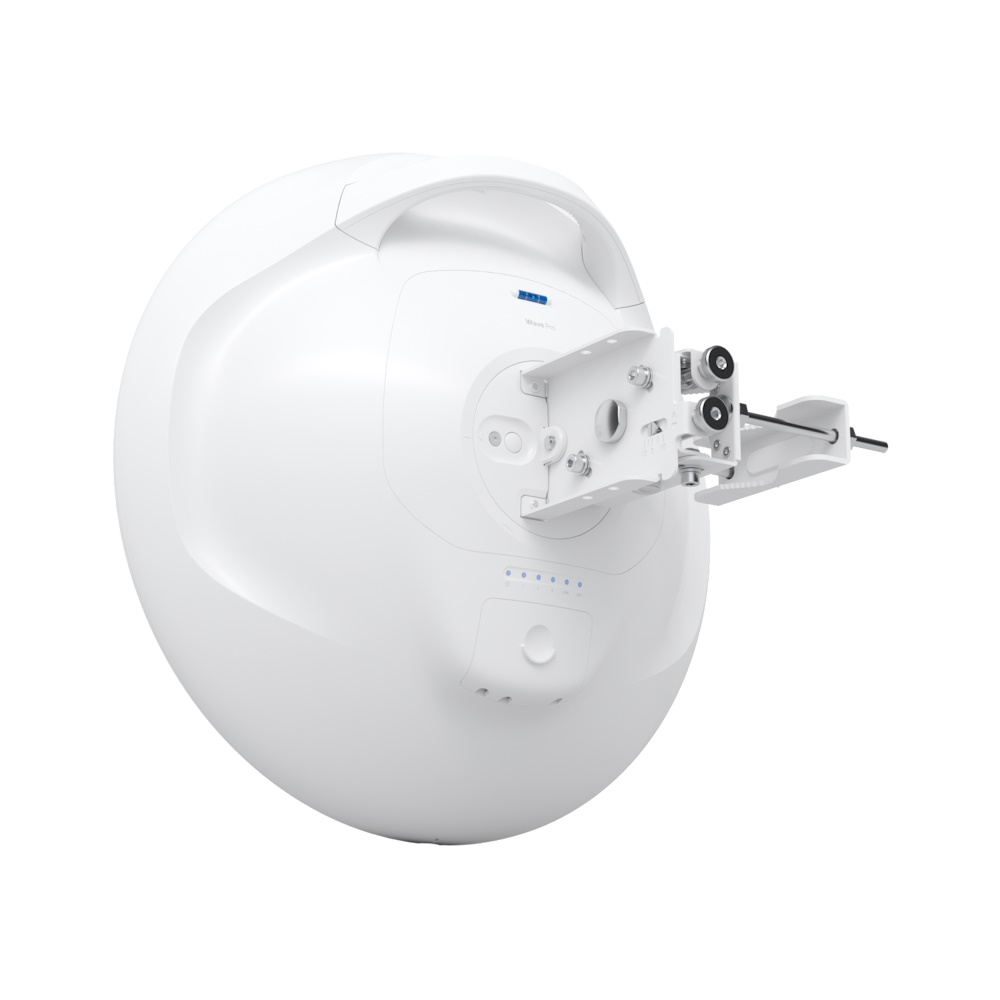

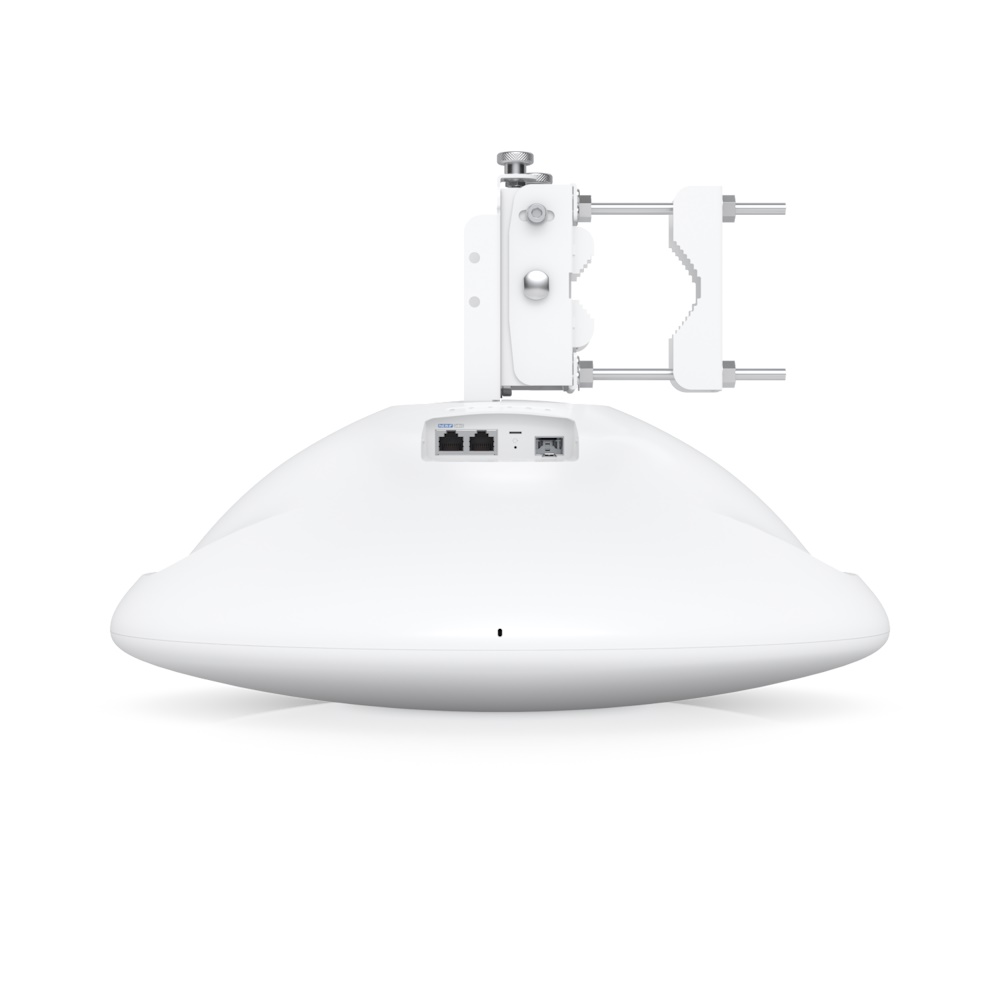

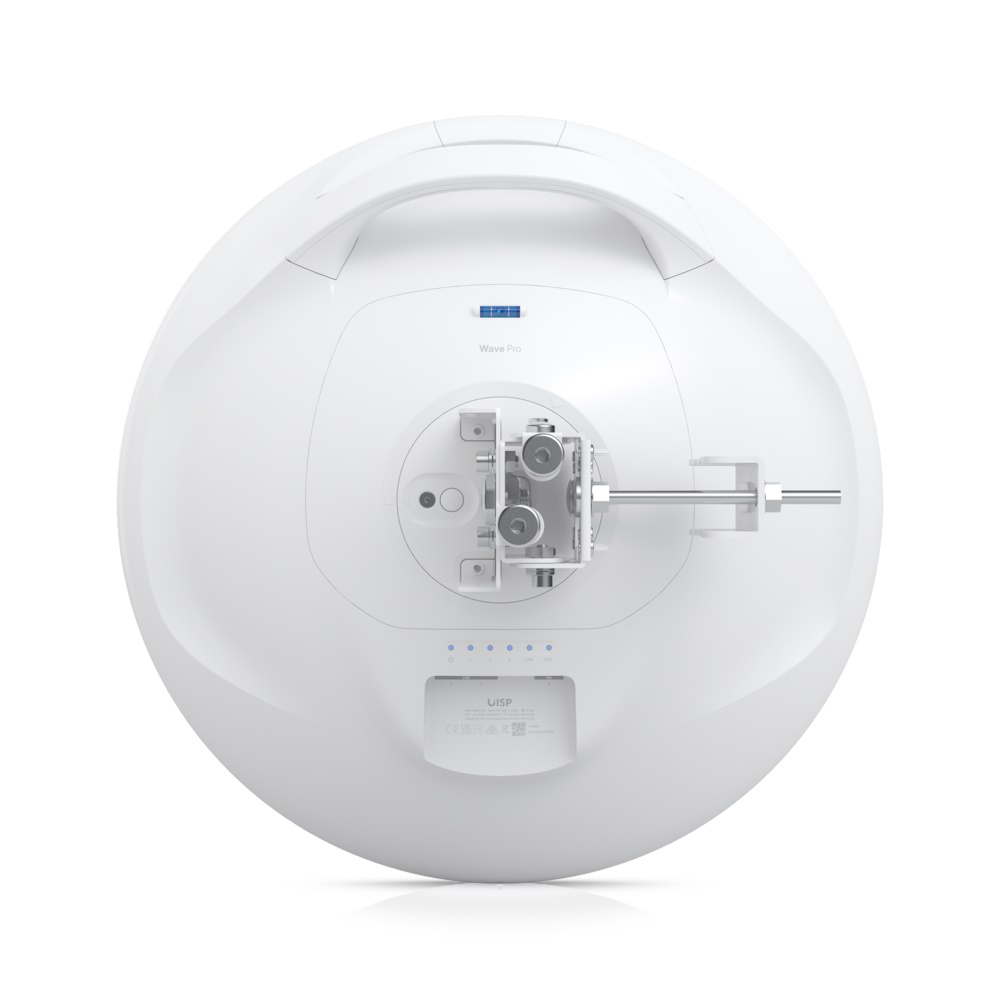

Ubiquiti Wave Pro 60 Ghz PtMP station
Ubiquiti Wave Pro - 60 GHz PtMP station powered by Wave Technology
-
Varenummer 1001768910
Model WAVE-PRO
Producent
Gå til producentens hjemmesideEAN 0810084690284
Vægt 10 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | 2x 2.5 GbE RJ45 ports, 1x 10G SFP+ port |
| Max. power consumption | 26 W |
| Power method | Passive PoE |
| Power supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (Included) |
| Supported voltage range | 44–54V DC, 22–27V DC |
| Operating mode | PtP, PtMP station |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Application requirements | UISP: Version 2.3.0 and later |
| Total throughput | 5.4 Gbps |
| Max. range | PtP: Up to 15 km, PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro) |
| Encryption | WPA2-PSK (AES) |
| Operating frequency | 57 to 71 GHz |
| Channel bandwidth | 2160, 1080, 540 MHz |
| WiFi Standard | 802.11ax (WiFi 6) |
| Dimensions | Ø 424.4 x 166.2 mm |
| Weight | Without mount: 2.8 kg, With mount: 4 kg |
| Enclosure material | Aluminum alloy, UV stabilized plastic |
| Mount material | Stainless steel |
| Pole mount diameter | 25 to 76.2 mm |
| Wind loading | 369 N at 200 km/h |
| Weatherproofing | IPX6 |
