TRENDnet TI-PG162 Switch 16-porte Gigabit
TRENDnet TI-PG162 - Industrial - switch - ikke administreret - 14 x 10/100/1000 + 2 x combo Gigabit SFP - DIN monterbar på skinne, væg-monterbar - DC strøm - TAA-kompatibel
-
Product no 996006637
Model TI-PG162
Brand
Go to brand's websiteEAN 0710931161748
Weight 0.86 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TRENDnet TI-PG162 - Industrial - switch - 16 porte - ikke administreret - TAA-kompatibel |
| Enhedstype | Switch - 16 porte - ikke administreret |
| Undertype | Gigabit Ethernet |
| Porte | 14 x 10/100/1000 + 2 x combo Gigabit SFP |
| Præstation | Omkoblingskapacitet: 32 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 23.8 Mpps |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Egenskaber | Halv dupleksmodus, fuld dupleksmodus, 512 KB pakkebuffer, metalkabinet, 8KV ESD Protector (lufthulsafladning) |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Effekt | DC 48 - 56 V - strømadapter ikke inkluderet |
| Dimensioner (B x D x H) | 12 cm x 15.5 cm x 4.8 cm |
| Vægt | 536 g |
| TAA kompatibel | Ja |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Device Type | Switch - 16 ports - unmanaged |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Features | Half duplex mode, full duplex mode, 512KB packet buffer, metal housing, 8KV ESD Protector (air-gap discharge) |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 32 Gbps | Forwarding performance (64-byte packet size): 23.8 Mpps |
| Ports | 14 x 10/100/1000 + 2 x combo Gigabit SFP |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 16 x 1000Base-T RJ-45 | 2 x SFP |
| Power | |
| Power Consumption Operational | 13 Watt |
| Power Device | External power adapter (not included) |
| Voltage Required | DC 48 - 56 V |
| Miscellaneous | |
| Compliant Standards | FCC, IP30, MET, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |

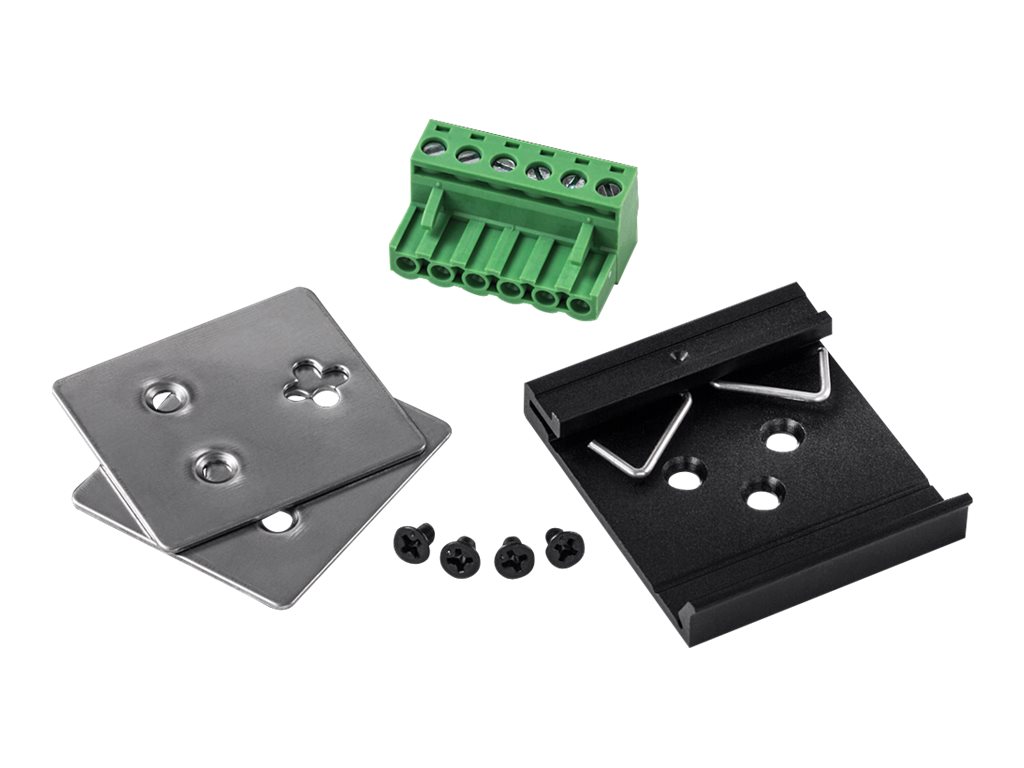

| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 514,167 hours |
| Dimensions & Weight | |
| Depth | 15.5 cm |
| Height | 4.8 cm |
| Weight | 536 g |
| Width | 12 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
