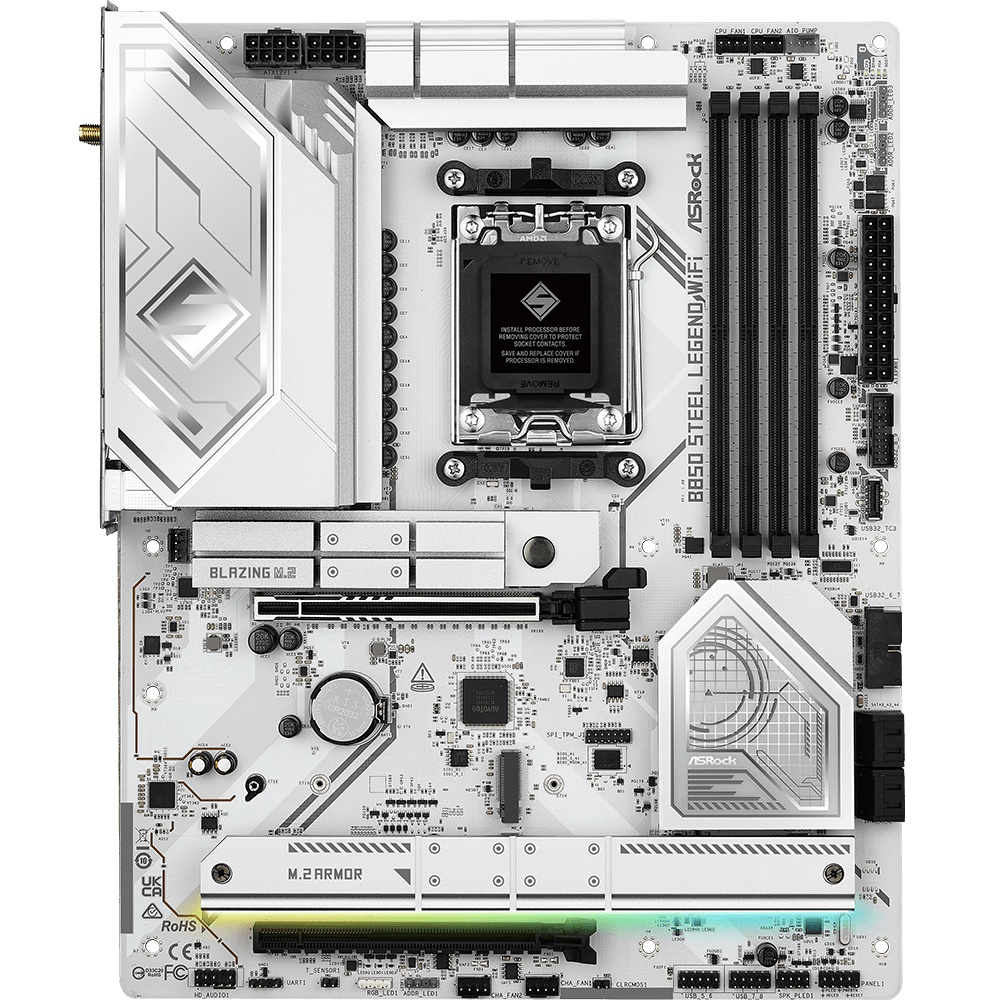

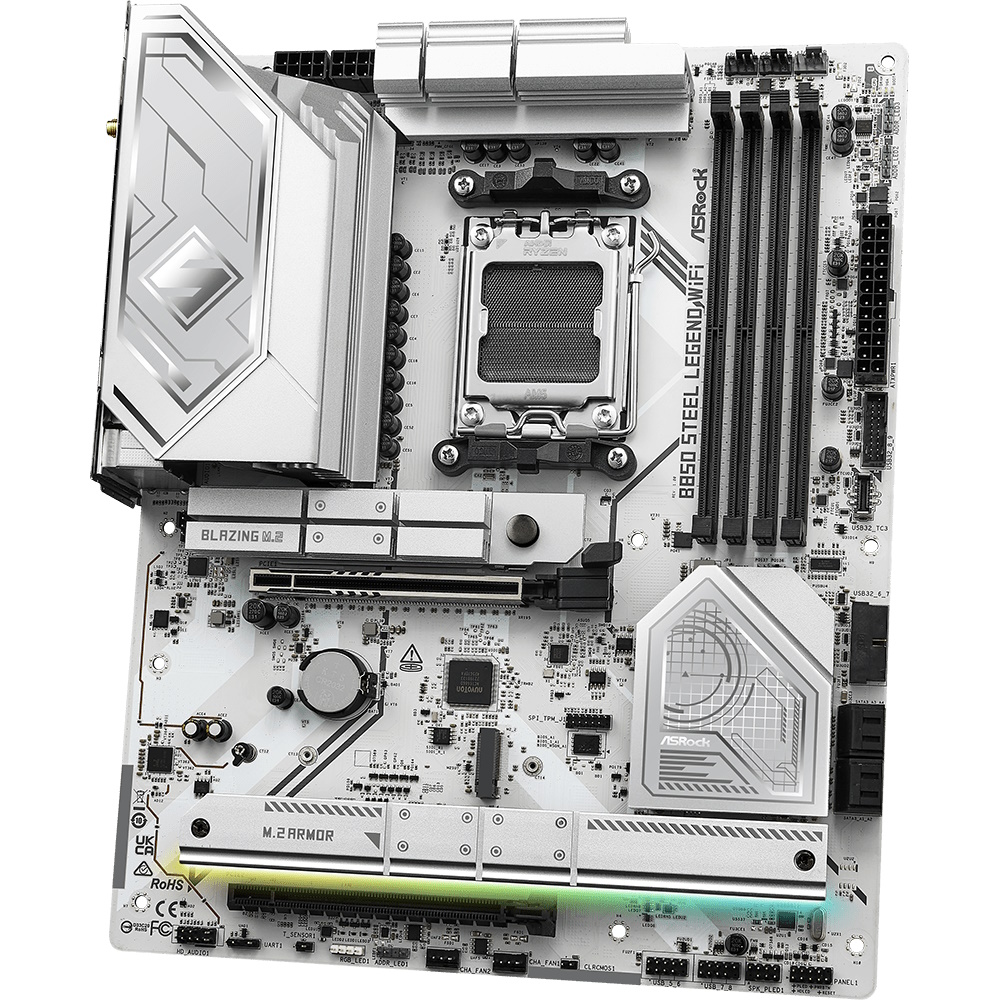

Asrock B850 Steel Legend WiFi ATX AM5 Socket DDR5
ASRock B850 STEEL LEGEND WIFI - Bundkort - ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1 - Wi-Fi 7, Bluetooth, 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
-
Varenummer 1002936288
Model 90-MXBQS-A0UAYZ
Producent
Gå til producentens hjemmesideEAN 4711581490062
Vægt 2.05 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | 4x DIMM Slots, Dual Channel DDR5 up to 8000+ 256GB |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) |
| LAN | Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Wireless LAN | 802.11be 2x2 Wi-Fi 7 Module, Bluetooth 5.4 |
| Slots | 1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, 1x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | 1x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s), 1x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s), 1x M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s), 1x M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s), 4x SATA3 6.0 Gb/s Connectors |
| USB | 2x USB 3.2 Gen2 Type-C Rear, 2x USB 3.2 Gen2 Type-A Rear, 7x USB 3.2 Gen1 Type-A (3 Rear, 4 Front), 1x USB 3.2 Gen2x2 Type-C Front, 8x USB 2.0 (4 Rear, 4 Front) |

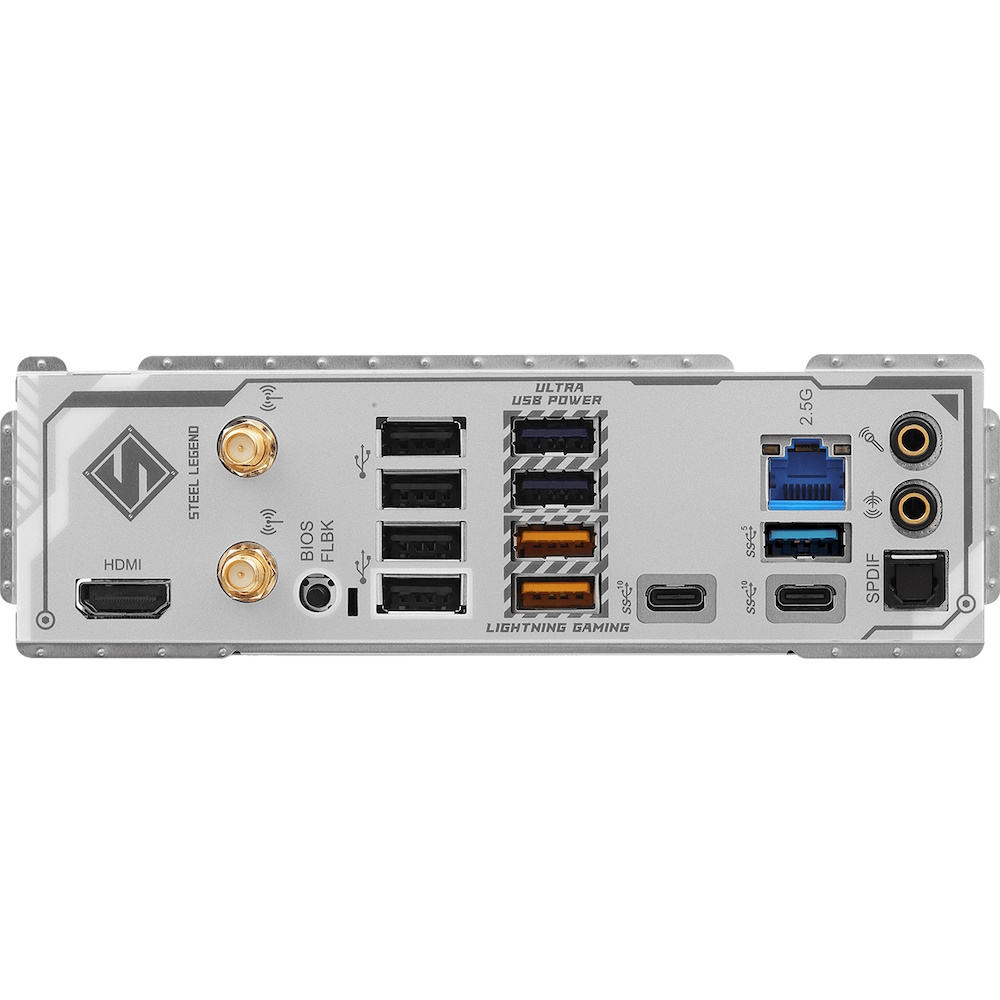

| Rear ports | 2x Antenna Ports, 1x HDMI Port, 1x Optical SPDIF Out Port, 1x RJ-45 LAN Port, 1x Line Out Jack (Gold Audio Jack), 1x Microphone Input Jack (Gold Audio Jack) |

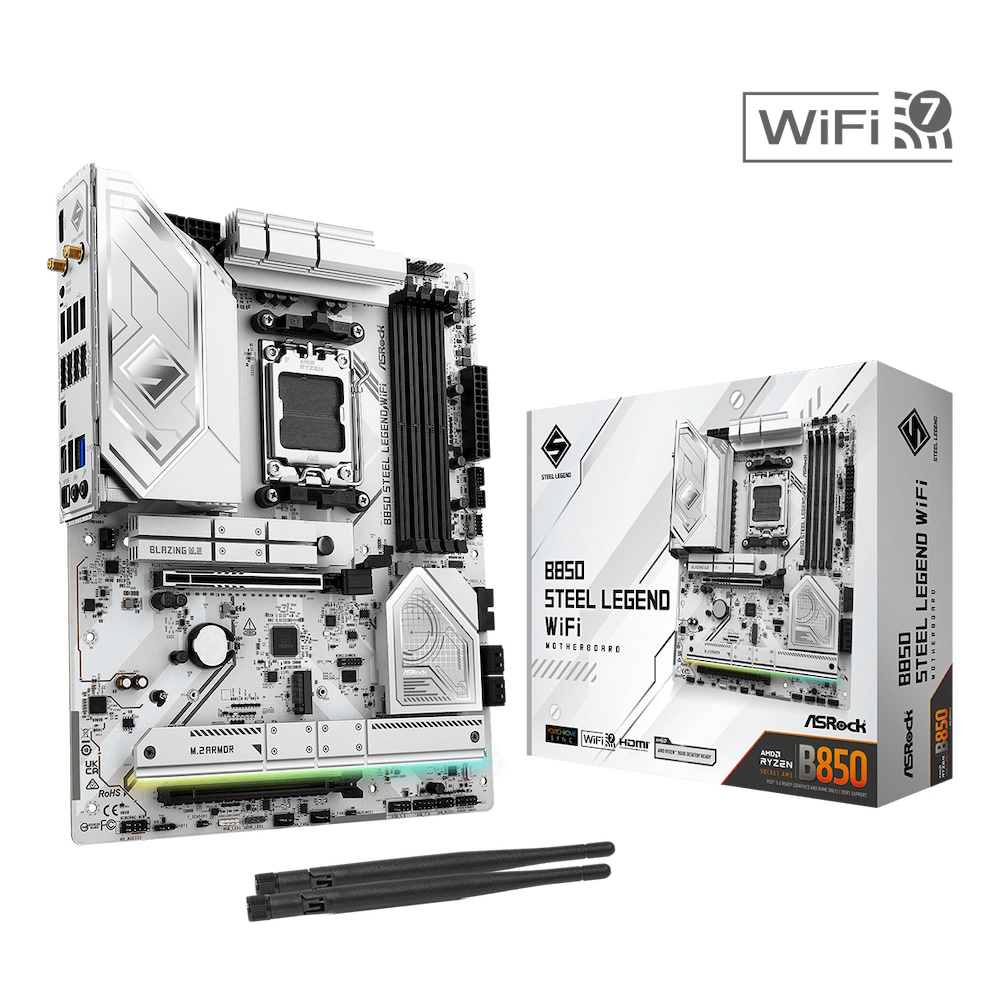

| Accessories | 2x SATA Data Cables, 2x ASRock WiFi 2.4/5/6 GHz Antennas, 1x Thermistor Cable |
| Form Factor | ATX Form Factor: 30.5 cm x 24.4 cm |
| Certifications | ErP/EuP ready, FCC, CE |
| Generelt | |
|---|---|
| Chipsættype | AMD B850 |
| Kompatible processorer | Ryzen (understøtter Ryzen 7000/8000/9000 Serien) |
| Max antal processorer | 1 |
| Processor-socket | Socket AM5 |
| Produkttype | Bundkort - ATX |
| Understøttet RAM | |
| Bus Clock | 8000 MHz (O.C.) |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), AMD EXPO-teknologi |
| Maks. størrelse | 256 GB |
| Registreret eller buffer | Ikke bufferet |
| Teknologi | DDR5 |
| Understøttet RAM-integritetskon | Ikke-ECC, ECC |
| Audio | |
| Audio codec | Realtek ALC4082 |
| Overensstemmelsesstandarder | High Definition Audio |
| Type | HD Audio (8-kanaler) |
| LAN | |
| Netværk controller | Dragon RTL8125BG |
| Netværks interfaces | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger | 1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 (x4-modus) | 1 x M.2 socket (Key E, til trådløs modul) | 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M åbning) | 1 x M.2 socket (2280 M.2 åbning) | 2 x M.2 socket (2260/2280 M.2 Key M- |
| Grænseflade (lagring) | ASMedia ASM1061: SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 5.0 -stikforbindelser: 1 x Blazing M.2 | PCIe 4.0 -stikforbindelser: 3 x Hyper M.2 |
| Interface | 1 x HDMI | 2 x antenne | 1 x USB-C 3.2 Gen2x2 | 6 x USB 3.2 Gen 1 | 2 x USB 2.0 | 1 x SPDIF-ud | 1 x audio linje-ud - mini-jack | 1 x mikrofon - mini-jack | 1 x LAN (2.5Gigabit Ethernet) |
| Interne interfaces | 1 x USB-C 3.2 Gen 1 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x SPI - intern stik | 1 x audio - intern stik |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| Egenskaber | |
| BIOS-egenskaber | UEFI BIOS |
| BIOS-type (Basic Input/Output System) | AMI |
| Hardware egenskaber | 14+2+1 Phase Power Design, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, Dr.MOS MOSFET, 6 Layer PCB, DIY Friendly Design, aluminiumkølelegemedesign, ASRock FAN-Tastic Tuning, ASRock Polychrome RGB, Hi-Densit |
| Diverse | |
| Bredde | 30.5 cm |
| Dybde | 24.4 cm |
| Med software | ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC, ASRock A-Tuning |
| Overensstemmelsesstandarder | FCC, ErP Ready, EuP Ready |
