Produktbeskrivelse
|
ASRock B550M Pro4 - bundkort - micro ATX - Socket AM4 - AMD B550
|
|
Produkttype
|
Bundkort - micro ATX
|
|
Chipsættype
|
AMD B550
|
|
Processor-socket
|
1 x Socket AM4
|
|
Kompatible processorer
|
Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics)
|
|
Max RAM-størrelse
|
128 GB
|
|
RAM understøttet
|
4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
|
|
Lagringsporte
|
6 x SATA-600 (RAID), 2 x M.2
|
|
USB / FireWire porte
|
1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
|
|
Audio
|
HD Audio (8-kanaler)
|
|
LAN
|
Gigabit Ethernet
|
Fra og med fredag den 3. juli 2026 lukker kontoret kl. 16.30 om fredagen. Mandag til torsdag er kontakttiden i salg uændret fra kl. 09.00 til 17.00, mens kontakttiderne for bogholderi, indkøb og RMA generelt er uændrede.
For at se vores fulde sortiment, priser og opnå den fulde adgang til vores webshop, skal du logge ind.
Log ind på din konto her eller registrer dig som kunde her.

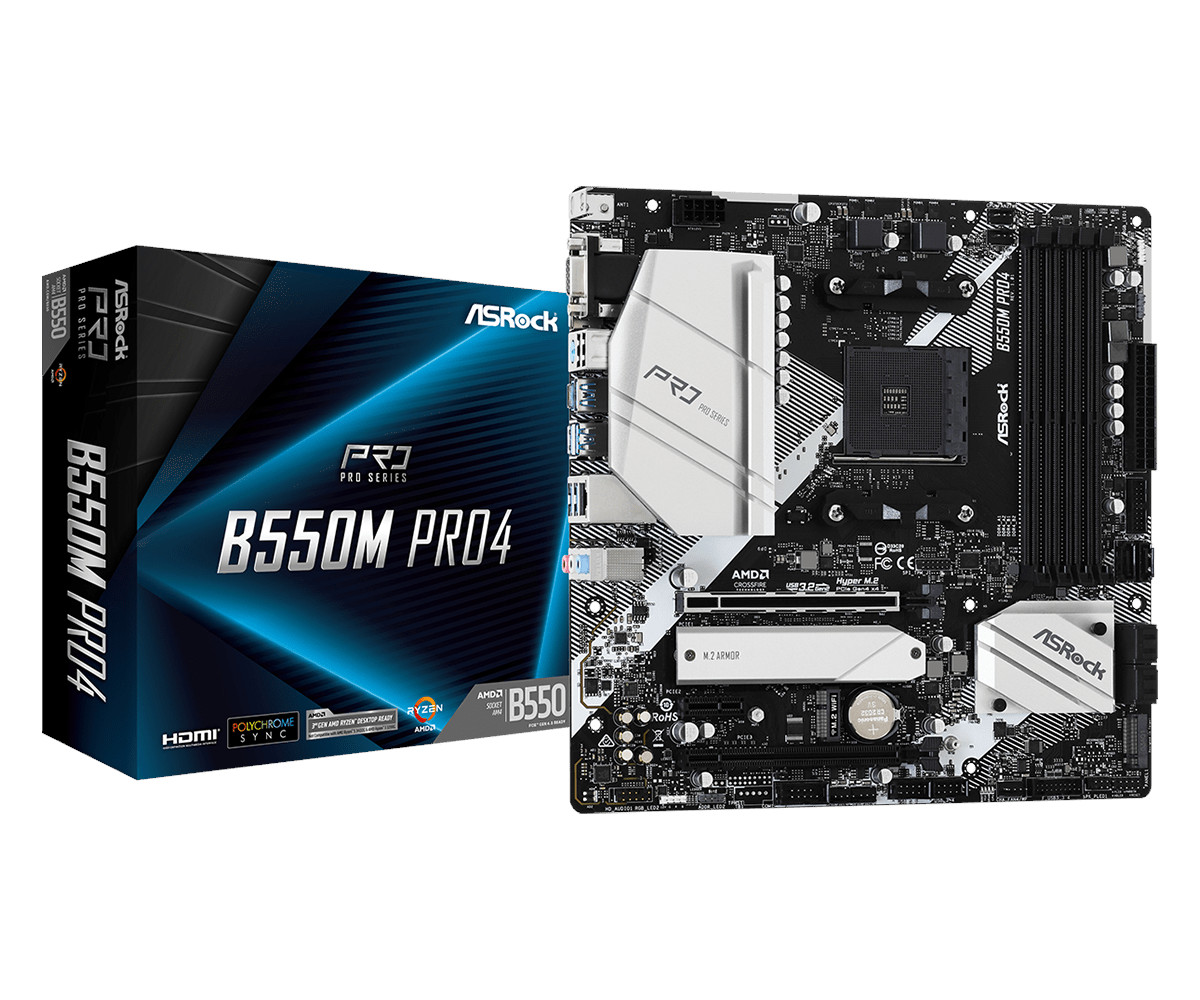

ASRock B550M Pro4 Micro-ATX AM4 AMD B550
ASRock B550M Pro4 - Bundkort - micro ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Varenummer:
996021530
Model:
90-MXBDK0-A0UAYZ
EAN:
4710483931598
Producent:
Vægt:
1.31 kg
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
Specifikationer
Udv. specifikationer
|
Generelt
|
|
|---|---|
|
Chipsættype
|
AMD B550
|
|
Kompatible processorer
|
Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics)
|
|
Max antal processorer
|
1
|
|
Processor-socket
|
Socket AM4
|
|
Produkttype
|
Bundkort - micro ATX
|
|
Understøttet RAM
|
|
|
Bus Clock
|
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.)
|
|
Egenskaber
|
Dobbelt kanal hukommelses arkitektur, AMD Memory Profile (AMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand
|
|
Maks. størrelse
|
128 GB
|
|
Registreret eller buffer
|
Ikke bufferet
|
|
Teknologi
|
DDR4
|
|
Understøttet RAM-integritetskon
|
Ikke-ECC, ECC (drift i ikke-ECC tilstand)
|
|
Audio
|
|
|
Audio codec
|
Realtek ALC1200
|
|
Overensstemmelsesstandarder
|
High Definition Audio, Premium Blu-ray audiosupport
|
|
Type
|
HD Audio (8-kanaler)
|
|
LAN
|
|
|
Netværk controller
|
Realtek RTL8111H
|
|
Netværks interfaces
|
Gigabit Ethernet
|
|
Ekspansion / Konnektivitet
|
|
|
Ekspansionsåbninger
|
1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 tilstand (Ryzen-serie CPUer Matisse); PCIe 3.0 x16 tilstand (Ryzen-serie APUer)) | 1 x PCIe 3.0 x16 (x4-modus) | 1 x PCIe 3.0 x1 | 1 x M.2 socket (2230 M.2 Key E-åbning)
|
|
Grænseflade (lagring)
|
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2 | PCIe 4.0 -stikforbindelser: 1 x M.2
|
|
Interface
|
1 x PS/2-tastatur/mus | 1 x LAN (Gigabit Ethernet) | 1 x VGA | 1 x DisplayPort | 1 x HDMI | 2 x USB 2.0 | 4 x USB 3.2 Gen 1 | 1 x audio linje-ind - mini-jack | 1 x audio linje-ud - mini-jack | 1 x mikrofon - mini-jack | 1 x USB 3.2 Gen 2 | 1 x USB-C Gen2
|
|
Interne interfaces
|
4 x USB 2.0 - intern stik | 4 x USB 3.2 Gen 1 - intern stik | 1 x seriel - intern stik | 1 x audio - intern stik
|
|
Strømkontakter
|
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
|
|
Egenskaber
|
|
|
BIOS-egenskaber
|
JumperFree, SMBIOS 2.3 understøttet, UEFI BIOS, ACPI 5,1 support
|
|
BIOS-type (Basic Input/Output System)
|
AMI
|
|
Hardware egenskaber
|
8 Phase Power Design, ASRock Instant Flash, HDCP kompatibel, 15µ Gold Contact, AMD CrossFireX-teknologisupport, AMD Quad CrossFireX-teknologisupport, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, XXL Aluminum Alloy Heatsink, Nahimic Audio Enhacer, ASRock Live Update, Premium 50A Power Choke, PCB Iso
|
|
Hardwareovervågning
|
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding
|
|
Sov/ Vågn
|
Aktivering af LAN (wake on LAN = WOL)
|
|
Diverse
|
|
|
Bredde
|
24.4 cm
|
|
Dybde
|
24.4 cm
|
|
Med software
|
Drivers & Utilities, ASRock A-Tuning, Antivirus (prøveversion), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN
|
|
Medfølgende ledninger
|
2 x Seriel ATA kabel
|
|
Overensstemmelsesstandarder
|
Plug and Play, FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3
|
|
Udstyr inkluderet
|
I/O- bagvæg, 2 x M.2 skruer
|
Produktguide
- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*
- Digi Power design
- 8 Power Phase design
*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- Max. capacity of system memory: 128GB
- 7.1 CH HD Audio with Content Protection Realtek ALC1200 Audio Codec
- Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H
Slots
AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)
AMD Ryzen series APUs
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX and CrossFireX
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)
- 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
Connector
- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers
- 2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
Rear IO
- Antenna Bracket
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
