Axagon PCEE-GRF PCIE GIGABIT ETHERNET
AXAGON PCEE-GRF - Netværksadapter - PCIe 1.1 lavprofil - Gigabit Ethernet x 1
AXAGON PCEE-GRF-netværksadapteren er designet til at forbedre kablet forbindelse med problemfri funktionalitet og pålidelig ydeevne. Dens PCI Express 1.1 x1-formfaktor muliggør nem installation og integration i forskellige systemer og leverer solid forbindelse til gamere og professionelle. Denne adapter er udstyret med understøttelse af Gigabit Ethernet- og Fast Ethernet-protokoller og sikrer hurtige datatransmissionshastigheder, hvilket gør den velegnet til krævende netværksmiljøer.
-
Varenummer 1000576304
Model PCEE-GRF
Producent AXAGON
EAN 8595247906120
Vægt 0.07 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| Produktbeskrivelse | AXAGON PCEE-GRF - netværksadapter - PCIe 1.1 - Gigabit Ethernet x 1 |
| Enhedstype | Netværksadapter |
| Model | Indstikskort - lavprofil |
| Grænseflade (bus) type | PCI Express 1.1 x1 |
| PCI-specifikationsrevision | PCIe 1.1, PCIe 1.0a, PCIe 2.0, PCIe 2.1, PCIe 3.0 |
| Porte | Gigabit Ethernet x 1 |
| Kabeltype | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN, 1GbE |
| Netværks/overføselsprotokol | NDIS5, NDIS6, IPv4, IPv6, TCP, UDP |
| Processor | RTL8111E/F |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q |
| Systemkrav | Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Apple MacOS X 10.4 eller nyere, Linux Kernel 2.4.x eller senere, FriBSD 7.x. x eller senere, SCO Unix, UnixWare 7.1.x, Novell NetWare 5.x, Novell NetWare 6.x |
| Generelt | |
|---|---|
| Enhedstype | Netværksadapter |
| Grænseflade (bus) type | PCI Express 1.1 x1 |
| Model | Indstikskort - lavprofil |
| PCI-specifikationsrevision | PCIe 1.1, PCIe 1.0a, PCIe 2.0, PCIe 2.1, PCIe 3.0 |
| Netværk | |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Egenskaber | Komplet duplex ydeevne, NDIS 6 IPSec opgave offload kompabilitet, auto-uplink (auto MDI/MDI-X), skæv korrektionssupport, polaritetsupport, parbytte understøttelse, datatransport, WOL, ACPI-understøttelse, MSI-X, MSI, VLAN-understøttet |
| Forbindelsesteknologi | Kablet |
| Kabeltype | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Netværks/overføselsprotokol | NDIS5, NDIS6, IPv4, IPv6, TCP, UDP |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q |
| Porte | Gigabit Ethernet x 1 |
| Statusindikatorer | Forbindelsesstatus, link/aktivitet |
| Processor / Hukommelse | |
| Processor | RTL8111E/F |
| Diverse | |
| Overensstemmelsesstandarder | Plug and Play |
| Pakkedetaljer | Papkasse |
| Udstyr inkluderet | Simpelt beslag |
| Programmer / Systemkrav | |
| OS nødvendig | Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Apple MacOS X 10.4 eller nyere, Linux Kernel 2.4.x eller senere, FriBSD |
| Mål & vægt (forsendelse) | |
| Bredde ved forsendelse | 14.5 cm |
| Dybde ved forsendelse | 11 cm |
| Højde ved forsendelse | 2.5 cm |
| Vægt ved forsendelse | 73 g |

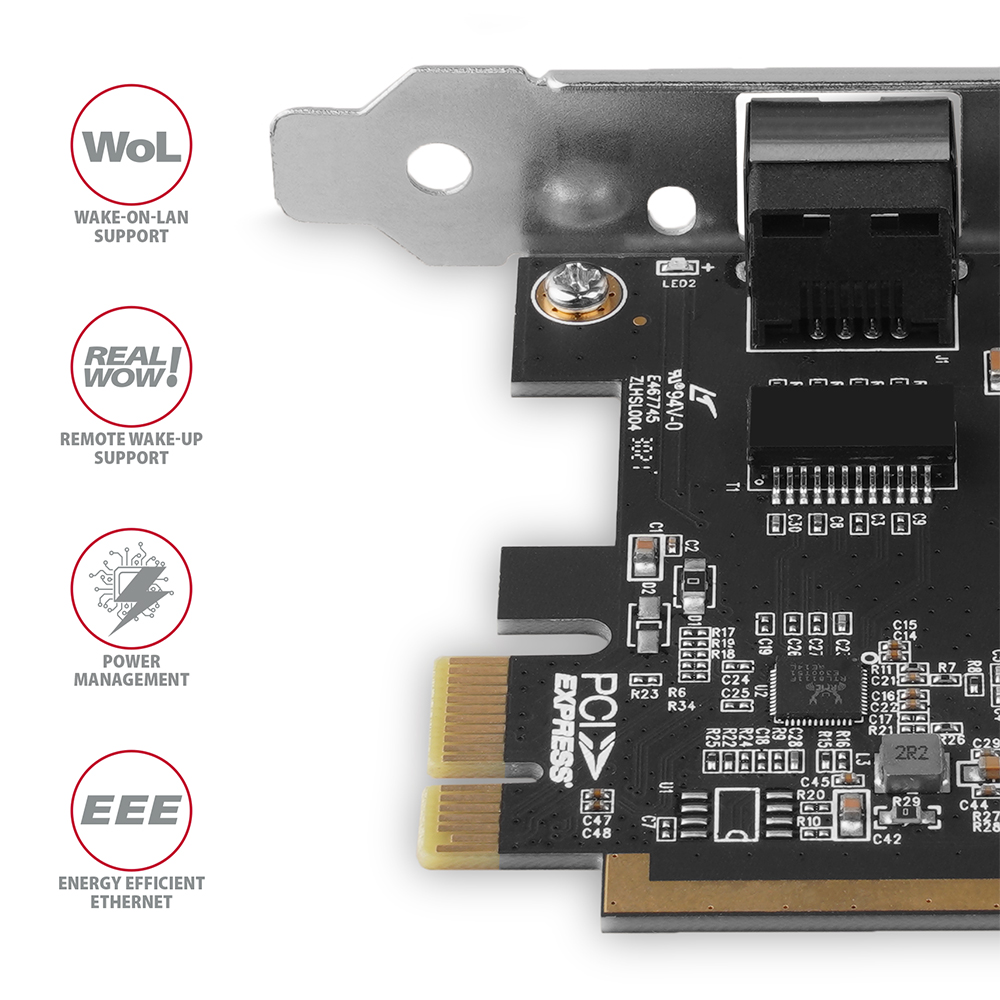

AXAGON PCEE-GRF PCI-Express network card adds high speed Gigabit Ethernet connection to your desktop computer. It enables a transmission speed of 10/100/1000 Mbit/s.
The network card is equipped with proven Realtek 8111 chipset. It ensures seamless compatibility with most operating systems.
Gigabit network card connects the computer to the Internet or a computer network, adds the missing RJ-45 connector, add another network card or replaces the original defunct network connection.
In addition to an adapter with a standard size bracket, the package also includes a low profile bracket which allows the mounting into low profile cases.
Input:
• PCI-Express 1.1 interface, PCI-Express 1.0a / 2.0 / 2.1 / 3.0 compatible.
• Number of lines 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
• A bandwidth of 1-Lane PCI-Express 1.1 bus 2.5 Gb/s.
Output:

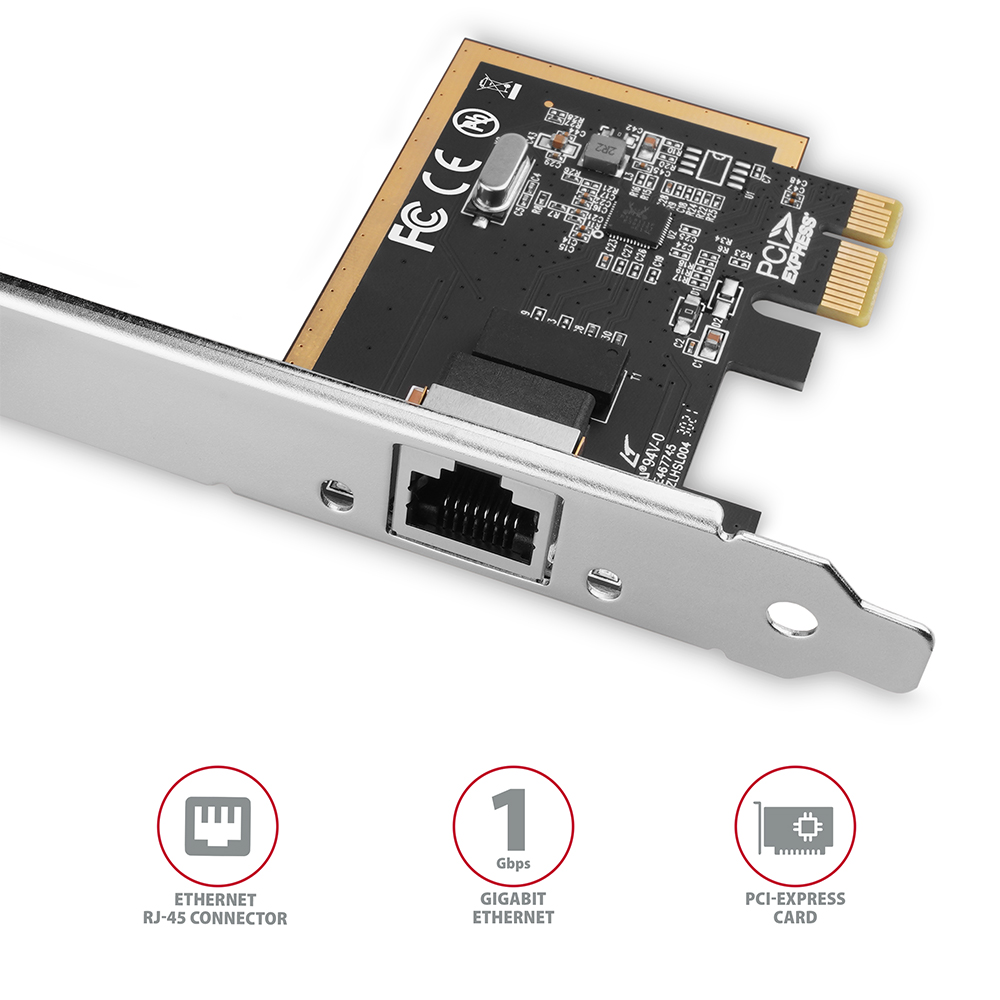

• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
• Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
• Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.
Other features:
• Full Plug and Play support.
• 10/100/1000 Mbit/s auto-detection.
• Supports Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) to reduce processor load.
• Supports Segmentation Task-offload (Large send v1 a Large send v2).
• Supports full-duplex transmission s IEEE 802.3x flow control.
• Supports IEEE 802.1P Layer 2 priority encoding.
• Supports IEEE 802.1Q VLAN tagging.
• Supports IEEE 802.3az-2010 (EEE) Energy Efficient Ethernet - reduce power consumption at standby.
• Supports Auto MDI/MDIX - crossover detection and auto-correction eliminate the need for crossover cables.
• Supports hardware ECC (Error Correction Code), CRC (Cyclic Redundancy Check) function.
• Supports Pair Swap/Polarity/Skew Correction.
• Two LEDs for indicating network activity and connection.
• The Realtek RTL8111E/F chipset is used.
Wake-on-LAN support in various modes:
• Supports sleep mode and remote wake up via AMD Magic packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection and also Link Change wake-up.
• Supports ECMA-393 proxZzzy® standard for sleeping hosts to manage the network connection of sleeping guests using proxy servers.
Advanced Power Management features:
The network card supports advanced power management to reduce losses during standby. It also supports advanced power saving when the Ethernet cable has been disconnected.
• Supports Advanced Configuration Power management Interface (ACPI).
• Supports Power Management offload (ARP & NS).
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X.
Supported operating systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit versions of OS Windows), MS DOS, MacOS X 10.4.x and higher, Linux kernel 2.4.x / 2.6.x / 3.x / 4.x, FreeBSD 7.x / 8.0 / 9.0, SCO Unix 5.0.6 / 5.0.7, SCO OpenServer 6, UnixWare 7.1.x, Novell server OS 5.x / 6.x, Novell client for DOS (ODI driver).

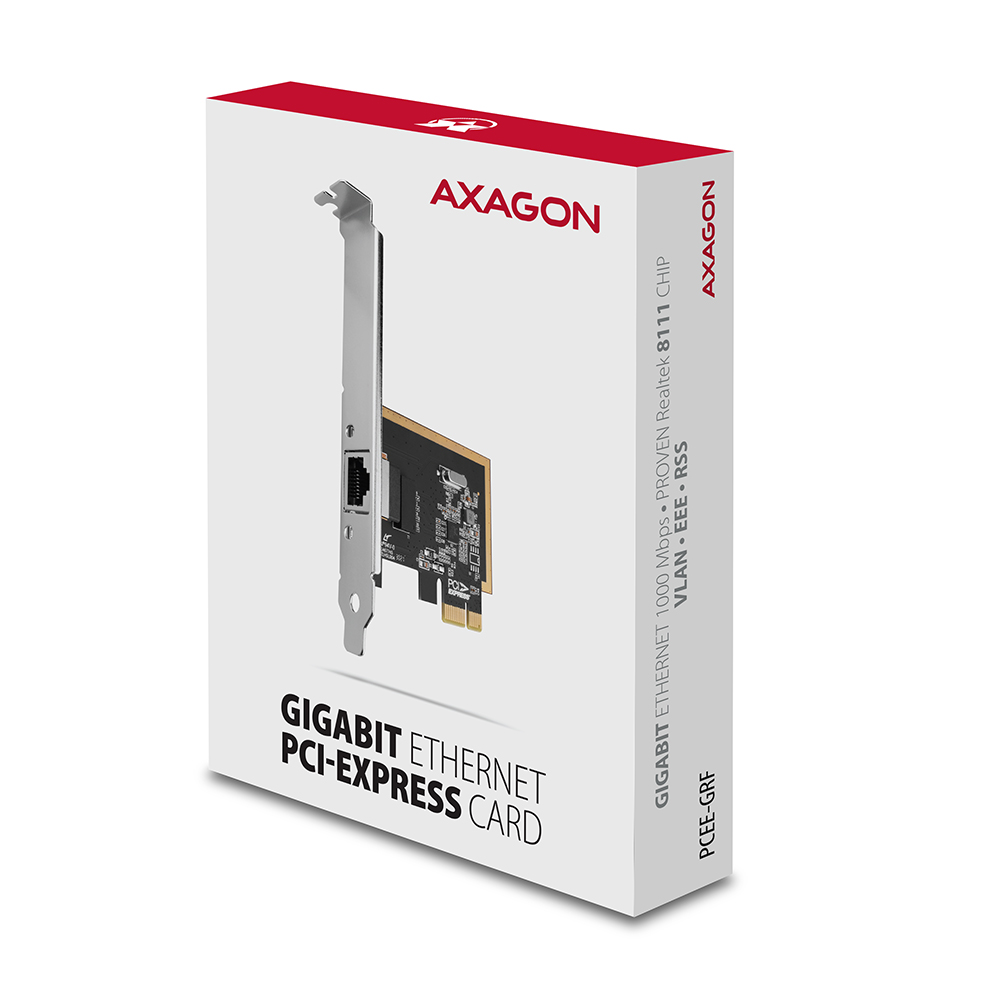

Package contains:
• PCI-Express Gigabit Ethernet card with a standard bracket,
• low profile bracket,
• multilanguage quick guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box.
