ASUS Pro WS B850M-ACE SE mATX AM5
ASUS Pro WS B850M-ACE SE - bundkort - micro ATX - Socket AM5 - AMD B850 Chipset - USB 3.2 Gen 2x2 USB 3.2 Gen 2 - 2x Ethernet 10Gbps, 2.5Gb - IPMI 1Gb - HD Audio (8-kanaler)
-
Varenummer 1003739436
Model 90MB1MN0-M0EAY0
Producent ASUSTeK COMPUTER
Gå til producentens hjemmesideEAN 4711636258753
Vægt 1.38 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors |
| Chipset | AMD B850 Chipset |
| Memory | 4x DIMM slots, max. 256GB, DDR5 (Dual channel) |
| Graphics | 1x DisplayPort 1.4, 1x VGA port from AST2600, 1x HDMI 2.1, 1x USB 10Gbps port (USB Type-C®) supports DisplayPort video output |
| Expansion Slots | 1x PCIe 5.0 x16 slot (supports x16 mode), 1x PCIe 4.0 x16 slot (supports x8/x4 mode), 1x PCIe 4.0 x16 slot (supports x4 mode) |
| Storage | 2x M.2 slots, 1x MCIO connector, 1x U.2 connector and 4x SATA 6Gb/s ports |
| Ethernet | 1x Realtek 10Gb Ethernet, 1x Intel® 2.5Gb Ethernet, 1x Realtek 1Gb Ethernet |
| USB Rear | 5x USB 10Gbps port(s) (3 x Type-A + 2 x USB Type-C®), 2x USB 2.0 port(s) (2 x Type-A) |
| USB Front | 1x USB 20Gbps (supports USB Type-C®), 1x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports, 2x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports, 1x USB 2.0 port (1 x Type-A) for BIOS FlashBack |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |

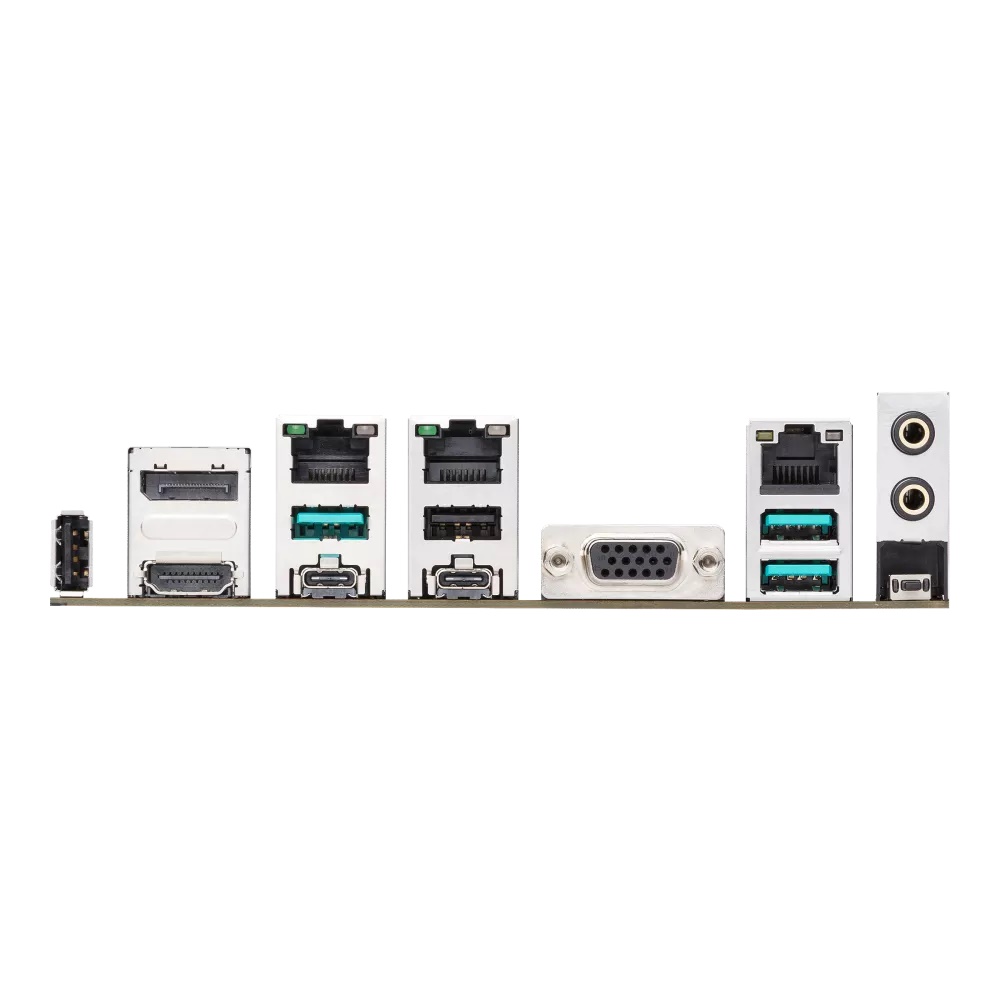

| Back Panel I/O Ports | 3x USB 10Gbps port(s) (3 x Type-A), 1x USB 10Gbps port(s) (USB Type-C®), 1x USB 10Gbps port(s) (USB Type-C®) supports DisplayPort video output, 2x USB 2.0 port(s) (2 x Type-A), 1x DisplayPort, 1x VGA port, 1x HDMI™ port, 1x Realtek 10Gb Ethernet port, 1x Intel® 2.5Gb Ethernet ports, 1x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600), 2x Audio jacks |
| BIOS | 512 Mb Flash ROM, UEFI AMI BIOS(text-based) |
| Accessories | 2x SATA 6Gb/s cables, 1x I/O shield, 1x Q-connector, 1x M.2 rubber package(s), 1x ACC Express activation key card, 1x Quick start guide |
| Form Factor | micro-ATX Form Factor (24.4 cm x 24.4 cm) |
| IPMI | Yes - BMC AST2600 |
| Generelt | |
|---|---|
| Chipsættype | AMD B850 |
| Kompatible processorer | (understøtter Ryzen 7000/8000/9000 Series/AMD EPYC 4005 Series) |
| Max antal processorer | 1 |
| Processor-socket | Socket AM5 |
| Produkttype | Bundkort - micro ATX |
| Understøttet RAM | |
| Bus Clock | 5600 MT/s |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi |
| Maks. størrelse | 256 GB |
| Registreret eller buffer | Ikke bufferet |
| Teknologi | DDR5 |
| Understøttet RAM-integritetskon | ECC, on-die ECC, ikke-ECC |
| Grafik | |
| Grafik controller | ASPEED AST2600 |
| Audio | |
| Overensstemmelsesstandarder | High Definition Audio |
| Type | HD Audio (8-kanaler) |
| LAN | |
| Netværks interfaces | 10 Gigabit Ethernet |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger | 1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 (x4-modus) | 2 x M.2 socket (2280 M.2 Key M-åbning) | 1 x microSD |
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 5.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 3.0 -stikforbindelser: 1 x U.2 | PCIe 5.0 -stikforbindelser: 1 x MCIO |
| Interface | 3 x USB 3.2 Gen 2 | 1 x USB-C 3.2 Gen 2 | 1 x USB-C 3.2 Gen 2/DisplayPort | 2 x USB 2.0 | 1 x DisplayPort | 1 x VGA | 1 x HDMI | 1 x LAN (10Gigabit Ethernet) | 1 x LAN (2.5Gigabit Ethernet) | 1 x LAN (Gigabit Ethernet)/styring | 1 x mikrofon - mini-j |
| Interne interfaces | 1 x USB 2.0 - Type A | 2 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x USB-C 3.2 Gen 2x2 - intern stik | 1 x audio - intern stik | 1 x seriel - intern stik | 1 x SPI - intern stik | 1 x Thunderbolt 4 - intern stik |
| RAID-egenskaber | AMD RAID Xpert2 Technology |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor |
| Egenskaber | |
| BIOS-egenskaber | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| BIOS-type (Basic Input/Output System) | AMI |
| Hardware egenskaber | Preboot eXecution Environment (PXE), CrashFree BIOS 3, LANGuard, Clear CMOS Button, reset knap, Start-knap, BIOS FlashBack-knap, ASUS 5X Protection III, ESD Guards, ASUS DIGI+ VRM, ASUS Overvoltage Protection, aluminiumkølelegemedesign, ASUS EZ DIY, |
| Sov/ Vågn | Aktivering af LAN (wake on LAN = WOL), vågn på PME |
| Diverse | |
| Bredde | 24.4 cm |
| Dybde | 24.4 cm |
| Med software | Adobe Creative Cloud (gratis prøve), Armoury Crate, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 4, Norton 360 Deluxe (60 dages prøvetid), TurboV Core, WinRAR (40 days trial), ASUS Control Center Express |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
| Udstyr inkluderet | IO-skjold, Q-Connector, 1 x M.2 gummipakke, ACC Express Activation Key Card |
