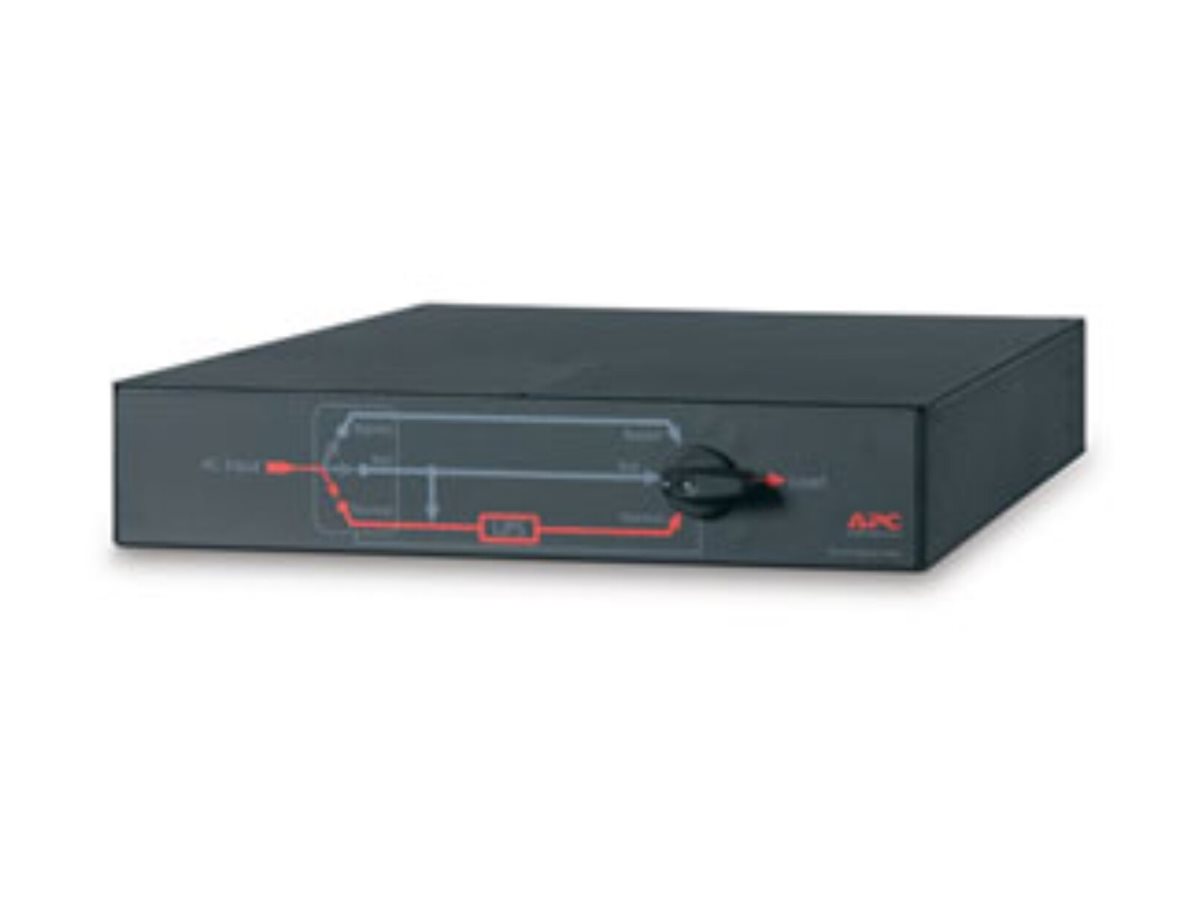

APC Service Bypass Panel

APC Service Bypass Panel - Bypass-omskifter (rackversion) - AC 230 V - output-stikforbindelser: 10 - 2U - 19" - sort - for InfraStruXure Type A 4-12; Smart-UPS 3000, 3000R3IBX120, 3000RM X-93, 5000

  • Product no 987695454

    Model SBP5000RMI2U

    Brand APC

    EAN 0731304212591

    Weight 22.2 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse APC Service Bypass Panel - bypass-omskifter
Enhedstype Bypass-omskifter - rackversion
Rackstørrelse 19" - 2U
Vægt 11 kg
Indgangspænding AC 230 V
Udgangspænding AC 230 V
Input-stik Hardwire
Output-stikforbindelser 8 x power IEC 60320 C13<br>2 x strøm IEC 60320 C19
Farve Sort
Dimensioner (B x D x H) 43 cm x 66 cm x 9 cm
Producentgaranti 2 års garanti
Designet for InfraStruXure Type A 4-12kVA; Smart-UPS 3000, 3000R3BX, 3000R3IBX, 3000R3IBX120, 3000RM, 3000RM X-93, 3000RM3U, 3000RMI3U, 3000RMI5U, 3000RMINET, 3000RMJ3U, 3000RMNET, 3000RMT, 3000RMT3U, 3000RMTX, 3000RMXL3U, 3000VA, 5000R5IBX, 5000RM, 5000RMI5U, 5000RMINET, 5000RMT
General
Color Black
Device Type Bypass switch - rack-mountable
Height (Rack Units) 2U
Rack Size 19"
Power Device
Frequency Required 50/60 Hz
Input Connectors Hardwire
Input Voltage AC 230 V
Output Voltage AC 230 V
Power Output Connectors Details 8 x power IEC 60320 C13 | 2 x power IEC 60320 C19
Miscellaneous
Compliant Standards CSA, GOST, EN 60950, UL 1778, IEC 60950
Rack Mounting Kit Included
Manufacturer Warranty
Service & Support Limited warranty - parts - 2 years
Environmental Parameters
Humidity Range Operating 0 - 95%
Humidity Range Storage 0 - 95%
Max Operating Temperature 50 °C
Max Storage Temperature 65 °C
Min Operating Temperature -20 °C
Min Storage Temperature -25 °C
Dimensions & Weight
Depth 66 cm
Height 9 cm
Weight 11 kg
Width 43 cm
Compatibility Information
Designed For APC InfraStruXure Type A 4-12kVA Base Unit | APC Smart-UPS 3000, 3000 NS, 3000 RM 5U, 3000R3BX, 3000R3IBX, 3000R3IBX120, 3000RM, 3000RM X-93, 3000RM3U, 3000RMI3U, 3000RMI5U, 3000RMINET, 3000RMJ3U, 3000RMNET, 3000RMT, 3000RMT3U, 3000RMTX, 3000RMXL3U,
