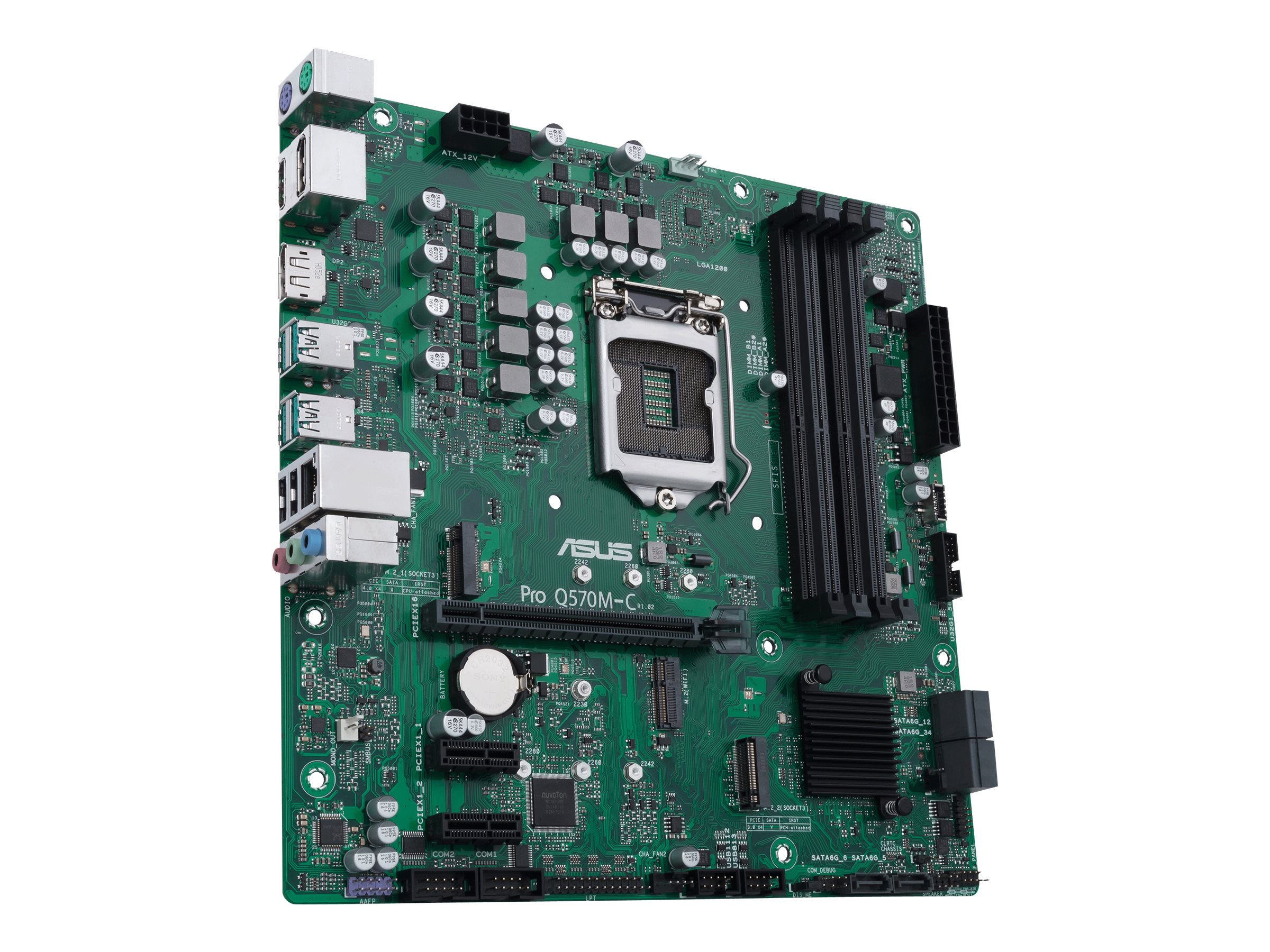

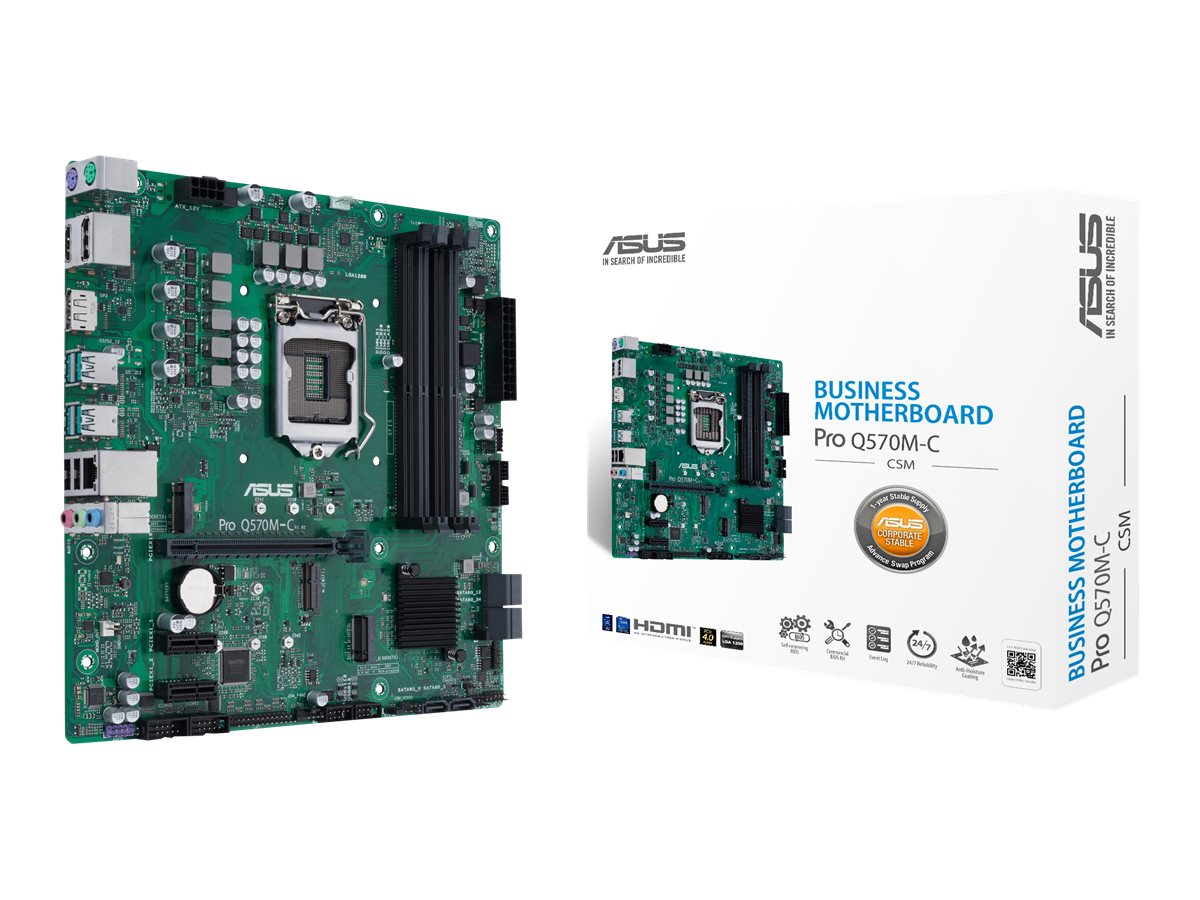

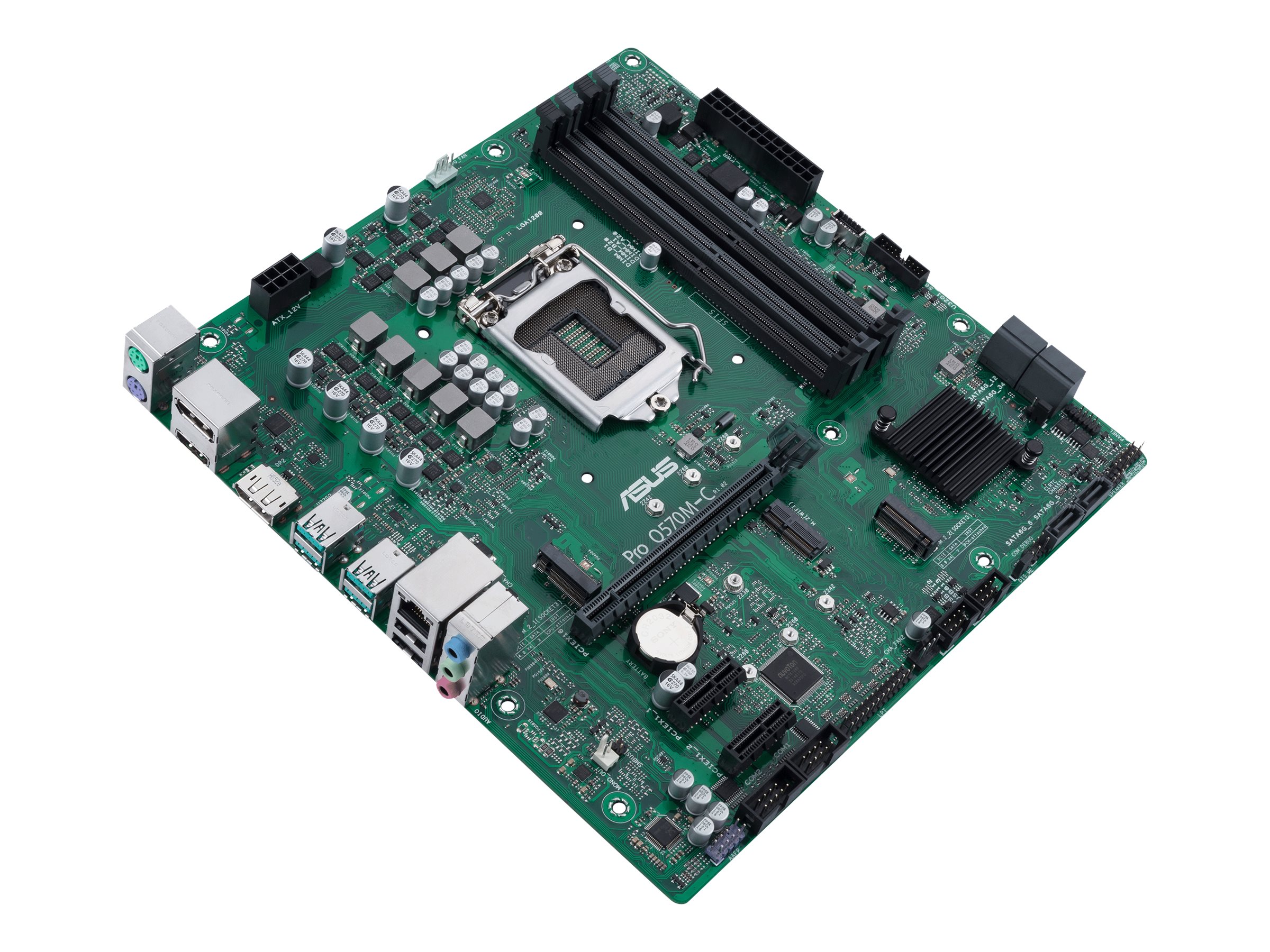

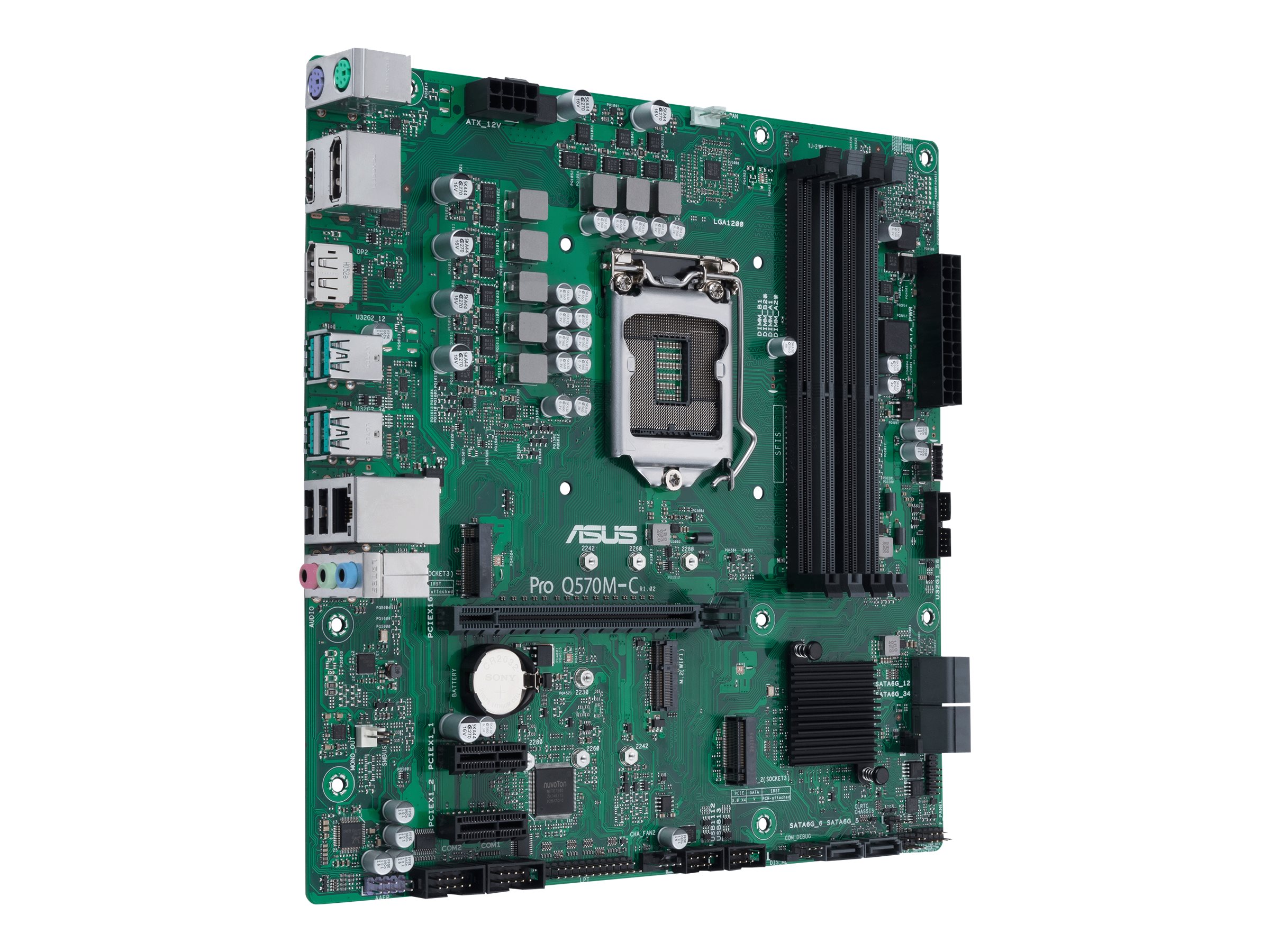

ASUS Pro Q570M-C/CSM Micro-ATX LGA1200 Intel Q570
ASUS Pro Q570M-C/CSM - Bundkort - micro-ATX - LGA1200 sokkel - Q570 Chipset - USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
-
Product no 998661106
Model 90MB1700-M0EAYC
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4711081165248
Weight 0.87 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ASUS Pro Q570M-C/CSM - bundkort - micro-ATX - LGA1200 sokkel - Q570 |
| Produkttype | Bundkort - micro-ATX |
| Chipsættype | Intel Q570 |
| Processor-socket | 1 x LGA1200 sokkel |
| Kompatible processorer | (understøtter 11. Generation Intel Core og 10. Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM åbninger - DDR4, ikke-ECC, ikke bufferet |
| Lagringsporte | 6 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire porte | 4 x USB 3.2 Gen 2 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Chipset Type | Intel Q570 |
| Compatible Processors | (supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1200 Socket |
| Product Type | Motherboard - micro ATX |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz (O.C.) |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
| Audio | |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) | 2 x PCIe 3.0 x1 | 1 x M.2 socket (Key E) |

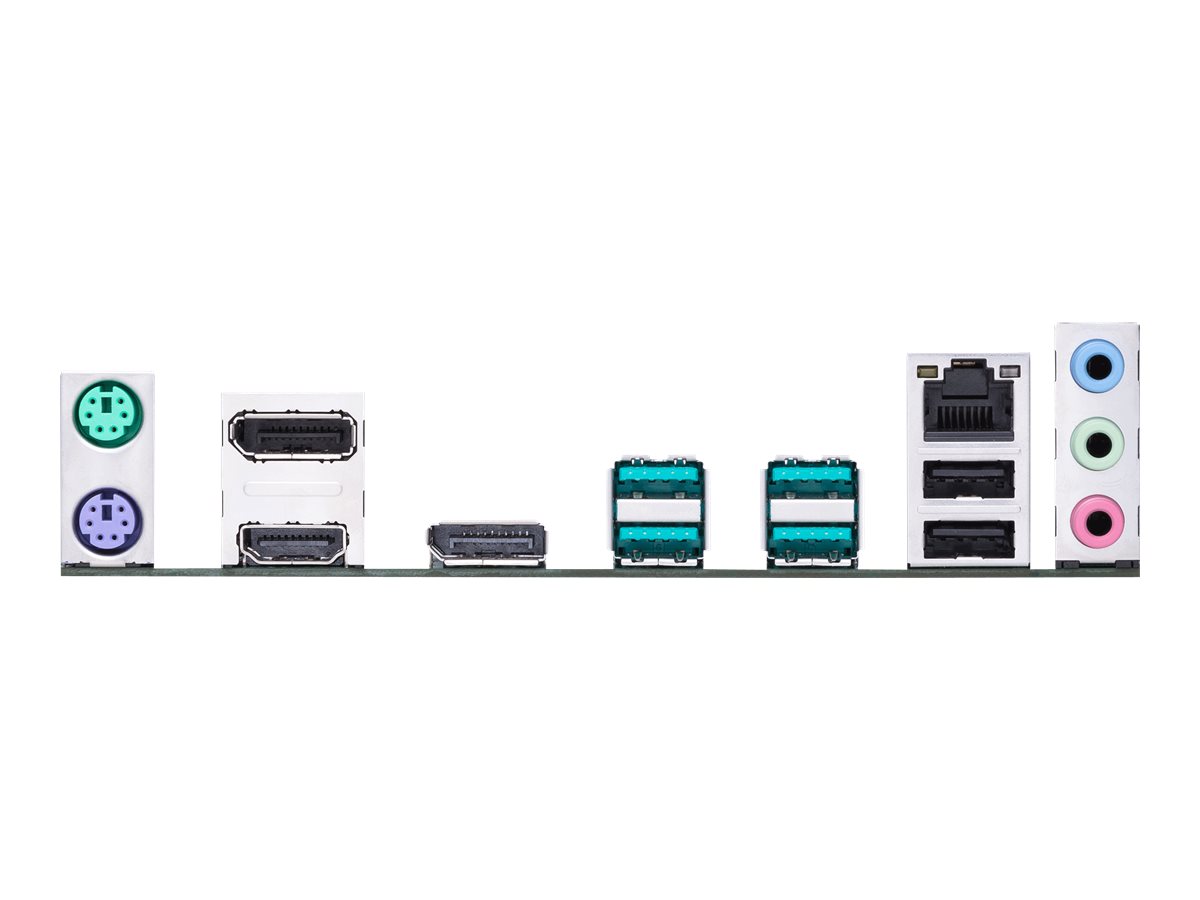

| Interfaces | 1 x HDMI | 2 x DisplayPort | 1 x LAN (Gigabit Ethernet) | 4 x USB 3.2 Gen 2 | 2 x USB 2.0 | 1 x PS/2 keyboard | 1 x PS/2 mouse | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C Gen 1 - header | 1 x audio - header | 2 x serial - header | 1 x parallel - header | 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Features | Intel Rapid Storage Technology |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID | PCIe 4.0 -connectors: 1 x M.2 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Features | |
| BIOS Features | UEFI BIOS |
| Hardware Features | Jack retasking, ASUS EZ DIY, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), Intel Optane Memory Ready, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, ASUS Self Recovering BIOS, ASUS Event Log |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Miscellaneous | |

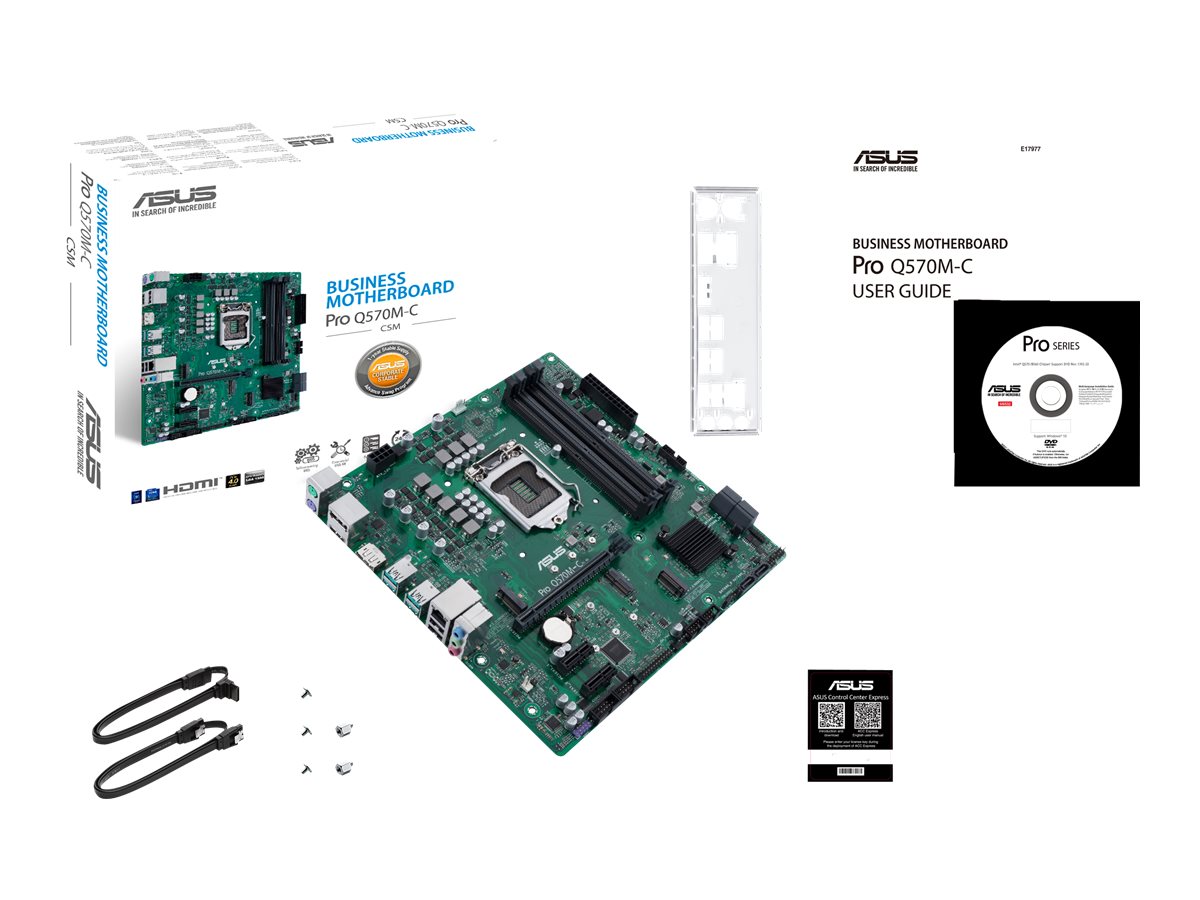

| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | DisplayPort 1.4 |
| Depth | 24.4 cm |

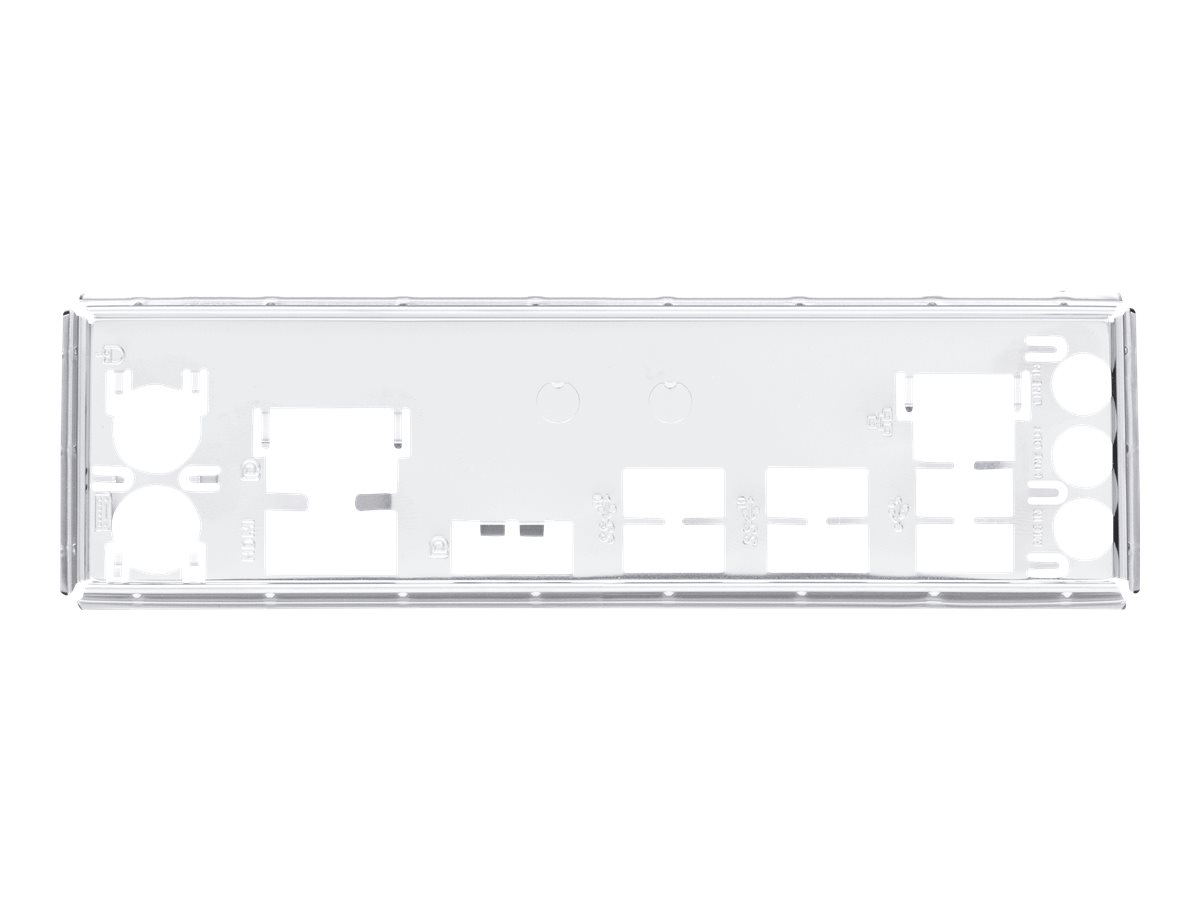

| Included Accessories | I/O back cover, 2 x M.2 screws |
| Software Included | Drivers & utilities |
| Width | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
