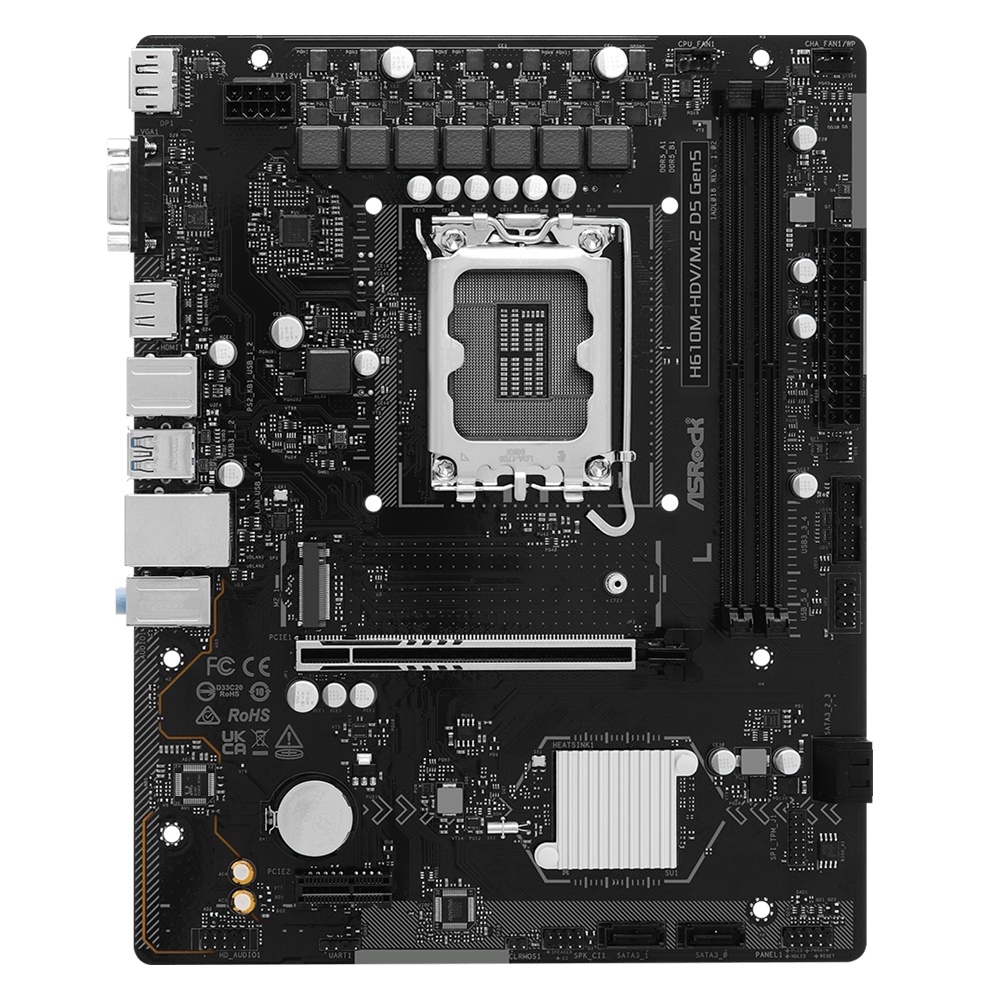

ASRock H610M-HDV/M.2 D5 Gen5 mATX LGA1700

ASRock H610M-HDV/M.2 D5 Gen5 - mATX - Socket LGA1700 - 2x DDR5 slots - HDMI 2.1, DisplayPort 1.4, VGA - Realtek 8111H Gigabit Lan

  • Product no 1003891689

    Model 90-MXBTU0-A0UAYZ

    Brand
    Go to brand's website

    EAN 4711581492431

    Weight 0.77 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Power Phase 6+1+1
CPU Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
Chipset Intel® H610
Memory 2x DDR5 DIMM Slots, Dual Channel DDR5
Memory Support Supports DDR5 ECC/non-ECC, un-buffered memory up to 5600, Max 128GB
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Display output 1x HDMI 2.1, 1x DisplayPort 1.4 with DSC, 1x D-Sub
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN Realtek 8111H, Gigabit LAN
Slots 1x PCIe 5.0 x16 Slot, supports x16 mode, 1x PCIe 3.0 x1 Slot
Storage 1x Ultra M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode, 4x SATA3 6.0 Gb/s
USB 4x USB 3.2 Gen1 (2 Rear, 2 Front), 6x USB 2.0 (4 Rear, 2 Front)

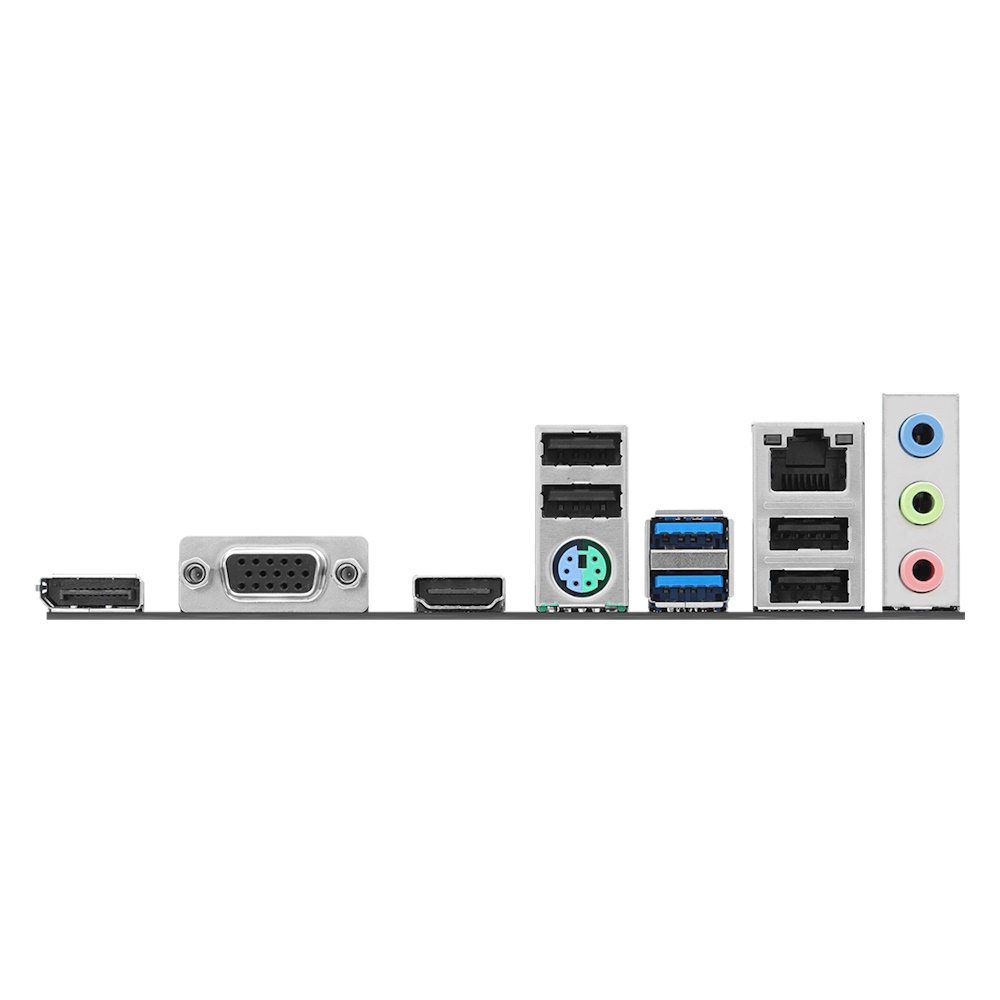

Rear Panel I/O 1x PS/2 Mouse/Keyboard Port, 1x D-Sub Port, 1x HDMI Port, 1x DisplayPort 1.4, 2x USB 3.2 Gen1 Ports, 4x USB 2.0 Ports, 1x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories 1x I/O Shield, 2x SATA Data Cables, 1x Screw for M.2 Socket
Form Factor Micro ATX Form Factor (24.4 cm x 19.3 cm)
