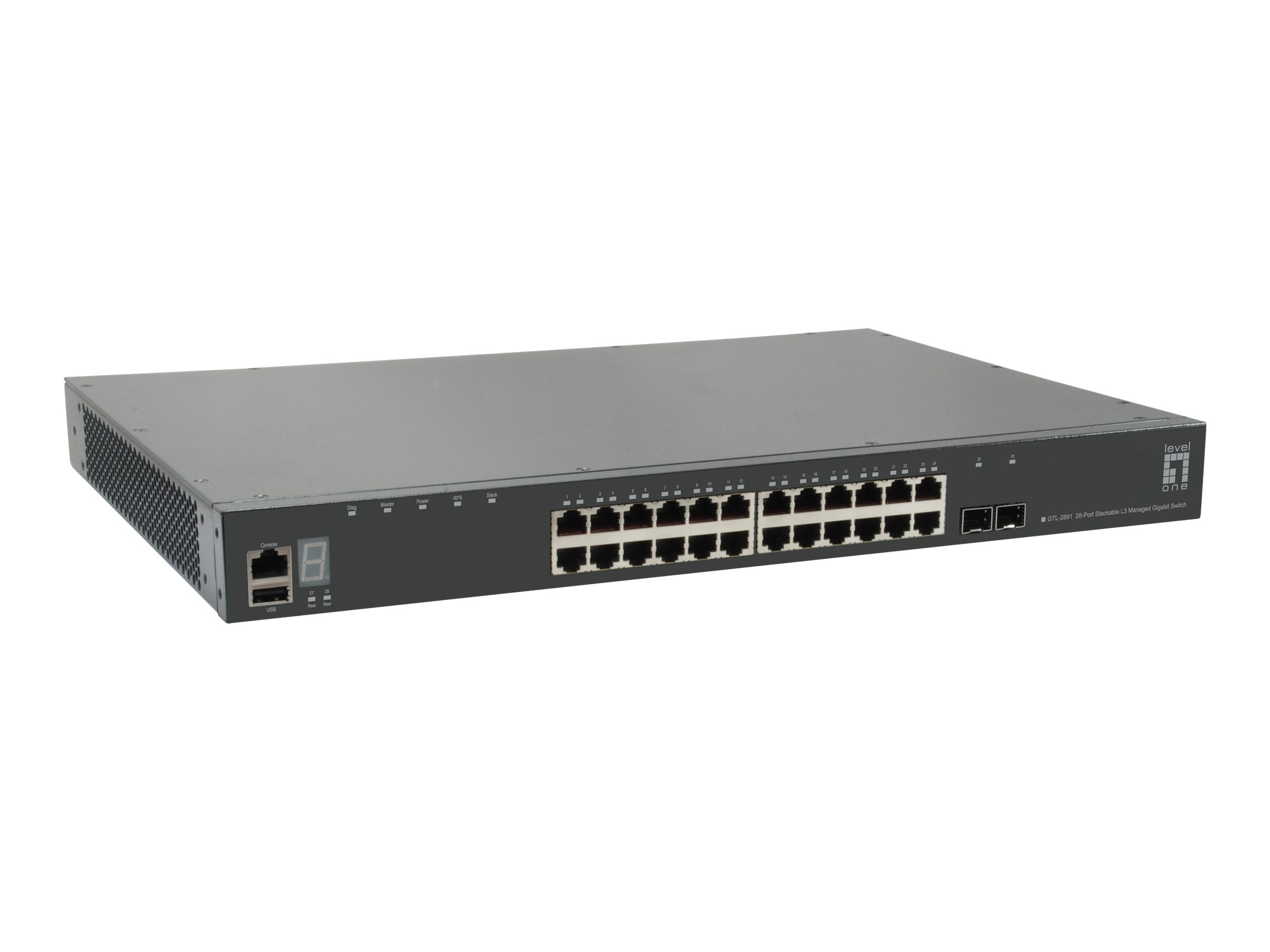

LevelOne GTL-2891 Switch 28-porte Gigabit

LevelOne GTL-2891 - Switch - L3 - Administreret - 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink) - monterbar på stativ

  • Product no 992042384

    Model GTL-2891

    Brand LevelOne

    EAN 4015867199015

    Weight 3.7 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Switch-type Administreret
Basis omskiftning RJ-45 Ethernet porte, antal 24
Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
Antal installerede SFP moduler 0
Antal installerede SFP+ moduler 0
Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G understøttelse Ja
MAC adresselabel 16000 entries
Switch kapacitet 128 Gbit/sek.
Stativ-montering Ja
Stabelbar Ja
Strøm over Ethernet (PoE) Ingen
General
Capacity Trunk groups: 16
Compliant Standards IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), ITU-T Y.1731
Device Type Switch - 28 ports - L3 - managed
Enclosure Type Rack-mountable 1U
Features Auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, stackable, IPv6 support, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Per-VLAN Spanning Tree (PVST), PIM-SM snooping, Virtual Route Redun
Flash Memory 128 MB
Jumbo Frame Support 10KB
MAC Address Table Size 16K entries
Performance Switching capacity: 128 Gbps | Forwarding performance: 95.23 Mpps
Ports 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink)
RAM 512 MB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, SNMP 3, SNMP 2c, HTTP, CLI
Routing Protocol IGMPv2, IGMP, IGMPv3
Status Indicators Power, RPS (Redundant Power Supply), diagnostic, master, stack
Subtype Gigabit Ethernet
Expansion / Connectivity
Expansion Slots 1 SFP+
Interfaces 24 x 1000Base-T RJ-45 | 2 x SFP+ | 1 x USB | 1 x console RJ-45
Power
Power Device Internal power supply
Power Provided 35 Watt
Voltage Required AC 120/230 V (50 - 60 Hz)
Miscellaneous
Cables Included 1 x console cable
Compliant Standards UL, CB, FCC, RoHS, WEEE
Included Accessories Rubber feet
Rack Mounting Kit Included
Dimensions & Weight
Depth 31.5 cm
Height 4.4 cm
Weight 3.7 kg
Width 44 cm
Environmental Parameters
Humidity Range Operating 10 - 90% (non-condensing)
Humidity Range Storage 10 - 90% (non-condensing)
Max Operating Temperature 45 °C
Max Storage Temperature 70 °C
Min Operating Temperature 0 °C
Min Storage Temperature -40 °C
