StarTech.com HPE 3CSFP91 Compatible SFP Module - 1000BASE-SX - 1GE SFP 1GbE Multi Mode Fiber Optic Transceiver - 550m DDM SFP (mini-GBIC) transceiver modul Gigabit Ethernet
Startech HPE 3CSFP91 Compatible SFP Module, 1000BASE-SX, 1GbE Multi Mode (MMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 550m, 850nm, DDM, HPE 3812, 3824, 3848 - Lifetime Warranty (3CSFP91ST) - SFP (mini-GBIC) transceiver modul (svarende til: HP 3CSFP91) - 1GbE - 1000Base-SX - LC multimodus - op til 550 m - 850 nm
-
Product no 993093320
Model 3CSFP91ST
Brand StarTech.com
EAN 0065030868563
Weight 0.48 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Startech HPE 3CSFP91 Compatible SFP Module, 1000BASE-SX, 1GbE Multi Mode (MMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 550m, 850nm, DDM, HPE 3812, 3824, 3848 - Lifetime Warranty (3CSFP91ST) - SFP (mini-GBIC) transceiver modul - 1GbE |
| Enhedstype | SFP (mini-GBIC) transceiver modul - LC multimodus |
| Model | Indstiksmodul |
| Kabeltype | 1000Base-SX |
| Dataoverførselshastighed | 1.25 Gbps |
| Optisk bølgelængde | 850 nm |
| Dataforbindelsesprotokol | 1GbE |
| Maks. overføringsafstand | 550 m |
| OEM-producentækvivalent delnummer | HP 3CSFP91 |
| Dimensioner (B x D x H) | 1.37 cm x 5.66 cm x 1.25 cm |
| Vægt | 28 g |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Color | Silver |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Cabling Type | 1000Base-SX |
| Compliant Standards | IEEE 802.3z |
| Connectivity Technology | Wired |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1.25 Gbps |
| Features | Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM) |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 850 nm |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode female x 2 |
| Miscellaneous | |
| Compliant Standards | UL, FCC, RoHS, MSA |
| OEM Manufacturer Equivalent Part Number | HP 3CSFP91 |
| Dimensions & Weight | |
| Depth | 5.66 cm |
| Height | 1.25 cm |
| Weight | 28 g |
| Width | 1.37 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
.jpg)
.jpg)
.jpg)
.jpg)

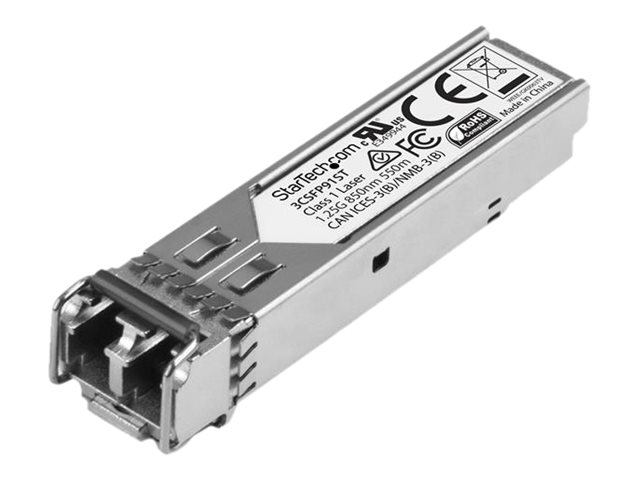

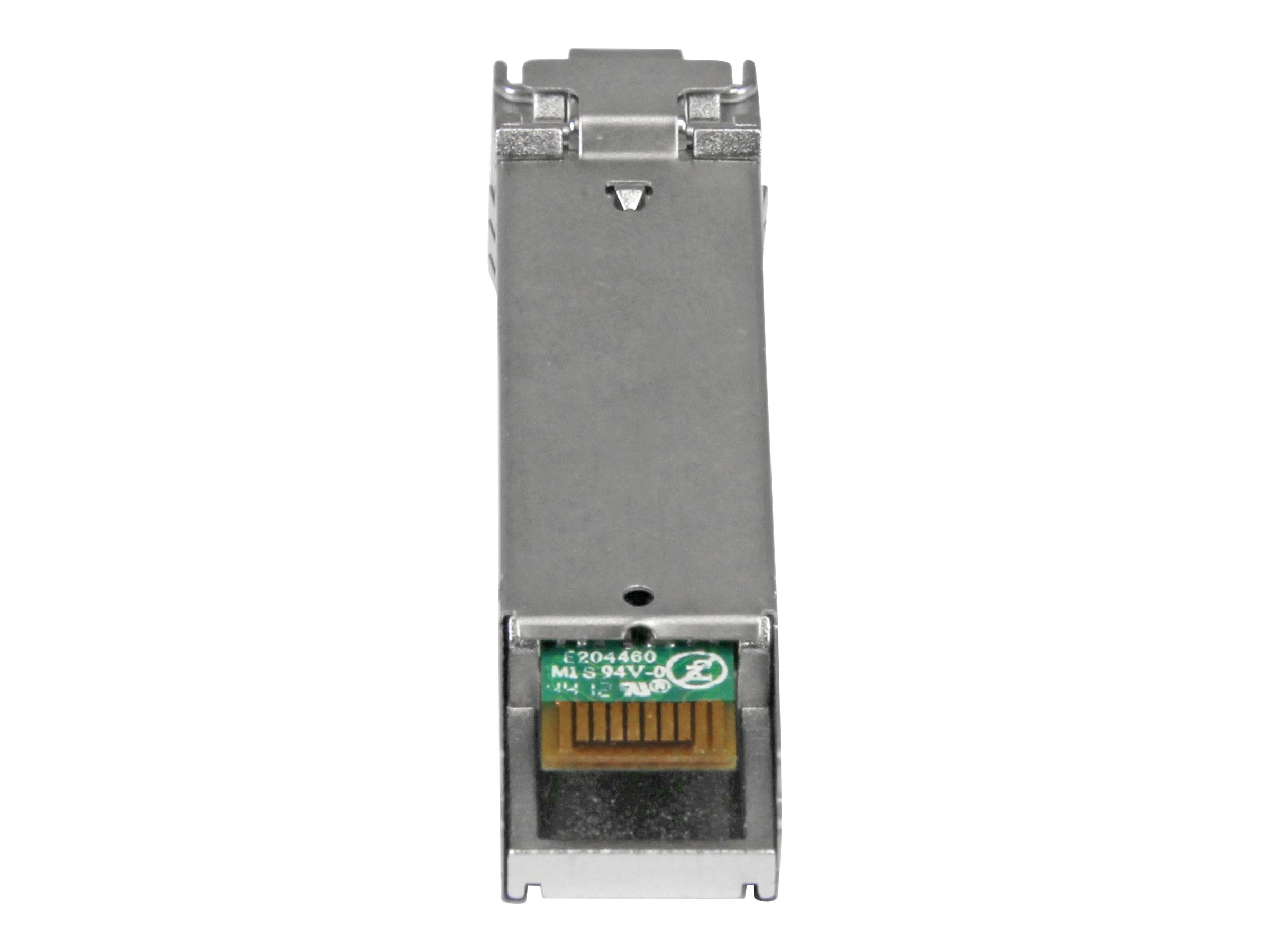

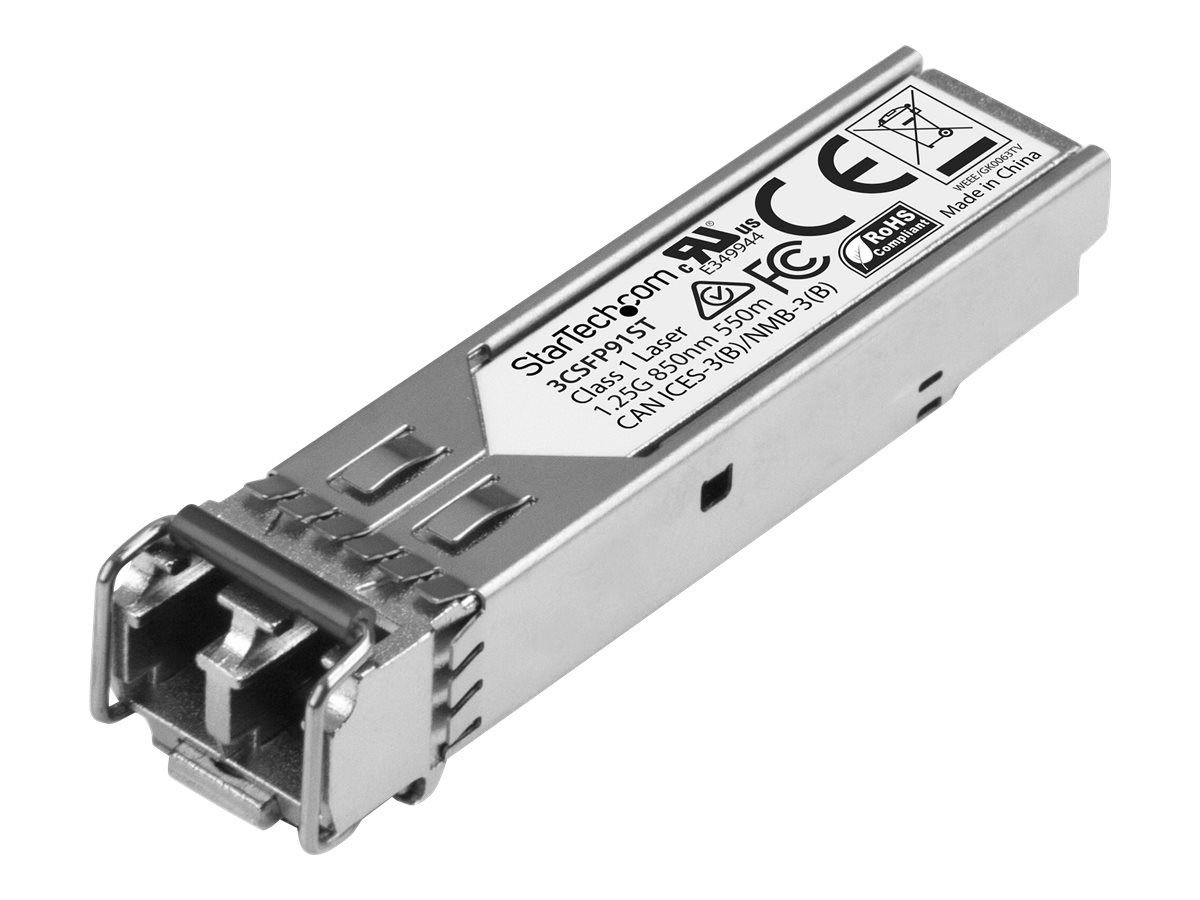

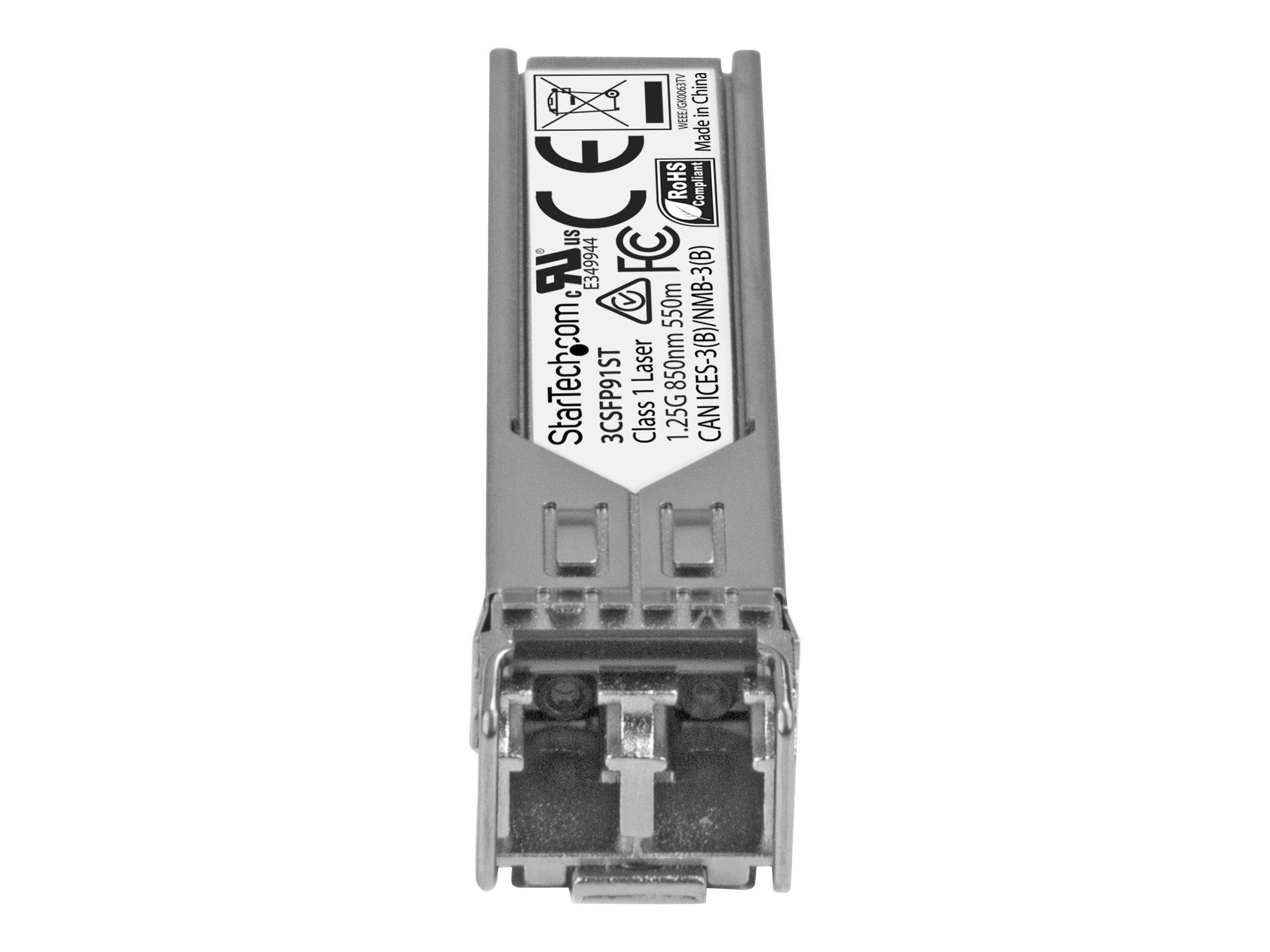

The 3CSFP91ST is an HP 3CSFP91 compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
- Wavelength: 850nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550 m (1804 ft)
- MTBF: 3,381,761 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
