StarTech.com mSATA to SATA HDD / SSD Adapter - Mini SATA to SATA Converter Card - mSATA to SATA 2.5/3.5 Hard Drive Adapter Converter Card (MSAT2SAT3) Lagringskontrol

Startech mSATA to SATA HDD / SSD Adapter - Mini SATA to SATA Converter Card - mSATA to SATA 2.5/3.5 Hard Drive Adapter Converter Card (MSAT2SAT3) - Lagringskontrol - 1 Kanal - mSATA - SATA 6Gb/s

  • Product no 988493452

    Model MSAT2SAT3

    Brand StarTech.com

    EAN 0065030854825

    Weight 0.02 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Startech mSATA to SATA HDD / SSD Adapter - Mini SATA to SATA Converter Card - mSATA to SATA 2.5/3.5 Hard Drive Adapter Converter Card (MSAT2SAT3) - lagringskontrol - mSATA - SATA 6Gb/s
Enhedstype Lagringskontrol - intern
Bustype SATA 6Gb/s
Interface mSATA
Dataoverførselshastighed 6 Gbit/s
Understøttede enheder Harddisk, solid state drev
Antal kanaler 1
Dimensioner (B x D x H) 3 cm x 5.1 cm x 0.8 cm
Vægt 60 g
Producentgaranti 2 års garanti
General
Device Type Storage controller - internal
Host Bus SATA 6Gb/s
Storage Controller
Channel Qty 1
Data Transfer Rate 6 Gbit/s
Interface mSATA
Supported Devices Hard drive, solid state drive
Expansion / Connectivity
Connections 1 x SATA 6Gb/s - 7 pin Serial ATA
Interfaces 1 x - mSATA
Miscellaneous
Compliant Standards RoHS
Mounting Kit Included
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Dimensions & Weight
Depth 5.1 cm
Height 0.8 cm
Weight 60 g
Width 3 cm
Environmental Parameters
Humidity Range Operating 20 - 80%
Max Operating Temperature 50 °C
Min Operating Temperature 5 °C
Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image

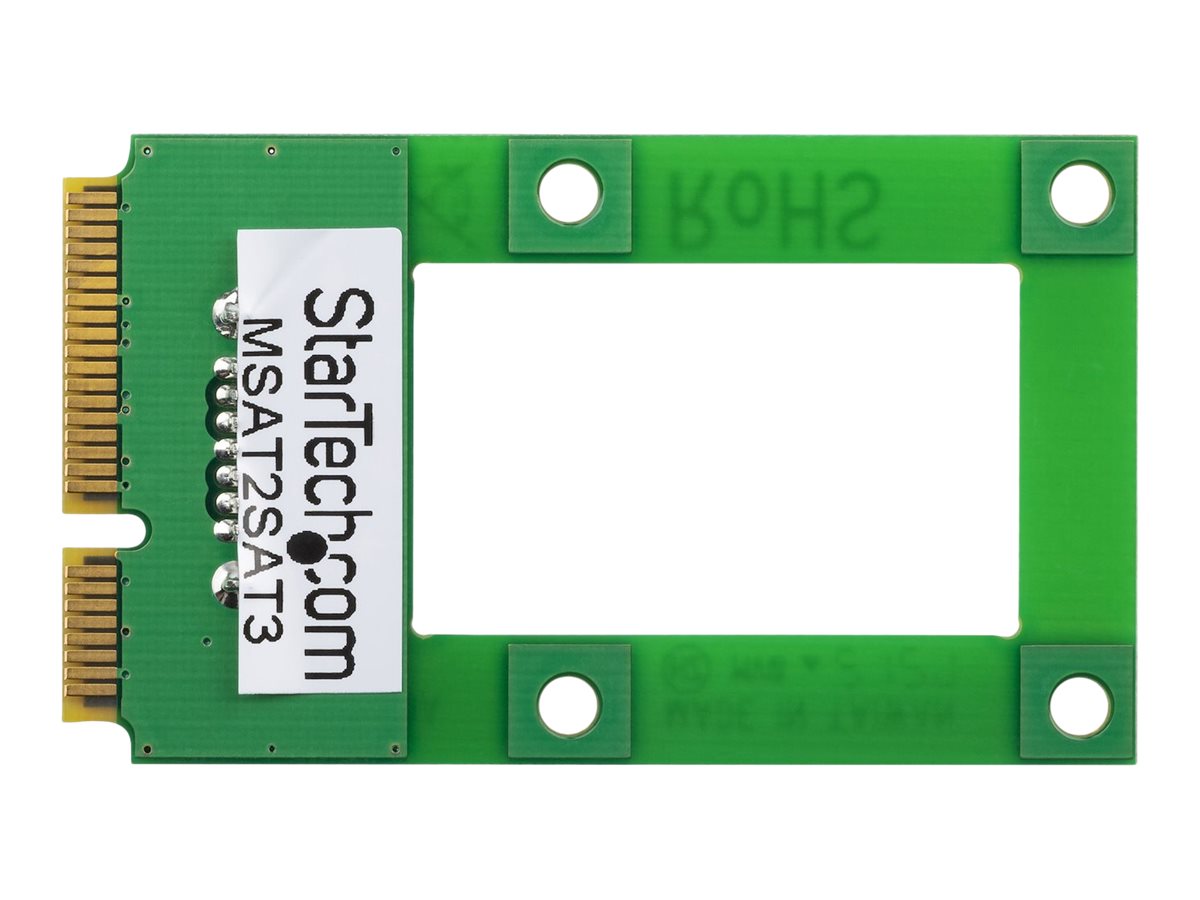

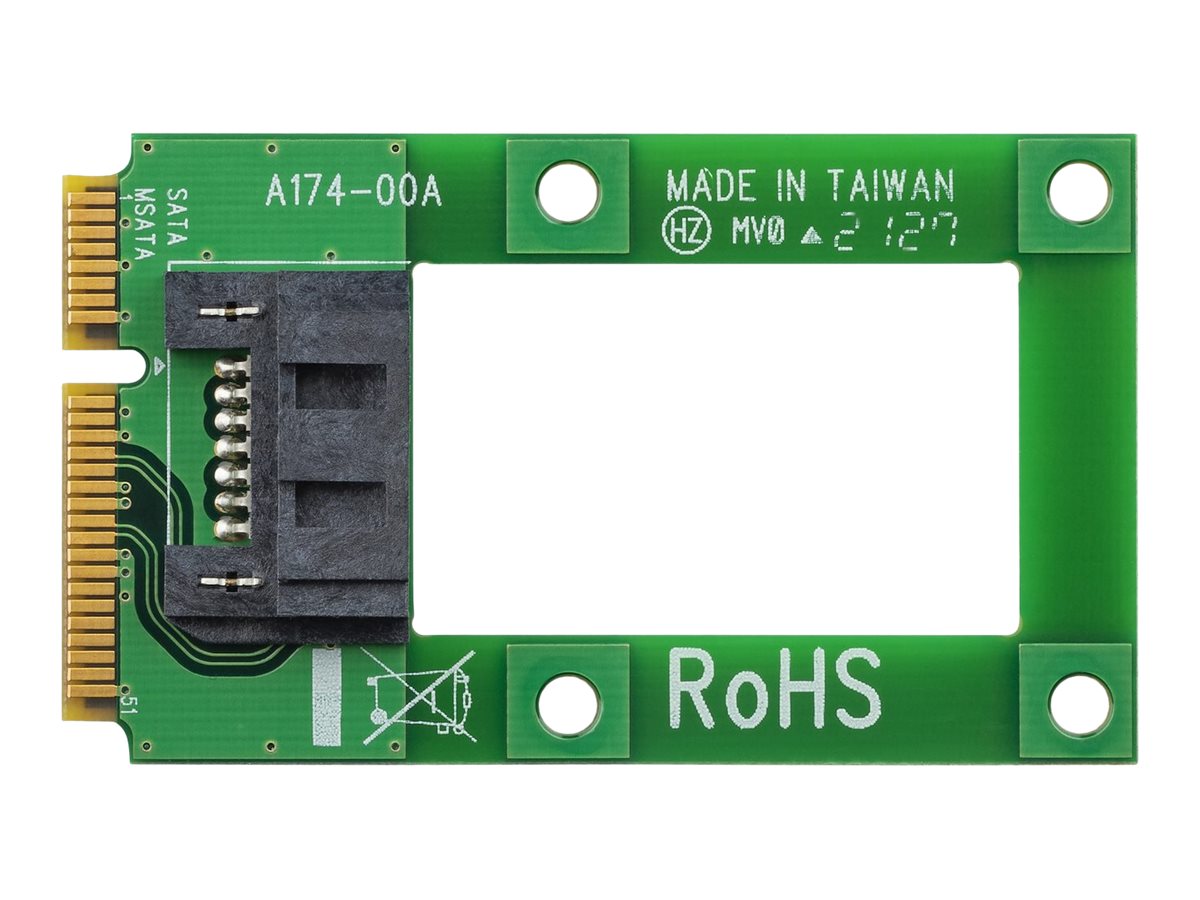

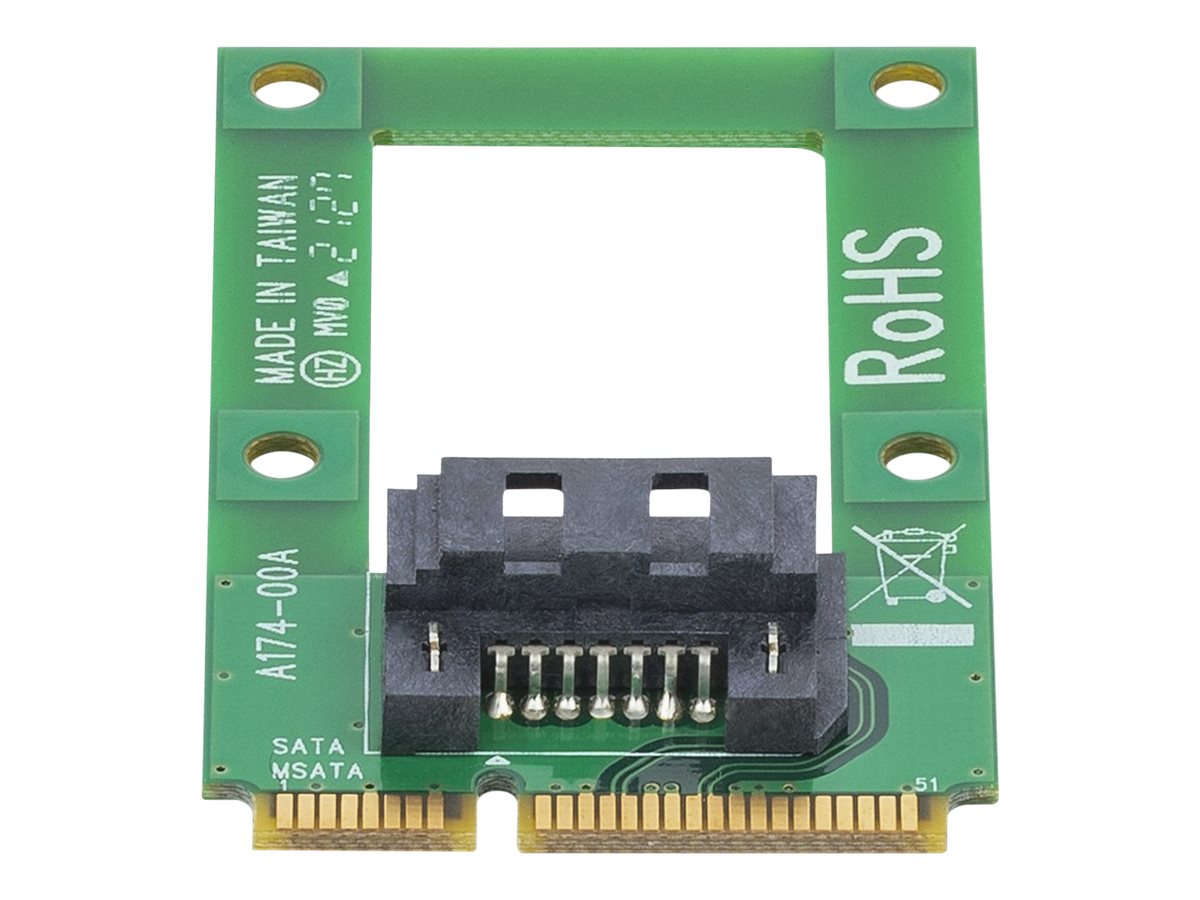

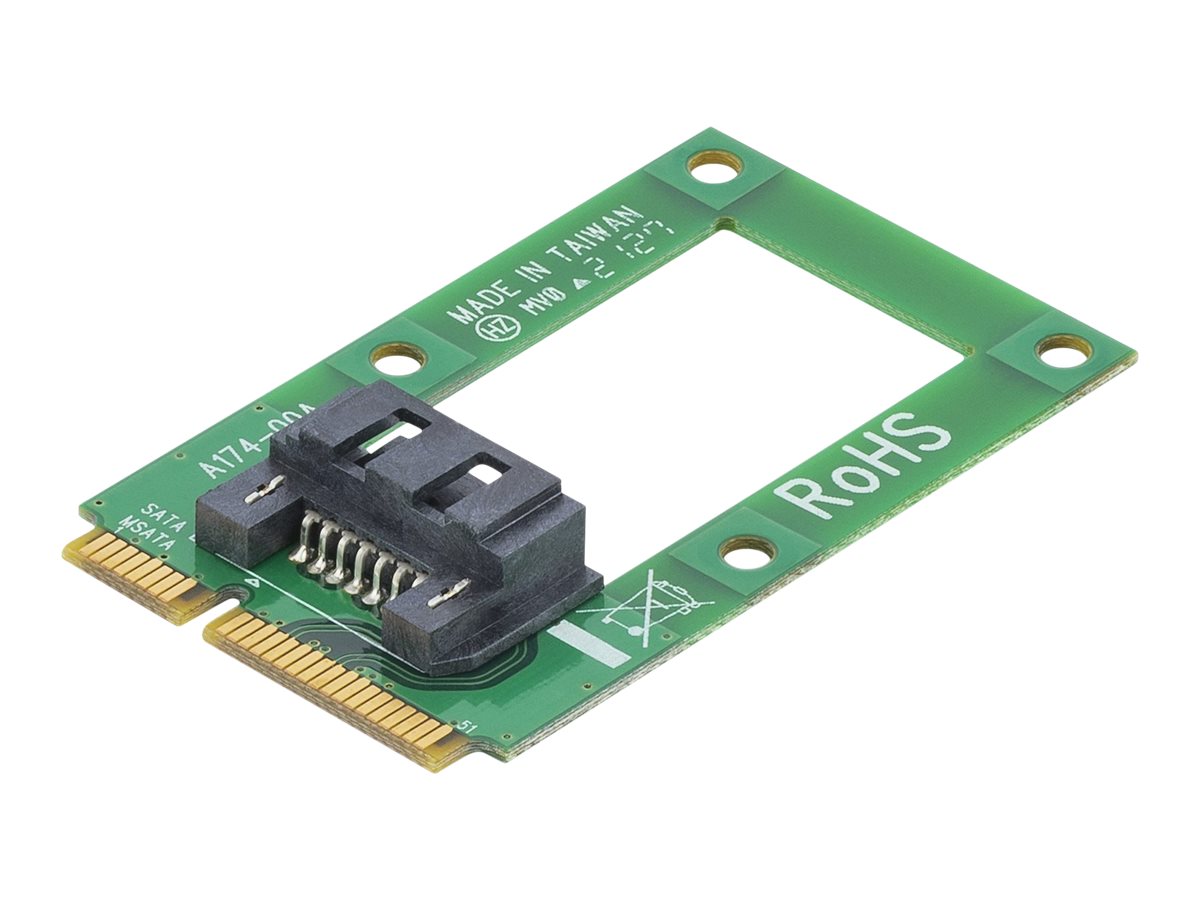

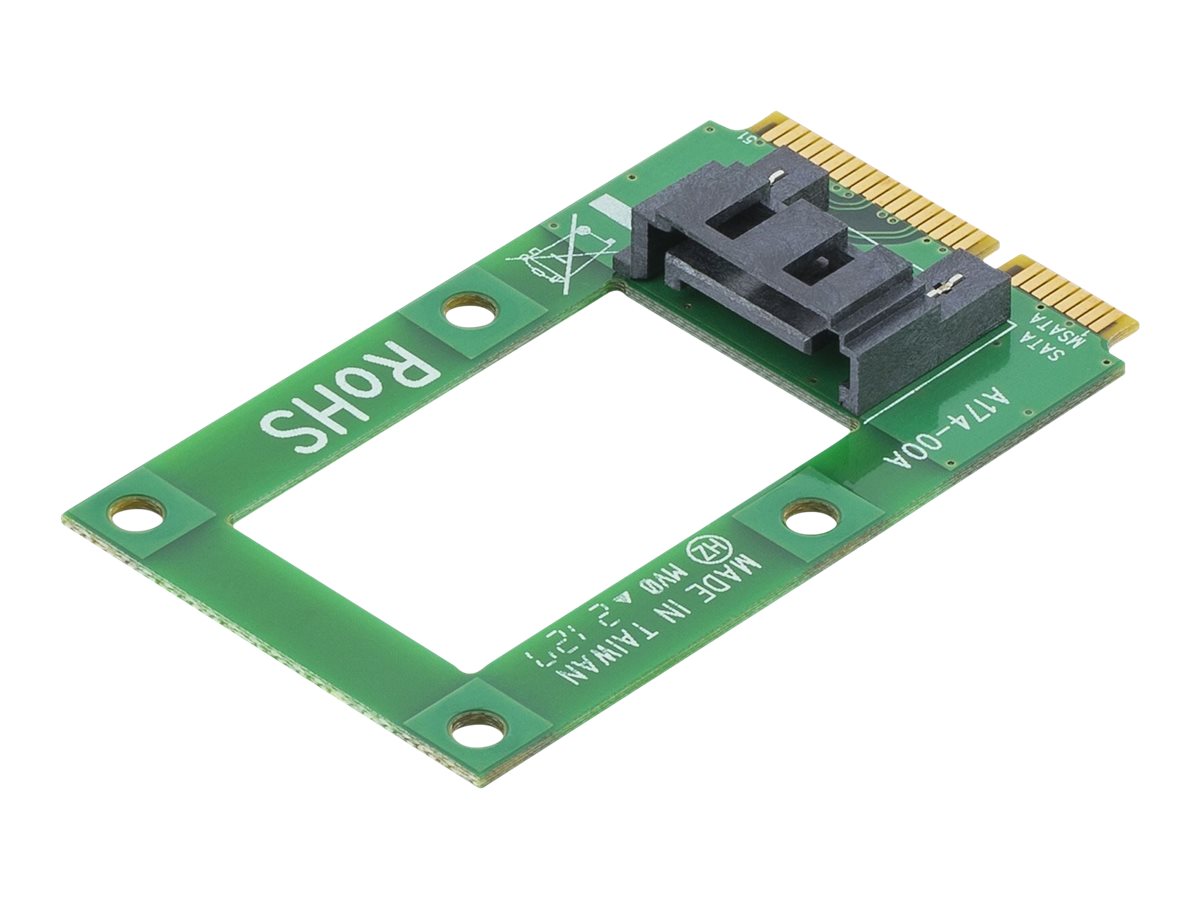

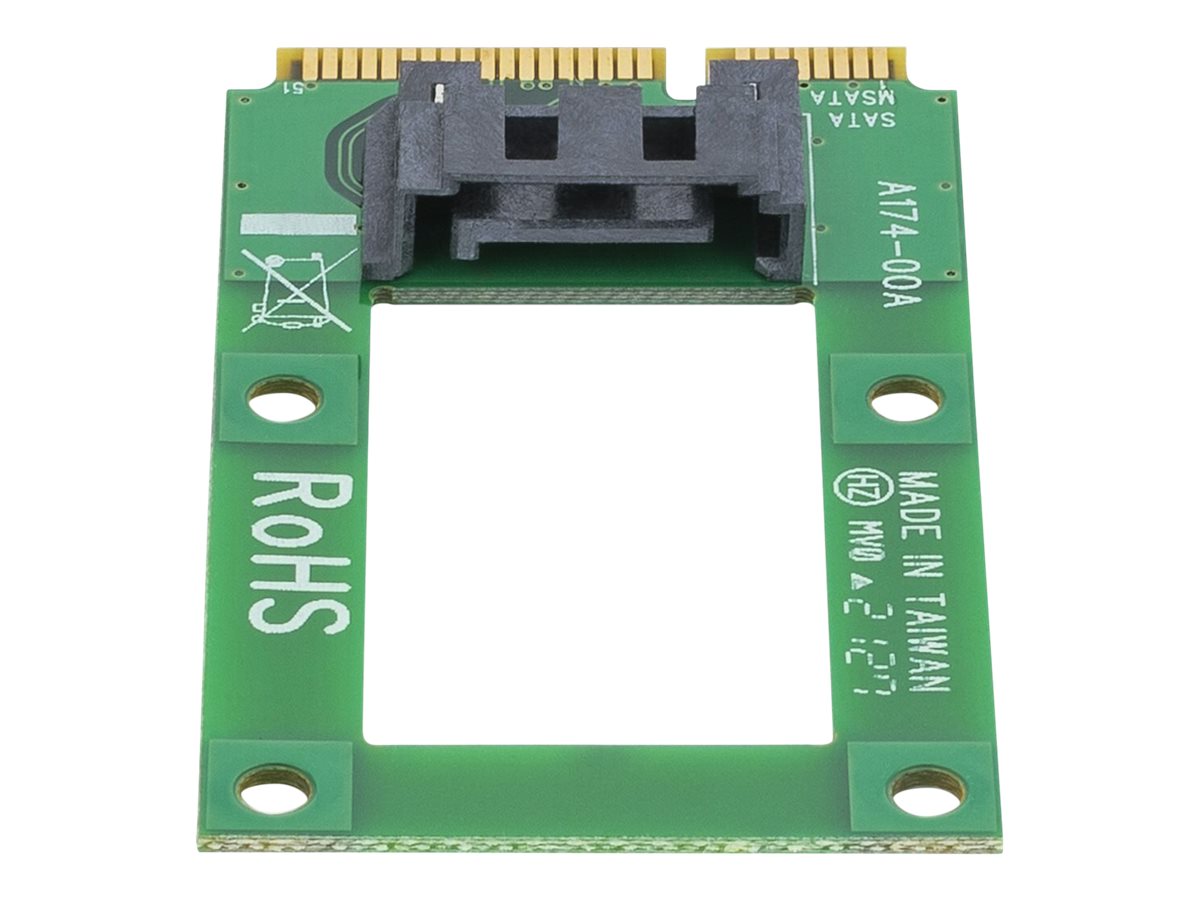

The MSAT2SAT3 mSATA to SATA adapter enables you to connect a standard SATA drive to an available mSATA port.

The adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive (tested up to 4 TB). For guaranteed compatibility and performance the adapter is compliant with SATA I/II/III revisions, allowing for transfer speeds up to 6 Gb per second.

The MSAT2SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product image
