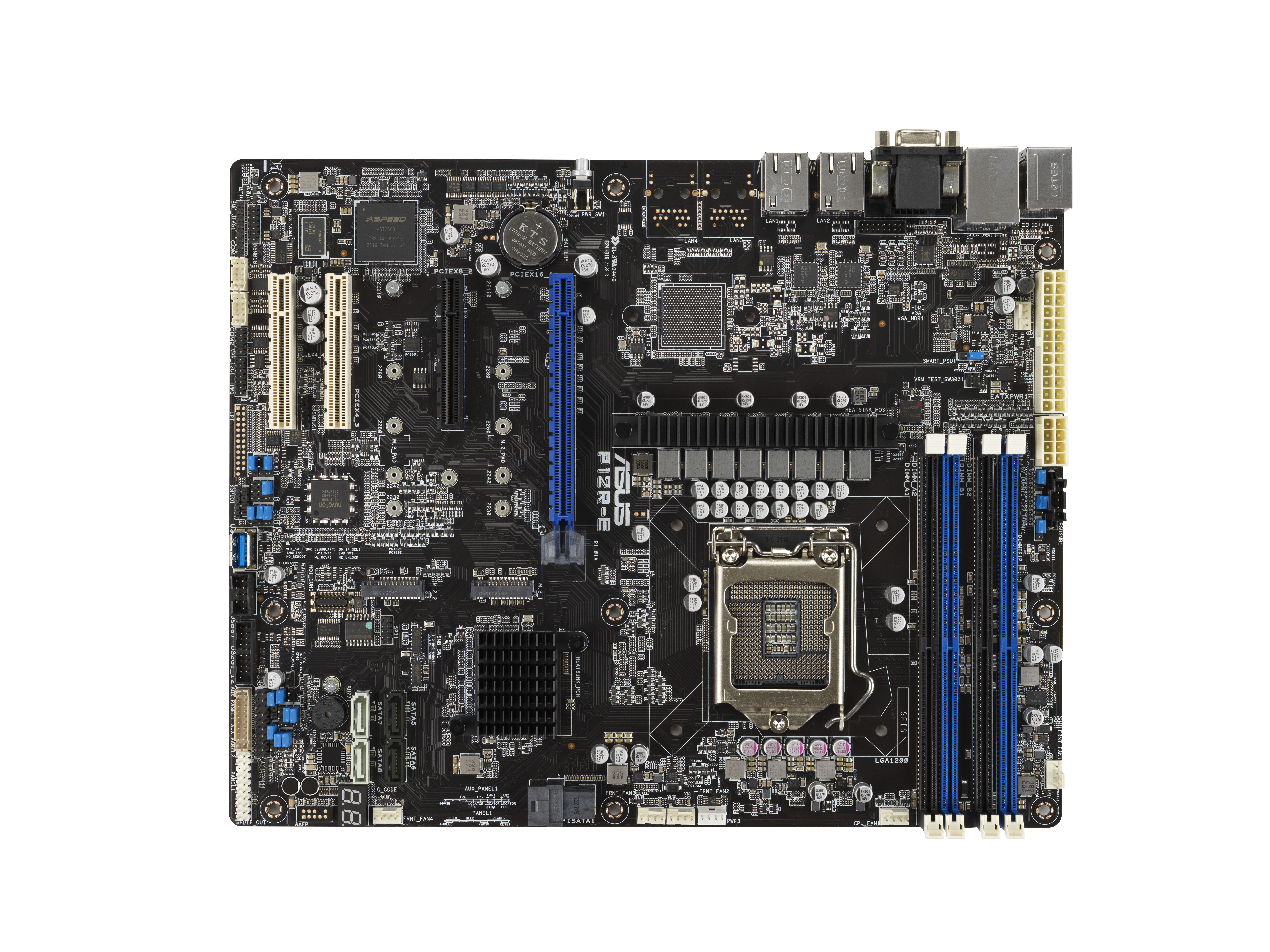

ASUS P12R-E ATX LGA1200 Intel C256
ASUS P12R-E - Bundkort - ATX - LGA1200 sokkel - C256 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - 2 x 10 Gigabit LAN - onboard grafik
-
Product no 1000207396
Model 90SB0A90-M0UAY0
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4711081420217
Weight 1.47 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Processorproducent | Intel |
| Processor sokkel | LGA 1200 (Socket H5) |
| Kompatibel processor serie | Intel® Pentium®, Intel Xeon E |
| Understøttede hukommelsestyper | DDR4-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 128 GB |
| Understøttede lagerdrev brugerflader | M.2, SATA III |
| USB 2.0-stik | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 1 |
| Antal SATA III-stik | 8 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 2 |
| Ethernet LAN-porte (RJ-45) | 2 |
| Antal VGA-porte (D-sub) | 1 |
| Antal HDMI-porte | 1 |
| Antal DVI-D-porte | 0 |
| Wi-Fi | Ingen |
| Komponent til | Server |
| Motherboard form faktor | ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel C256 |
| General | |
|---|---|
| Chipset Type | Intel C256 |
| Compatible Processors | Pentium, Xeon E |
| Max Processors Qty | 1 |
| Processor Socket | LGA1200 Socket |
| Product Type | Motherboard - ATX |
| Supported RAM | |
| Bus Clock | 2666 MHz, 2933 MHz, 3200 MHz |
| Features | Dual channel memory architecture |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Technology | DDR4 |
| Graphics | |
| Dedicated Video Memory | 64 MB |
| Graphics Controller | ASPEED AST2600 |
| LAN | |
| Network Controller | 2 x Intel I210AT |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied)) | 1 x PCIe 4.0 x8 | 2 x PCIe 3.0 x8 (x4 mode) |
| Interfaces | 2 x LAN (Gigabit Ethernet) | 1 x management | 1 x HDMI | 1 x VGA | 1 x PS/2 keyboard / mouse | 2 x USB 3.2 Gen 1 | 2 x USB 3.1 Gen 2 |
| Internal Interfaces | 1 x serial - header | 2 x USB 3.2 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin SATA, 1 x mini-SAS HD - 8 devices | SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |
| Miscellaneous | |
| Depth | 24.4 cm |
| Included Accessories | I/O back cover |
| Weight | 760 g |
| Width | 30.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 1.3 kg |
