Chieftec Mesh Series CW-01B-OP Tower ATX Sort
Chieftec Mesh Series CW-01B-OP - Tower - ATX - ingen strømforsyning (ATX) - sort - USB/Lyd
-
Product no 996197990
Model CW-01B-OP
Brand Chieftec Industrial
EAN 0753263076977
Weight 9.43 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Chieftec Mesh Series CW-01B-OP - tower - ATX |
| Produkttype | Systemkabinet |
| Model | Tower |
| Farve | Sort |
| I/O-kontakter | 2 x USB 3.1 Gen 1<br>1 x audio linje-ud<br>1 x mikrofon |
| Understøttede motherboards | ATX, microATX, Mini-ITX |
| Egenskaber, systemkabinet | Front støvfilter, understøtter 280 mm radiator i toppen, bundmagnetisk støvfilter, topmagnetisk støvfilter |
| Strømenhed | Ingen strømforsyning (ATX) |
| Dimensioner (B x D x H) | 21 cm x 49 cm x 47.1 cm |
| Vægt | 6.8 kg |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Color | Black |
| Cooling System | Front: 120 mm fan mount x 2 | Rear: 120 mm fan mount x 1 | Top: 120/140 mm fan mount x 2 | Bottom: 120/140 mm fan mount x 1 |
| CPU Cooler Max Height | 165 mm |
| Form Factor | Tower |
| Front Accessible Bays Qty | 4 |
| Internal Bays Qty | 7 |
| Max Mainboard Size | ATX |
| Product Material | SPCC steel |
| Supported Motherboards | ATX, microATX, Mini-ITX |

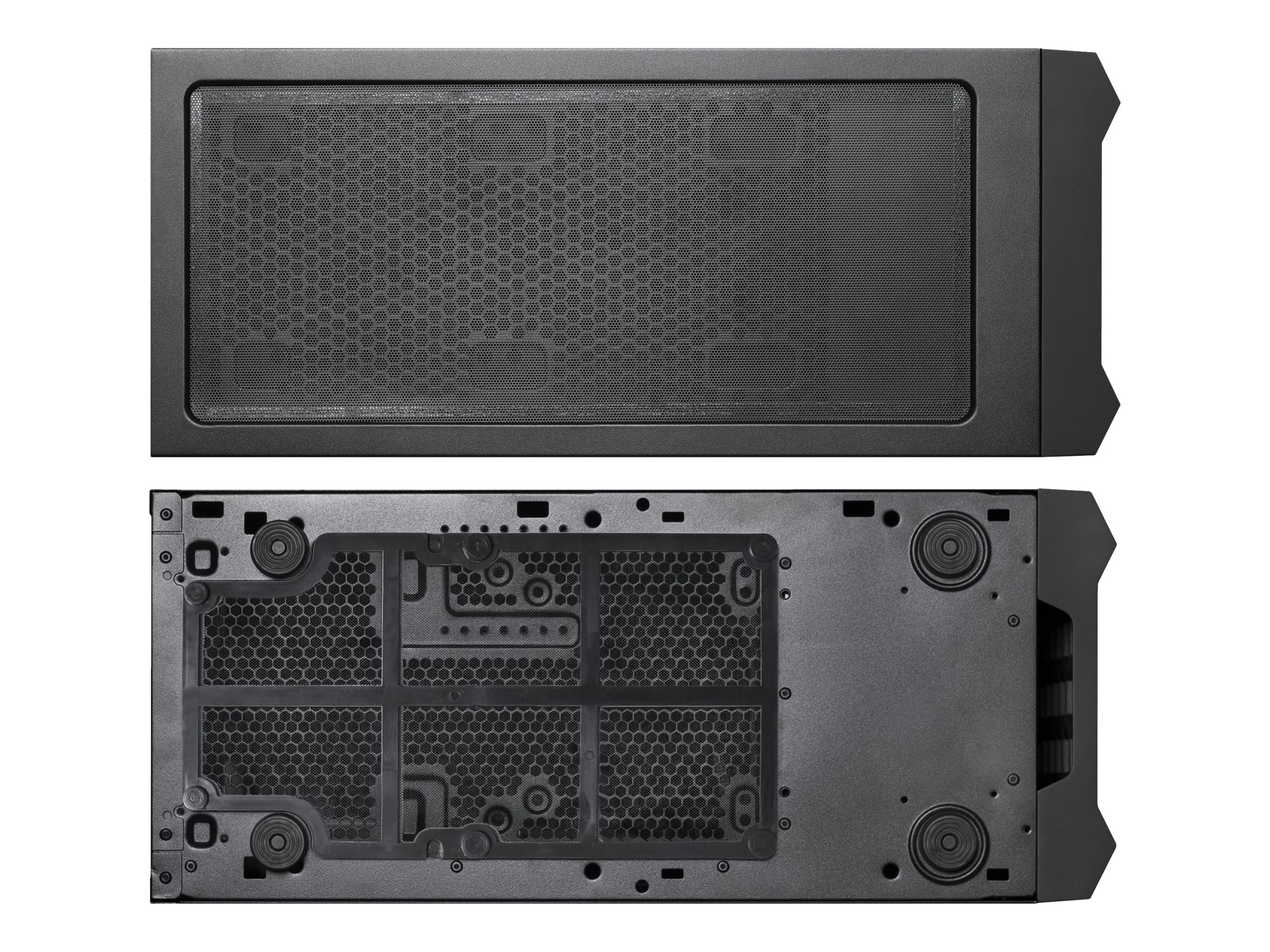

| System Cabinet Features | Front dust filter, supports 280 mm radiator in top, bottom magnetic dust filter, top magnetic dust filter |
| Video Card Max Length | 270 mm |
| Expansion / Connectivity | |

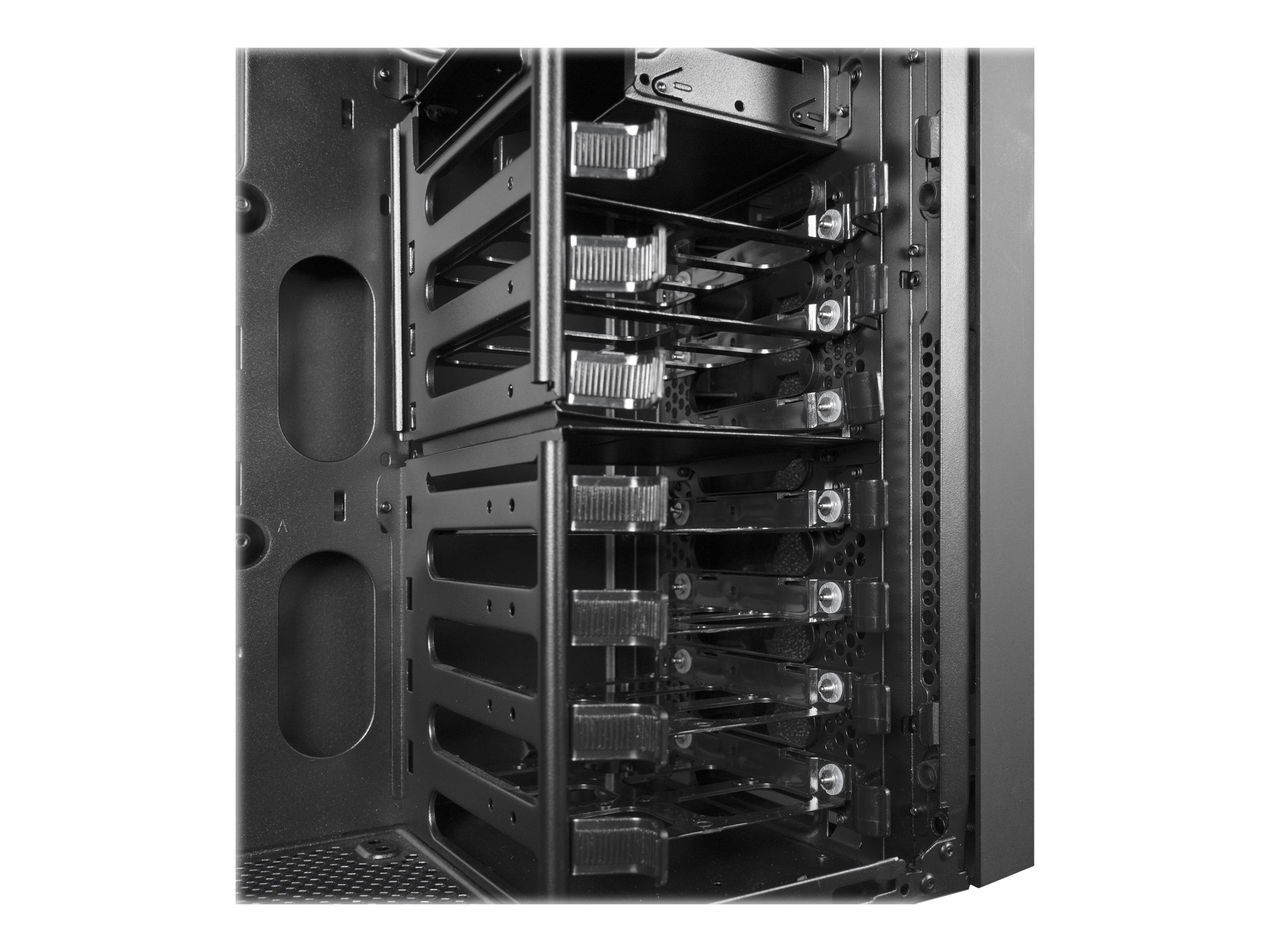

| Expansion Bays | 3 (total) / 3 (free) x front accessible - 5.25" | 1 (total) / 1 (free) x front accessible - 3.5" | 7 (total) / 7 (free) x internal - 2.5" / 3.5" shared |
| Expansion Slots | 7 |
| Interfaces | 2 x USB 3.1 Gen 1 | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Dimensions & Weight | |
| Depth | 49 cm |
| Height | 47.1 cm |
| Weight | 6.8 kg |
| Width | 21 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
