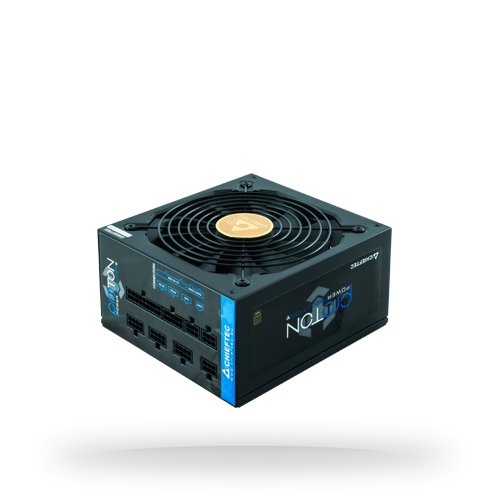

Chieftec Proton Series BDF-850C 850Watt 80 PLUS Bronze
Chieftec Proton Series BDF-850C - Strømforsyning (intern) - ATX12V 2.3 - 80 PLUS Bronze - AC 115-230 V - 850 Watt - aktiv PFC
-
Product no 992661137
Model BDF-850C
Brand Chieftec Industrial
EAN 4710713231306
Weight 2.79 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Chieftec Proton Series BDF-850C - strømforsyning - 850 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.3 |
| 80 PLUS certificering | 80 PLUS Bronze |
| Indgangspænding | AC 115-230 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 850 Watt |
| Output Current | +5V - 22 A<br>+3.3V - 22 A<br>+12V1 - 70.5 A<br>-12V - 0.5 A<br>+5VSB - 3 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>9 x 15 pin Serial ATA strøm<br>3 x 4-PIN intern strøm<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>1 x 4-PIN mini-strømforsyningsforbinder |
| Kølesystem | 140 mm ventilator |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.7 cm |
| Miljømæssige standarder | ENERGY STAR |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.3 |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Bronze |
| Efficiency | 85% |
| Frequency Required | 50 - 60 Hz |
| Input Voltage | AC 115-230 V |
| Output Current | +5V - 22 A | +3.3V - 22 A | +12V1 - 70.5 A | -12V - 0.5 A | +5VSB - 3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 9 x 15 pin Serial ATA power | 3 x 4 pin internal power | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 4 x 8 pin PCI Express power with detachable 2 pin section | 1 x 4 pin mini-pow |
| Miscellaneous | |
| Compliant Standards | TUV, CB, RoHS, ERP |
| Cooling System | 140 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overload protection, undervoltage protection, short-circuit protection, DC-DC technology, fan speed control |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Depth | 14 cm |
| Height | 8.7 cm |
| Width | 15 cm |
