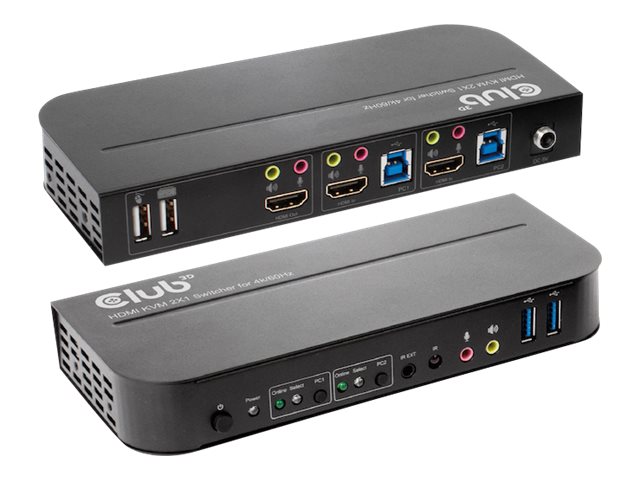

Club 3D CSV-1382 KVM / audio-switch Desktop
Club 3D CSV-1382 - KVM / audio-switch - 2 x KVM / audio - 1 lokalbruger - desktop - AC
-
Product no 1000476686
Model CSV-1382
Brand
EAN 8719214472245
Weight 0.78 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Antal kontrollerede computere | 2 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | HDMI |
| Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, HDMI, USB B |
| HD-type | 4K Ultra HD |
| Maksimal opløsning | 4096 x 2160 pixel |
| Stativ-montering | Ingen |
| Produktfarve | Sort |
| Indbygget skærm | Ingen |
| General | |
|---|---|
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Device Type | KVM / audio switch - 2 ports |
| Enclosure Type | Desktop |
| Features | HDCP compliant, 3D support, 4K resolution support, 2K resolution support, metal housing, 12-bit Deep Color support, 36-bit Deep Color support, HDR support, 4:4:4 chroma subsampling support, 4:4:2 chroma subsampling support |
| Keyboard / Mouse Interface | USB |
| KVM Local Users Qty | 1 local user |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Performance | Bandwidth per channel: 6 Gbps | Bandwidth: 18 Gbps |
| Ports | 2 x KVM / audio |
| Status Indicators | Power, select, online |
| Subtype | KVM |
| Expansion / Connectivity | |
| Interfaces | 1 x remote control (IrDA) mini-jack | 2 x microphone output mini-jack | 2 x audio input mini-jack | 2 x microphone input mini-jack | 2 x audio output mini-jack | 2 x HDMI input | 1 x HDMI output | 1 x mouse (USB) Type A | 1 x keyboard (USB) Type A | |
| Power | |
| Power Consumption Operational | 12 Watt |
| Power Device | External power adapter |
| Power Provided | DC 5 V |
| Voltage Required | AC |
| Miscellaneous | |
| Cables Included | 2 x USB-A to USB-B cable |
| Compliant Standards | FCC, RoHS, EMI, HDCP 2.2, HDCP 1.4 |

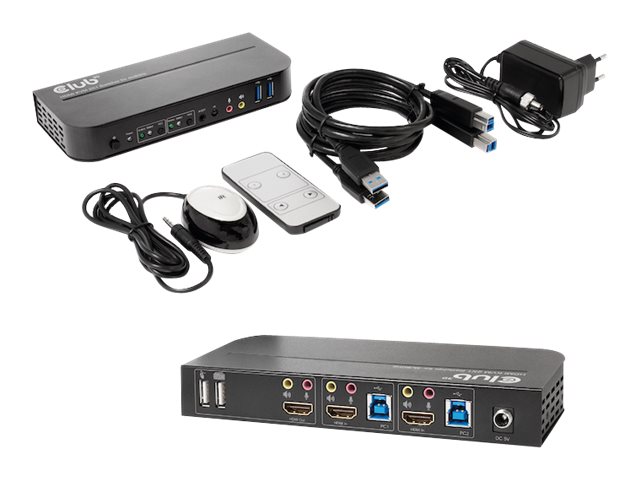

| Included Accessories | Remote control, IR extender |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Dimensions & Weight | |
| Depth | 7.5 cm |
| Height | 2.6 cm |
| Weight | 365 g |
| Width | 17.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 21 cm |
| Shipping Height | 6.5 cm |
| Shipping Weight | 783 g |
| Shipping Width | 23 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 80 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -10 °C |
