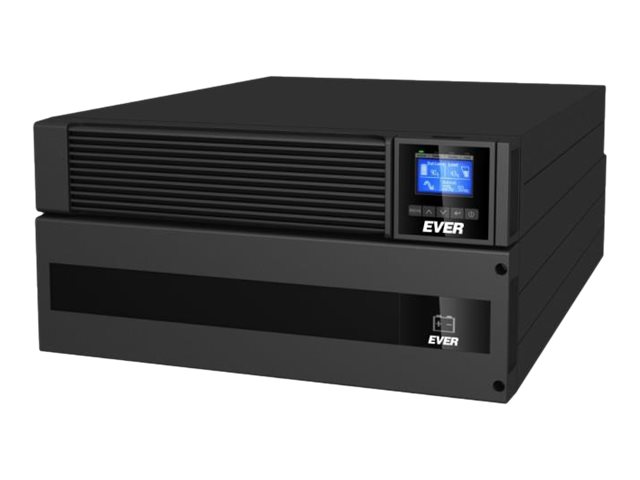

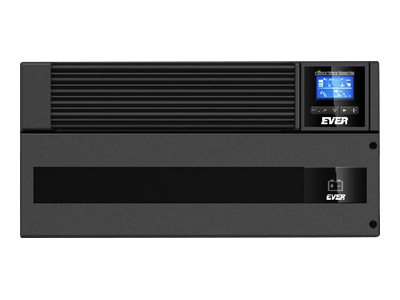

EVER Powerline RT 6000 UPS
EVER Powerline RT Plus 6000 - UPS (stativ-monterbar / ekstern) - AC 230 V - 6000 Watt - 6000 VA - 1-faset - uden batteri - RS-232, USB - output-stikforbindelser: 2 - 2U
-
Product no 994764280
Model T/PWPLRT-116K00/00
Brand Ever
EAN 5907683605995
Weight 13.3 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | EVER Powerline RT Plus 6000 - UPS - 6000 Watt - 6000 VA |
| Enhedstype | UPS - stativ-monterbar / ekstern |
| Rackstørrelse | 2U |
| Vægt | 13.3 kg |
| Indgangskabler | 1-faset |
| Indgangspænding | AC 230 V |
| Udgangspænding | AC 208/220/230/240 V ± 1% |
| Strømkapacitet | 6000 Watt / 6000 VA |
| Output-stikforbindelser | 2 x power IEC 60320 C13 |
| Batteri | Uden batteri |
| Netværk | RS-232, USB |
| Dimensioner (B x D x H) | 43.8 cm x 57.3 cm x 8.6 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 98% Eco mode, 95% double conversion mode |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Voltage | AC 230 V |
| Input Voltage Margin | ± 5% |
| Input Voltage Range | AC 110 - 275 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 208/220/230/240 V ± 1% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 6000 Watt / 6000 VA |
| Power Factor (PF) | 0.99 |
| Power Output Connectors Details | 2 x power IEC 60320 C13 |
| UPS Technology | On-line |
| Battery | |
| Type | No battery |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |

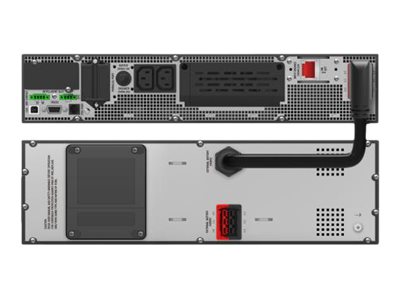

| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x USB - 4 pin USB Type B | 1 x EPO (emergency power off) |
| Miscellaneous | |
| Features | Emergency power off, LCD display, overcurrent protection, cooling fan, Eco-Mode |
| Software / System Requirements | |
| Software Included | PowerSoft Professional |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 57.3 cm |
| Height | 8.6 cm |
| Weight | 13.3 kg |
| Width | 43.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 76 cm |
| Shipping Height | 23 cm |
| Shipping Width | 58 cm |
