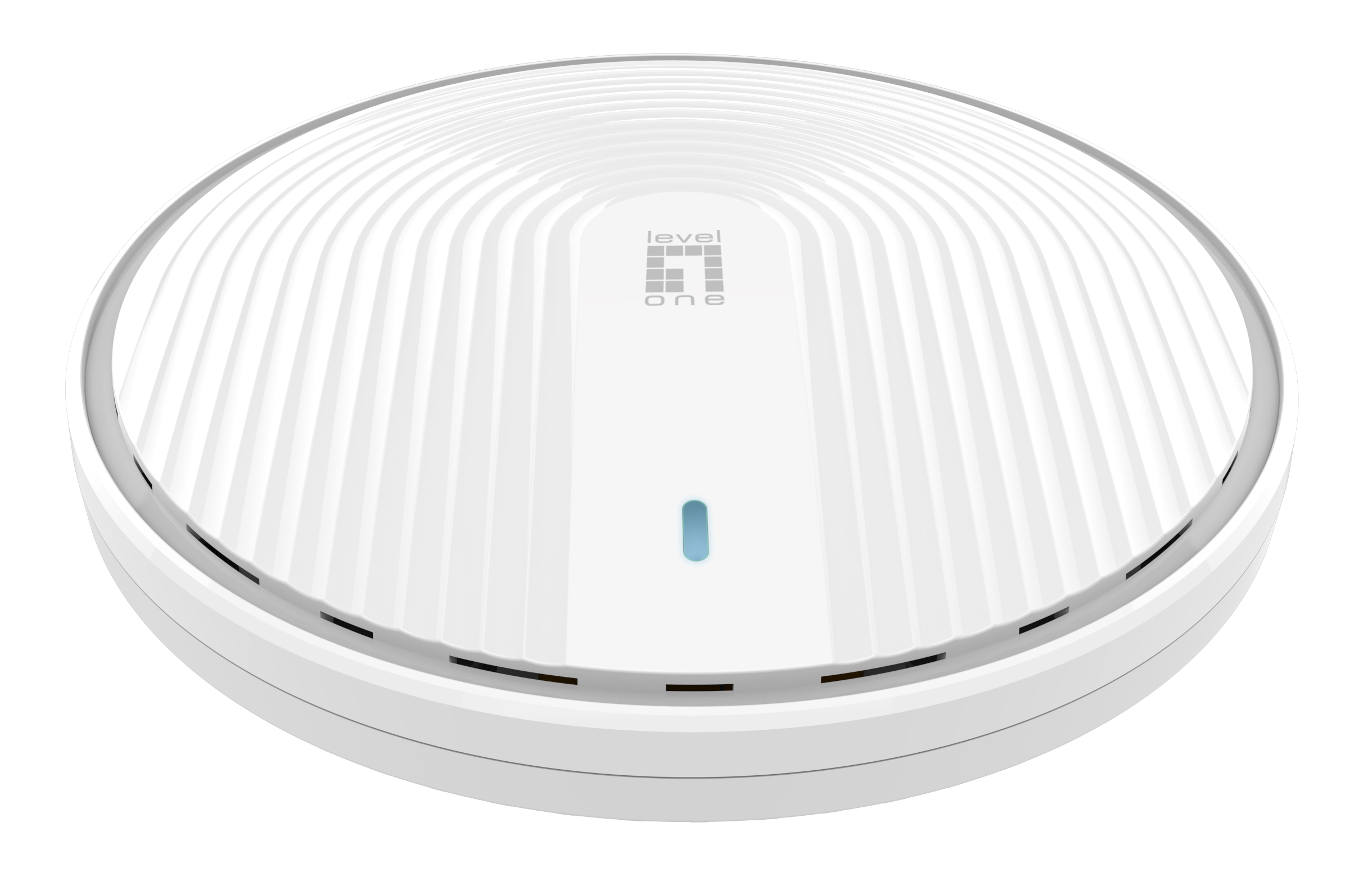

LevelOne WAP-8131 Trådløs forbindelse Hvid
LevelOne WAP-8131 - Trådløs forbindelse - Wi-Fi 6 - 2.4 GHz, 5 GHz
-
Product no 1000441601
Model WAP-8131
Brand LevelOne
EAN 4015867227879
Weight 0.42 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | LevelOne WAP-8131 - trådløs forbindelse - Wi-Fi 6 |
| Enhedstype | Trådløs forbindelse |
| Formfaktor | Ekstern |
| Processor | Qualcomm IPQ6000 |
| RAM | 512 MB |
| Flashhukommelse | 128 MB |
| Dataforbindelsesprotokol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frekvensbånd | 2.4 GHz, 5 GHz |
| Præstation | Maksimum datahastighed (2,4 GHz): 574 Mbps<br>Maksimum datahastighed (5 GHz): 1201 Mbps |
| Kapacitet | Maksimalt antal konfigurerede SSID'er: 8 |
| Udstyr inkluderet | Mounting screws |
| Power Over Ethernet (PoE) understøttet | PoE |
| Dimensioner (B x D x H) | 18.6 cm x 18.6 cm x 4.25 cm |
| Vægt | 420 g |
| General | |
|---|---|
| Depth | 18.6 cm |
| Device Type | Wireless access point |
| Enclosure Color | White |
| Height | 4.25 cm |
| Weight | 420 g |
| Width | 18.6 cm |
| Processor / Memory / Storage | |
| Flash Memory | 128 MB |
| Processors Installed | Qualcomm IPQ6000 |
| RAM | 512 MB |
| Networking | |
| Capacity | Maximum number of configured SSIDs: 8 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax Wave 2 |
| Data Transfer Rate | 1775 Mbps |
| Encryption Algorithm | AES, WPA3-Personal, WPA2-Personal |
| Features | Repeating mode, Access Point operational mode, wall mountable, WISP mode, Multiple SSID support, ceiling mountable, MU-MIMO technology, gateway mode |
| Form Factor | External |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | OFDMA |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps | Maximum data rate (5 GHz): 1201 Mbps |
| Remote Management Protocol | HTTP |
| Status Indicators | Wi-Fi |
| Wi-Fi Rating | AX1800 |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 4 |
| Gain Level | 4 dBi |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Compliant Standards | RoHS |
| Included Accessories | Mounting screws |
| Power | |
| Power Consumption Operational | 14 Watt |
| Power Over Ethernet (PoE) Supported | PoE |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 55 °C |
