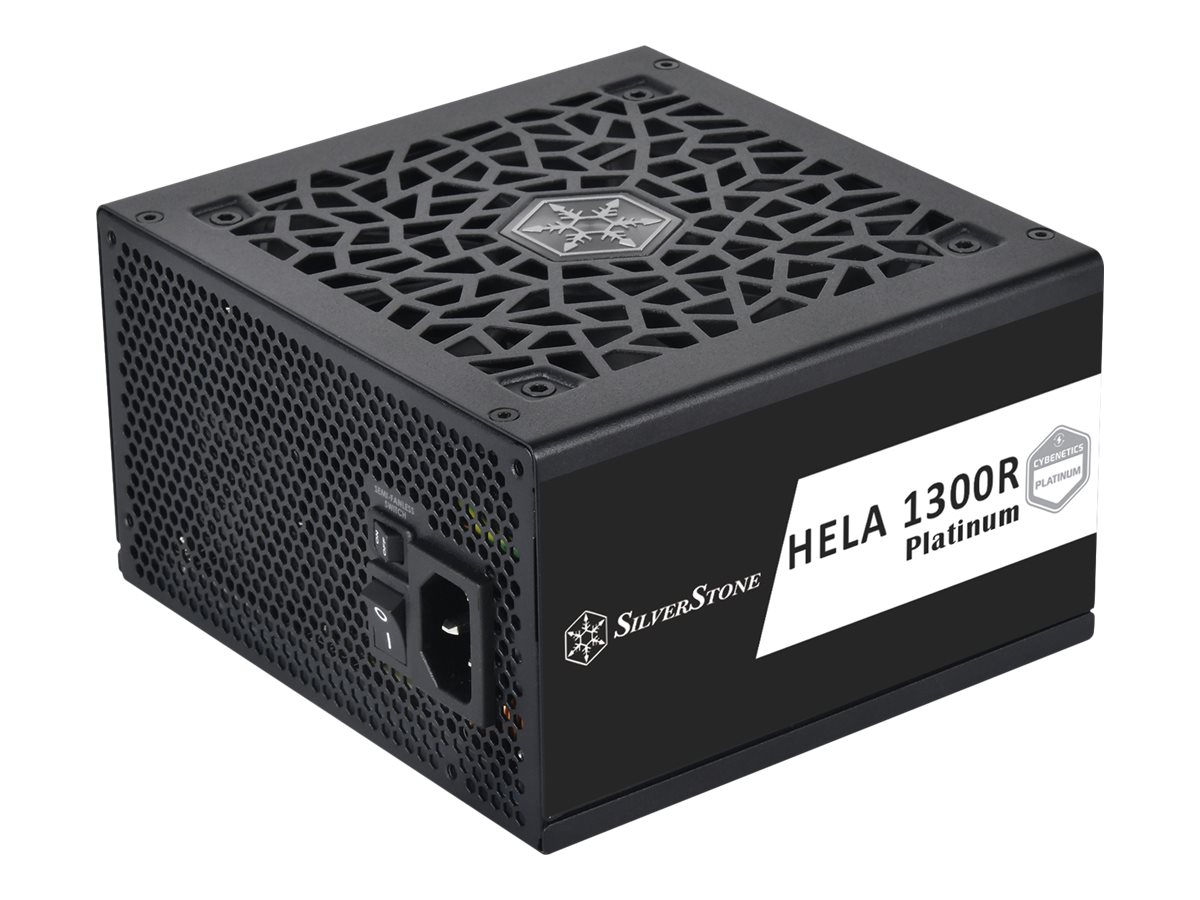

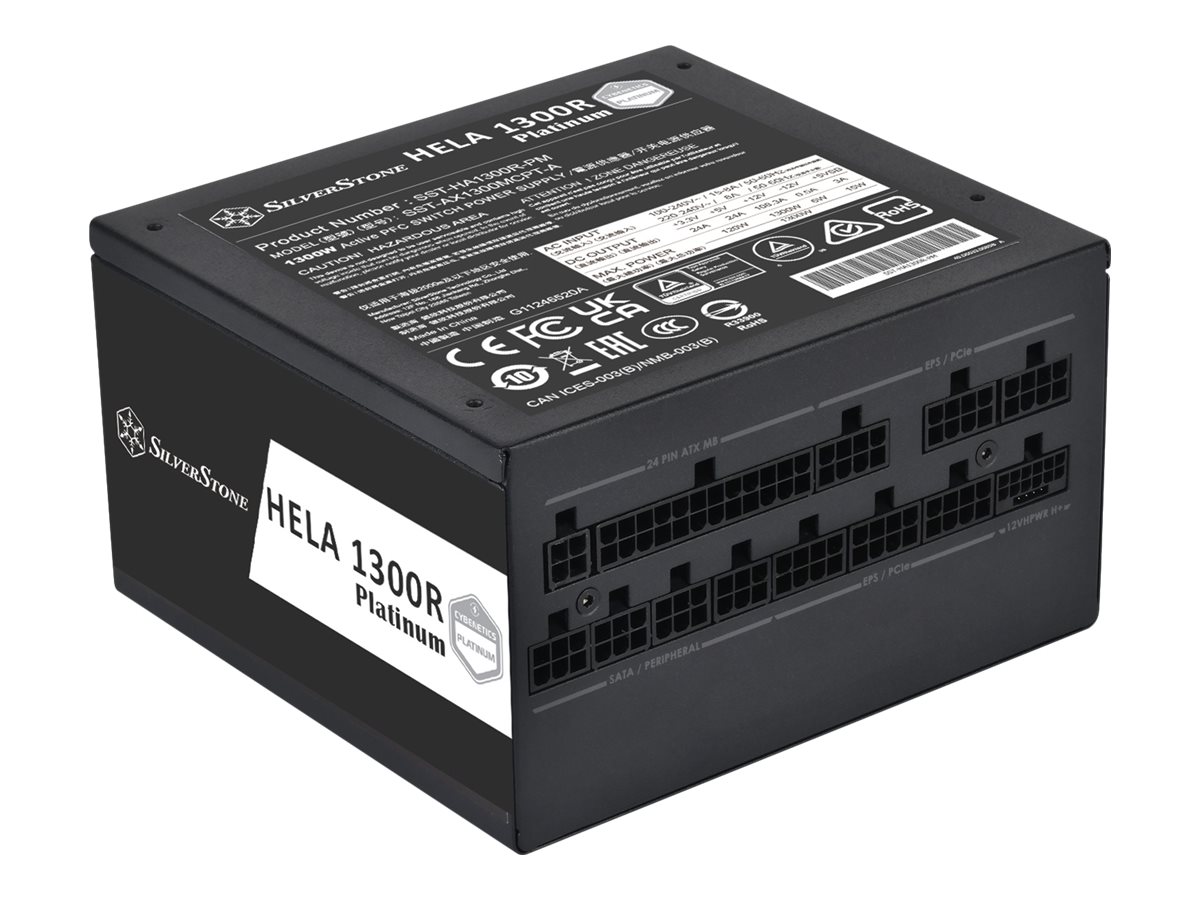

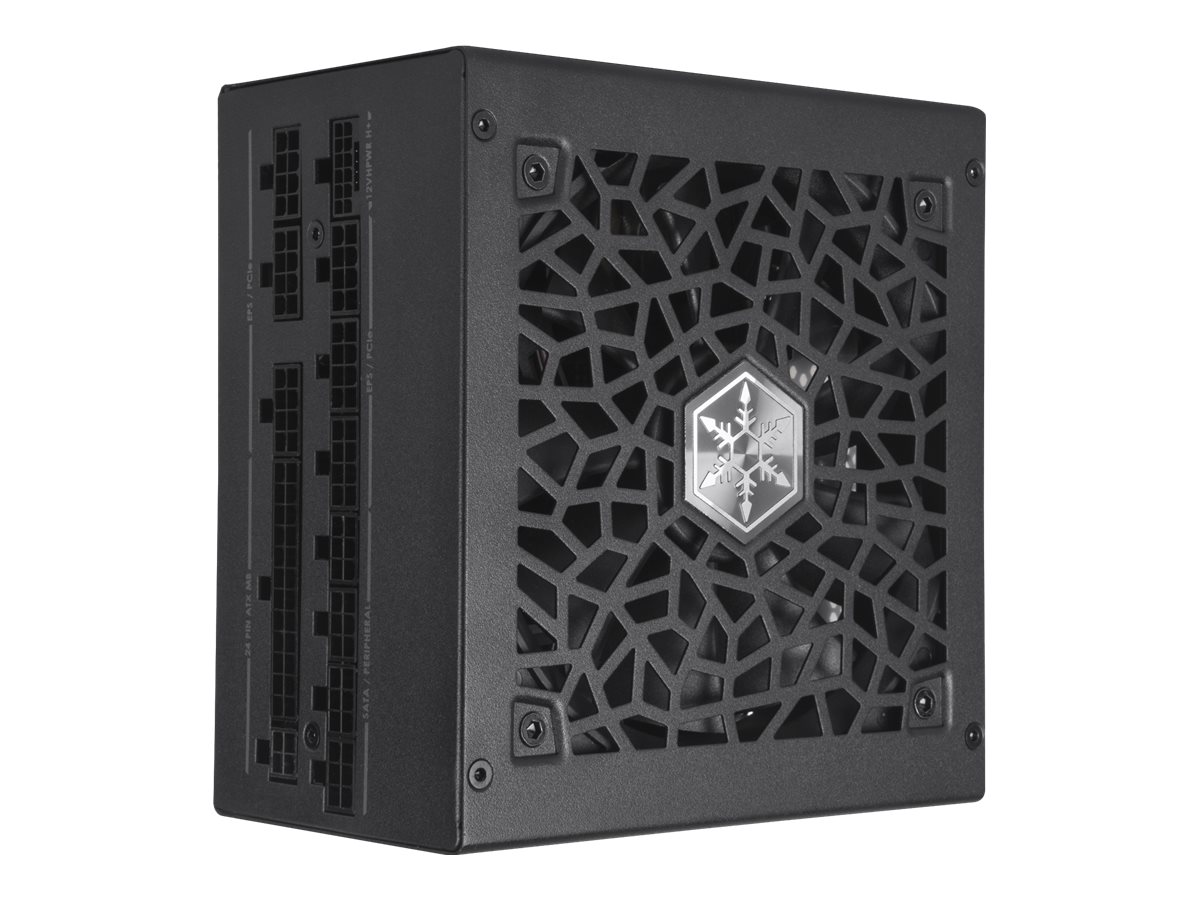

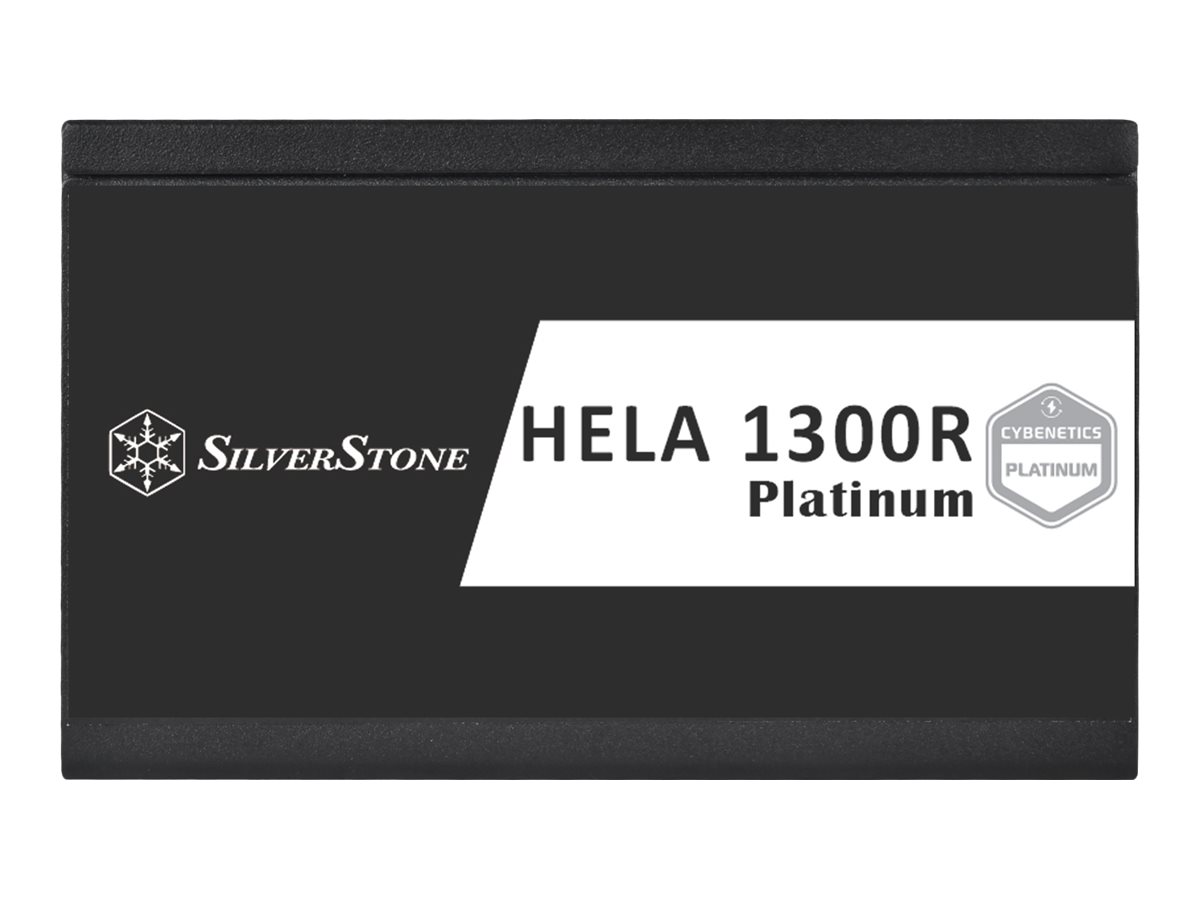

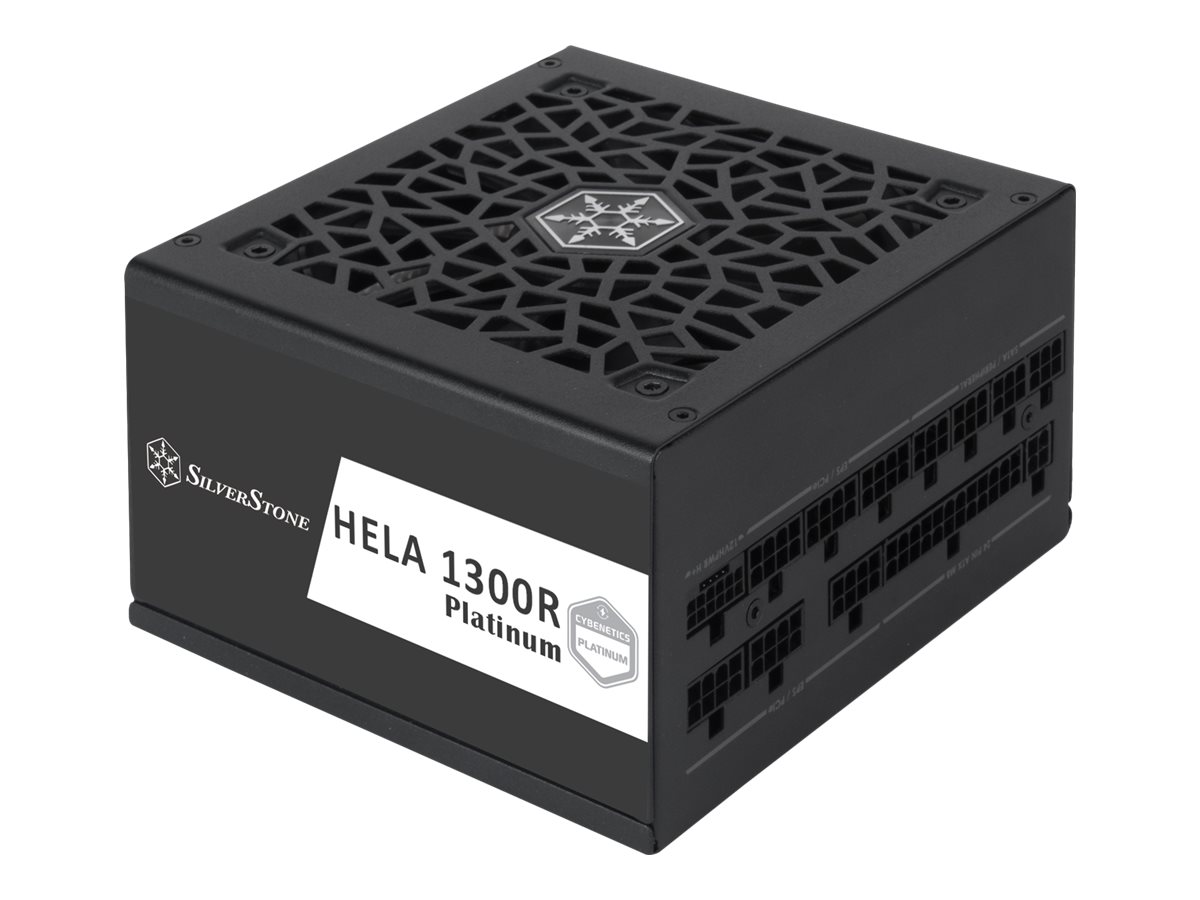

SilverStone HELA 1300R Platinum 1300Watt
SilverStone HELA 1300R Platinum - Strømforsyning (intern) - ATX12V 3.0/ EPS12V 2.92 - AC 100-240 V - 1300 Watt - aktiv PFC - sort
-
Product no 1001032974
Model SST-HA1300R-PM
Brand SilverStone Technolo
EAN 4710679815688
Weight 2.93 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | SilverStone HELA 1300R Platinum - strømforsyning - 1300 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 3.0/ EPS12V 2.92 |
| Vægt | 2.93 kg |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 1300 Watt |

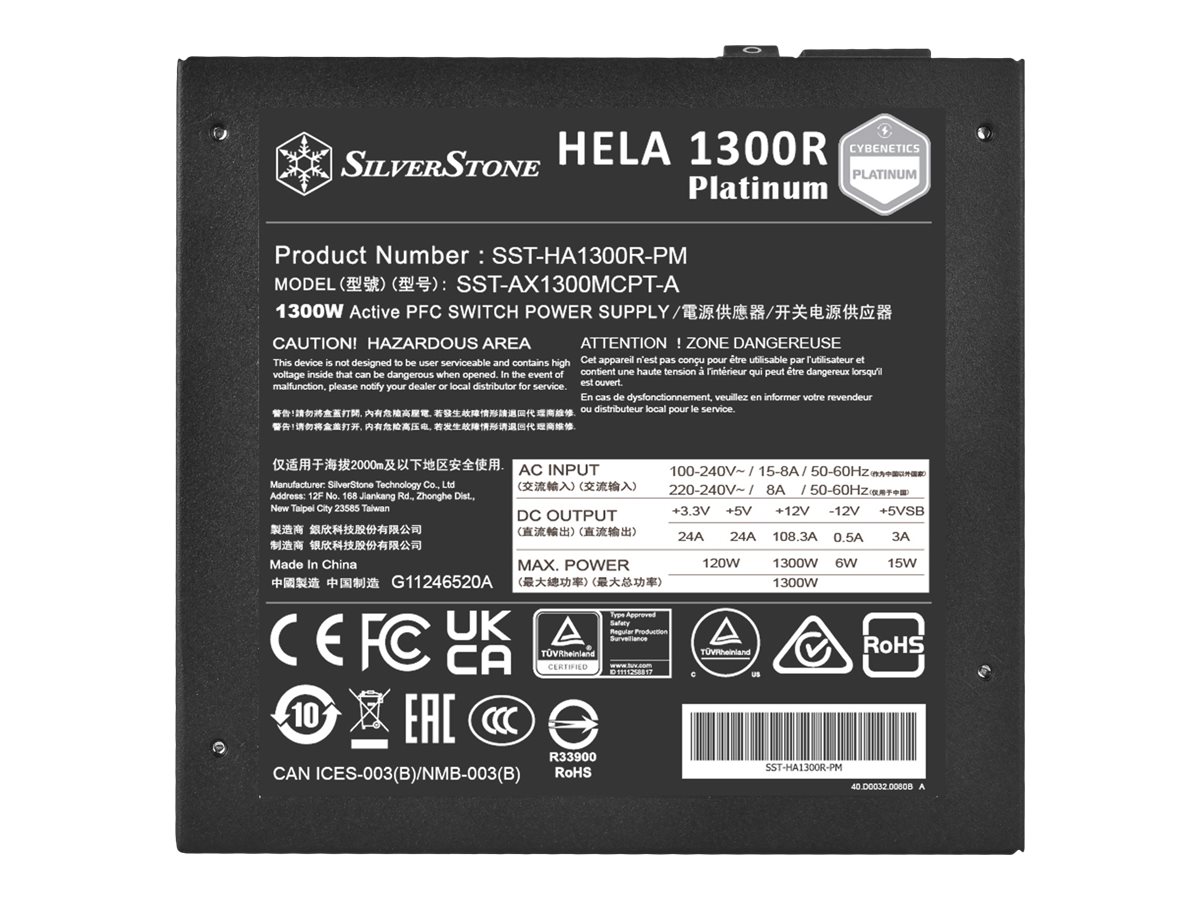

| Output Current | +3.3V - 24 A / 0 A<br>+5V - 24 A / 0 A<br>+12V - 108.3 A / 0 A<br>-12V - 0.5 A / 0 A<br>+5VSB - 3 A / 0 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>8 x 15 pin Serial ATA strøm<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>2 x 4-PIN mini-strømforsyningsforbinder<br>6 x 4-PIN intern strøm<br>1 x 12VHPWR |
| Modulær Kabel Administration | Ja |
| Kølesystem | 120 mm ventilator |
| Farve | Sort |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.6 cm |
| Producentgaranti | 5 års garanti |
| General | |
|---|---|
| Color | Black |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 3.0/ EPS12V 2.92 |
| Power Device | |
| Efficiency | 89%-91% |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 100-240 V |
| Input Voltage Range | AC 90 - 264 V |
| Modular Cable Management | Yes |
| Output Current | +3.3V - 24 A / 0 A | +5V - 24 A / 0 A | +12V - 108.3 A / 0 A | -12V - 0.5 A / 0 A | +5VSB - 3 A / 0 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1300 Watt |
| Power Factor (PF) | 0.9 |

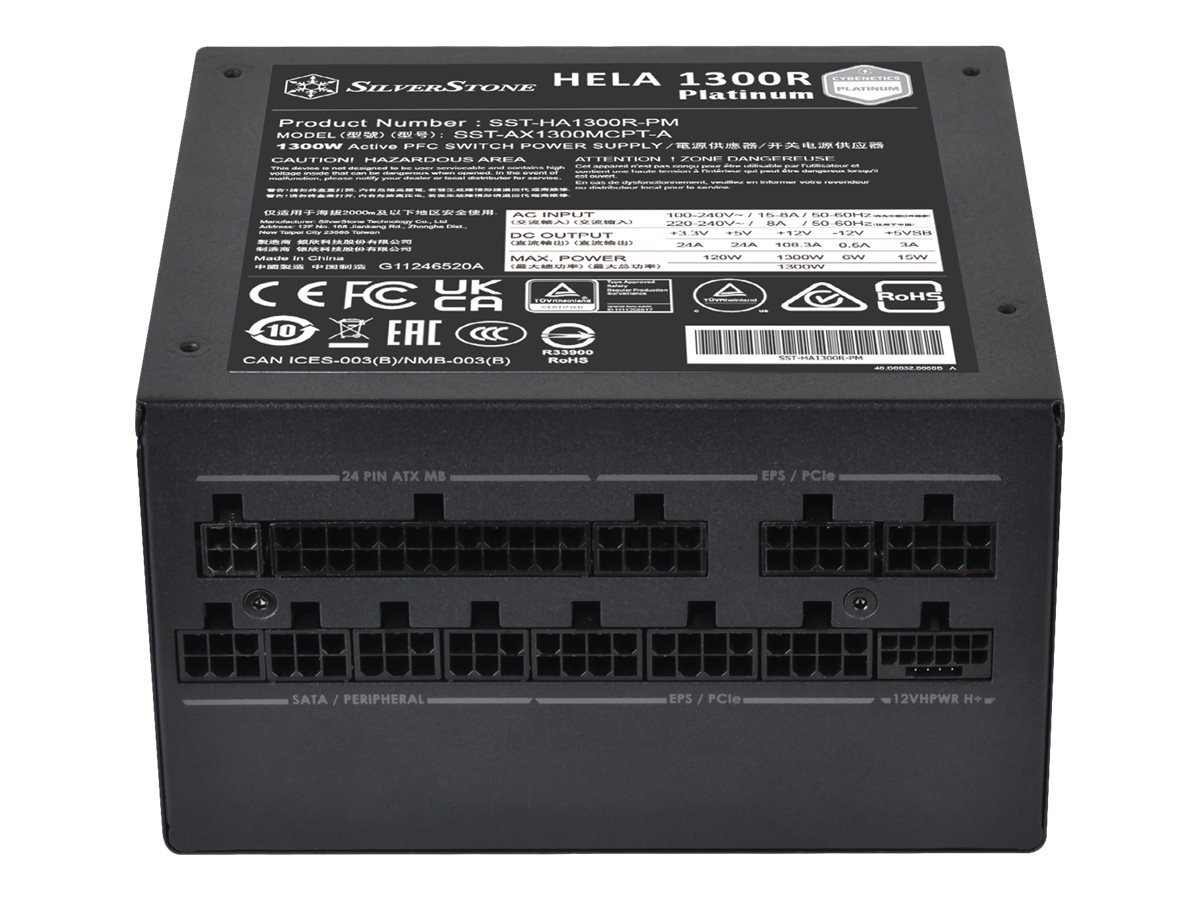

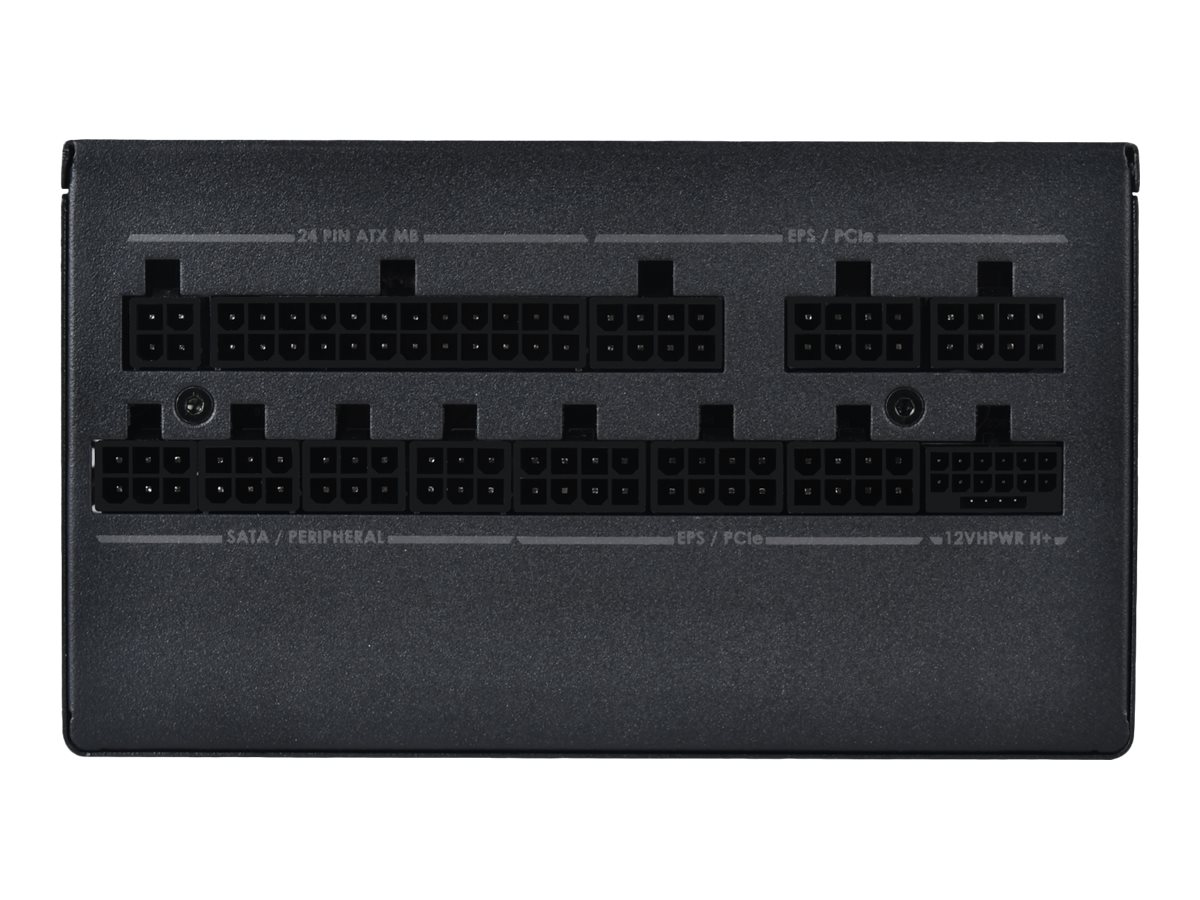

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 8 x 15 pin Serial ATA power | 4 x 8 pin PCI Express power with detachable 2 pin section | 2 x 4 pin mini-power connector | 6 x 4 pin in |
| Miscellaneous | |
| Compliant Standards | CCC, FCC, RoHS, WEEE, REACH, TUV Rheinland, UKCA |

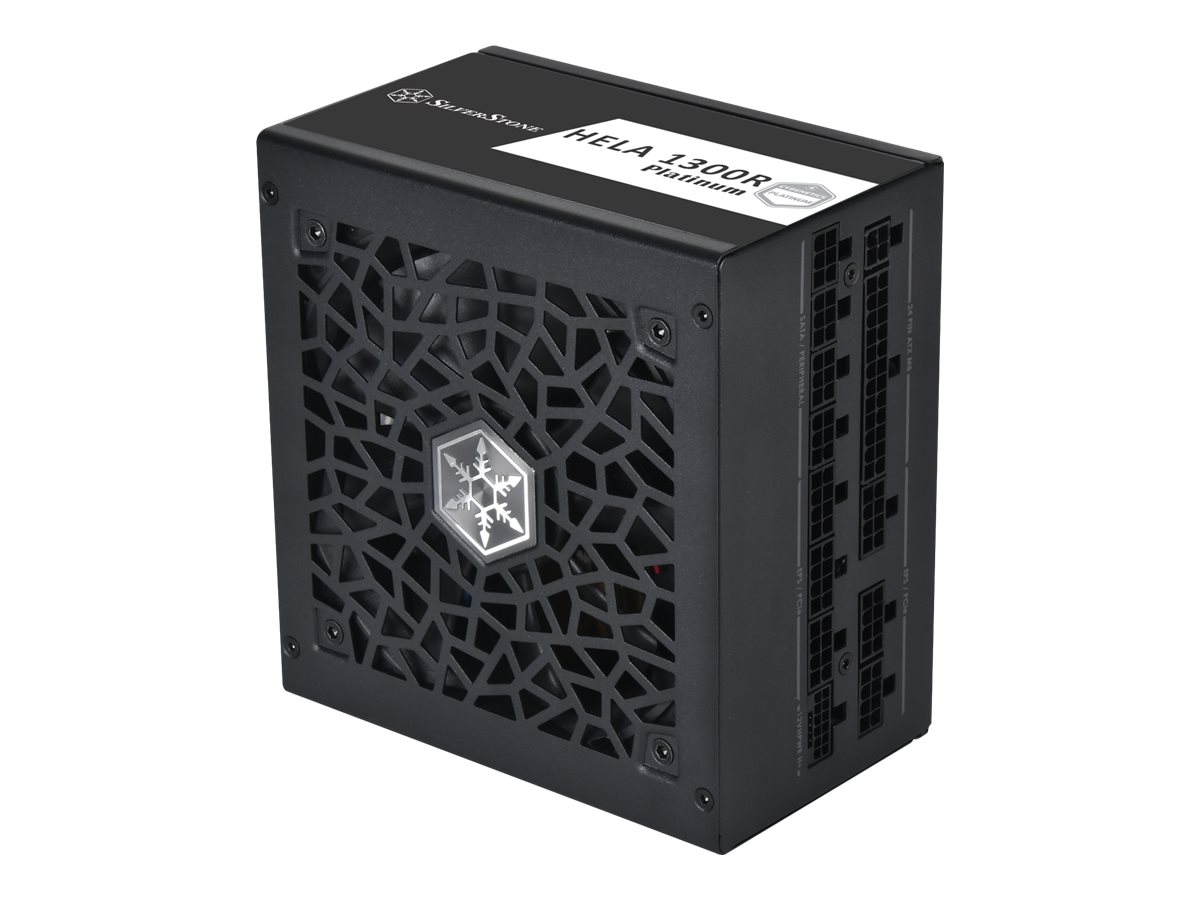

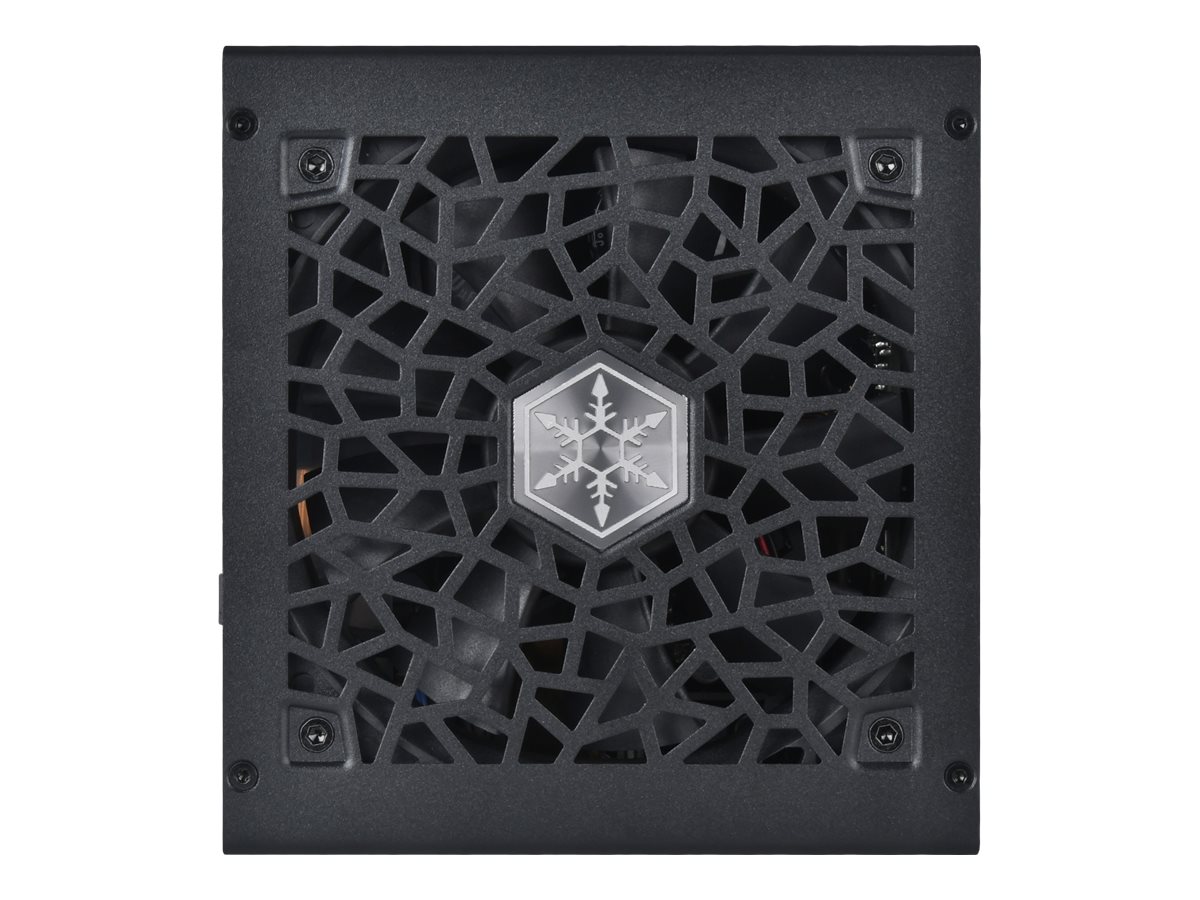

| Cooling System | 120 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, fluid dynamic bearing cooling fan, no load operation protection, fully modular, 24 hours / 7 days continuous |
| MTBF | 100,000 hours |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 2.93 kg |
| Width | 15 cm |
