StarTech.com Seriel adapter PCI Express
StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows & Linux - Up to 921.6 Kbps Baud - Seriel adapter - PCIe - RS-232 x 8 - gul - TAA-kompatibel
-
Product no 996608206
Model PEX8S1050
Brand StarTech.com
EAN 0065030888295
Weight 0.67 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows & Linux - Up to 921.6 Kbps Baud - seriel adapter - PCIe - RS-232 x 8 - TAA-kompatibel |
| Enhedstype | Seriel adapter |
| Model | Indstikskort |
| Grænseflade (bus) type | PCI Express |
| PCI-specifikationsrevision | PCIe 1.1 |
| Porte | RS-232 x 8 |
| Dimensioner (B x D x H) | 1.6 cm x 10.5 cm x 12 cm |
| Vægt | 74 g |
| Kabeltype | Seriel RS-232 |
| Processor | ASMedia ASM1083 |
| Farve | Gul |
| Systemkrav | Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows XP / 7 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 |
| TAA kompatibel | Ja |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Device Type | Serial adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express |
| PCI Specification Revision | PCIe 1.1 |
| Networking | |
| Cabling Type | Serial RS-232 |
| Connectivity Technology | Wired |
| Features | Flow control, 16550 UART support, 256-byte FIFO, 1.5KV ESD Protector |
| Ports | RS-232 x 8 |
| Processor / Memory | |
| Processor | ASMedia ASM1083 |
| Expansion / Connectivity | |
| Interfaces | 8 x RS-232 - 9 pin D-Sub (DB-9) |
| Miscellaneous | |
| Cables Included | 1 x DB-62 to DB-9 breakout cable - 48 cm |
| Color | Yellow |
| Compliant Standards | RoHS, WEEE |
| Included Accessories | 8 x hex nuts |
| MTBF | 160,013 hours |
| TAA Compliant | Yes |
| Software / System Requirements | |
| OS Required | Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows XP / 7 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2. |
| Dimensions & Weight | |
| Depth | 10.5 cm |
| Height | 12 cm |
| Weight | 74 g |
| Width | 1.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 2.9 cm |
| Shipping Height | 6.5 cm |
| Shipping Weight | 700 g |
| Shipping Width | 19 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

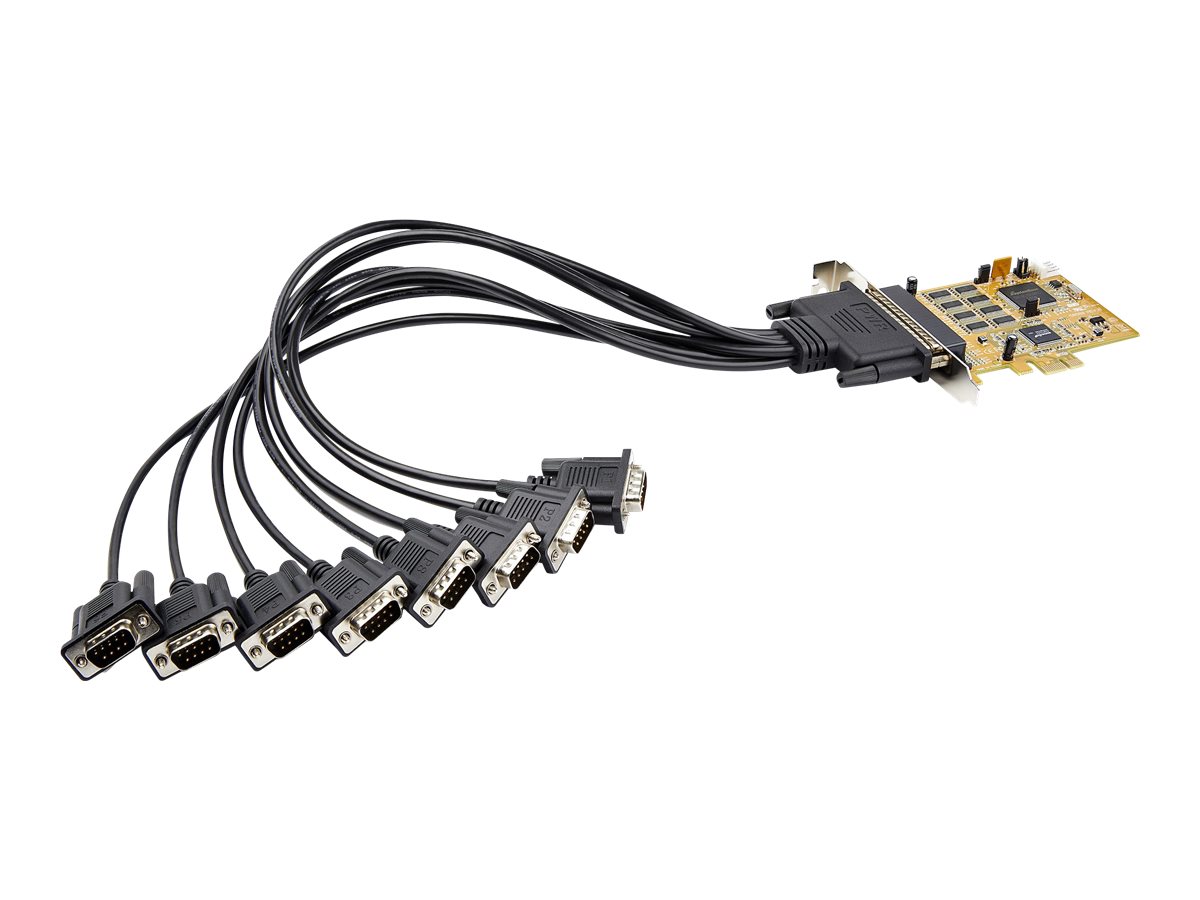

Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4 Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.
PEX8S1050 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
