HPE Aruba Networking AP-515 (RW) Trådløs forbindelse Hvid
HPE Aruba Networking AP-515 (RW) - Campus - trådløs forbindelse - Wi-Fi 6 - Bluetooth - 2.4 GHz, 5 GHz - BTO - væg/loftsmonterbar (pakke med 10)
-
Product no 1003124792
Model S3J29A
Brand Hewlett Packard Ente
EAN 0190017702834
Weight 11.01 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Aruba Networking AP-515 (RW) - Campus - trådløs forbindelse - Wi-Fi 6, Bluetooth |
| Enhedstype | Trådløs forbindelse |
| Antal pr. pakke | 10 (specifikationer er for enkelt genstande) |
| Formfaktor | Væg/loftsmonterbar - indendørs |
| Dataforbindelsesprotokol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.0 |
| Frekvensbånd | 2.4 GHz, 5 GHz |
| Præstation | Maksimum datahastighed (2,4 GHz): 575 Mbps<br>Maksimum datahastighed (5 GHz): 4,8 Gbps<br>Maksimalt gennemløb: 3 Gbps |
| Kapacitet | Trådløse klienter per WiFi-radio: 512<br>OFDMA-enheder: 16<br>BSSIDs per radio: 16 |
| OS nødvendig | ArubaOS, InstantOS |
| Power Over Ethernet (PoE) understøttet | PoE+ |
| Pristype | BTO |
| Dimensioner (B x D x H) | 20 cm x 20 cm x 4.6 cm |
| Vægt | 810 g |
| Producentgaranti | Begrænset livtidsgaranti |

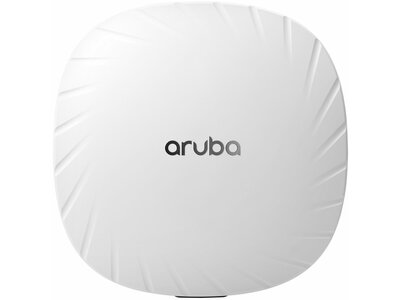

HPE Aruba Networking AP-515 (RW) Dual Radio 4x4/2x2 Wi-Fi 6 10-pack Campus Access Point
The HPE Aruba Networking 510 Series Campus Access Points deliver Wi-Fi 6 coverage ideal for office spaces, training and meeting facilities, and hospitals. With 2.69 Gbps maximum combined data rate, multi-gigabit Ethernet for fast wired connectivity, and built-in Internet of Things (IoT) radio, the 510 series delivers reliable, high-performance Wi‑Fi CERTIFIED® for medium density campus environments. The 510 series can be deployed using zero touch provisioning (ZTP) for ease of implementation at remote locations. It is Wi-Fi and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 510 series includes a limited lifetime warranty.
Wi-Fi 6 AP provides up to 2.69 Gbps maximum combined data rate
The 510 series supports OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
IoT-ready with Bluetooth 5 and Zigbee support and fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports
It has client and RF optimization to match clients with the optimal AP and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
It is offered in optional eco-friendly 10-packs
Wi-Fi 6 Performance Ideal for Campus Deployment
- The HPE Aruba Networking 510 Series Campus Access Points deliver a maximum combined data rate of 2.69 Gbps with up to 4 spatial streams (4SS) and 160 MHz channel bandwidth (VHT160).
- The 510 series supports Wi-Fi 6 features such as OFDMA, MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.
- Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives the strong radio signal.
- It supports fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports.
Cloud Management and Ready for IoT
- HPE Aruba Networking 510 Series Campus Access Points can be managed with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.
- The 510 series includes an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors.
- The target wake time (TWT) improves battery life of IoT devices.
- HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Simple and Secure Access
- HPE Aruba Networking 510 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
- It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls.
- WPA3 and Enhanced Open (OWE) security increase enterprise-level security by providing stronger guest access protections without increasing complexity.
- For enhanced device assurance, the APs include an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps) E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Mounting | Pre-installed mounting bracket, for use with optional mounting kit, see the ordering guide. |
| Connectivity, standard | Wi-Fi 6 (IEEE 802.11ax) |
| Power consumption | Maximum (worst-case) power consumption: DC powered: 16.0W PoE powered (802.3af, IPM enabled): 13.5W PoE powered (802.3at/bt): 20.8W Maximum (worst-case) power consumption in idle mode: 12.6W (PoE) or 9.7W (DC) Maximum (worst-case) power consumption in deep-sleep mode: 5.9W (PoE) or 1.5W (DC) |
| Certifications | UL2043 plenum rating Bluetooth SIG Wi‑Fi Alliance®: Wi‑Fi CERTIFIED® a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location |
| Regulatory | FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 Railway Certs (AP-515 only): EN 50155:2017-Railway Applications EN 50121-1:2017-Railway EMC EN 50121-3-2-Railway EMC EN 50121-4:2016-Railway Immunity IEC 61373 ed2:2008-Railway Shock and Vibration For more country-specific regulatory information and approvals, contact your HPE representative. |
| Wi-Fi antenna | Four integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna gain of 4.2 dBi in 2.4 GHz and 7.5 dBi in 5 GHz. |
| Radio coverage | AP type: Indoor, dual radio, 5 GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 2x2 MIMO |
| Product dimensions (metric) | 46 x 200 x 200 mm |
| Weight | 810 g |
