Image Sensor
|
1/2.8" CMOS
|
|
Max. Resolution
|
Overview channel: 5376 x 1520, Detail channel: 2560 x 1440
|
|
ROM
|
4 GB
|
|
RAM
|
Overview channel: 2 GB, Detail channel: 1GB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Overview channel: 1 s–1/100,000 s; Detail channel: 1 s–1/30,000 s
|
|
Min. Illumination
|
Overview channel: 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on), Detail channel: 1 s–1/30,000 s 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on)
|
|
Illumination Distance
|
Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light), Detail channel: 70 m (229.66 ft); 30 m (98.43 ft) (white light)
|
|
Illuminator Number
|
Overview channel: 2 (IR light); 2 (white light); Detail channel: 2 (Dual light fusion); 2 (IR light)
|
|
Focal Length
|
Overview channel: 2.8 mm; Detail channel: 4 mm–40 mm
|
|
Max. Aperture
|
Overview channel: F1.6; Detail channel: F1.6-F3.6
|
|
Field of View
|
Overview channel: H: 180°; V: 47°; Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8°
|
|
Optical Zoom
|
Overview channel: NA; Detail channel: 10×
|
|
Video Compression
|
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
|
|
Video Frame Rate
|
1–25/30 fps
|
|
Resolution
|
Up to 5376 × 1520
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
Overview channel: H264: 128 kbps–16,384 kbps H265: 51 kbps–13,312 kbps; Detail channel: H264: 96 kbps–16,384 kbps H265: 38 kbps–10,240 kbps
|
|
Noise Reduction
|
Overview channel: 2D NR; 3D NR, Detail channel: 2D NR; 3D NR
|
|
Motion Detection
|
Yes
|
|
Image Stabilization
|
Overview channel: NA, Detail channel: Electronic Image Stabilization (EIS)
|
|
Defog
|
Electronic
|
|
S/N Ratio
|
≥55dB
|
|
Audio Compression
|
PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729
|
|
Network Port
|
RJ-45 (100 Base-T)
|
|
User/Host
|
20 (total bandwidth: 64 M)
|
|
Storage
|
Micro SD card (512 GB); FTP/SFTP; NAS
|
|
Mobile Client
|
iOS; Android
|
|
Ports
|
Audio Input, Audio Output, Alarm Input 0–5 VDC, Alarm Output, RJ-45
|
|
Power Supply
|
12 VDC, 3 A ± 10%, PoE+(802.3at)
|
|
Power Consumption
|
Basic: 12 W; Max: 25 W
|
|
Net Weight
|
2.17 kg
|
|
Product Dimensions (L x W x H)
|
140.3 × 181.7 × 238.8 mm
|
|
White Balance
|
Auto
|
|
Sound Warning
|
Yes
|
|
Light Warning
|
Yes
|
|
Pan/Tilt Range
|
Pan: 0° to 345°; Tilt: -10° to +90°
|
|
IVS (Perimeter Protection)
|
Tripwire
|
|
Face Detection
|
Yes
|
|
Auto Tracking
|
Auto Tracking Lite
|
|
Smart Tracking
|
WizTracking: Xinghan large-scale AI models-driven
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

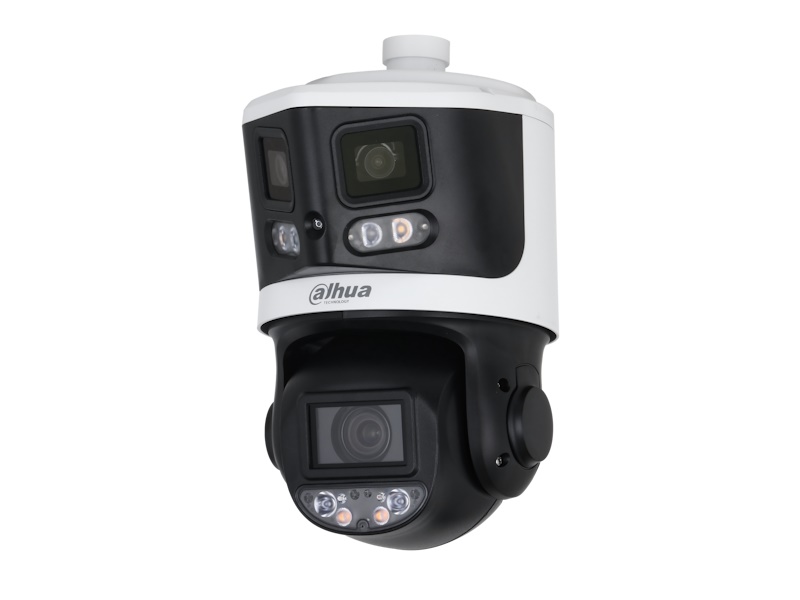

Dahua SDT3E410-8P-MB-A-PV1 8MP+4MP Netværksovervågningskamera 5376 x 1520
Dahua SDT3E410-8P-MB-A-PV1 - Netværksovervågningskamera - vejrbestandig - farve (hvid) - 8MP+4MP - 5376 x 1520 + 2560 x 1440 - 5K - audio - RJ45 - H.264, H.265 - DC 12 V, PoE+
Product no:
1003400402
Model:
SDT3E410-8P-MB-A-PV1
EAN:
6939554933479
Brand:
Weight:
2.68 kg
