Produktbeskrivelse
|
Gigabyte UD750GM PG5 V2 ICE - strømforsyning - 750 watt
|
|
Enhedstype
|
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
|
|
Specifikationsoverensstemmelse
|
ATX12V 3.1/ EPS12V
|
|
80 PLUS certificering
|
80 PLUS Gold
|
|
Indgangspænding
|
AC 100-240 V
|
|
Udgangspænding
|
+3.3, +5, ±12 V, +5Vsb V
|
|
Strømkapacitet
|
750 watt
|
|
Output Current
|
+3.3V - 20 A<br>+5V - 20 A<br>+12V - 62.5 A<br>-12V - 0.3 A<br>+5VSB - 3 A
|
|

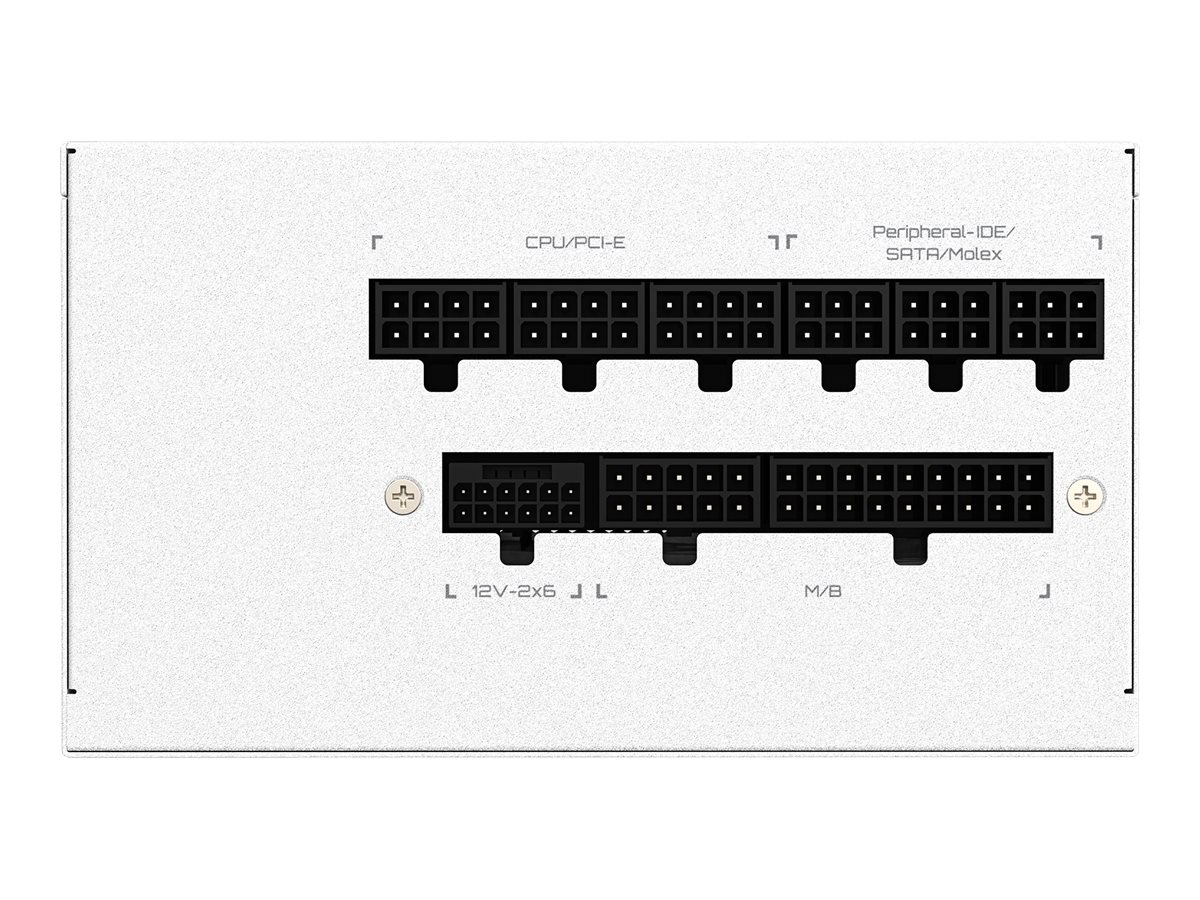

Output-stikforbindelser
|
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>1 x 16-pin PCI Express-strøm<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>8 x 15 pin Serial ATA strøm<br>3 x 4-PIN intern strøm
|
|
Modulær Kabel Administration
|
Ja
|
|
Kølesystem
|
120 mm ventilator
|
|
Dimensioner (B x D x H)
|
15 cm x 14 cm x 8.6 cm
|
|
Producentgaranti
|
10-års garanti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
Gigabyte UD750GM PG5 V2 ICE Strømforsyning 750Watt
Gigabyte UD750GM PG5 V2 ICE - Strømforsyning (intern) - ATX12V 3.1/ EPS12V - 80 PLUS Gold - AC 100-240 V - 750 watt - aktiv PFC
Product no:
1003623400
Model:
GP-UD750GM PG5 ICE
EAN:
4719331556310
Brand:
Weight:
2.36 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
