Dell Pro Thunderbolt 5 Dock WD25TB5 Thunderbolt 5 Dockingstation

Dell Pro Thunderbolt 5 Dock WD25TB5 - Dockingstation - Thunderbolt 5 - HDMI, 2 x DP, USB-C, 2 x Thunderbolt 5 - 1GbE, 2.5GbE - 330 Watt - BTO - med 3 års Basic Hardware Service with Advanced Exchange efter fjerndiagnose - Disti SNS

Dell Pro Thunderbolt 5 Dock WD25TB5 er en effektiv og alsidig dockingløsning til moderne computerbehov. Enheden er udstyret med en robust Thunderbolt 5-grænseflade, der muliggør højhastighedsdataoverførsel og videoudgang på flere skærme. Med en maksimal opløsning på 8K og understøttelse af tredobbelt skærmkonfiguration kan brugerne opleve fantastiske billeder og samtidig opretholde produktiviteten. Docken tilbyder forskellige tilslutningsmuligheder, herunder USB 3.2 Gen 2, DisplayPort 2.1, HDMI og Gigabit Ethernet, hvilket sikrer kompatibilitet med en lang række enheder. Den understøtter også op til 330 watt strømforsyning, hvilket gør den velegnet til både Dell- og ikke-Dell-systemer. Funktioner som wake on LAN og MAC-adresse-pass-through forbedrer netværksadministrationsfunktionerne, hvilket gør denne dock til et pålideligt valg for professionelle, der søger effektivitet og ydeevne.

  • Product no 1003760402

    Model DELL-WD25TB5

    Brand
    Go to brand's website

    EAN 5397321029076

    Weight 2.11 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Dell Pro Thunderbolt 5 Dock WD25TB5 - dockingstation - Thunderbolt 5 - HDMI, 2 x DP, USB-C, 2 x Thunderbolt 5 - 1GbE, 2.5GbE
Produkttype Dockingstation
Docking-interface Thunderbolt 5
Videointerfacer HDMI, 2 x DP, USB-C, 2 x Thunderbolt 5
Dimensioner (B x D x H) 20.5 cm x 9 cm x 3.53 cm
Vægt 621 g
Netværk Gigabit Ethernet, 2.5 Gigabit Ethernet
Effekt Strømforsyningsadapter AC 100-240 V (50 - 60 Hz) 330 Watt Strømforsyning (19.5 V)
Pristype BTO
Servicepakker 3 års Basic Hardware Service with Advanced Exchange efter fjerndiagnose - Disti SNS

Alsidige tilslutningsmuligheder

Denne dock er udstyret med flere grænseflader, herunder Thunderbolt 5, HDMI og USB 3.2 Gen 2, og tilbyder en række tilslutningsmuligheder til forskellige enheder.

Understøttelse af skærme med høj opløsning

Dockingstationen understøtter flere opløsninger, herunder 8K, 6K og tredobbelte skærme, hvilket giver en omfattende og fantastisk visuel oplevelse.

Kraftfulde opladningsfunktioner

Med en strømforsyning på op til 330 watt til Dell-systemer og 240 watt til ikke-Dell-enheder sikrer denne dock, at alle tilsluttede enheder forbliver opladet og klar til brug.

Forbedrede netværksadministrationsfunktioner

Funktioner som Wake on LAN og MAC-adresse-pass-through giver effektiv netværksadministration for brugere i både hjemmet og på arbejdspladsen.

Dell Pro Thunderbolt 5 Dock - WD25TB5

Dell Pro Thunderbolt 5 Dock - WD25TB5

Conquer intense workloads with the most powerful Thunderbolt 5 Dock, and with up to 300W power delivery.
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
Video Resolution
Interfaces
OS Required

Video Resolution

3840 x 2160
5120 x 2160
2560 x 1440
3440 x 1440
7680 x 4320
6144 x 3456

Interfaces

Thunderbolt 5

OS Required

Windows 10
Windows 11
Ubuntu 24.04
Red Hat Enterprise Linux 9.7
ChromeOS 141
macOS
Cables
Features / Data Link Protocol

Cables

83 cm

Features / Data Link Protocol

Power Delivery Pass-through
LED Power Indicator
Indicator Light
Power AI productivity

Maximise AI PC productivity with the industry’s most powerful Thunderbolt 5 dock[1] and seamlessly run Gen AI tools across up to four 4K 120Hz displays. Featuring Extended Power Range, deliver up to 300W over a single USB-C cable to power even the highest-performance AI PCs, while modern ports ensure broad connectivity.
Product image
Accelerate manageability

Accelerate manageability

Delivering ultimate IT efficiency across the modern workspace.

Improved manageability

Manage your dock through the Dell Device Management Console, using the Dell Display and Peripheral Manager along with the Dell Device Management Agent installed on your PC.

Simplify firmware updates

Reduce IT complexity by deploying a single firmware file across workspaces. Minimise end-user disruption with silent firmware updates, executed upon dock disconnection.

 Unlock out-of-band management on select Intel® vPro® PCs with Intel® Active Management Technology (Intel® AMT) over Thunderbolt via the connected dock.

Work with confidence

Enhance your docking experience across brands with universally compatible features including MAC Address Pass-Through and Power Button Sync[2].
Connect your way0:09

Connect your way

Configure your workspace to your liking with an ambidextrous USB-C cable[3] that can be routed left or right.
Improved sustainability

Improved sustainability

The new generation of Dell Pro Docks reflect a commitment to sustainable design innovation to reduce environmental impact. The WD25TB5 is built with sustainable materials and packaged with at least 65% post-recycled content (PCR) plastic[1] and 100% recycled or renewable packaging[1].
Ports and slots
Product image

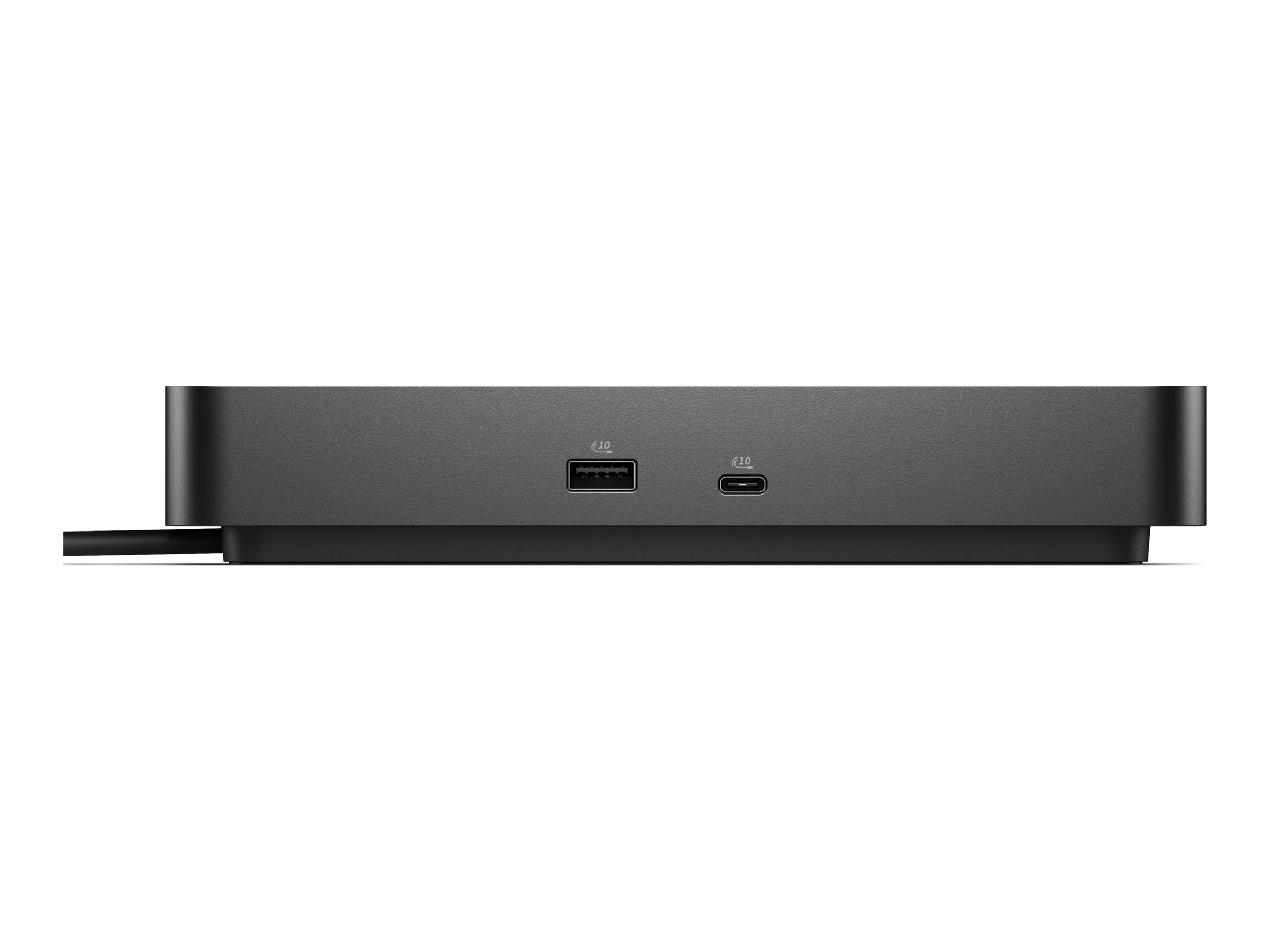

Front side

  • USB-A 3.2 Gen 2 with PowerShare
  • USB-C 3.2 Gen 2

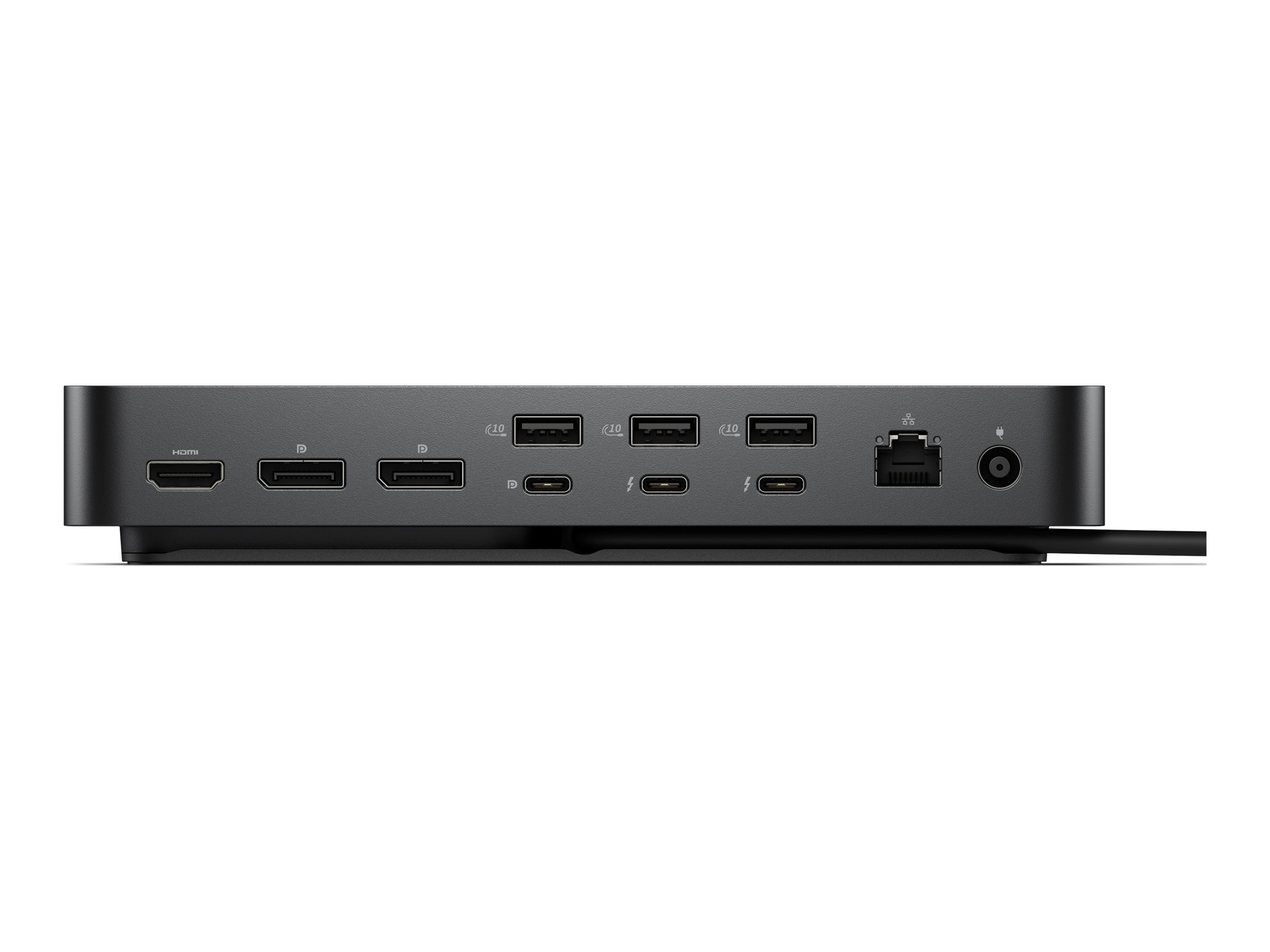

    • Rear side

    3.USB-A 3.2 Gen 2 with PowerShare
    4.USB-A 3.2 Gen 2 with PowerShare
    5.USB-A 3.2 Gen 2 with PowerShare
    6.HDMI 2.1
    7.DisplayPort 2.1
    8.DisplayPort 2.1
    9.USB-C 3.2 Gen 2 Multifunction DisplayPort 2.1
    10.Thunderbolt 5
    11.Thunderbolt 5
    12.2.5 Gigabit Ethernet (RJ45)
    13.Power In
  • Based on internal analysis, December 2024.
  • Power Button Sync will work with non-Dell notebooks if they support PD3.1 spec.
  • The accurate length of this cable is 0.83 meters. The image provided is for illustrative purposes only.
