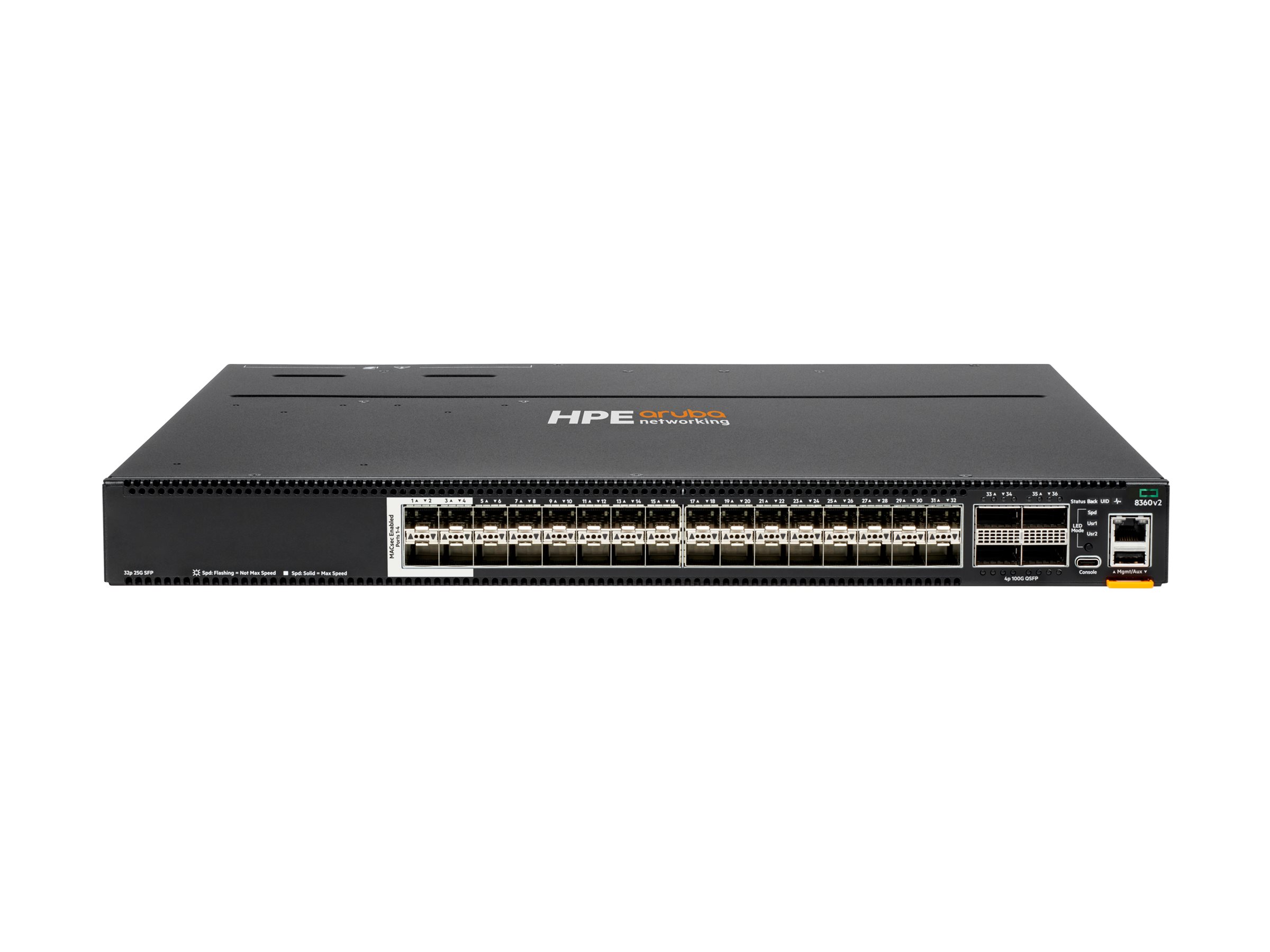

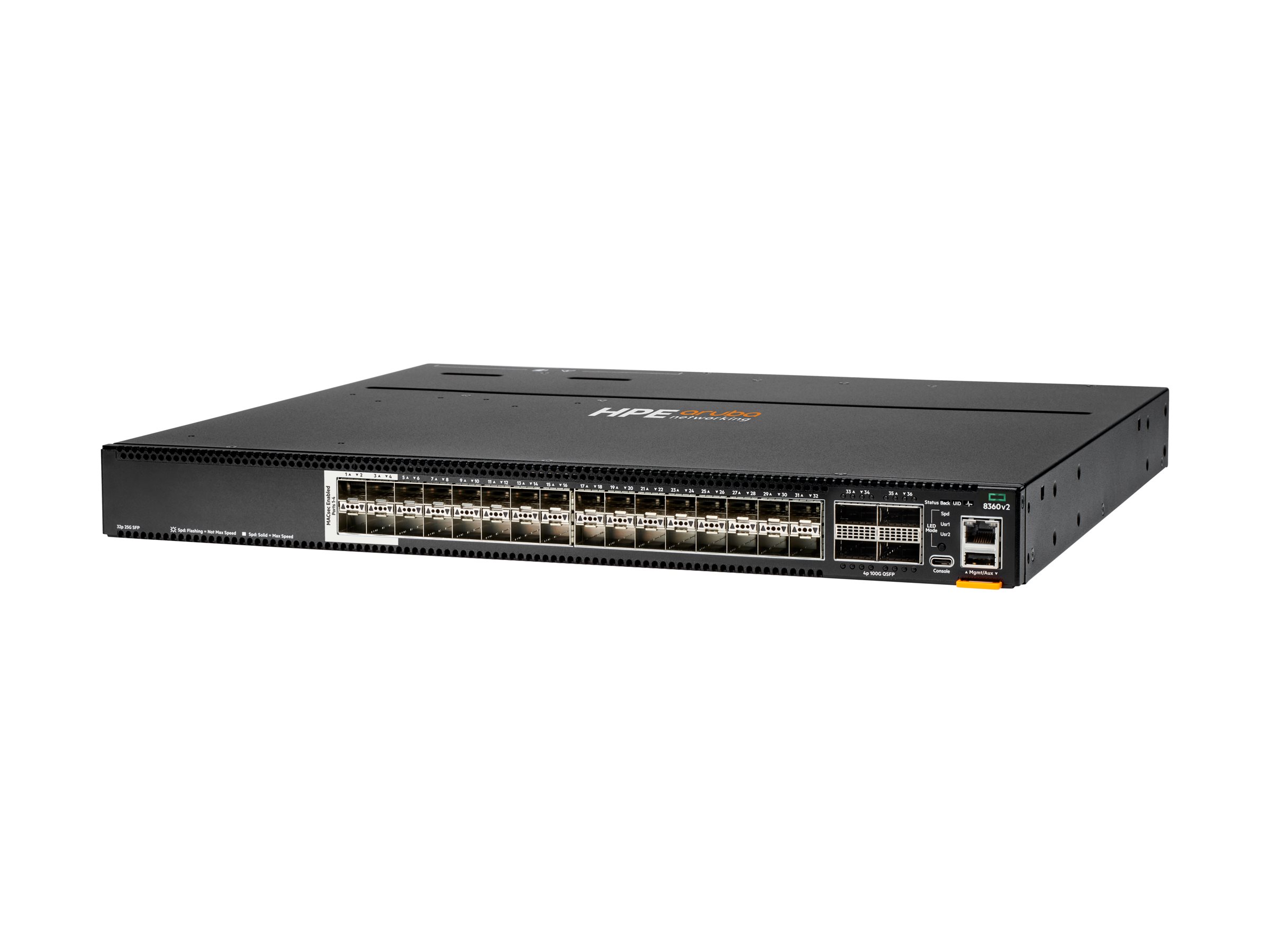

HPE Aruba CX 8360-32Y4C V2 Switch 32-porte 25 Gigabit Ethernet
HPE Aruba CX 8360-32Y4C V2 - Switch - L3 - Administreret - 32 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 - front til ryg-luftstrøm - monterbar på stativ - AC
-
Product no 1000606545
Model JL700C
Brand Hewlett Packard Ente
EAN 0190017589886
Weight 10.73 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Aruba CX 8360-32Y4C V2 - switch - 32 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 32 porte - L3 - Administreret |
| Pakningstype | Front til ryg-luftstrøm monterbar på stativ 1U |
| Undertype | 25 Gigabit Ethernet |
| Porte | 32 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 |
| Præstation | Routing/switching kapacitet: 4.8 Tbps<br>Kontaktstofhastighed: 4.8 Tbps<br>Omkoblingskapacitet: 4.8 Tbps<br>Kapacitet: 2,678 Mpps |
| Routingprotokol | OSPF, BGP-4, RIP-2, GRE, OSPFv3, statisk IPv4 routing, statisk IPv6 routing, ECMP, police-baseret routing (PBR), RIPng, MPLS, BGP-MP |
| Egenskaber | IPv6 understøttet, ToR, sammenlægningstilstand |
| Effekt | AC |
| Overskudsspænding | Ja |
| Dimensioner (B x D x H) | 55.9 cm x 4.4 cm |
| Vægt | 10.73 kg |
| Producentgaranti | Begrænset livtidsgaranti |
HPE Aruba Networking CX 8360-32Y4C v2 32p 25G SFP/+/28 4 Sec 4p 100G QSFP+/28 FB 3 Fans 2 AC Bdl
The HPE Aruba Networking CX 8360 v2 Switch Series is designed for next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. The switch series provides up to 4.8 Tbps switching capacity, with line-rate Gigabit Ethernet interfaces including support for HPE Smart Rate (1/2.5/5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps connectivity in a compact 1U form factor. These switches deliver a fantastic investment for customers wanting to migrate from older 1/10GbE to faster 25GbE, or from 10/40GbE uplinks to 50/100GbE ports. In addition, the 48 and 32 x 25G port CX 8360 models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. MACsec is also supported on 2 high-speed 40/100G ports on the CX 8360 48-port model.
48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
Intelligent monitoring and visibility are delivered by the HPE Aruba Networking CX Network Analytics Engine (NAE)
High availability with industry-leading HPE Aruba Networking Virtual Switching Extension (VSX) redundancy and redundant power supplies and fans
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX 8360 48 and 32 x 25G port models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains
Modular cloud-native architecture
- HPE Aruba Networking CX 8360 v2 Switch Series features HPE Aruba Networking CX Switch Operating System (AOS-CX) which simplifies the complexities of managing data center networks with automation options to match your IT organization’s operating model.
- It proactively detects issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch.
- REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services.
- Continual state synchronization provides superior fault tolerance and high availability with uninterrupted infrastructure, designed for resiliency and upgrades with zero downtime.
- Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
HPE Aruba Networking CX Network Analytics Engine (NAE)
- HPE Aruba Networking CX 8360 v2 Switch Series utilizes the HPE Aruba Networking CX Network Analytics Engine (NAE) for advanced telemetry and automation to provide industry-first monitoring and troubleshooting systems that greatly improves network operations.
- The time series database (TSDB) is used to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.
High availability and resiliency
- Software processes in the HPE Aruba Networking CX 8360 v2 Switch Series run as microservices that communicate through the state database of the switch.
- HPE Aruba Networking Virtual Switching Extension (VSX) provides a robust solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link.
Software-defined automation
- The HPE Aruba Networking CX 8360 v2 Switch Series is supported by HPE Aruba Networking Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
- It orchestrates a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 28-port of 1/10/25GbE (SFP/SFP+/SFP28) 4-port of 10/25GbE (SFP+/SFP28) with MACsec 4-port of 40/100GbE QSFP+/QSFP28 (optional 1GBASE-T SFP, 10GBASE-T SFP+ transceivers and 4 x 10/25G breakout cables supported) |
| Memory and processor | CPU: 1.8 GHz 4-core 64-bit RAM: 16 GB Flash/Storage: 32 GB Packet Buffer: 32 MB |
| Throughput | 1309 Mpps depending on the model |
| Switching capacity | 2.4 Tbps |
| Management features | RJ45 serial and USB-C console RJ45 Ethernet port USB-Type A |
| Power supply | 2 field-replaceable and hot-swappable power supplies depending on the model |
| Input voltage | 7.1A 100–127 VAC 3.4A 200–240 VAC |
| Power consumption | Maximum: 425W Idle:120W |
| Heat dissipation | 1,450 BTU/hr |
| Product dimensions (metric) | 4.40 x 4.42 x 40.6 cm |
| Weight | 8.19 kg |
