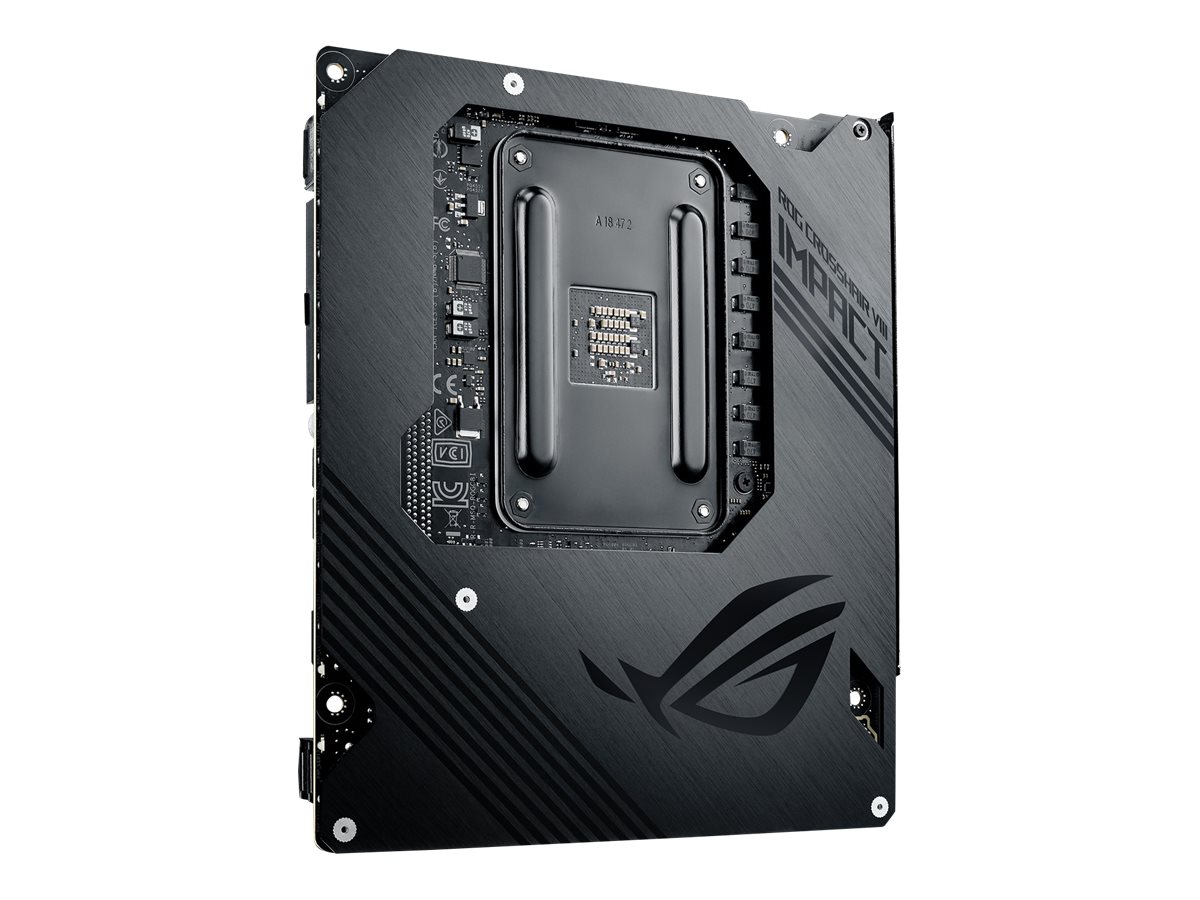

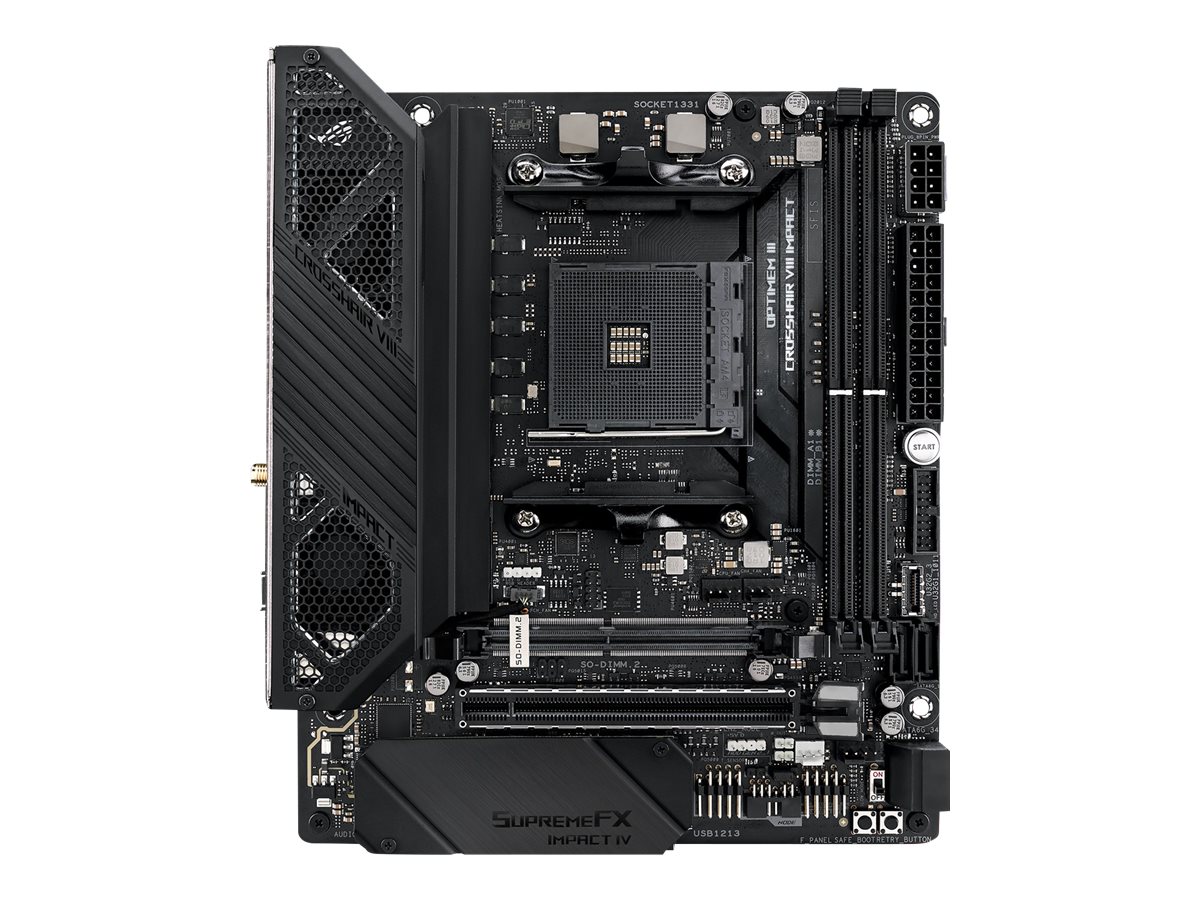

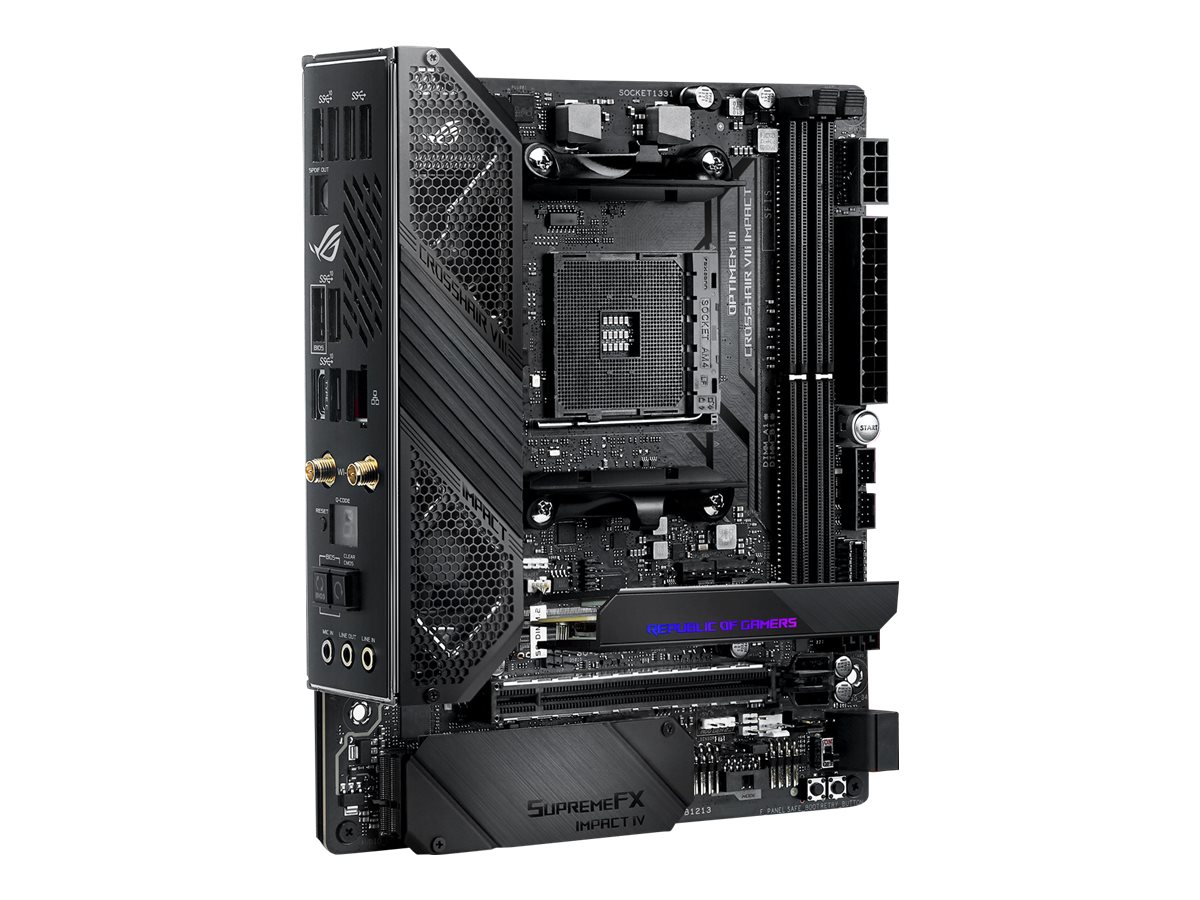

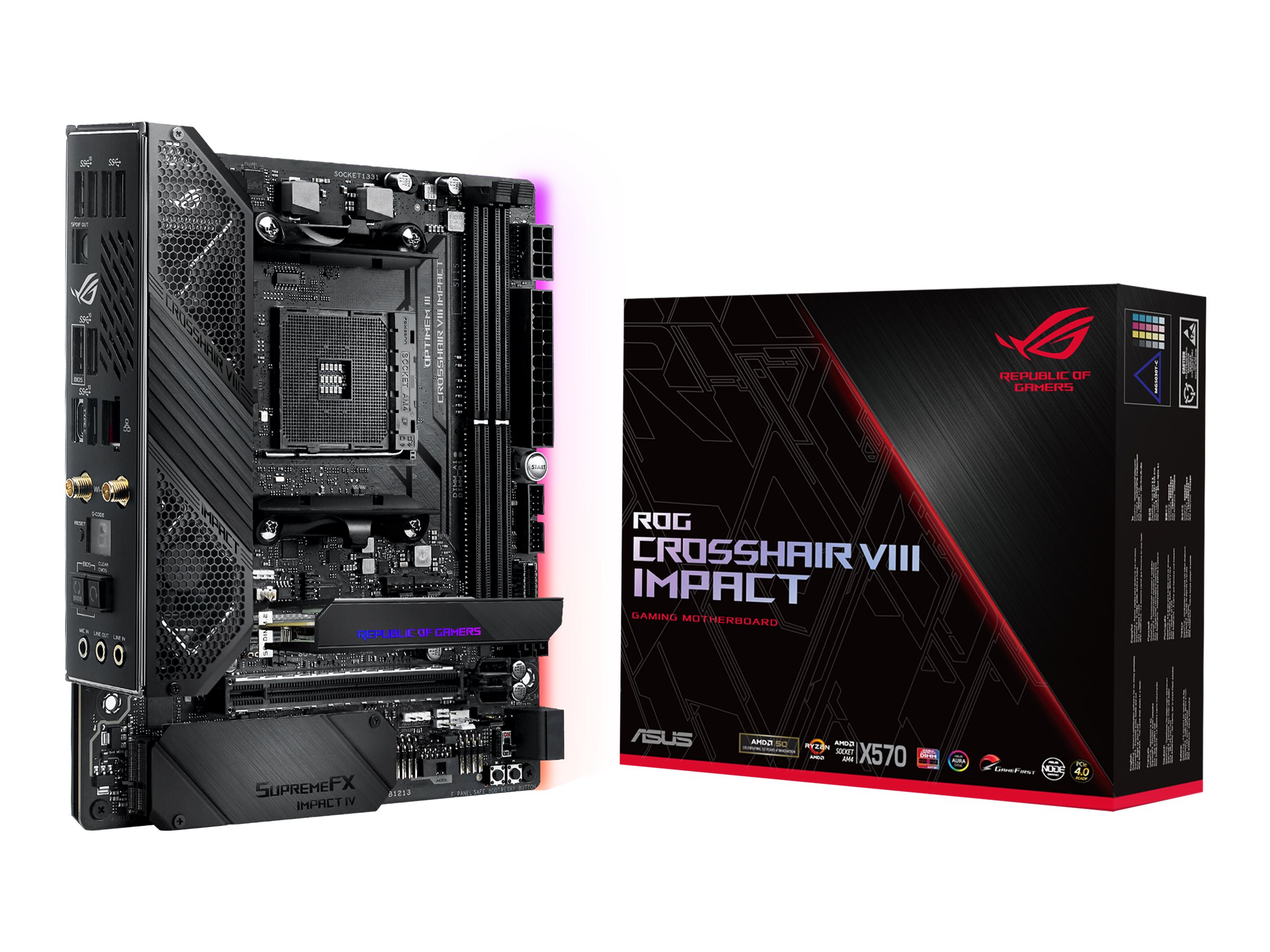

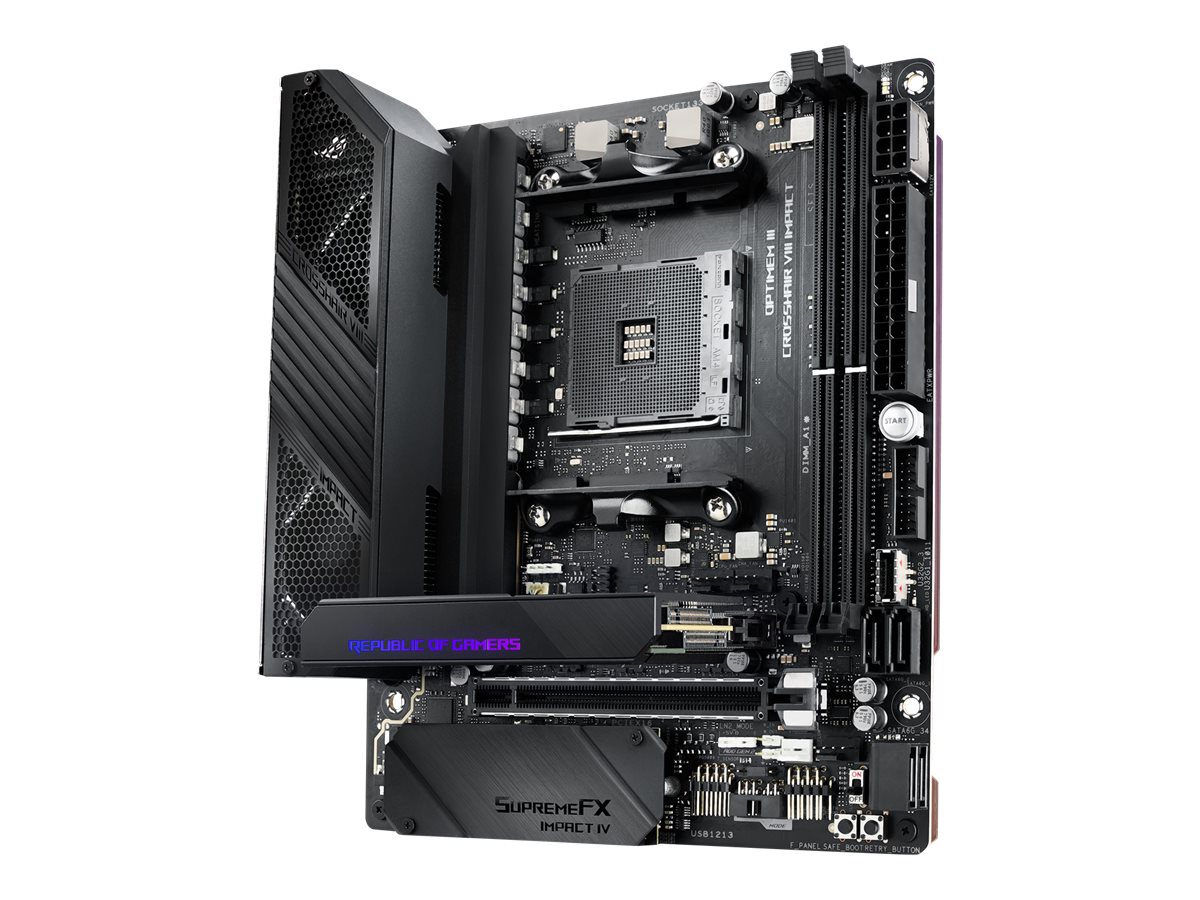

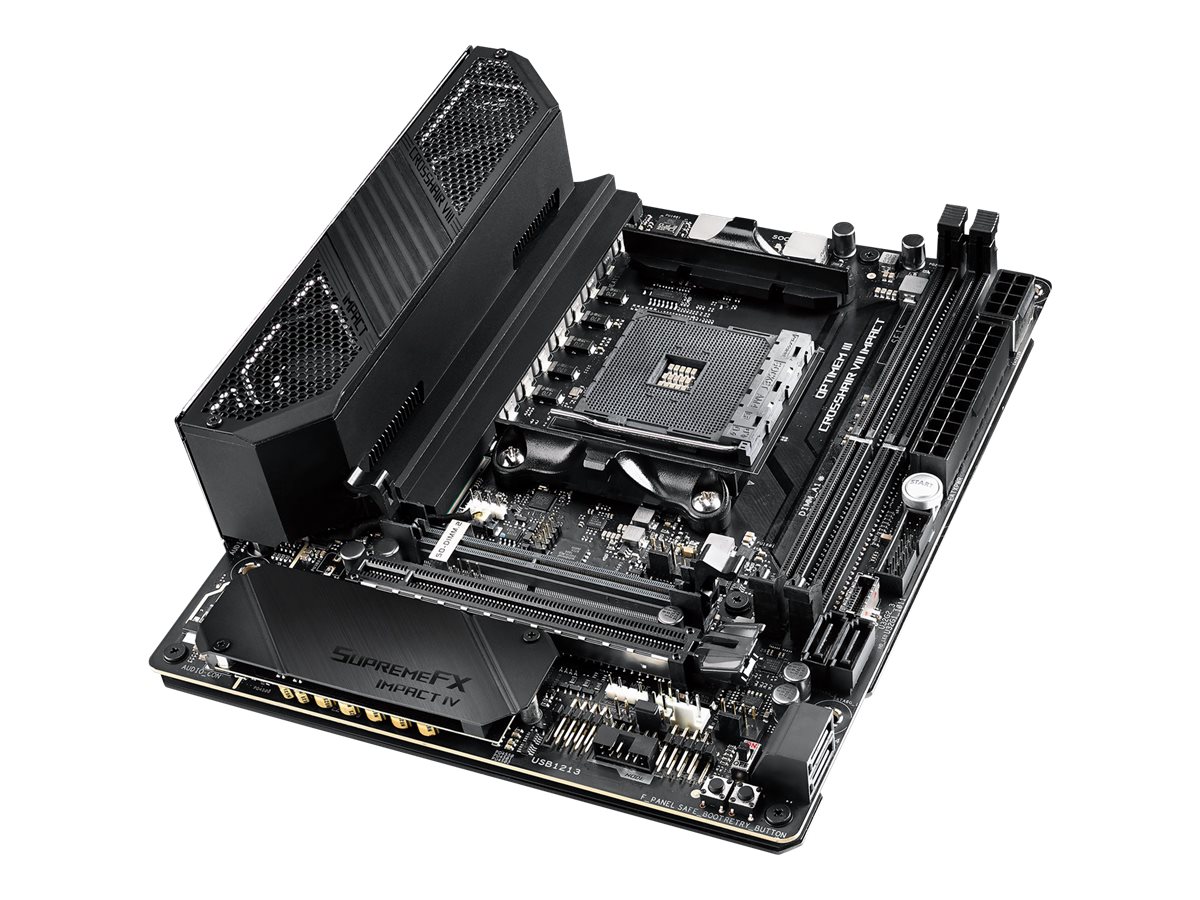

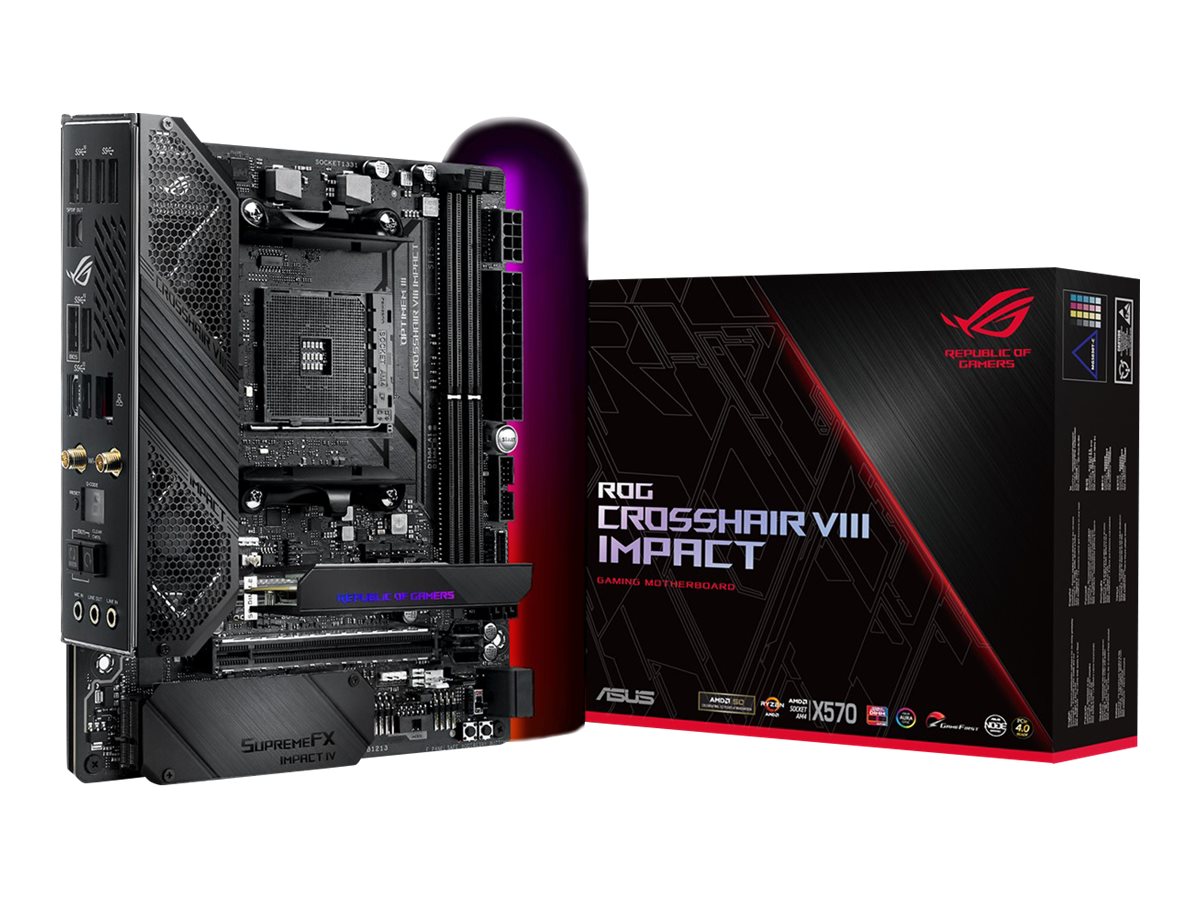

ASUS ROG Crosshair VIII Impact ATX AM4 AMD X570

ASUS ROG Crosshair VIII Impact - Bundkort - ATX - Socket AM4 - AMD X570 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, 2.5 Gigabit LAN - HD Audio (8-kanaler)

Product no: 995007554
Model: 90MB11Q0-M0EAY0
EAN: 4718017372558
Brand:
ASUSTeK COMPUTER
Weight: 1.95 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
ASUS ROG Crosshair VIII Impact - bundkort - ATX - Socket AM4 - AMD X570
Produkttype
Bundkort - ATX
Chipsættype
AMD X570
Processor-socket
1 x Socket AM4
Kompatible processorer
Ryzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR4, ECC, ikke bufferet
Lagringsporte
8 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
1 x USB-C Gen 2 + 7 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet, 2.5 Gigabit Ethernet
Specifications

Full specifications

General
Chipset Type
AMD X570
Compatible Processors
Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)
Max Processors Qty
1
Processor Socket
Socket AM4
Product Type
Motherboard - ATX
Supported RAM
Bus Clock
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 320
Features
Dual channel memory architecture
Max Size
128 GB
Registered or Buffered
Unbuffered
Supported RAM Integrity Check
ECC
Technology
DDR4
Audio
Audio Codec
SupremeFX
Compliant Standards
High Definition Audio, DTS Sound Unbound
Type
HD Audio (8-channel)
LAN
Network Controller
Intel I211-AT / Realtek RTL8125-CG
Network Interfaces
Gigabit Ethernet, 2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU | 4 x DIMM 288-pin | 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode) | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x1
Interfaces
1 x LAN (Gigabit Ethernet) | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x TOSLINK | 4 x USB 3.2 Gen 1 | 7 x USB 3.2 Gen 2 | 1 x audio line-out (center/subwoofer) - mini-jack | 1 x audio line-out (r
Internal Interfaces
4 x USB 2.0 - header | 1 x USB 3.2 Gen 2 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x speaker - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 2 x M.2
Features
BIOS Features
WfM 2.0 support, BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.2 support, ACPI 6.2 support
BIOS Type
AMI
Hardware Features
C.P.R. (CPU Parameter Recall), ASUS Q-Design, GameFirst, Q-DIMM, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, ASUS Extreme Tweaker, NVIDIA 2-way SLI Technology Support, ASUS DIGI+ VRM, ASUS ROG Extreme OC, Q-Code, SupremeFX Shielding technology
Sleep / Wake Up
Wake on LAN (WOL)
Miscellaneous
Cables Included
4 x Serial ATA cable
Depth
24.4 cm
Included Accessories
1 x M.2 screw, ROG coasters, RGB (RGBW) LED strip extension cable, ROG big sticker, ROG thank you card, RGB Addressable LED extension cable, Q-Connector
Software Included
Drivers & utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, RAMdisk, ASUS Turbo App, ASUS ROG RAMCache III, ROG GameFirst V, Sonic Studio Virtual Mixer
Width
30.5 cm
