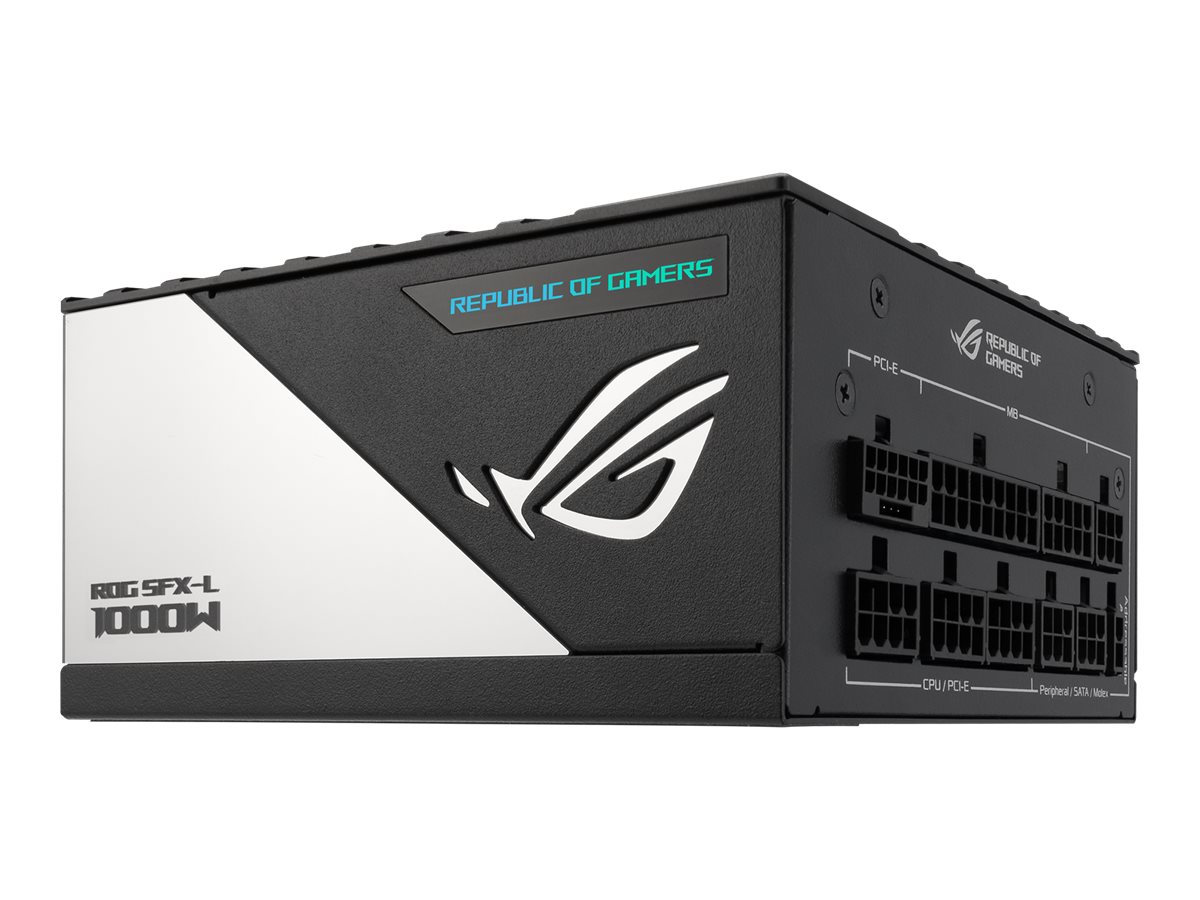

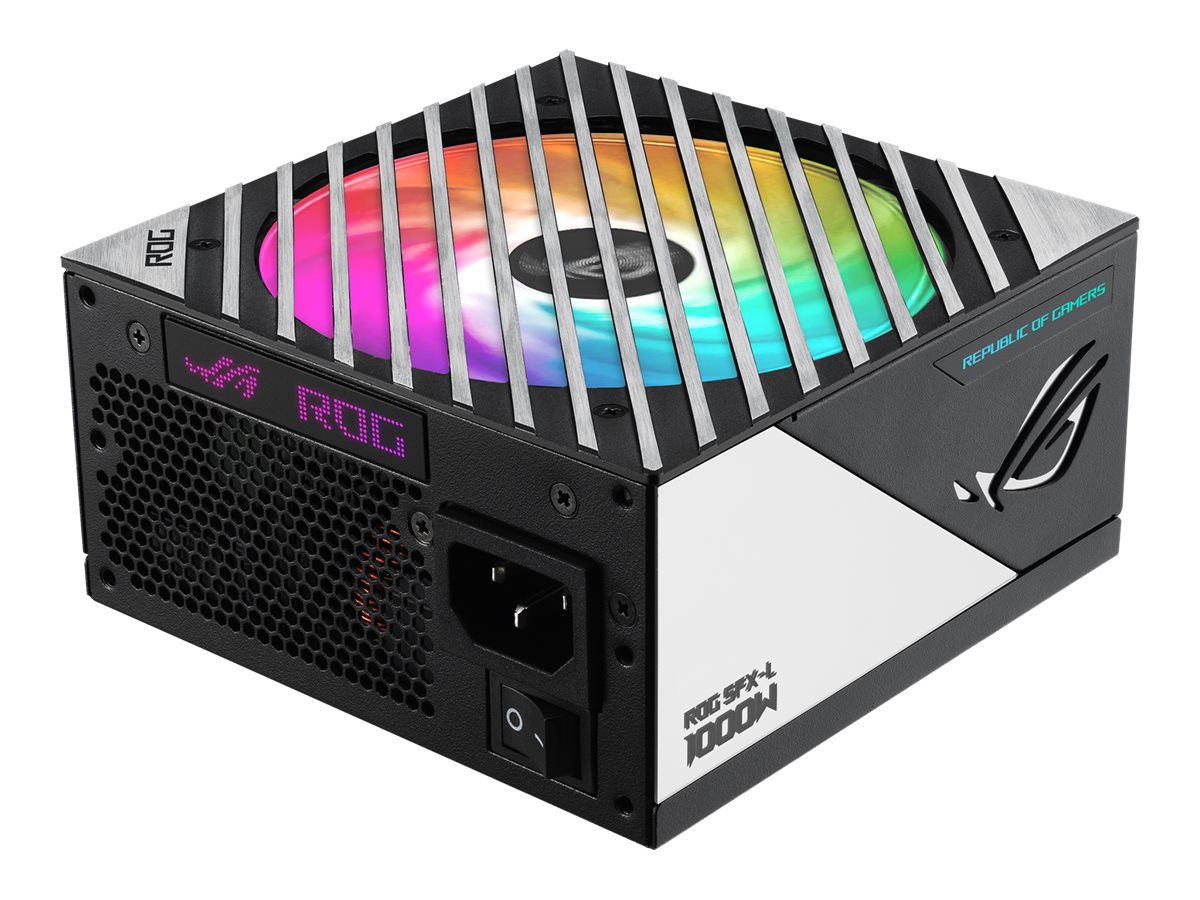

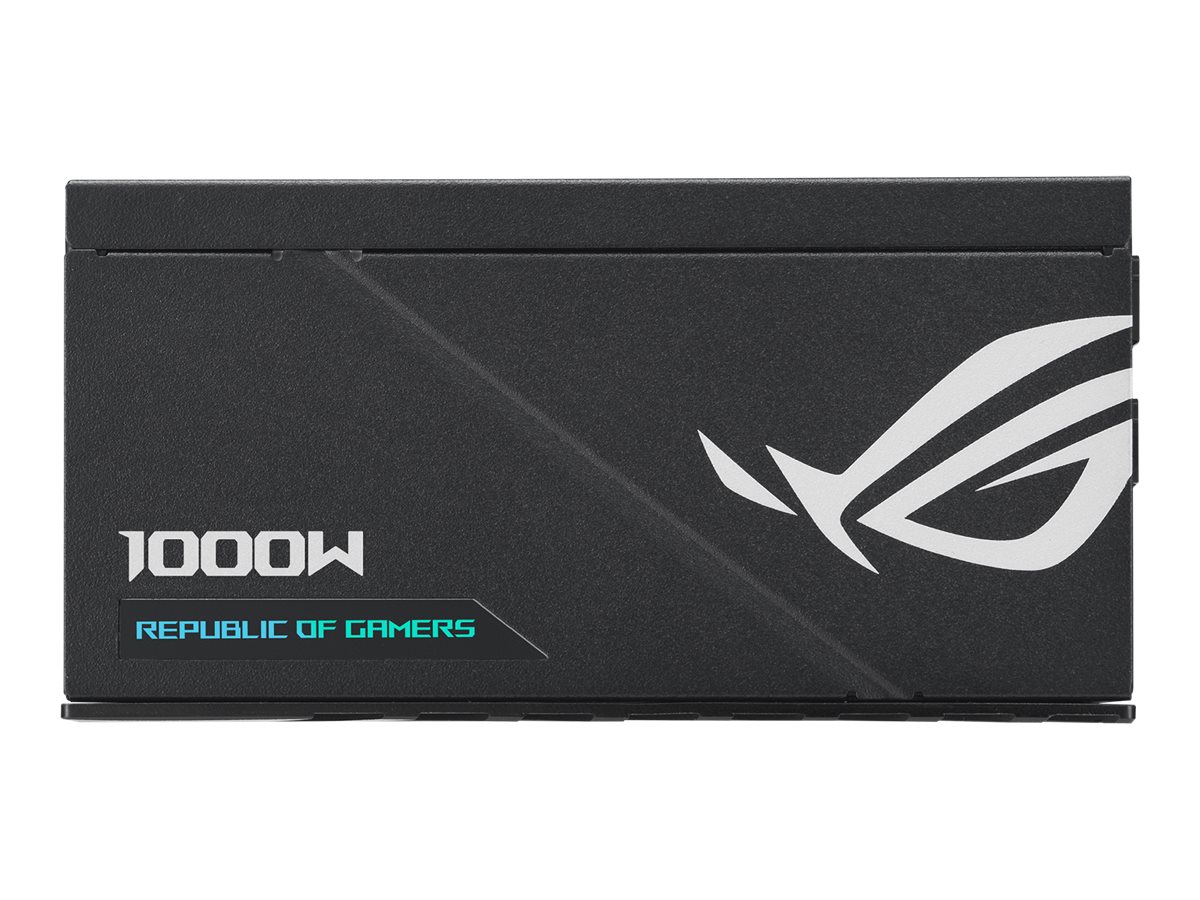

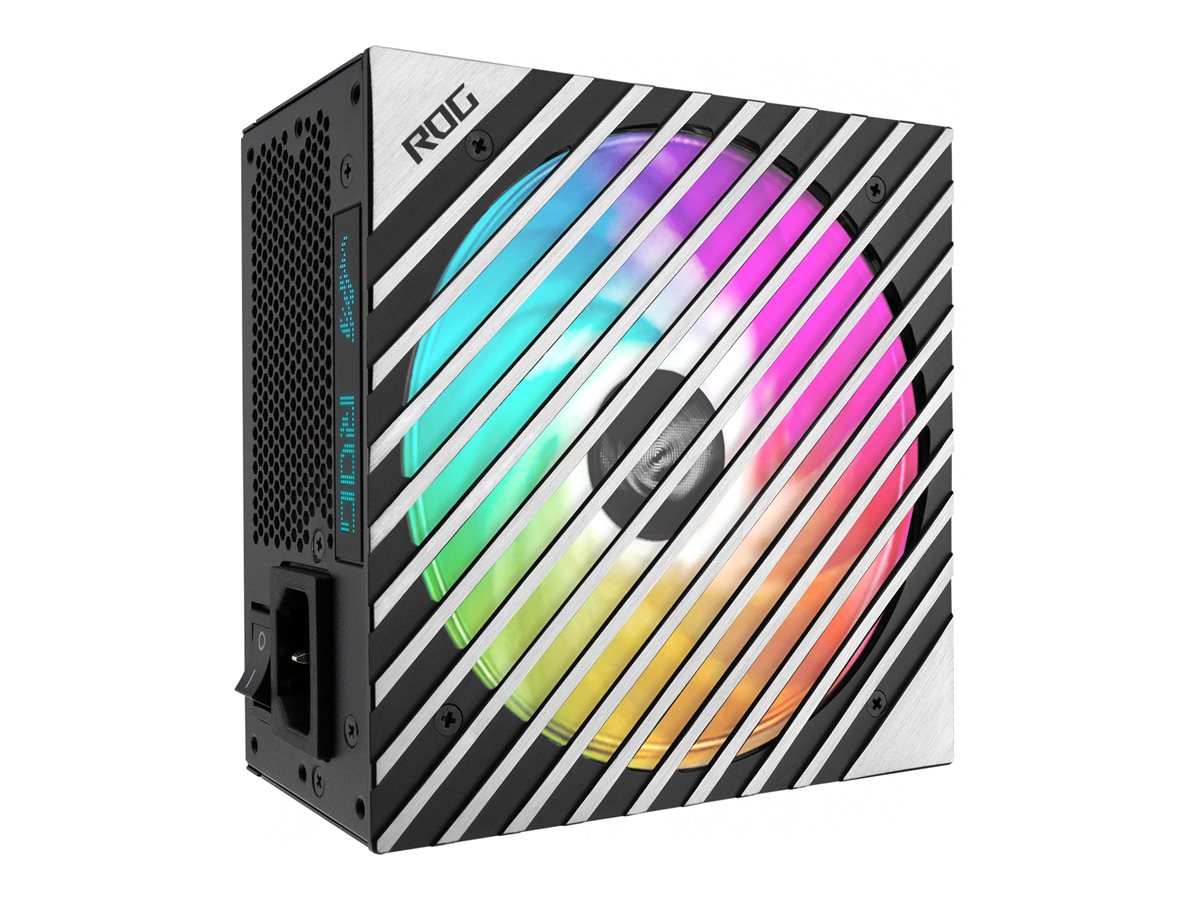

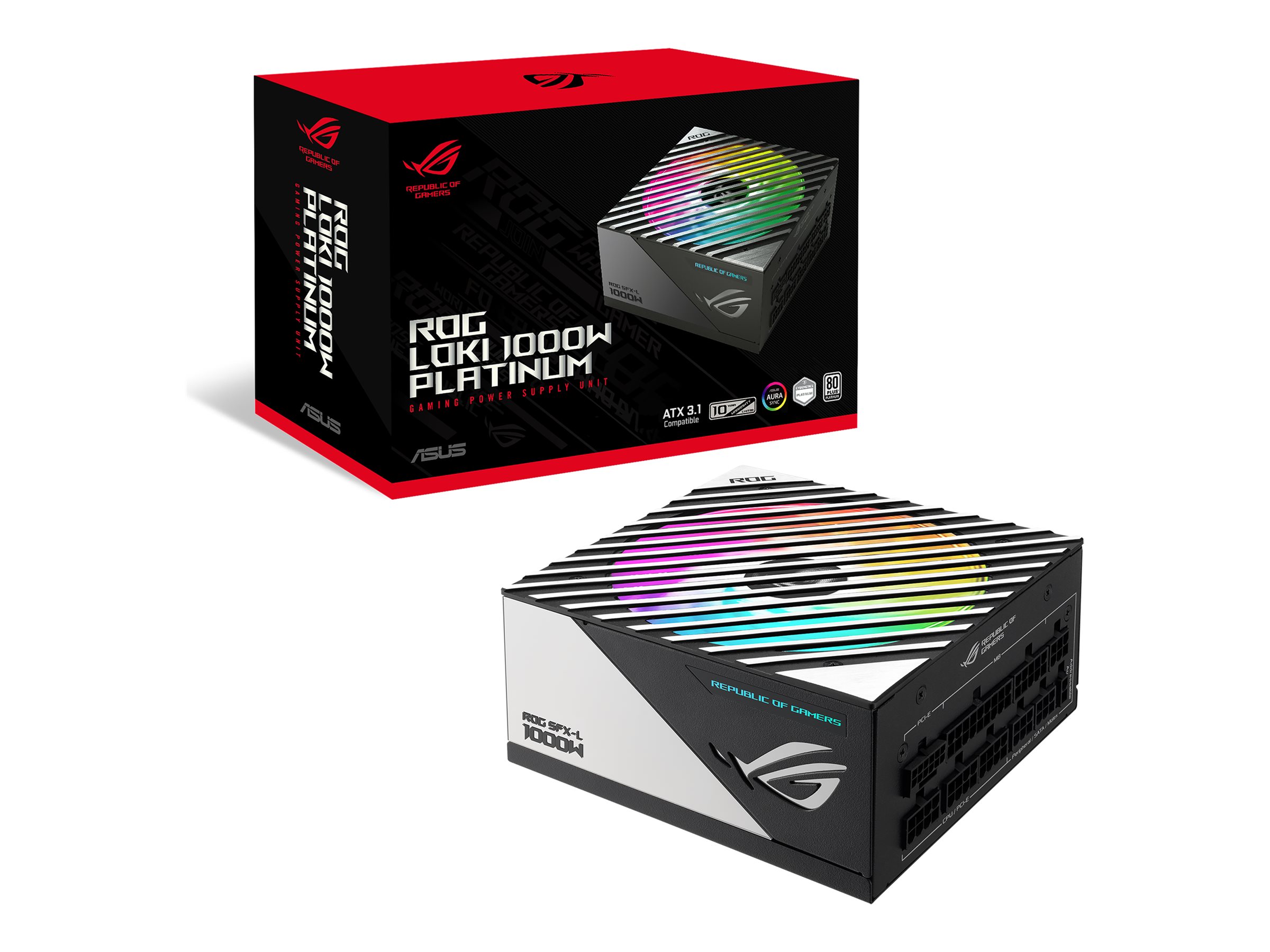

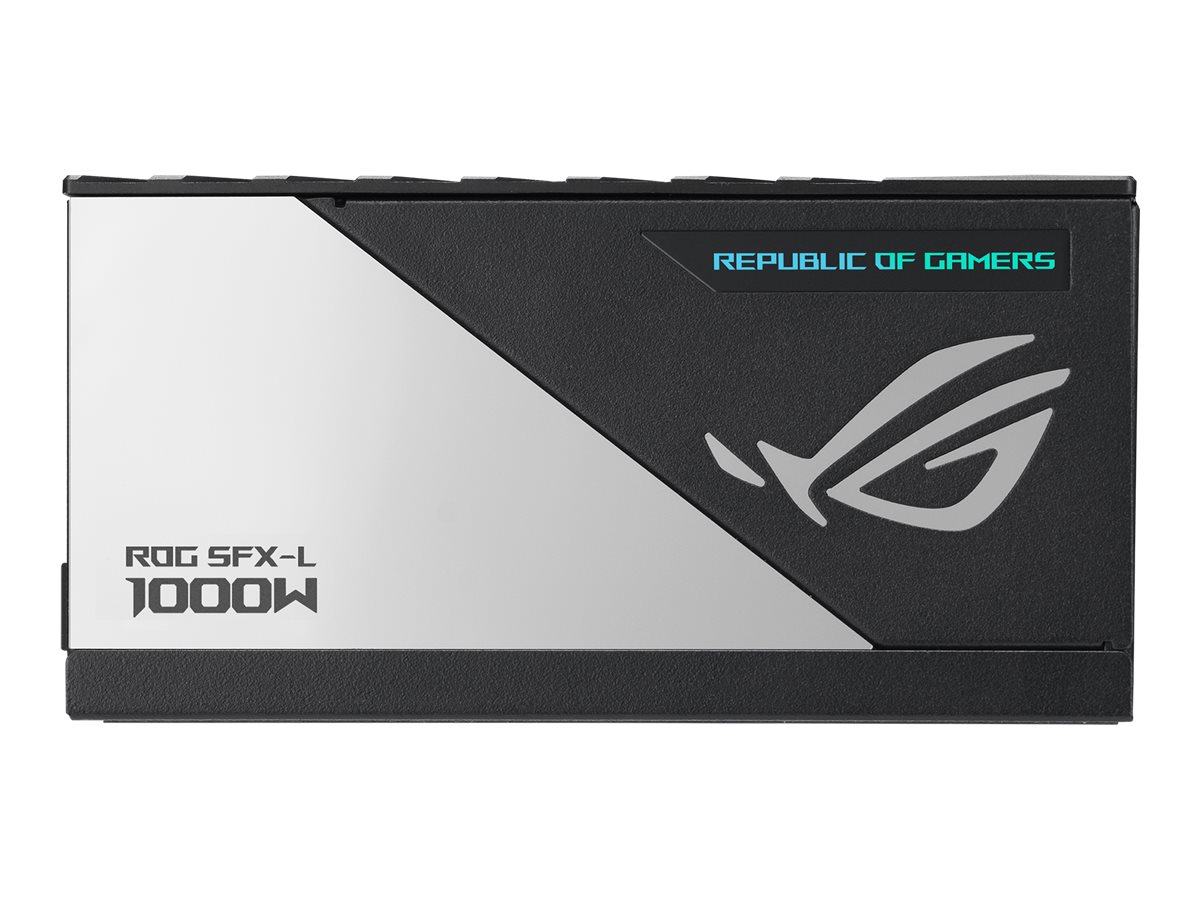

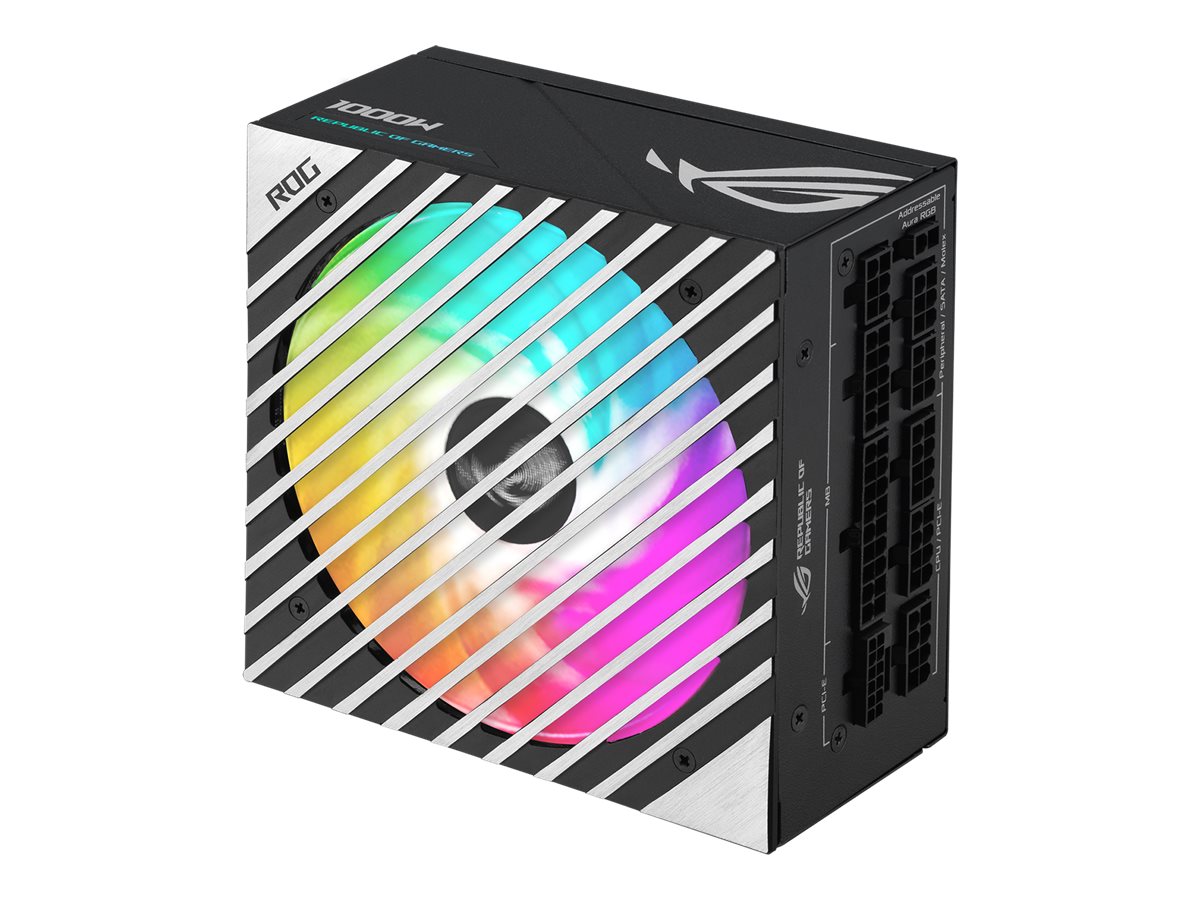

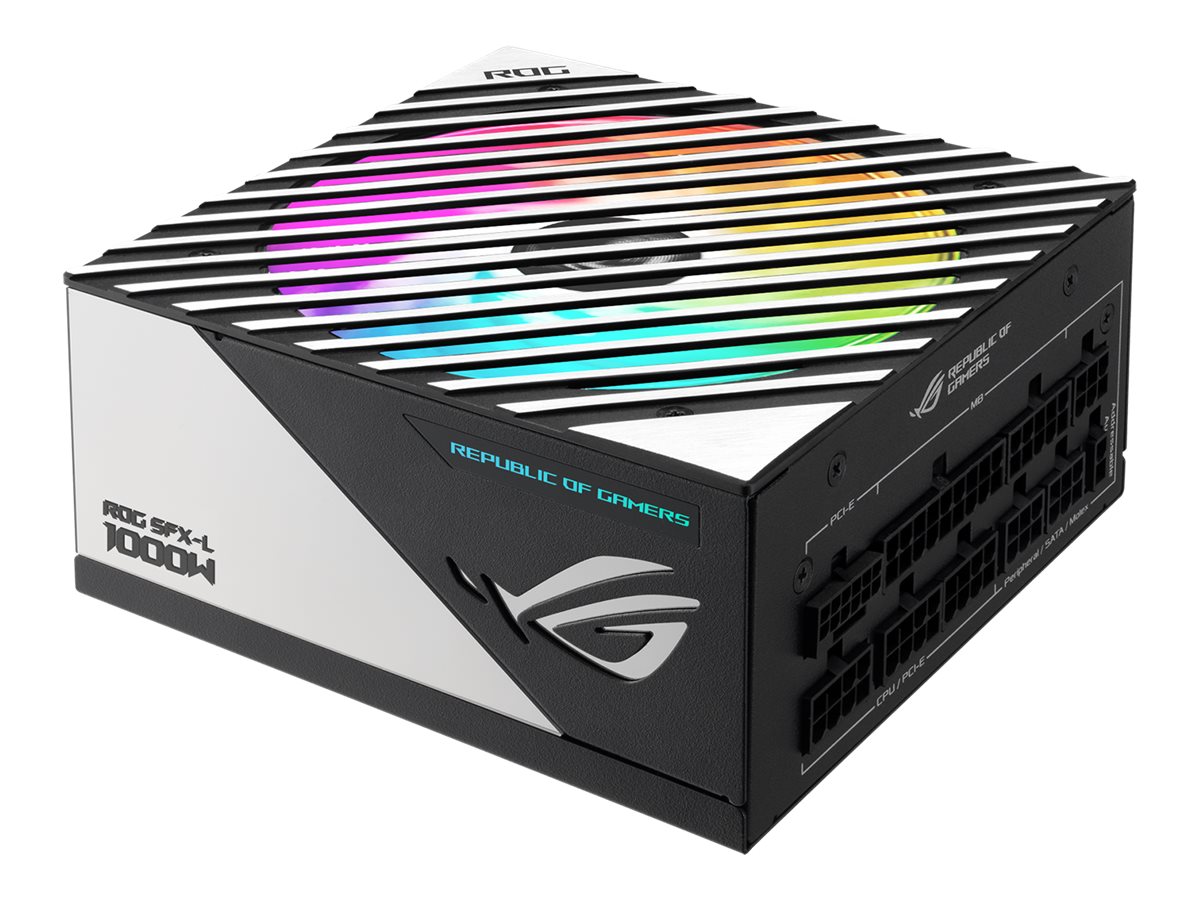

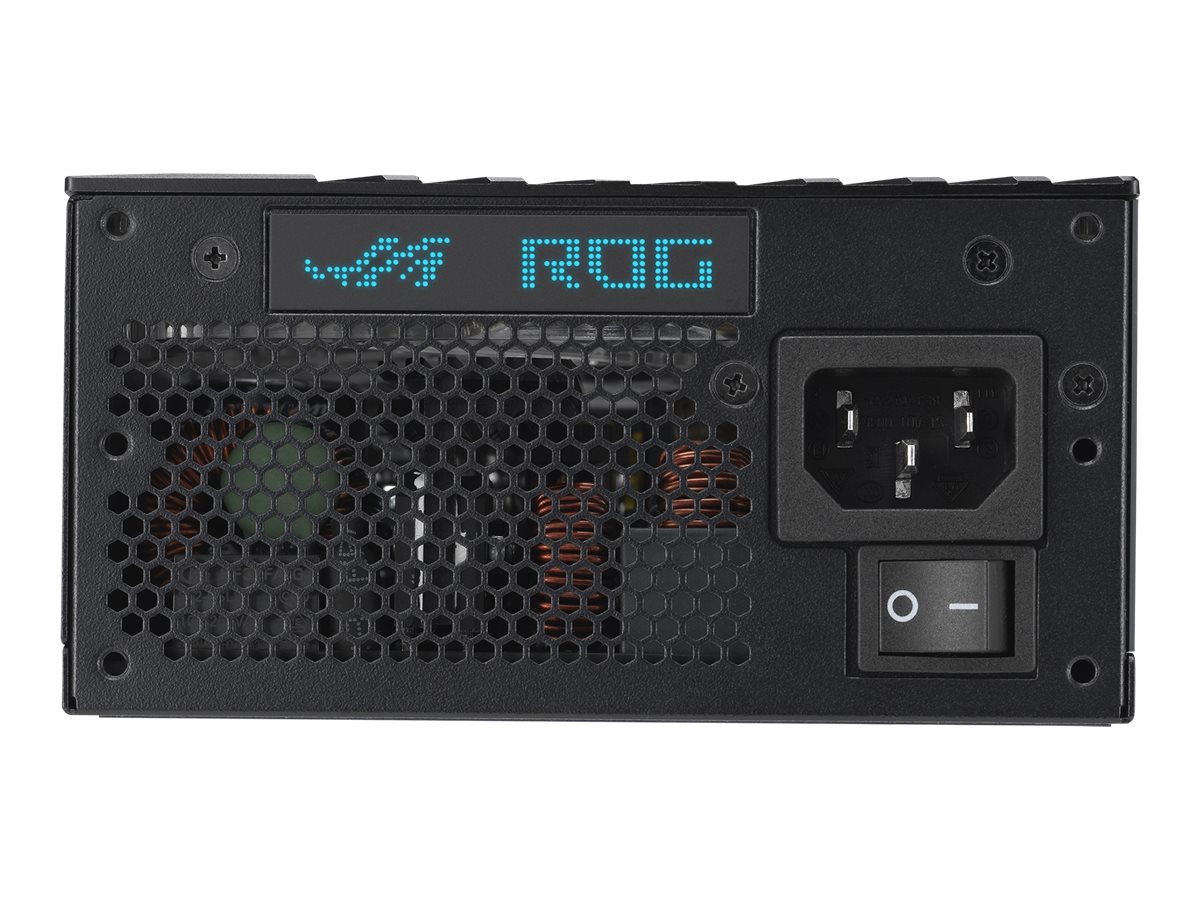

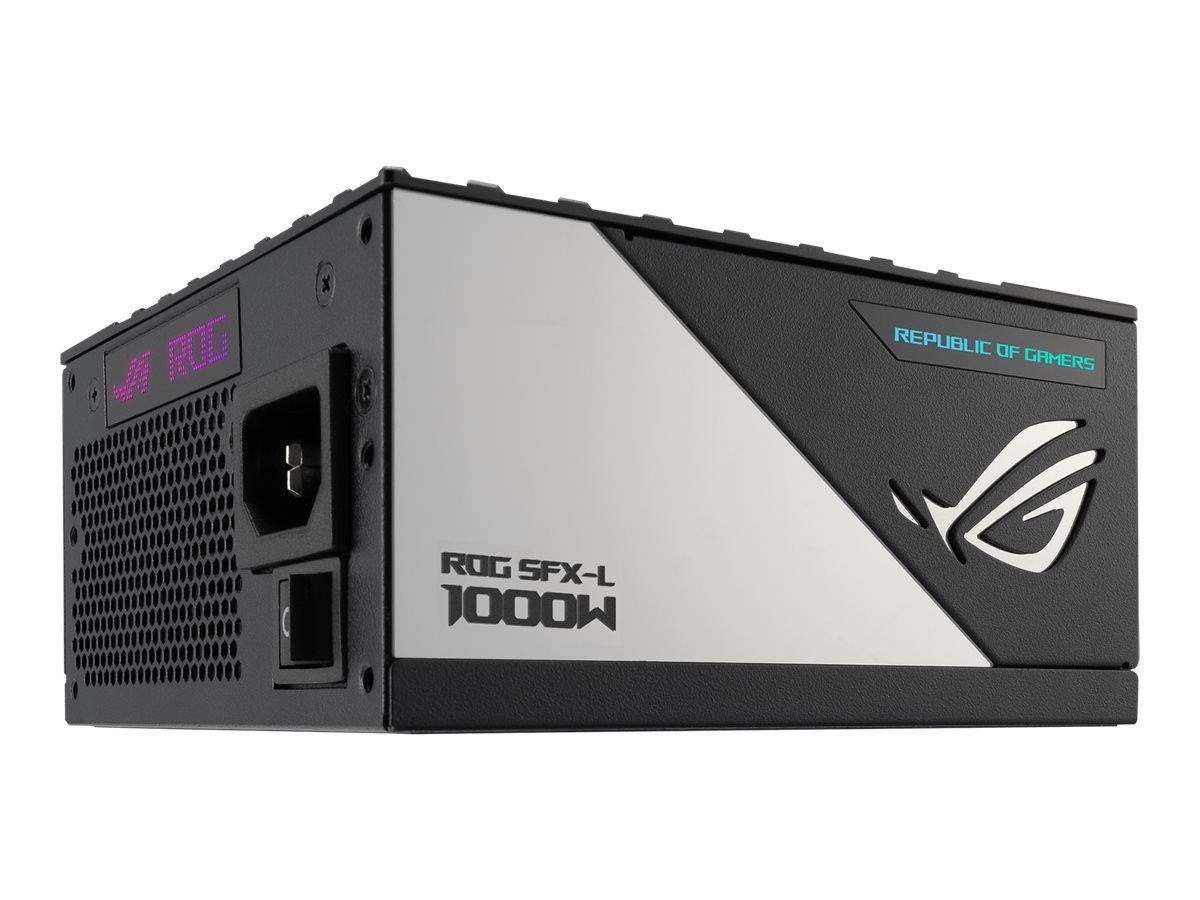

ASUS ROG Loki SFX-L 1000Watt 80 PLUS Platinum

ASUS ROG Loki SFX-L - Strømforsyning (intern) - ATX 3.1 / SFX-L - 80 PLUS Platinum - AC 100-240 V - 1000 watt

Product no: 1000764152
Model: 90YE00N1-B0NA00
EAN: 4711081721901
Brand:
ASUSTeK COMPUTER
Weight: 2.6 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
ASUS ROG Loki SFX-L - strømforsyning - 1000 watt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX 3.1 / SFX-L
80 PLUS certificering
80 PLUS Platinum
Vægt
1.83 kg
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1000 watt
Output Current
+3.3V - 20 A<br>+5V - 20 A<br>+12V - 83.3 A<br>-12V - 0.8 A<br>+5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>1 x 16-pin PCI Express-strøm<br>3 x 8 pin PCI Express-strøm<br>6 x 15 pin Serial ATA strøm<br>4 x 4-PIN intern strøm
Modulær Kabel Administration
Ja
Udstyr inkluderet
SFX to ATX bracket
Dimensioner (B x D x H)
12.5 cm x 12.5 cm x 6.35 cm
Producentgaranti
10-års garanti
Specifications

Full specifications

General
Device Type
Power supply - internal
PSU Form Factor
ATX
Specification Compliance
ATX 3.0 / SFX-L
Power Device
80 PLUS Certification
80 PLUS Platinum
Input Voltage
AC 100-240 V
Modular Cable Management
Yes
Output Current
+3.3V - 20 A | +5V - 20 A | +12V - 83.3 A | -12V - 0.8 A | +5VSB - 2.5 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
1000 Watt

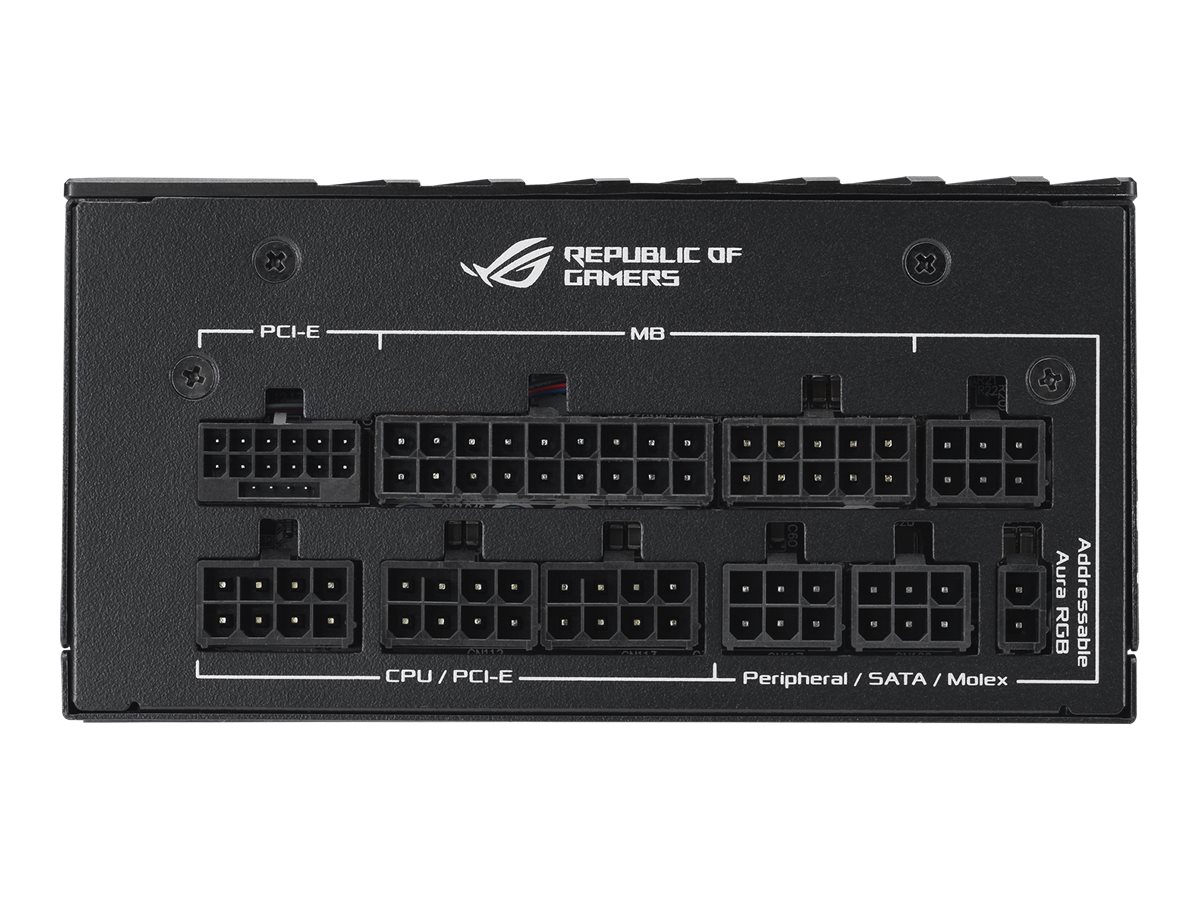

Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 1 x 16 pin PCI Express power | 3 x 8 pin PCI Express power | 6 x 15 pin Serial ATA power | 4 x 4 pin internal power
Miscellaneous
Cables Included
AC input cable - external | Power 24 pin ATX modular cable 45 cm | 2 x power 8 pin +12V with detachable 4 pin section modular cable 55 cm | 16-pin 12VHPWR power cable 45 cm | 16-pin 12VHPWR to 2x8 pin PCI Express power adapter 45 cm | 2 x 3x Serial A
Compliant Standards
RoHS
Features

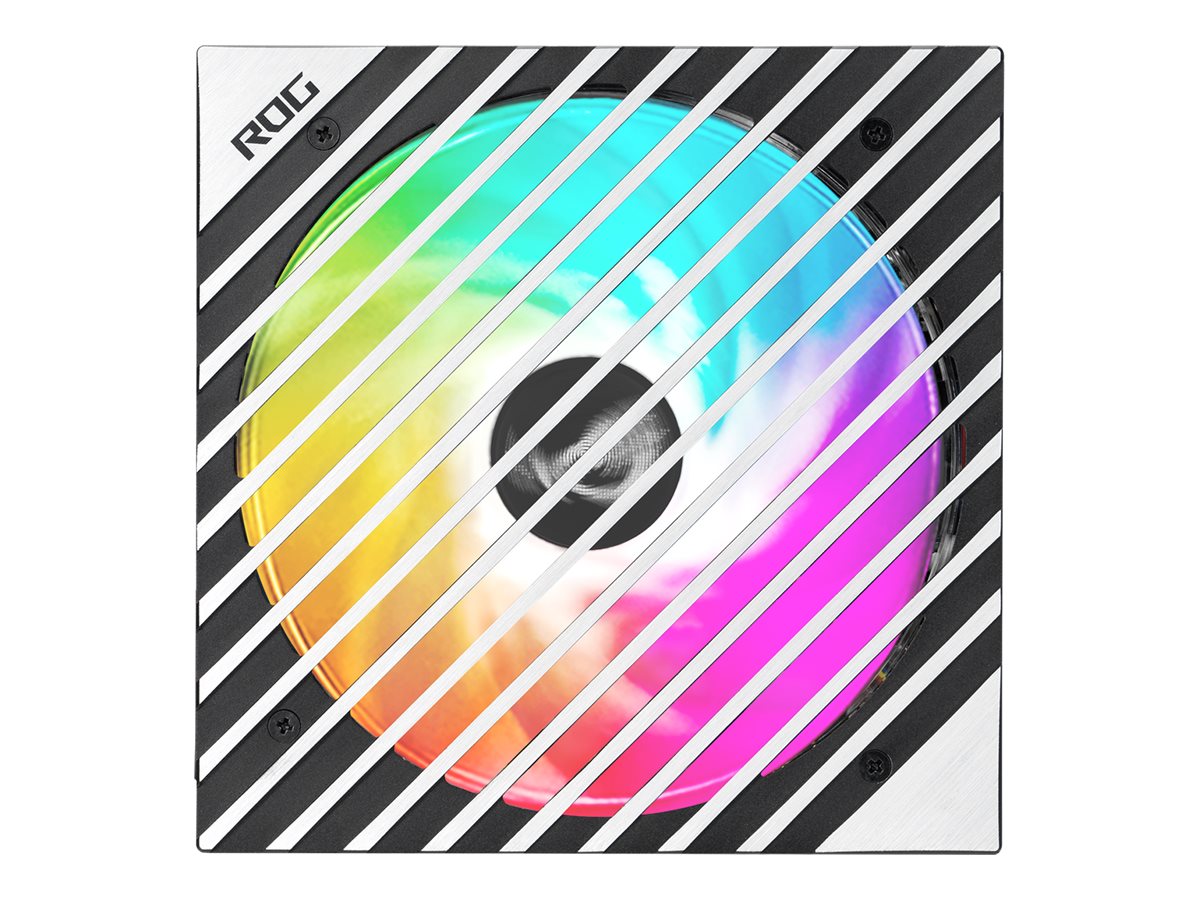

Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ASUS Aura Sync, ROG heatsink, Axial-tech fan design, ARGB fan
Included Accessories
SFX to ATX bracket
Dimensions & Weight
Depth
12.5 cm
Height
6.35 cm
Weight
1.83 kg
Width
12.5 cm
