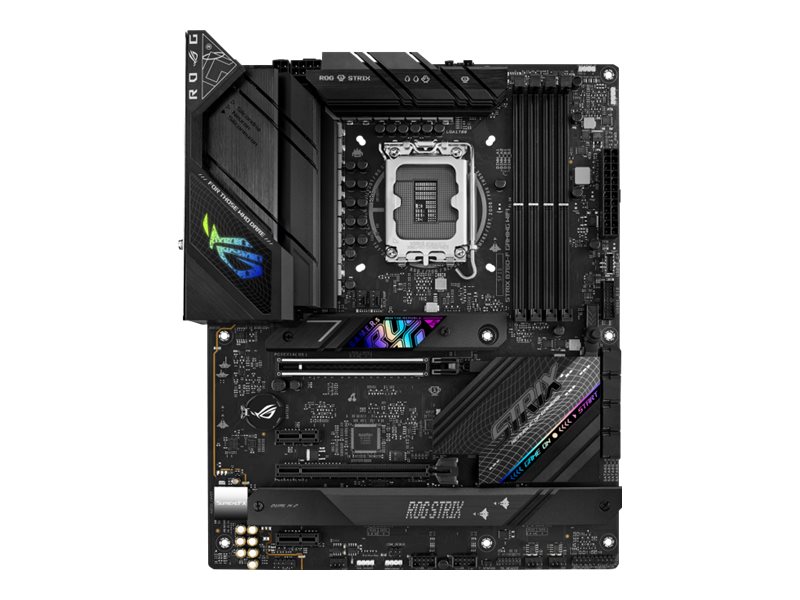

ASUS ROG STRIX B760-F GAMING WIFI ATX LGA1700 Intel B760

ASUS ROG STRIX B760-F GAMING WIFI - Bundkort - ATX - LGA1700 sokkel - B760 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)

Varenummer: 1000935831
Model: 90MB1CT0-M0EAY0
EAN: 4711081974666
Brand:
ASUSTeK COMPUTER
Vægt: 2.02 kg

Specifications

Produktbeskrivelse
ASUS ROG STRIX B760-F GAMING WIFI - bundkort - ATX - LGA1700 sokkel - B760
Produkttype
Bundkort - ATX
Chipsættype
Intel B760
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, on-die ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + (1 x USB4 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Specifications

Full specifications

General
Chipset Type
Intel B760
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty
1
Processor Socket
LGA1700 Socket
Product Type
Motherboard - ATX
Supported RAM
Bus Clock
5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.)
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size
128 GB
Registered or Buffered
Unbuffered
Supported RAM Integrity Check
Non-ECC, on-die ECC
Technology
DDR5
Audio
Audio Codec
SupremeFX (ALC4080)
Compliant Standards
High Definition Audio, DTS Sound Unbound
Type
HD Audio (8-channel)
LAN
Network Interfaces
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion / Connectivity
Expansion Slots
1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 5.0 x16 | 1 x PCIe 3.0 x16 (x4 mode) | 2 x PCIe 3.0 x1 | 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) | 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Interfaces
1 x HDMI | 1 x DisplayPort | 1 x USB-C 3.2 Gen2x2 | 1 x USB 3.2 Gen 2 | 6 x USB 3.2 Gen 1 | 2 x antenna | 1 x LAN (2.5Gigabit Ethernet) | 1 x microphone - mini-jack | 1 x audio line-out (center/subwoofer) - mini-jack | 1 x audio line-out (rear) - min
Internal Interfaces
1 x USB 3.2 Gen 2 - header | 2 x USB 3.2 Gen 1 - header | 4 x USB 2.0 - header | 1 x audio - header | 1 x Thunderbolt - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
RAID Features
Intel Rapid Storage Technology
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -connectors: 3 x M.2
Features
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, MemTest86, ASUS UEFI BIOS EZ Mode
BIOS Type
AMI
Hardware Features
Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, Intel Turbo Boost Technology 2.0, SupremeFX Shielding technology, Clear CMOS Button, LANGuard, 6 Layer PCB,
Sleep / Wake Up
Wake on PME
Miscellaneous
Cables Included
2 x Serial ATA cable
Compliant Standards
DisplayPort 1.4
Depth
24.4 cm
Included Accessories
Cable ties, STRIX stickers, ROG thank you card, thermal pad for M.2 SSD, ROG key chain, ASUS Wi-Fi moving antenna, M.2 Q-Latch, 2 x M.2 rubber package
Software Included
ROG CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4, Nort
Width
30.5 cm
