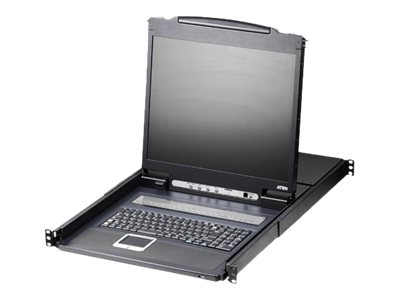

ATEN CL1308N KVM-konsol

ATEN CL1308N - KVM-konsol med KVM switch - 8 porte - PS/2, USB - 19" - rackversion - 1280 x 1024 @ 75 Hz - 250 cd/m² - 1000:1 - 5 ms - 1U

Product no: 993169534
Model: CL1308N-ATA-XG
EAN: 4719264642401
Brand:
ATEN Technology
Weight: 17.04 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
ATEN CL1308N - KVM-konsol - 19"
Enhedstype
KVM-konsol - 19"
KVM Switch
PS/2, USB - 8 porte
Egenskaber
Tastatur, touchpad, 8-port KVM-switch
Formatforhold
5:4
Standard opløsning
1280 x 1024 ved 75 Hz
Pixel Pitch
0.294 mm
Lysstyrke
250 cd/m²
Kontrastforhold
1000:1
Responstid
5 ms
Farve support
16,8 millioner farver
Spænding
AC 100 - 240 V (50/60 Hz)
Dimensioner (B x D x H)
68.92 cm x 48.3 cm x 4.4 cm
Højde (rackenheder)
1U
Vægt
12.59 kg
Overensstemmelsesstandarder
RoHS
Specifications

Full specifications

General
Aspect Ratio
5:4
Backlight Technology
LED backlight
Brightness
250 cd/m²
Built-in Devices
8-port KVM switch
Color Support
16.8 million colors
Contrast Ratio
1000:1
Diagonal Size
19"
Dimensions (WxDxH)
68.92 cm x 48.3 cm x 4.4 cm
Display Type
KVM console / TFT active matrix
Features
Illuminated keyboard, illuminated touchpad
Height (Rack Units)
1U
Horizontal Viewing Angle
170
Native Resolution
1280 x 1024 at 75 Hz
Pixel Pitch
0.294 mm
Response Time
5 ms
Vertical Viewing Angle
160
Weight
12.59 kg
Input
Type
Keyboard, touchpad
KVM
Keyboard / Mouse Interface
PS/2, USB
Max Cascading Depth
128
Max Resolution
1920 x 1200 @ 75 Hz
Type
KVM switch - 8 ports
Connectivity
Interfaces

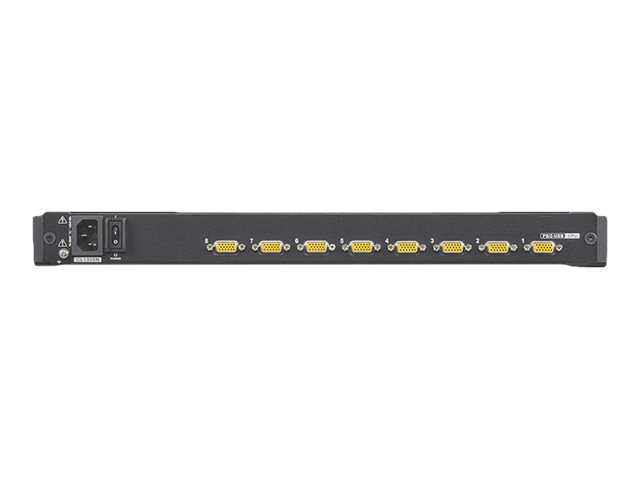

8 x KVM (SPHD-17) | Management (RJ-11)
Miscellaneous
Cables Included
2 x video / USB cable - 1.8 m | 1 x data cable
Compliant Standards
RoHS
Features
LED indicator, firmware upgradable, Auto-Scan function, two level password security, single rail
Rack Mounting Kit
Included
Power
Input Voltage
AC 100 - 240 V (50/60 Hz)
On / Off Switch
Yes
Environmental Parameters
Humidity Range Operating
0 - 80% (non-condensing)
Max Operating Temperature
50 °C
Min Operating Temperature
0 °C
