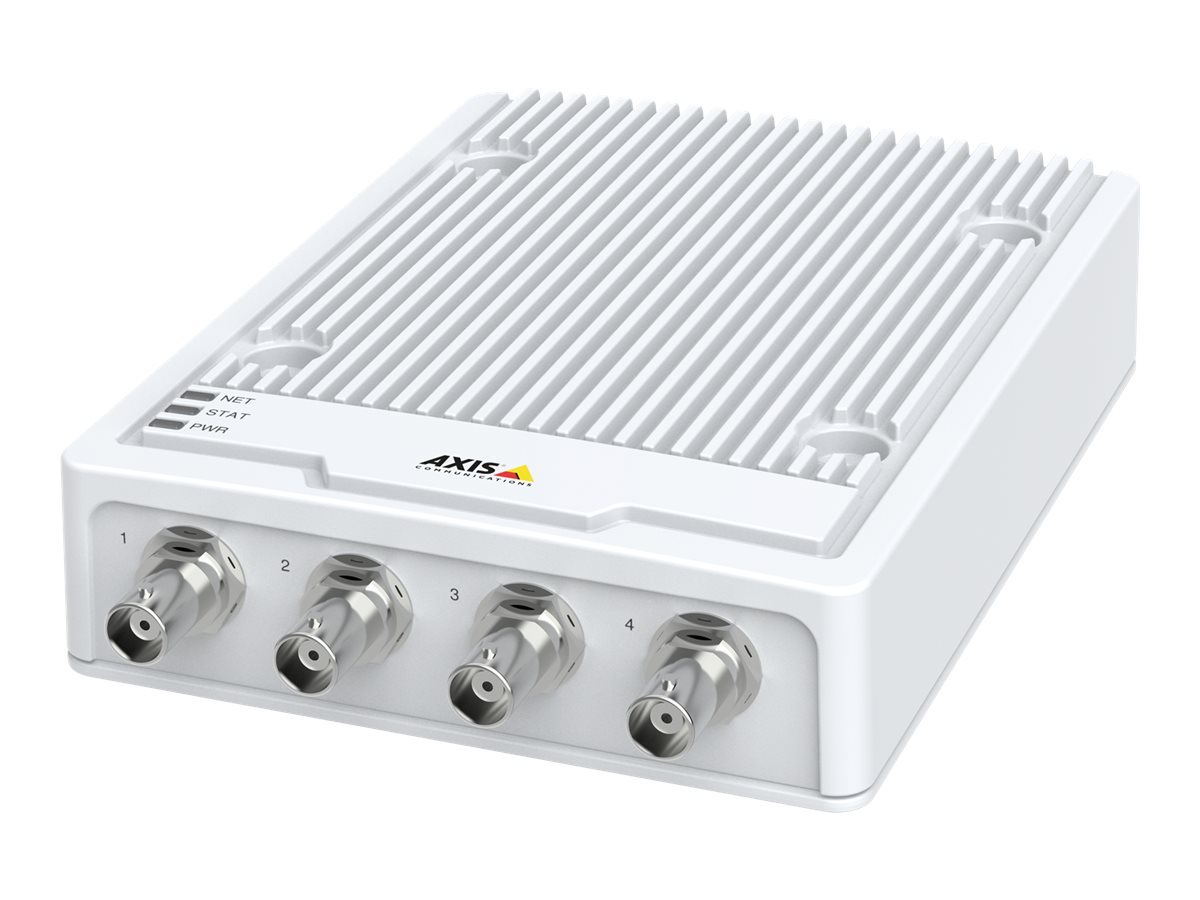

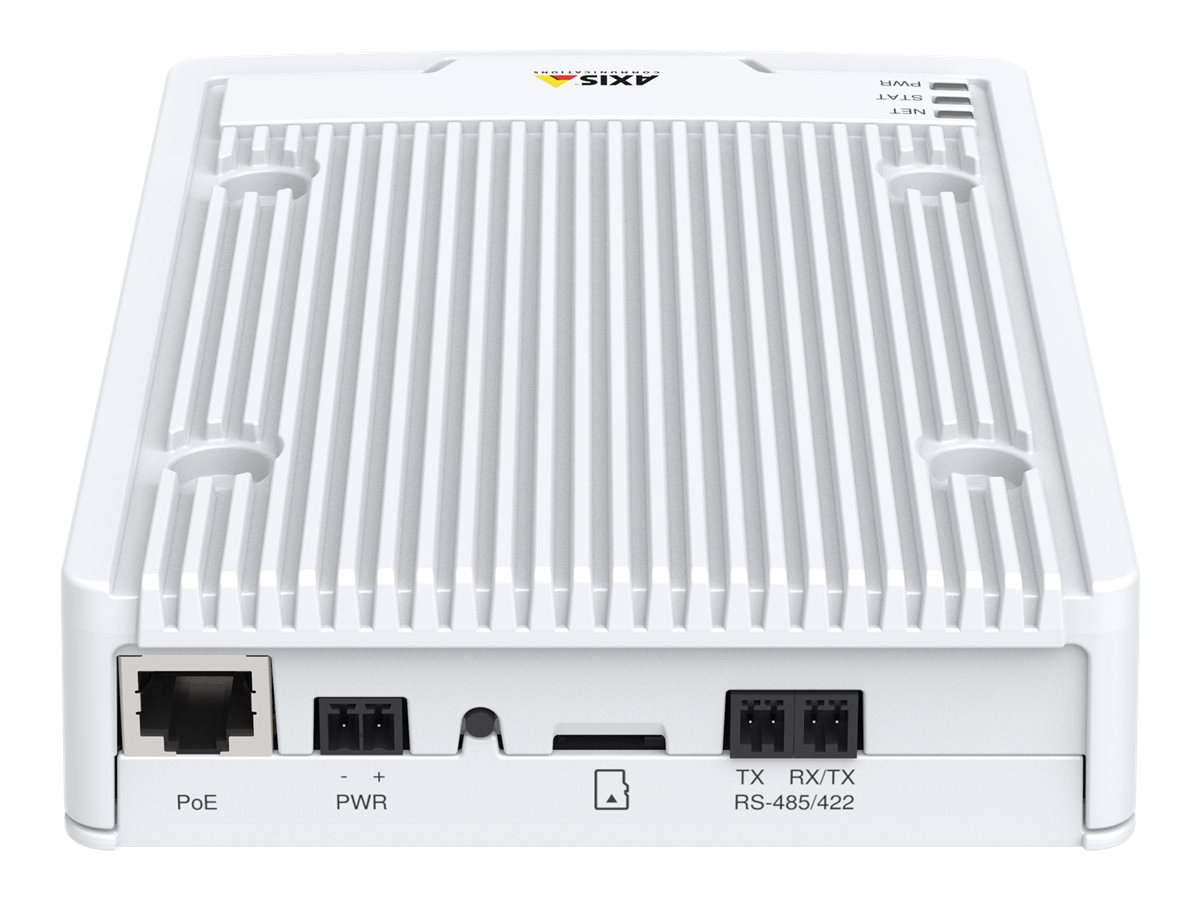

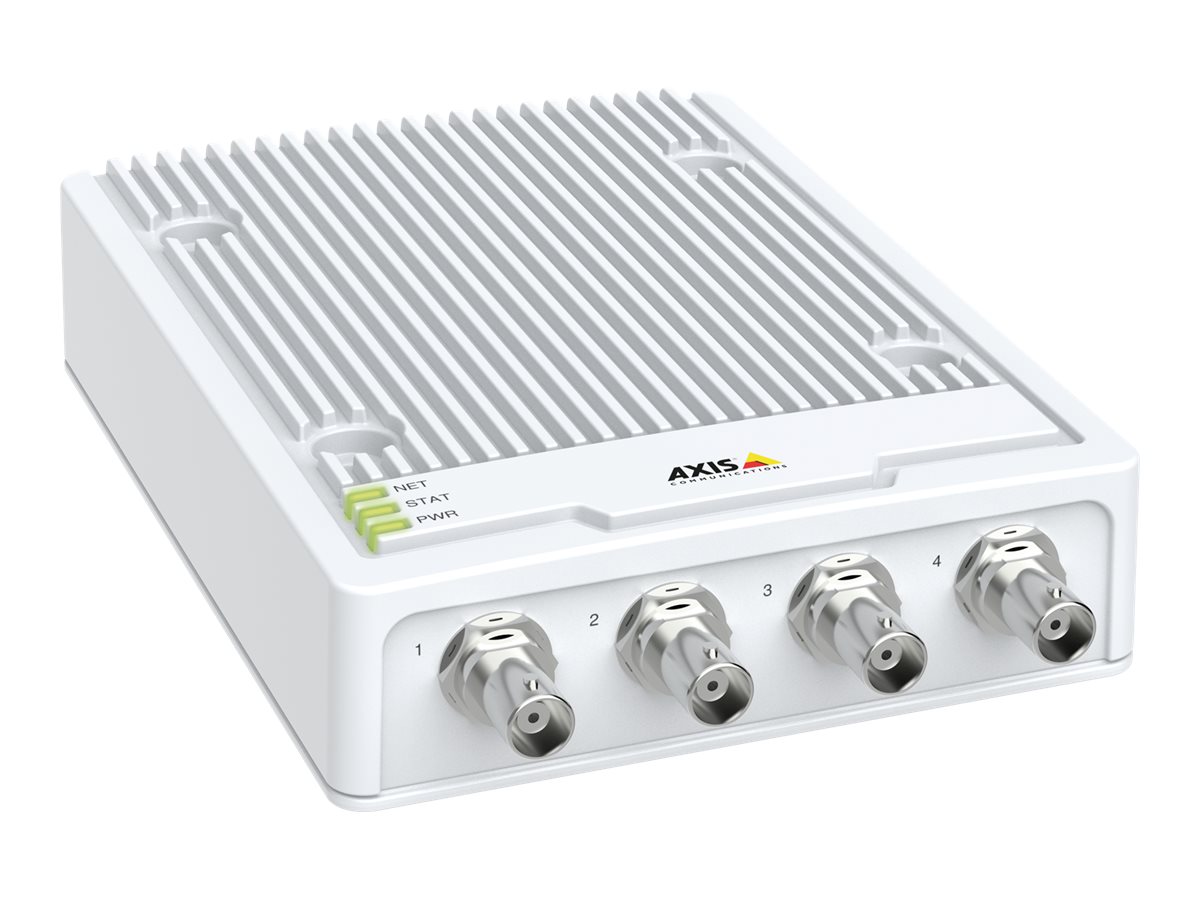

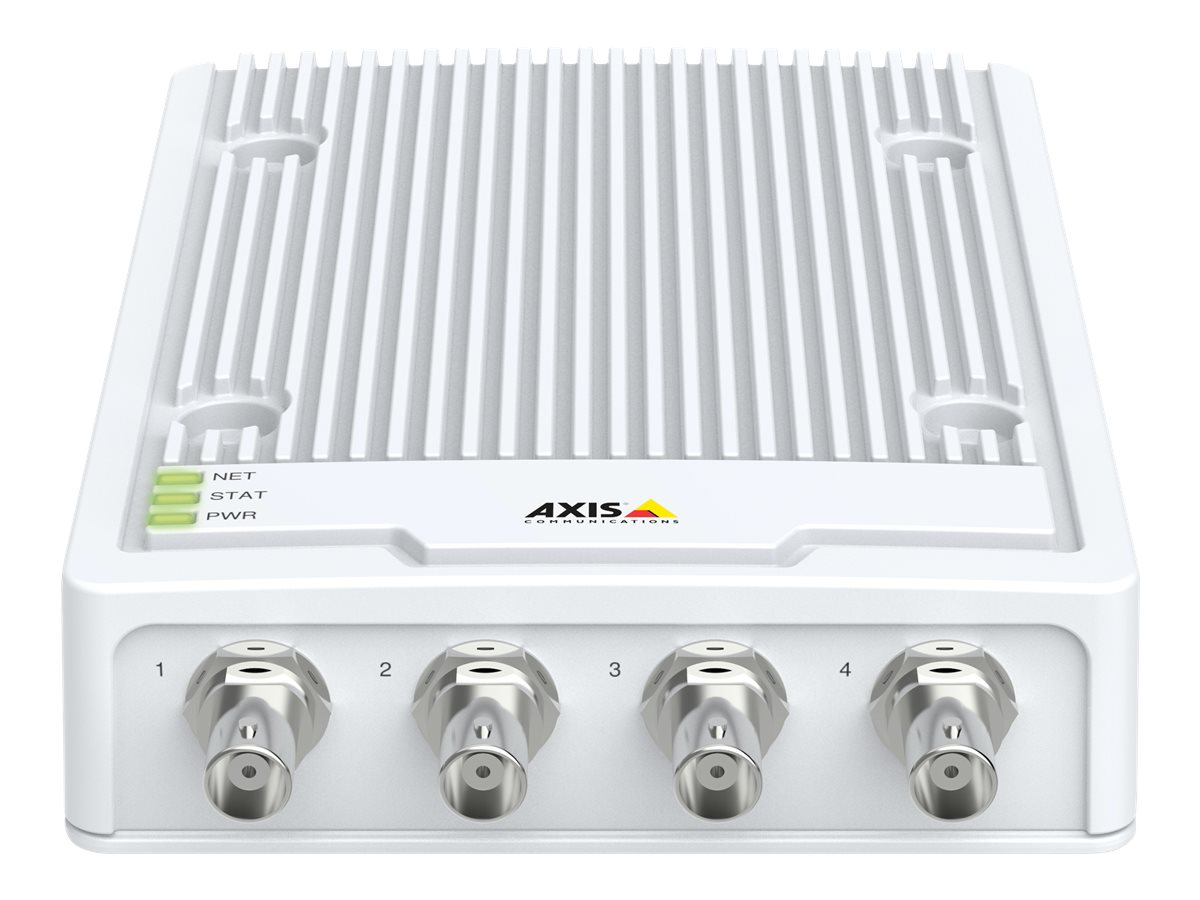

AXIS M7104 Video Encoder Videoserver
AXIS M7104 Video Encoder - Videoserver - 4 kanaler
-
Product no 994814277
Model 01679-001
Brand Axis Communications
EAN 7331021066397
Weight 0.84 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | AXIS M7104 Video Encoder - videoserver - 4 kanaler |
| Enhedstype | Videoserver - 4 kanaler |
| Komprimerings Format | MPEG-4, H.264, H.265, HEVC, AVC |
| TV System | NTSC/PAL |
| Billed Opløsning | 176x120 (NTSC), 720x480 (NTSC), 720x576 (PAL), 176x144 (PAL) |
| Spænding | 8 - 28 V |
| Dimensioner (B x D x H) | 18.7 cm x 3.7 cm |
| Vægt | 650 g |
| Producentgaranti | 3 år |
| General | |
|---|---|
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, IP30, VCCI Class A, RCM, NIST, KN35, AS/NZS CIS |
| Compression Format | MPEG-4, H.264, H.265, HEVC, AVC |
| Device Type | Video server |
| Image Resolution | 176x120 (NTSC), 720x480 (NTSC), 720x576 (PAL), 176x144 (PAL) |
| Package Content | Input plug, 6-pin I/O plug, 2 x 2-pin RS485/RS422 plugs |
| Software Included (Y) | Windows decoder 1-user license |
| TV System | NTSC/PAL |
| Video Channels | 4 |
| Warranty | 3 years |
| Video Server | |
| Features | microSD/SDHC/SDXC memory card slot, Zipstream |
| Flash Memory | 512 MB |
| Frame Rate | 30 fps |
| RAM | 1 GB |
| Networking | |
| DDNS Support | Yes |
| Features | DiffServ support |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, USGv6 |
| Web Server | Yes |
| Connections | |
| Camera Control Interface (PTZ) | RS-422/485 |
| Network Port | 10/100/1000Base-T (PoE+) |
| Video Input Ports | BNC x 4 |
| Power | |
| Power Consumption | 4.7 Watt |
| Voltage | 8 - 28 V |
| Dimensions & Weight | |
| Depth | 3.7 cm |
| Weight | 650 g |
| Width | 18.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
