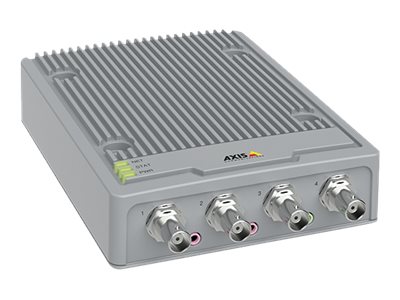

AXIS P7304 Video Encoder Videoserver

AXIS P7304 Video Encoder - Videoserver - 4 kanaler

Varenummer: 994814278
Model: 01680-001
EAN: 7331021066403
Brand:
Axis Communications
Vægt: 0.82 kg

Specifications

Produktbeskrivelse
AXIS P7304 Video Encoder - videoserver - 4 kanaler
Enhedstype
Videoserver - 4 kanaler
Komprimerings Format
MPEG-4, ADPCM, G.711, G.726, H.264, AAC, PCM, H.265, HEVC, AVC
TV System
NTSC/PAL
Billed Opløsning
176x120 (NTSC), 1280x720, 1920x1080, 720x480 (NTSC), 720x576 (PAL), 176x144 (PAL)
Spænding
8 - 28 V
Dimensioner (B x D x H)
18.7 cm x 3.7 cm
Vægt
650 g
Producentgaranti
3 år
Specifications

Full specifications

General
Audio Channels
1
Compliant Standards
EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, IP30, VCCI Class A, RCM, NIST, KN35, AS/NZS CIS
Compression Format
MPEG-4, ADPCM, G.711, G.726, H.264, AAC, PCM, H.265, HEVC, AVC
Device Type
Video server
Image Resolution
176x120 (NTSC), 1280x720, 1920x1080, 720x480 (NTSC), 720x576 (PAL), 176x144 (PAL)
Package Content
Input plug, 6-pin I/O plug, 2 x 2-pin RS485/RS422 plugs
Software Included (Y)
Windows decoder 1-user license
TV System
NTSC/PAL
Video Channels
4
Warranty
3 years
Video Server
Features
Two-way audio support, microSD/SDHC/SDXC memory card slot, Zipstream
Flash Memory
512 MB
Frame Rate
30 fps
RAM
1 GB
Networking
DDNS Support
Yes
Features
DiffServ support
Network Interfaces
Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, USGv6
Web Server
Yes
Connections
Audio Input Ports
Mini-phone 3.5 mm x 2
Audio Output Ports
Mini-phone 3.5 mm x 1
Camera Control Interface (PTZ)
RS-422/485
Network Port
10/100/1000Base-T (PoE+)
Video Input Ports
BNC x 4
Power
Power Consumption
8.2 Watt
Voltage
8 - 28 V
Dimensions & Weight
Depth
3.7 cm
Weight
650 g
Width
18.7 cm
Environmental Parameters
Humidity Range Operating
10 - 85% (non-condensing)
Max Operating Temperature
50 °C
Min Operating Temperature
0 °C
