BenQ DVY23 Konferencekamera

BenQ DVY23 - Konferencekamera - PTZ - farve - 2.1 MP - 1920 x 1080 - 720p, 1080p - auto og manuel iris - audio - HDMI, 3G-SDI - GbE - USB 3.0 - MJPEG, H.264, YUY2, H.265 - DC 12 V / PoE

Product no: 998381210
Model: 5J.F7314.003
EAN: 4718755084478
Brand:
BenQ
Weight: 1.38 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
BenQ DVY23 - konferencekamera
Enhedstype
Konferencekamera - pan / tilt / zoom
Audio
Ja
Dimensioner (B x D x H)
18.1 cm x 11.6 cm x 15 cm
Vægt
1.38 kg
Connectivity teknologi
Med ledning
Kamera
Farve
Optisk zoom
20 x
Maksimum opløsning
1920 x 1080
Billedhastighed (maks.)
30 frames pr. sekund
Video Modes
720p, 1080p
Billedsensortype
HD CMOS - 1/2.8" - 2.1 MP
Minimumbelysning
0.5 lux F1.8 - AGC on
Brændvidde
5.5 mm - 110 mm
Fokusindstilling
Automatisk, manuel
Objektiv Iris
F/1.6-3.5 - auto og manuel iris
Poanoreringsvinkel (grad)
-170 til +170
Krængningsvinkel (grad)
-30 til +90
Interface
USB 3.0, HDMI, 3G-SDI, Ethernet 10Base-T/100Base-TX/1000Base-T
Kontrolgrænseflade
RS-485, RS-422, RS-232 (VISCA)
Medfølgende ledninger
1 - USB-kabel
Spænding
DC 12 V / PoE
Egenskaber
Manuel hvidbalancering, Backlight Compensation (BLC), manuel eksponering, automatisk eksponeringskontrol, dobbelt video-stream, auto-hvidbalance, 10 forudindstillede positioner, autoindramning, 3D digital støjreduktion (DNR), Super Low Light Performance, digital panorering, 2D digital noise reduction (DNR), digital vipning
Miljømæssige parametre (operativ)
-10 °C - 50 °C; 20 - 80% relativ luftfugtighed
Specifications

Full specifications

General
Audio Support
Yes
Connectivity Technology
Wired
Depth
11.6 cm
Device Type
Conference camera
Height
15 cm
Weight
1.38 kg
Width
18.1 cm
Camera
Digital Video Capture Resolution
1280 x 720, 640 x 480, 1920 x 1080, 640 x 360, 320 x 176
Digital Video Format
MJPEG, H.264, YUY2, H.265
Digital Zoom
10
Features
Manual white balance, Backlight Compensation (BLC), manual exposure, auto exposure control, dual video stream, auto white balance, 10 preset positions, auto-framing, 3D digital noise reduction (DNR), Super Low Light Performance, digital pan, 2D digit
Frame Rate (max)
30 frames per second
Max Digital Video Resolution
1920 x 1080
Minimum Illumination
0.5 lux F1.8 - AGC on
Type
Color - pan / tilt / zoom
Video Modes
720p, 1080p
Image Sensor
Type
2.1 MP HD CMOS 1/2.8"
Lens Construction
Diagonal Field of View (degree)
63
Focal Length
5.5 mm - 110 mm
Focus Adjustment
Automatic, manual
Horizontal Field of View (degree)
55
Lens Iris
F/1.6-3.5 auto and manual iris
Optical Zoom
20 x
Vertical Field of View (degree)
31
Panning
Range (degree)
-170 to +170
Speed (degree/sec)
Up to 100
Tilting
Range (degree)
-30 to +90
Speed (degree/sec)
Up to 45
Interfaces
Computer Interface
USB 3.0
Control Interface
RS-485, RS-422, RS-232 (VISCA)
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Network Protocols
RTSP, RTMP, RTMPS
Video
HDMI, 3G-SDI
Expansion / Connectivity
Ports

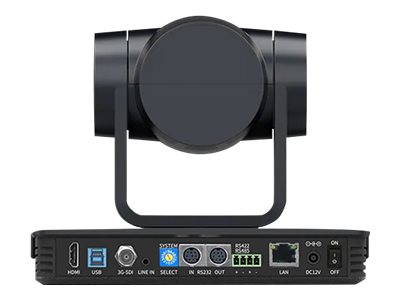

LAN/power - RJ-45 | HDMI output | 3G-SDI | Serial RS-232/RS-485/RS-422
Miscellaneous
Cables Included
1 x USB cable
Compliant Standards
Plug and Play
Included Accessories
Remote control
Power
Power Device
Power adapter - external 18 Watt
Power Requirements
DC 12 V / PoE
Software / System Requirements
OS Required
Linux, Apple MacOS X 10.10, Microsoft Windows 7 / 8.1 / 10
Environmental Parameters
Max Operating Temperature
50 °C
Min Operating Temperature
-10 °C
Relative Humidity (operating)
20 - 80%
