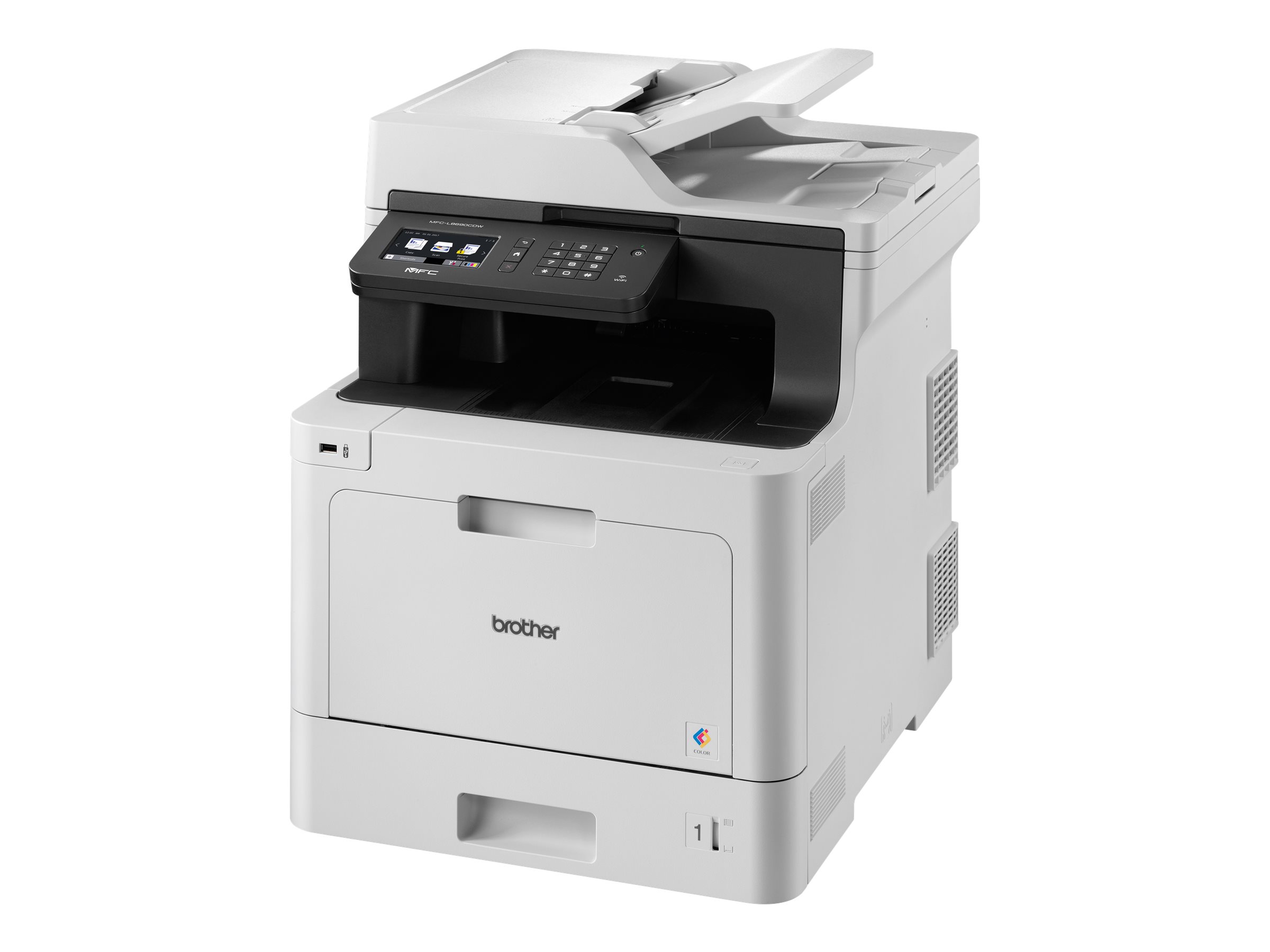

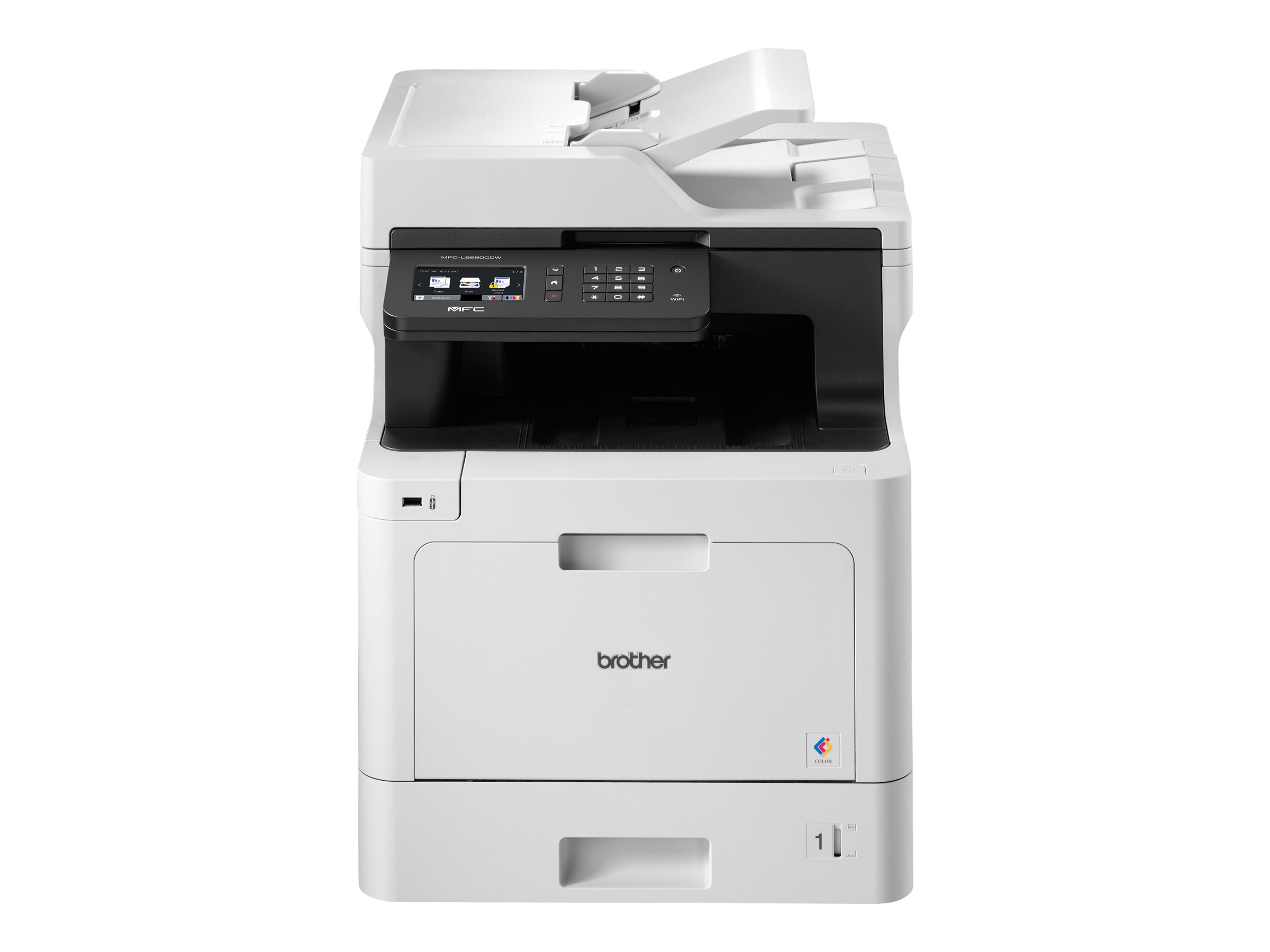

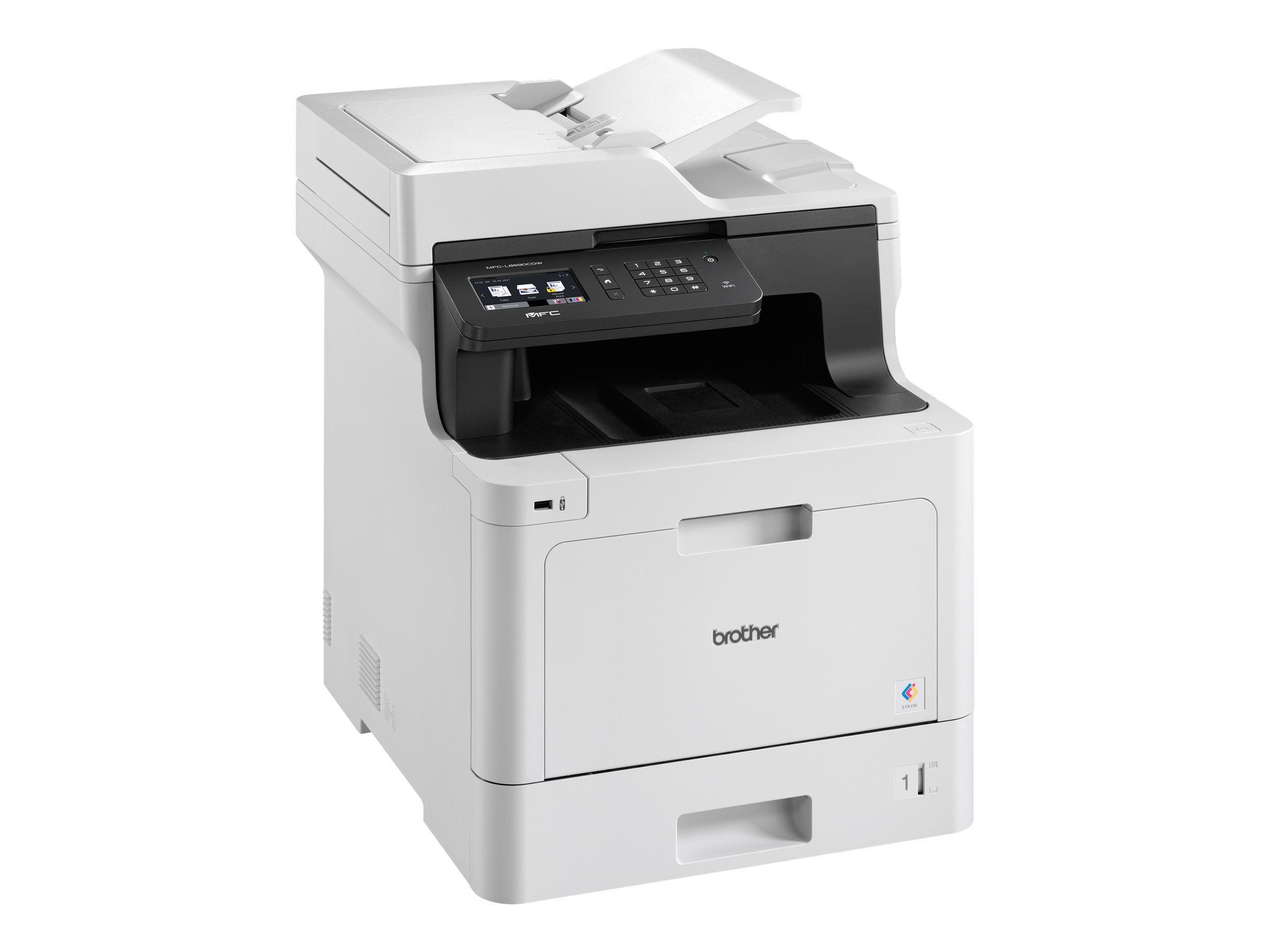

Brother MFC-L8690CDW Laser

General
AirPrint Enabled	Yes
Connection Availability	Yes
Device Type	Multifunction printer
Display Color Support	Color
Display Diagonal Size	3.7"
Display Features	Touch screen
Fax Type	Plain paper
Interface	USB 2.0, Gigabit LAN, Wi-Fi(n), USB host
Office Machine Features	Print from USB flash drive, scan to e-mail, scan to USB host
Printing Technology	Laser - color
Recommended Monthly Volume	3000 pages
Memory
Standard Memory	512 MB
Copying
Automatic Duplexing	Yes
Max Copying Resolution	Up to 1200 x 600 dpi (mono) / up to 1200 x 600 dpi (color)
Max Copying Speed	Up to 31 ppm (mono) / up to 31 ppm (color)
Max Document Enlargement	400%
Max Document Reduction	25%
Maximum Copies	999
Printing
Automatic Duplexing	Yes
First Print Out Time B/W	15 sec
First Print Out Time Color	15 sec
Max Printing Resolution	Up to 2400 x 600 dpi (mono) / up to 2400 x 600 dpi (color)
Max Printing Speed	Up to 31 ppm (mono) / up to 31 ppm (color)
Printer Drivers / Emulations	PCL 6, BR-Script 3, PDF 1.7, XPS
Scanning
Automatic Duplexing	Yes
Color Depth	24-bit
Color Depth (Internal)	48-bit
Grayscale Depth	8-bit
Interpolated Resolution	19200 x 19200 dpi
Optical Resolution	1200 x 2400 dpi
Scan Element	CIS
Scanning Resolution Details	1200 x 600 dpi - ADF | 1200 x 2400 dpi - flatbed
Fax Machine
Compatibility	Super G3
Data Compression System	MH, MR, MMR, JBIG
Fax Resolutions	203 x 98 dpi, 203 x 196 dpi, 203 x 392 dpi
Max Transmission Speed	33.6 Kbps
PC Faxing	Yes
Reception Memory Capacity	Up to 500 pages
Transmission Memory Capacity	Up to 500 pages
Fax Machine Features
Broadcast Transmission	350 stations
Features	Automatic redialing, group dialing
Document & Media Handling
Bypass Feeder Capacity	50 sheets
Document & Media Handling Details	ADF - 50 sheets size: 105 x 147.3 mm - 215.9 x 355.6 mm weight: 64 g/m² - 90 g/m² | Input tray - 250 sheets - Legal (216 x 356 mm) weight: 60 g/m² - 105 g/m² | Bypass tray - 50 sheets size: 76.2 x 127 mm - Legal (216 x 356 mm) weight: 60 g/m² - 163 g
Document Feeder Capacity	50 sheets
Max Media Size	A4/Legal
Max Media Weight	163 g/m²
Max Original Size	215.9 x 355.6 mm
Min Media Size	76.2 x 127 mm
Min Media Weight	60 g/m²
Original Type	Sheets
Output Trays Capacity	150 sheets
Speed Details	Printing: up to 31 ppm (A4) - B/W | Printing: up to 31 ppm (A4) - color | Printing: up to 14 spm (A4) - B/W duplex | Printing: up to 14 spm (A4) - color duplex | Scanning: up to 28 ppm - B/W | Scanning: up to 28 ppm - color | Scanning: up to 56 ipm -
Standard Media Capacity	300 sheets
Supported Envelope Sizes	International DL (110 x 220 mm), Com-10 (105 x 241 mm), International C5 (162 x 229 mm), Monarch (98.4 x 190.5 mm)
Supported Media Sizes	ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm), Folio (216 x 330 mm)
Supported Media Type	Envelopes, plain paper, labels, recycled paper, bond paper, thin paper, thick paper
Connections
Interfaces	1 x USB 2.0 - 4 pin USB Type B | 1 x USB host - 4 pin USB Type A | 1 x Gigabit LAN - RJ-45
Operating System Support	Linux, MS Windows Server 2008 R2 x64 Edition, MS Windows Server 2012 x64 Edition, Android, iOS, MS Windows Server 2008 (32/64-bits), MS Windows Server 2012 R2 x64 Edition, MS Windows 7 (32/64 bits), Apple Mac OS X 10.10, Windows 8 (32/64-bits), Windo
Security Protocols & Features	Kerberos, LDAP, SSL, WEP, WPA-PSK, TLS, IPsec, 802.1x, WPA2-PSK, TKIP, AES, ARP, TTLS
Power
Power Consumption Operational	580 Watt
Power Consumption Sleep	10 Watt
Power Consumption Standby	70 Watt
Voltage Required	AC 230 V (50/60Hz)
Miscellaneous
Compliant Standards	Nordic Swan
Consumables Included	1 x toner cartridge (black) - up to 3000 pages | 1 x toner cartridge (cyan) - up to 1800 pages | 1 x toner cartridge (magenta) - up to 1800 pages | 1 x toner cartridge (yellow) - up to 1800 pages
First Copy Out Time B/W	16 sec
First Copy Out Time Color	17 sec
Included Accessories	Phone cable
Environmental Standards
Blue Angel Compliant	Yes
ENERGY STAR Certified	Yes
Dimensions & Weight
Depth	52.6 cm
Height	53.9 cm
Weight	27.9 kg
Width	43.5 cm
Dimensions & Weight (Shipping)
Shipping Depth	54.2 cm
Shipping Height	65.4 cm
Shipping Weight	33.7 kg
Shipping Width	66.3 cm
Environmental Parameters
Humidity Range Operating	20 - 80% (non-condensing)
Max Operating Temperature	32 °C
Min Operating Temperature	10 °C
Sound Emission	44 dBA (idle) / 49 dBA (operating)

Større pålidelighed

Brothers seneste farvelaserserie er totalt ombygget og er nu bygget i endnu mere robust design. Serien er bygget til at performe længere og imødekomme kravende fra krævende kontormiljøer.

Miljøvenlig

Brothers seneste farvelaserserie lever op til en række miljøstandarder inklusive Blue Angel, Det nordiske svanemærke og Energy Star. Derfor hjælper Brothers farvelaserserie ikke kun din virksomhed med at være mere effektiv, den gør også din virksomhed mere miljøvenlig. Og derudover bliver dine printomkostninger reduceret.
