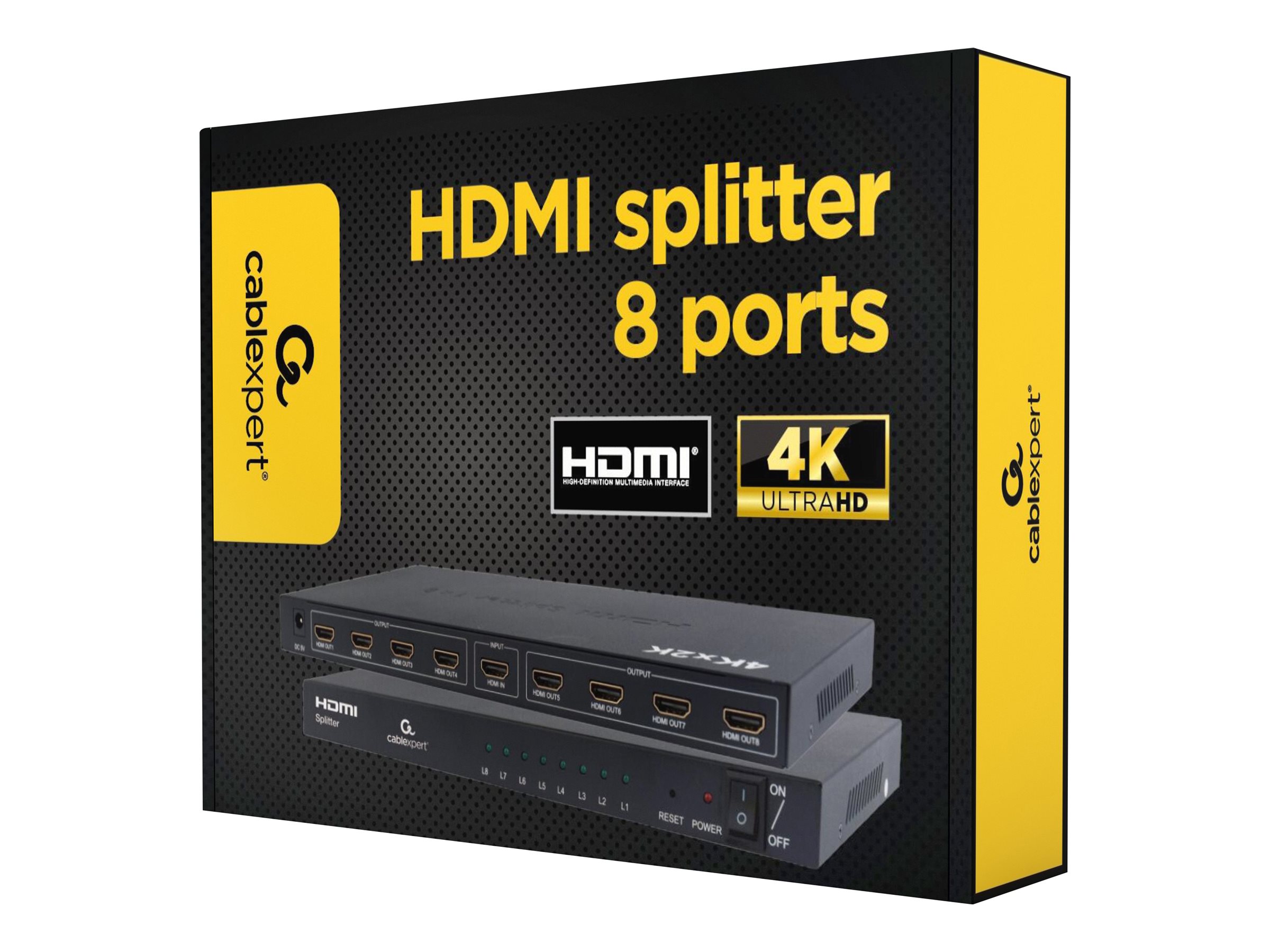

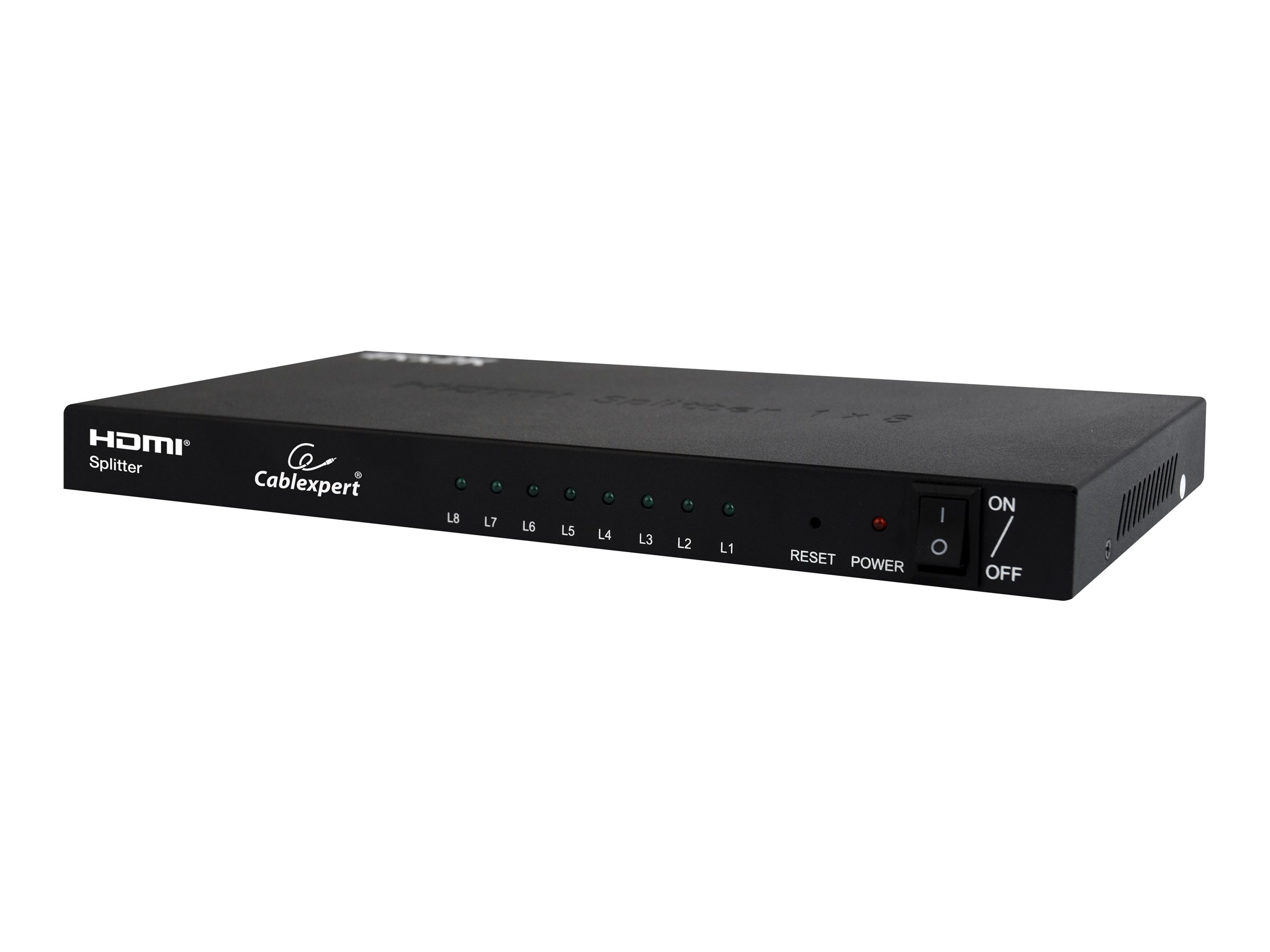

Cablexpert DSP-8PH4-03 Video-/audiosplitter HDMI

Cablexpert DSP-8PH4-03 - Video-/audiosplitter - 8 x HDMI - desktop

Product no: 992601803
Model: DSP-8PH4-03
EAN: 8716309092494
Brand:
Gembird
Weight: 0.66 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Cablexpert DSP-8PH4-03 - video-/audiosplitter - 8 porte
Enhedstype
Video-/audiosplitter - 8 porte
Undertype
HDMI
Porte
8 x HDMI
Præstation
Båndbredde: 3.2 Gbps
Egenskaber
HDCP kompatibel, nulstillingsknap, 3D-support, Dolby TrueHD support, indbygget HDMI-signalforstærker, DTS support, DTS-HD support, DSD, AC3 support
Overensstemmelsesstandarder
HDCP 1.4
Dimensioner (B x D x H)
27.6 cm x 13.6 cm x 2.4 cm
Vægt
660 g
Specifications

Full specifications

General
Compliant Standards
HDCP 1.4
Device Type
Video/audio splitter - 8 ports
Enclosure Type
Desktop
Features
HDCP compliant, reset button, 3D support, Dolby TrueHD support, built-in HDMI signal amplifier, DTS support, DTS-HD support, Direct Stream Digital (DSD), AC3 support
Max Resolution
3840 x 2160 @ 30 Hz
Max Video Bandwidth
340 MHz
Performance
Bandwidth: 3.2 Gbps
Ports
8 x HDMI
Status Indicators
Port status, power
Subtype
HDMI
Expansion / Connectivity
Interfaces

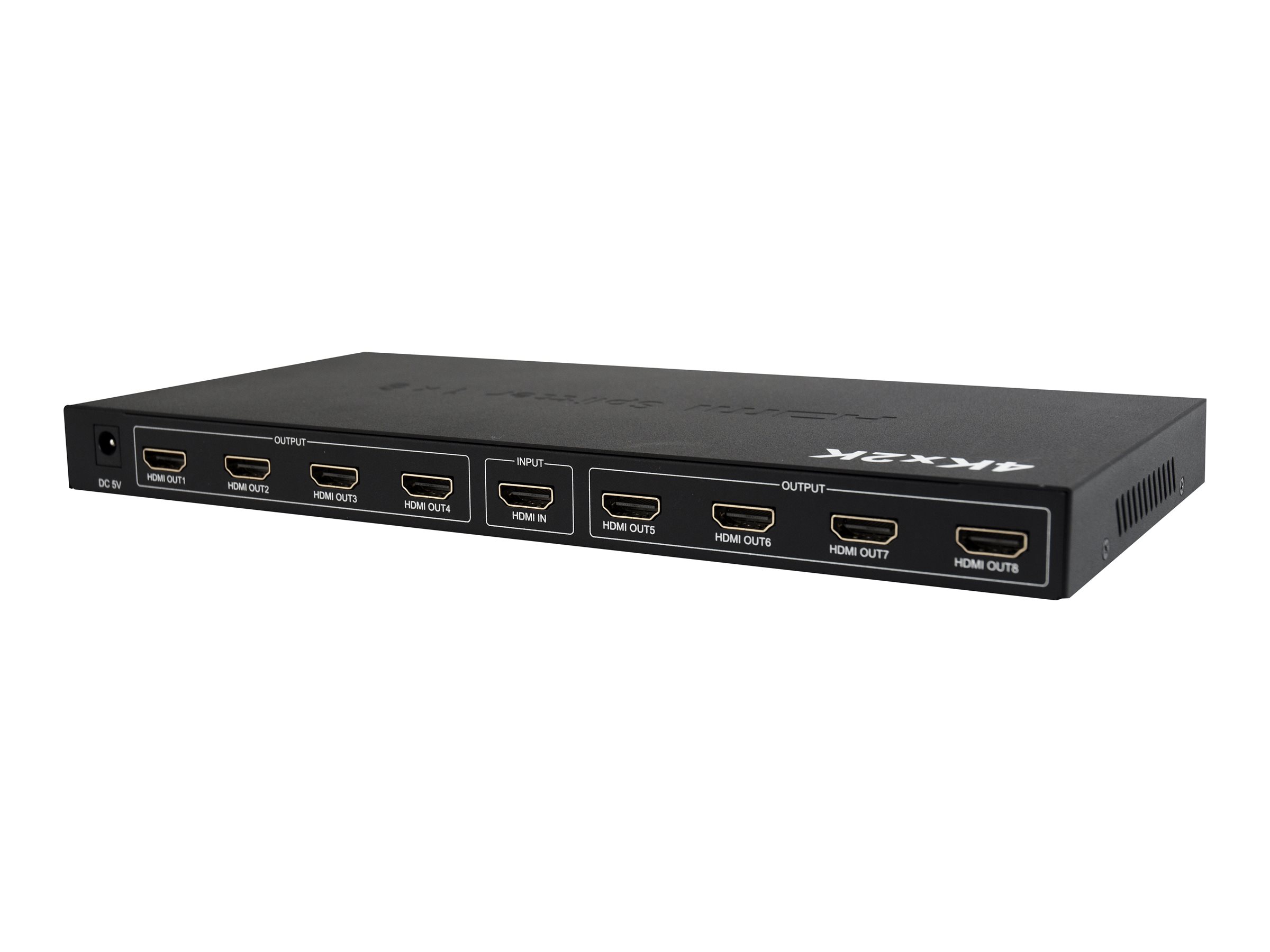

1 x HDMI input | 8 x HDMI output
Power
Power Device
External power adapter
Power Provided
5 V - 3 A
Miscellaneous
Compliant Standards
ISO 9002, RoHS, EMC 2004/108/EC, LVD 2006/95/EC, HDCP 1.4
Dimensions & Weight
Depth
13.6 cm
Height
2.4 cm
Weight
660 g
Width
27.6 cm
Dimensions & Weight (Shipping)
Shipping Depth
32 cm
Shipping Height
6 cm
Shipping Width
22 cm
