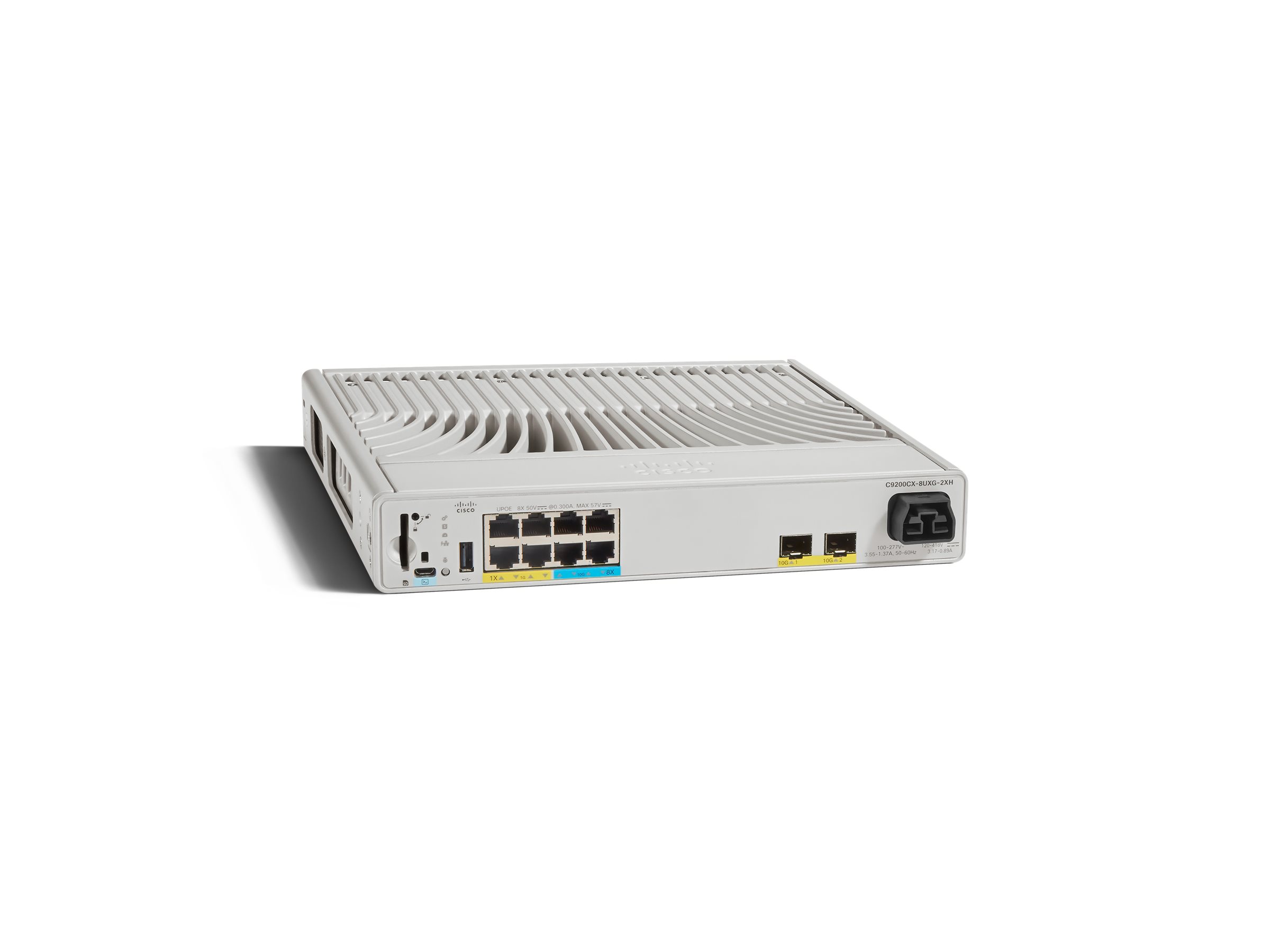

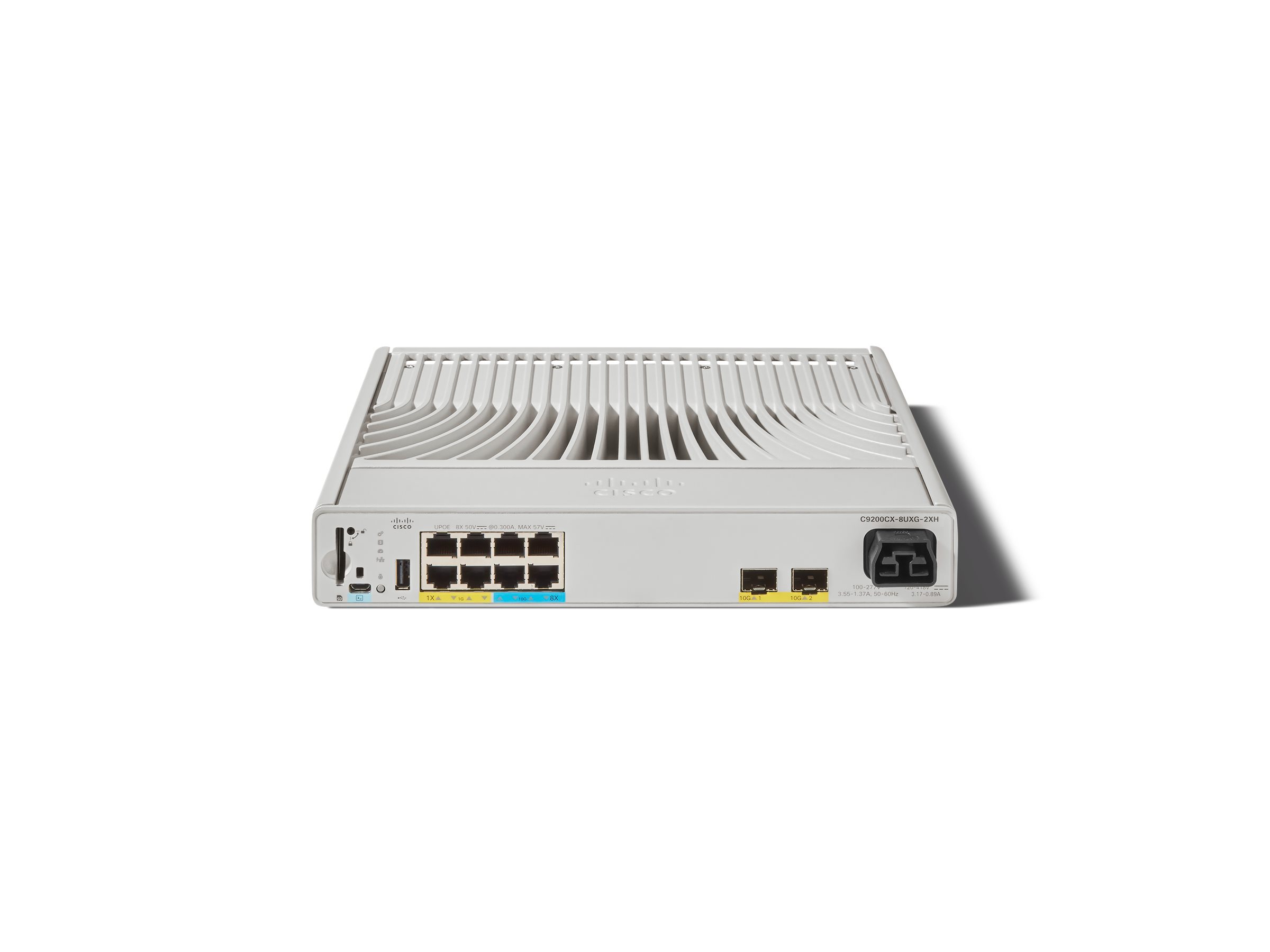

Cisco Catalyst 9200CX Switch 8-porte Gigabit Ethernet UPOE
Cisco Catalyst 9200CX - Network Advantage - switch - kompakt - L3 - Administreret - 4 x 10/100/1000 (UPOE) + 4 x 100/1000/2.5/5/10G (UPOE) + 2 x 10 Gigabit SFP+ (uplink) - monterbar på stativ - UPOE (240 W)
-
Product no 1001559621
Model C9200CX-8UXG-2X-A
Brand Cisco Systems
EAN 0889728447195
Weight 3.18 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Cisco Catalyst 9200CX - Network Advantage - switch - kompakt - 8 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 8 porte - L3 - Administreret |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 4 x 10/100/1000 (UPOE) + 4 x 100/1000/2.5/5/10G (UPOE) + 2 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | UPOE |
| PoE-budget | 240 W |
| Præstation | Omkoblingskapacitet: 128 Gbps<br>Videresendelseshastighed: 95.23 Mpps<br>Pakkebufferstørrelse: 6 MB |
| Kapacitet | Virtuelle netværk: 16<br>IPv4 router: 14000<br>Direkte IPv4 ruter: 10000<br>Indirekte IPv4-ruter: 4000<br>IPv4 routing-posteringer: 4000<br>IPv6 routing-posteringer: 2000<br>Multicast-skala: 1000<br>QoS-skalaposteringer: 1000<br>ACL-skalaposteringer: 1600<br>Flexible NetFlow entries: 16000<br>VLAN ID'er: 4096<br>PVST instanser: 128<br>STP Virtual Ports til PVST: 13000<br>STP Virtual Ports til MST: 13000 |
| MAC adresse table størrelse | 32.000 optegnelser |
| Jumborammesupport | 9198 byte |
| Routingprotokol | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, police-baseret routing (PBR), RIPng, MSTP |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, YANG |
| Egenskaber | ACL support, QoS, Cisco StackWise Technology, Rapid PVST+, blæserløs, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x autentificering, DSCP support, MACsec support, indbygget ASIC, CoPP, ZTP, EEE, SPAN, EEM, PIM, FHS, PVLAN support, CIR, Cisco UADP 2.0, Preboot Execution Environment |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt |
| Effekt | AC 115/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 26.9 cm x 24.4 cm x 4.4 cm |
| Vægt | 3.18 kg |
| Producentgaranti | Begrænset livtidsgaranti |
