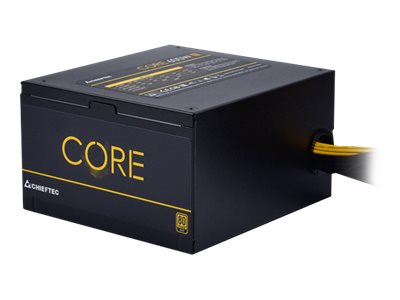

Chieftec Core Series BBS-600S 600Watt 80 PLUS Gold

Chieftec Core Series BBS-600S - Strømforsyning (intern) - ATX12V 2.3/ EPS12V/ PS/2 - 80 PLUS Gold - AC 100-240 V - 600 watt - aktiv PFC

Varenummer: 994732407
Model: BBS-600S
EAN: 0753263076137
Brand:
Chieftec Industrial
Vægt: 2.06 kg

Specifications

Produktbeskrivelse
Chieftec Core Series BBS-600S - strømforsyning - 600 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3/ EPS12V/ PS/2
80 PLUS certificering
80 PLUS Gold
Vægt
1.67 kg
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
600 watt
Output Current
+5V - 20 A<br>+3.3V - 20 A<br>+12V - 49 A<br>+5VSB - 2.5 A<br>-12V - 0.3 A
Output-stikforbindelser
1 x strøm 24 pin ATX<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>3 x 4-PIN intern strøm<br>6 x 15 pin Serial ATA strøm<br>1 x 4-PIN mini-strømforsyningsforbinder
Kølesystem
120 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
2 års garanti
Specifications

Full specifications

General
Device Type
Power supply - active Power Factor Correction (PFC) - internal
PSU Form Factor
ATX
Specification Compliance
ATX12V 2.3/ EPS12V/ PS/2
Power Device
80 PLUS Certification
80 PLUS Gold
Frequency Required
47 - 63 Hz
Input Voltage
AC 100-240 V
Output Current
+5V - 20 A | +3.3V - 20 A | +12V - 49 A | +5VSB - 2.5 A | -12V - 0.3 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
600 Watt
Power Factor (PF)
0.9
Power Output Connectors Details
1 x power 24 pin ATX | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 2 x 8 pin PCI Express power with detachable 2 pin section | 3 x 4 pin internal power | 6 x 15 pin Serial ATA power | 1 x 4 pin mini-power connector
Miscellaneous
Compliant Standards
CB, RoHS, ErP Ready, EAC, TUV Rheinland
Cooling System
120 mm fan
Features
Overvoltage protection, overpower protection, short-circuit protection, non-modular
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Dimensions & Weight
Depth
14 cm
Height
8.6 cm
Weight
1.67 kg
Width
15 cm
Dimensions & Weight (Shipping)
Shipping Weight
2.08 kg
