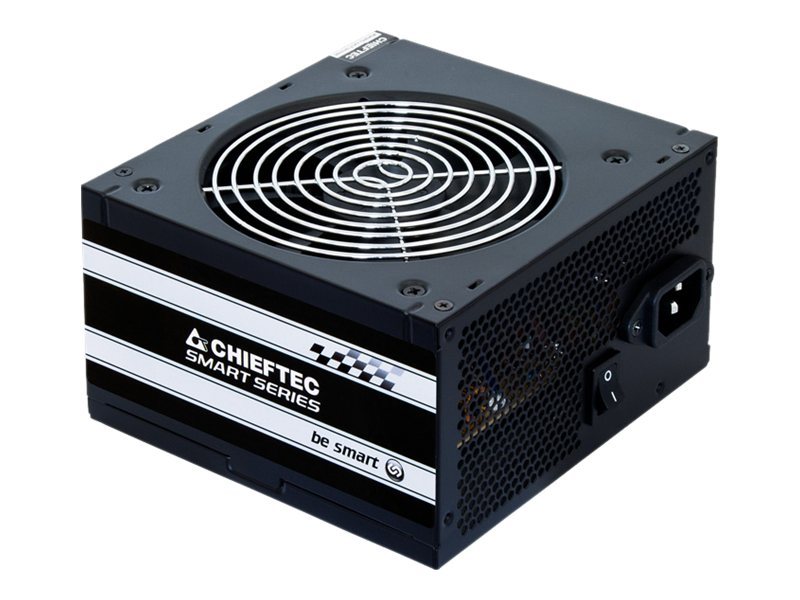

Chieftec Smart Series GPS-500A8 Strømforsyning 500Watt

Chieftec Smart Series GPS-500A8 - Strømforsyning (intern) - ATX12V 2.3 - 80 PLUS - AC 230 V - 500 watt - aktiv PFC - sort

I dag har systemintegratorer ikke kun brug for et holdbart og kvalitetsbevidst chassis til deres pc-samlebånd, men også en yderst pålidelig strømforsyningskilde. Chieftecs strømforsyningsenheder i Smart-serien opfylder disse og flere krav.

Varenummer: 995115527
Model: GPS500A8
EAN: 4710713239531
Brand:
Chieftec Industrial
Vægt: 0.65 kg

Specifications

Produktbeskrivelse
Chieftec Smart Series GPS-500A8 - strømforsyning - 500 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3
80 PLUS certificering
80 PLUS
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
500 watt
Output Current
+3.3V - 22 A<br>+5V - 19 A<br>+12V1 - 24 A<br>+12V2 - 21 A<br>-12V - 0.3 A<br>+5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x effekt ATX12V 4-pin stik<br>3 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
Kølesystem
120 mm ventilator
Farve
Sort
Dimensioner (B x D x H)
15 cm x 14 cm x 8.7 cm
Specifications

Full specifications

General
Color
Black
Device Type
Power supply - active Power Factor Correction (PFC) - internal
PSU Form Factor
ATX
Specification Compliance
ATX12V 2.3
Power Device
80 PLUS Certification
80 PLUS
Efficiency
80%
Frequency Required
47 - 63 Hz
Input Voltage
AC 230 V
Output Current
+3.3V - 22 A | +5V - 19 A | +12V1 - 24 A | +12V2 - 21 A | -12V - 0.3 A | +5VSB - 2.5 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
500 Watt
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section | 1 x power 4 pin ATX12V connector | 3 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 4 pin mini-power connector | 1 x 8 pin PCI Express power with detachable 2 pin section
Miscellaneous
Compliant Standards
CB, FCC, RoHS, EuP Ready
Cooling System
120 mm fan
Features
Sleeved cables, overheat protection, overcurrent protection, overvoltage protection, overload protection, undervoltage protection, short-circuit protection
MTBF
100,000 hours
Dimensions & Weight
Depth
14 cm
Height
8.7 cm
Width
15 cm
