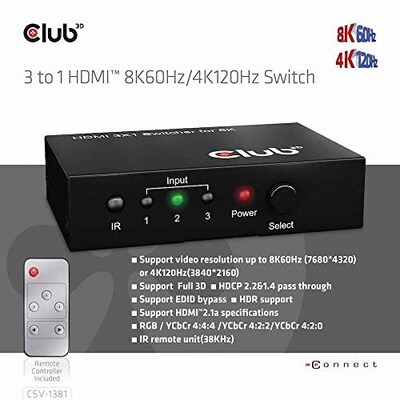

Club3D CSV-1381 HDMI Switch 3 Porte
Club 3D SenseVision - Video-/audioswitch - 3 x HDMI, 1x HDMI
Varenummer:
1001117193
Model:
CSV-1381
EAN:
8719214472719
Brand:
Vægt:
0.24 kg
Specifications
|
Indgange
|
3x HDMI 2.1a
|
|
Udgange
|
1x HDMI 2.1a
|
|
Maks understøttet opløsning
|
8K @ 60Hz / 4K @ 120Hz
|
|
Fjernbetjening
|
Ja
|
|
Strømforsyning
|
100- 240VAC / 5V-1A DC
|
|
High Dynamic Range (HDR) understøttet
|
Ja
|
|
HDCP understøttet
|
HDCP 2.2 / 1.4 Pass Through
|
|
Krominansformat understøttet
|
YCbCr 4:4:4 / YCbCr 4:2:2 / YCbCr 4:2:0
|
|
Farveområder understøttet
|
RGB / YCbCr
|
|
EDID Bypass
|
Ja
|
|
3D understøttet
|
Ja
|
|
Produktfarve
|
Sort
|
|
Kabellængde
|
2m
|
|
Mål (B x H x D)
|
80 x 20 x 51,2 mm
|
|
Vægt
|
105 g
|
|
Pakkeindhold
|
Hurtig installationsvejledning, AC-adapter, Fjernbetjening
|
Product guide
| Features: |
| • Support video resolution up to 8K60Hz(7680*4320) or 4K120Hz(3840*2160) |
| • Support Full 3D |
| • HDCP 2.2&1.4 pass through |
| • Support EDID bypass |
| • HDR support |
| • RGB / YCbCr 4:4:4 /YCbCr 4:2:2/YCbCr 4:2:0 |
| • IR remote unit(38KHz) |
| • Each Input- and Output- cable length is max. 2m/6.56ft |
| OS Support: |
| • All |
| In the box: |

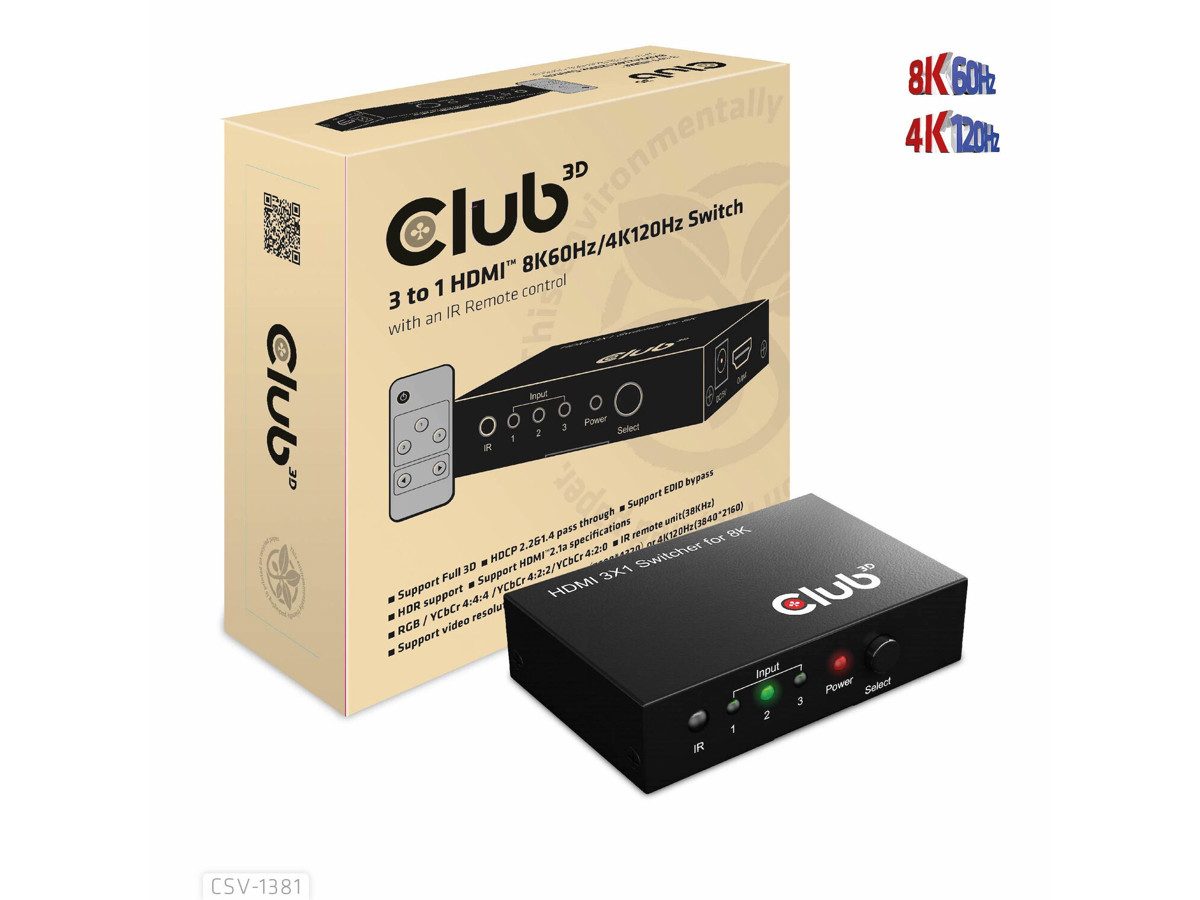

| • Club 3D CSV-1381 3 to 1 HDMI™ 8K60Hz Switch |
| • IR Remote controller (incl CR2025 Battery) |
| • Power Supply 100-240VAC/ 5V1A DC(Please Specify Plug type when ordering) |
| • QR Code for downloading the Quick Install Guide (QIG) |
| Available Interfaces |
| Input: |
| • 3x HDMI™ Female |
| Output: |
| • 1x HDMI™ Female |
| Other info: |
| • Box size: 14.5 x 14.5 x 5.5 cm / 5.7 x 5.7 x 2.17" |
| • Switch size: 8 x 5.12 x 2 cm / 3.15 x 2.016 x 0.79" |
| • IR Remote Controller size : 4 x 8.67 x 0.64 cm / 1.58 x 3.41 x 0.25" |
| • Box Weight: 67 gr / 2.36 oz |
| • ProductWeight: 105gr / 3.7 oz |
| • IRRemote Controller weight: 17 gr / 0.6 oz |
| • Power Supply Weight: 51-112 gr / 1.8-3.95 oz (Depending on PowerPlug) |
| • Total Weight: 240-301gr / 8.47-10.61 oz (Depending on PowerPlug) |
| • Meets ROHS, FCC, and CE EMI requirements |
