Produktbeskrivelse
|
Club 3D CSV-7210 - KVM / audio-switch - 2 porte
|
|
Enhedstype
|
KVM / audio-switch - 2 porte
|
|
Undertype
|
KVM
|
|
Porte
|
2 x KVM / audio
|
|
Antal KVM-brugere
|
1 lokalbruger
|
|
Egenskaber
|
4K opløsningssupport, metalkabinet, 12-bit Deep Color-support, HDR-support, indbygget 2-port USB 3.1 hub
|
|
Overensstemmelsesstandarder
|
HDCP 1.4, HDCP 2.2
|
|
Dimensioner (B x D x H)
|
17.8 cm x 7.5 cm x 2.6 cm
|
|
Vægt
|
370 g
|
|
Systemkrav
|
Apple MacOS, Linux, Microsoft Windows
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
Club 3D CSV-7210 KVM / audio-switch Desktop
Club 3D CSV-7210 - KVM / audio-switch - 2 x KVM / audio - 1 lokalbruger - desktop
Product no:
1000476688
Model:
CSV-7210
EAN:
8719214472238
Brand:
Weight:
0.79 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
HDCP 1.4, HDCP 2.2
|
|
Device Type
|
KVM / audio switch - 2 ports
|
|
Enclosure Type
|
Desktop
|
|
Features
|
4K resolution support, metal housing, 12-bit Deep Color support, HDR support, built-in 2-port USB 3.1 hub
|
|
Keyboard / Mouse Interface
|
USB
|
|
KVM Local Users Qty
|
1 local user
|
|
Max Resolution
|
4096 x 2160 @ 60 Hz
|
|
Ports
|
2 x KVM / audio
|
|
Subtype
|
KVM
|
|
Expansion / Connectivity
|
|
|
Interfaces
|

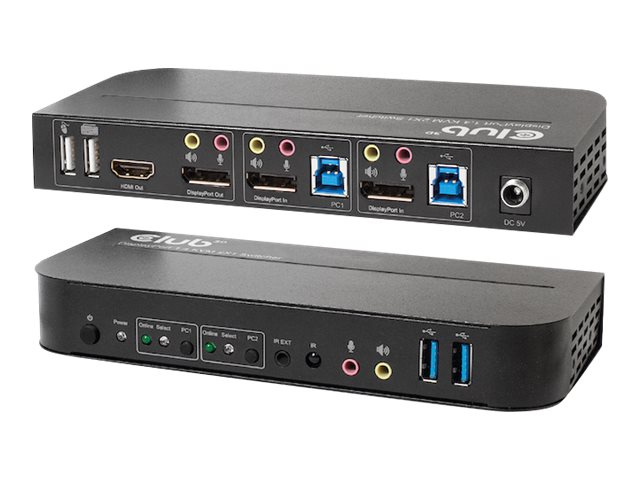

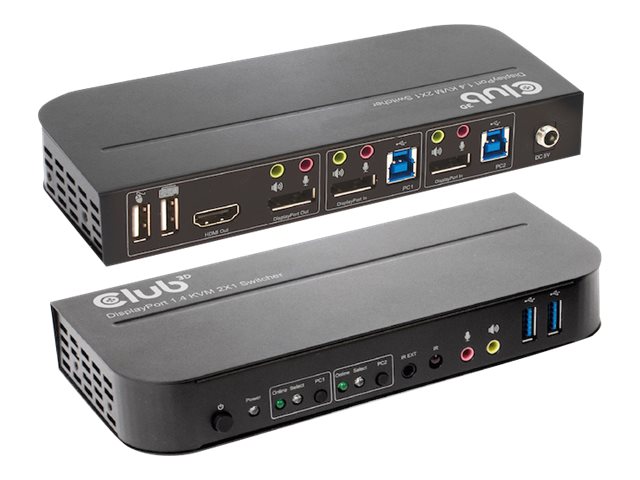

1 x IrDA mini-jack | 1 x microphone mini-jack console | 1 x audio output mini-jack console | 1 x mouse (USB) Type A console | 1 x keyboard (USB) Type A console | 1 x HDMI console | 2 x DisplayPort console | 2 x DisplayPort | 2 x keyboard (USB) / mous
|
|
Power
|
|
|
Power Device
|
External power adapter
|
|
Power Provided
|
5 V - 3 A
|
|
Miscellaneous
|
|
|
Cables Included
|
2 x USB 3.1 Type A to Type B cable
|
|
Compliant Standards
|
FCC, RoHS, EMI
|
|

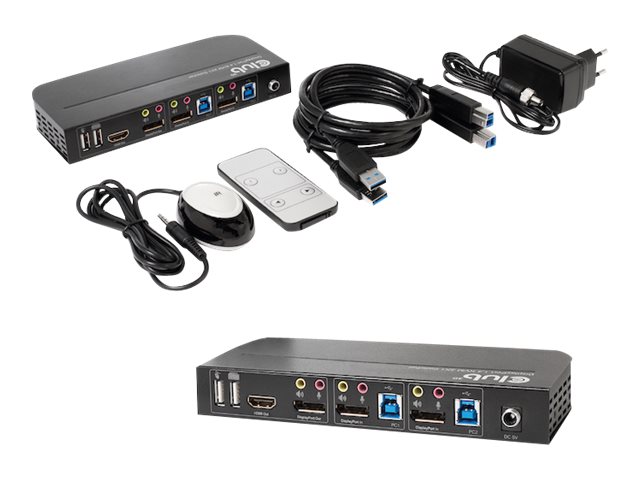

Included Accessories
|
Wireless remote control, IR extender
|
|
Software / System Requirements
|
|
|
OS Required
|
Apple MacOS, Linux, Microsoft Windows
|
|
Dimensions & Weight
|
|
|
Depth
|
7.5 cm
|
|
Height
|
2.6 cm
|
|
Weight
|
370 g
|
|
Width
|
17.8 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Depth
|
21 cm
|
|
Shipping Height
|
6.5 cm
|
|
Shipping Weight
|
787 g
|
|
Shipping Width
|
23 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 85% RH (non-condensing)
|
|
Humidity Range Storage
|
5 - 90% RH (non-condensing)
|
|
Max Operating Temperature
|
45 °C
|
|
Max Storage Temperature
|
80 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-10 °C
|
