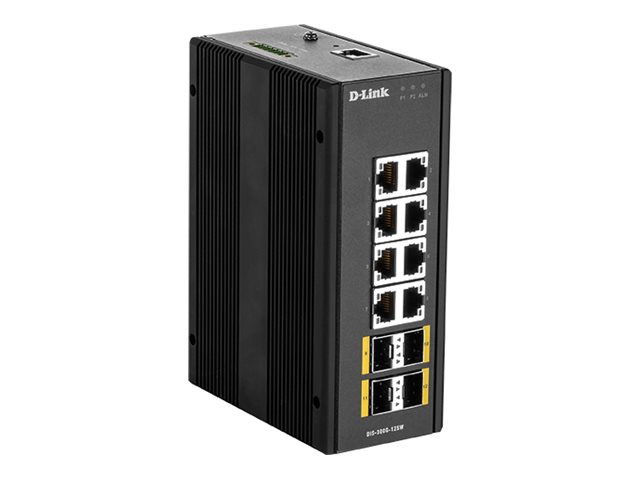

Product no 993294952
Model DIS-300G-12SW
Brand D-Link
EAN 0790069437915
Weight 1.53 kg
Produktbeskrivelse | D-Link DIS 300G-12SW - switch - 8 porte - Administreret |
Enhedstype | Switch - 8 porte - Administreret |
Undertype | Gigabit Ethernet |
Porte | 8 x 10/100/1000 + 4 x 100/1000 SFP |
Kapacitet | VLANs understøttet: 256<br>IGMP multicast-grupper: op til 255<br>Køer per port: 8 |
MAC adresse table størrelse | 8K indtastningshukommelse |
Jumborammesupport | 9KB |
Routingprotokol | IGMPv2, IGMP |
Protokol til fjernadministration | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, NTP |
Egenskaber | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, traffic-shaping, Broadcast Storm Control, halv dupleksmodus, fuld dupleksmodus, Multicast Storm Control, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, blæserløs, DHCP videresendelse, DHCP klient, grov, Strict Priority Queuing (SPQ), Digital Diagnostics Monitoring (DDM), Authentication, Authorization and Accounting (AAA), IGMP-forespørger, VLAN Double Tagging (Q-in-Q), Weighted Round Robin (WRR), Flooding Storm Control |
Overensstemmelsesstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP) |
Dimensioner (B x D x H) | 6.1 cm x 15.4 cm x 10.9 cm |
Vægt | 1.086 kg |
Producentgaranti | 5 års garanti |
General | |
---|---|
Authentication Method | RADIUS, TACACS+ |
Capacity | VLANs supported: 256 | IGMP multicast groups: up to 255 | Queues per port: 8 |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP) |
Device Type | Switch - 8 ports - managed |
Enclosure Type | DIN rail mountable, wall-mountable |
Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning T |
Jumbo Frame Support | 9KB |
MAC Address Table Size | 8K entries |
Ports | 8 x 10/100/1000 + 4 x 100/1000 SFP |
Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, NTP |
Routing Protocol | IGMPv2, IGMP |
Status Indicators | Power, alarm, link/speed |
Subtype | Gigabit Ethernet |
Expansion / Connectivity | |
Interfaces | 8 x 1000Base-T RJ-45 | 4 x 1000Base-X SFP |
Miscellaneous | |
Compliant Standards | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, EN 61000-4-5, EN 61000-6-2, RoHS, UL 60950-1, EN 61000-6-4, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30 |
MTBF | 25 years |
Dimensions & Weight | |
Depth | 15.4 cm |
Height | 10.9 cm |
Weight | 1.086 kg |
Width | 6.1 cm |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Humidity Range Operating | 5 - 95% |
Humidity Range Storage | 5 - 95% |
Max Operating Temperature | 70 °C |
Max Storage Temperature | 85 °C |
Min Operating Temperature | -40 °C |
Min Storage Temperature | -40 °C |
