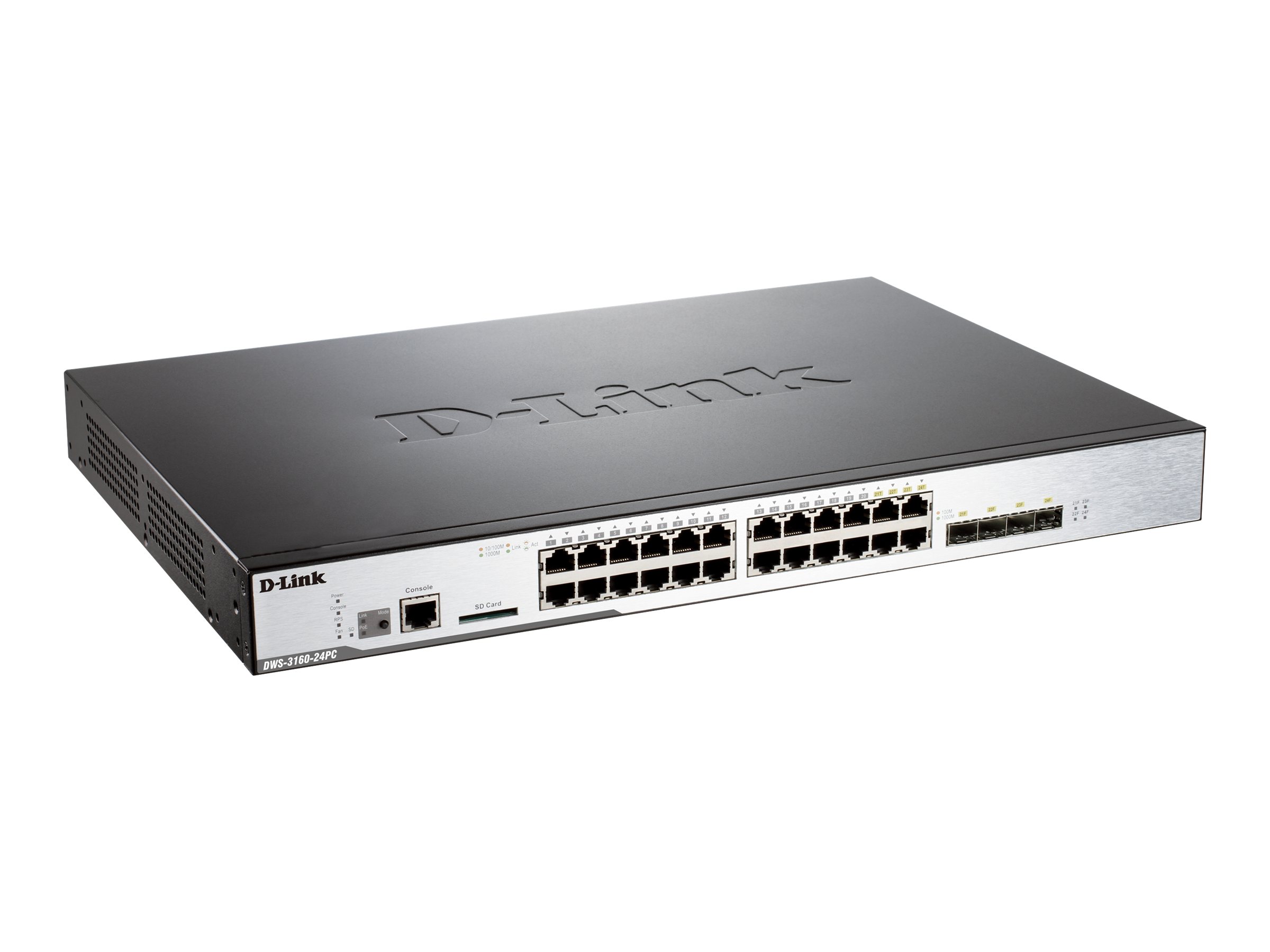

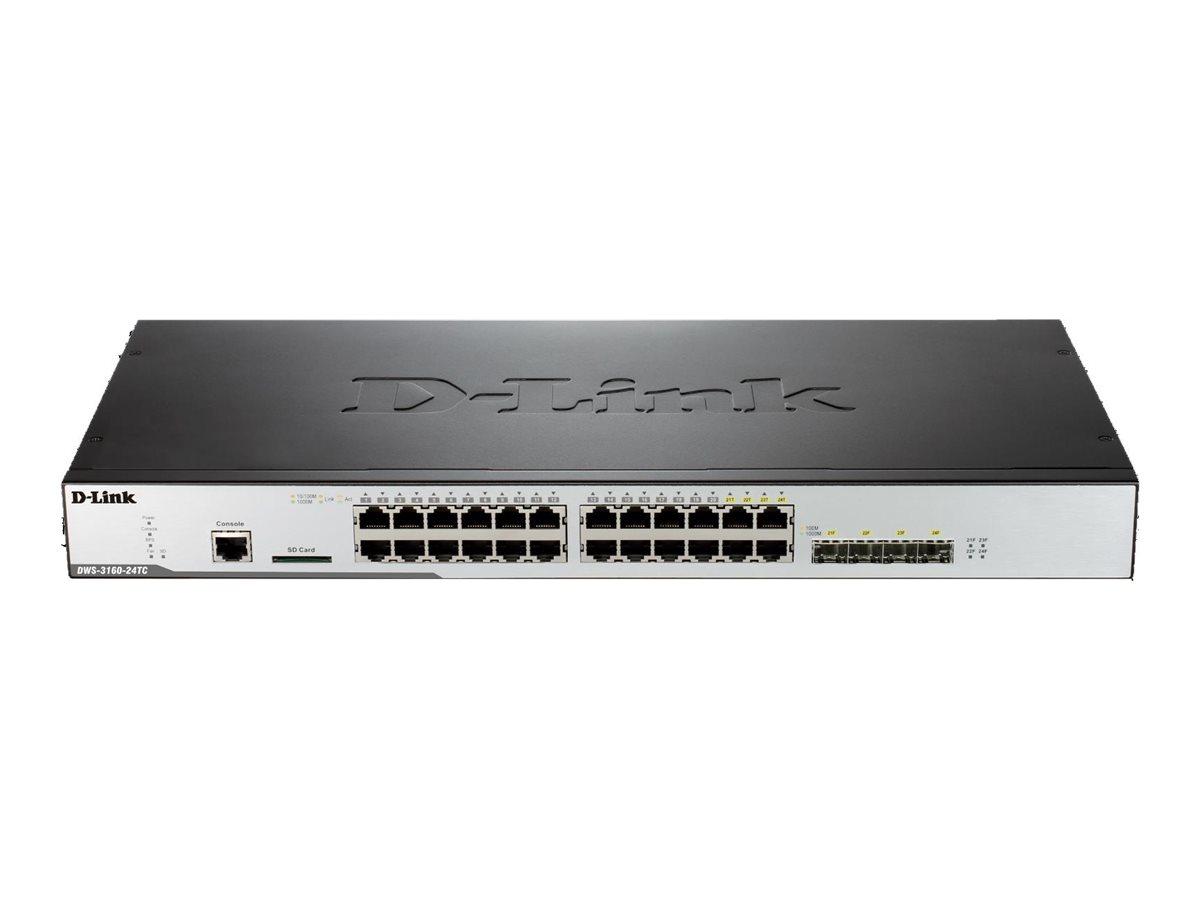

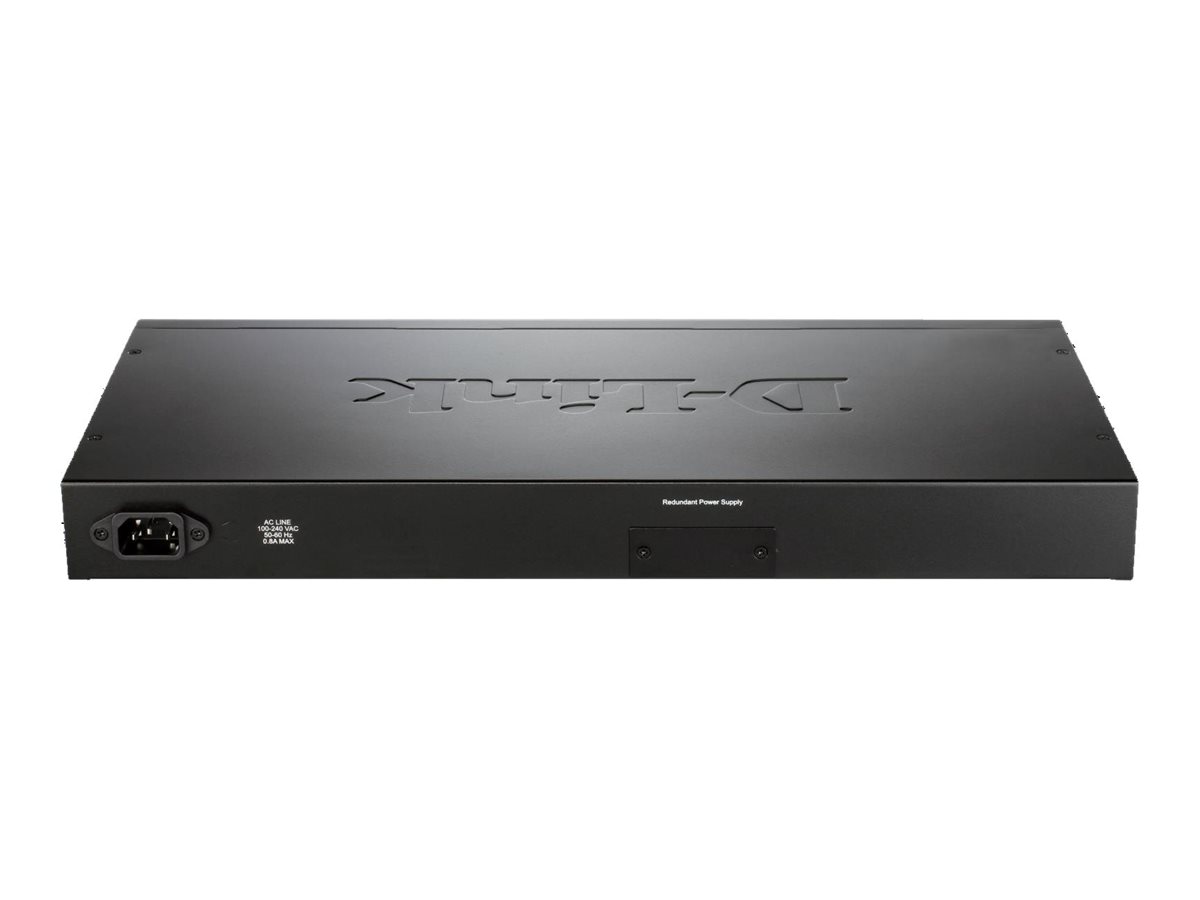

D-Link DWS 3160 Switch 24-porte Gigabit PoE
D-Link DWS 3160 - Switch - Administreret - 20 x 10/100/1000 (PoE) + 4 x combo Gigabit SFP - monterbar på stativ - PoE
-
Product no 988024506
Model DWS-3160-24PC
Brand D-Link
EAN 0790069368127
Weight 7.15 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | D-Link DWS 3160 - switch - 24 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 24 porte - Administreret |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 20 x 10/100/1000 (PoE) + 4 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| Præstation | Omkoblingskapacitet: 48 Gbps |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | Ja |
| Routingprotokol | RIP, statisk IP routing |
| Protokol til fjernadministration | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Egenskaber | Understøttet af BOOTP, VLAN-understøttet, IGMP snooping, portspejling, IPv6 understøttet, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, MDL snooping, Network Access Protection (NAP), båndbreddekontrol, LLDP support, DHCP videresendelse, Link Aggregation Control Protocol (LACP), Traffic Control, DHCP klient, Dynamic VLAN Support (GVRP) |
| Overensstemmelsesstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP) |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44 cm x 31 cm x 4.4 cm |
| Vægt | 5.2 kg |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP) |
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | BOOTP support, VLAN support, IGMP snooping, port mirroring, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MST |
| Jumbo Frame Support | Yes |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 48 Gbps |
| Ports | 20 x 10/100/1000 (PoE) + 4 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Routing Protocol | RIP, static IP routing |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 20 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE | 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | 4 x SFP (mini-GBIC) | 1 x management RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, VCCI, C-Tick, cUL, ICES-003, CB |
| MTBF | 282,541 hours |
| Dimensions & Weight | |
| Depth | 31 cm |
| Height | 4.4 cm |
| Weight | 5.2 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% |
| Humidity Range Storage | 5 - 90% |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
