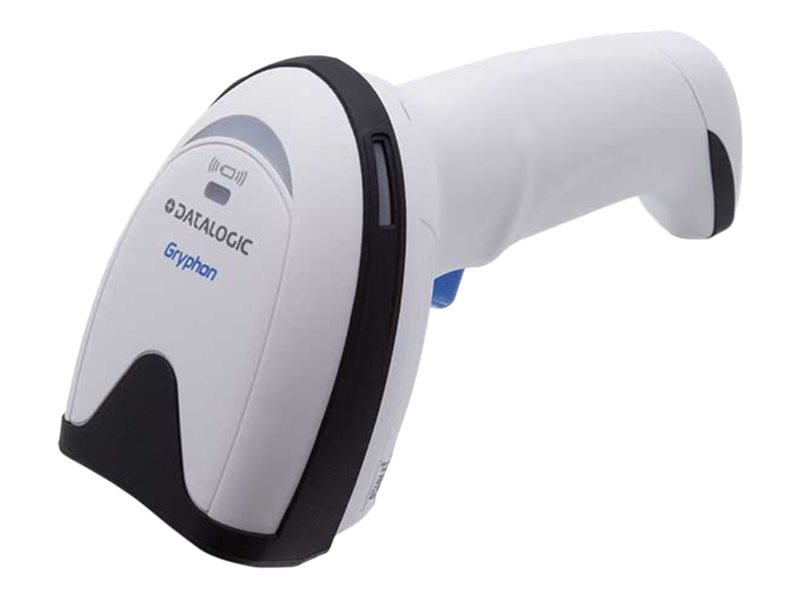

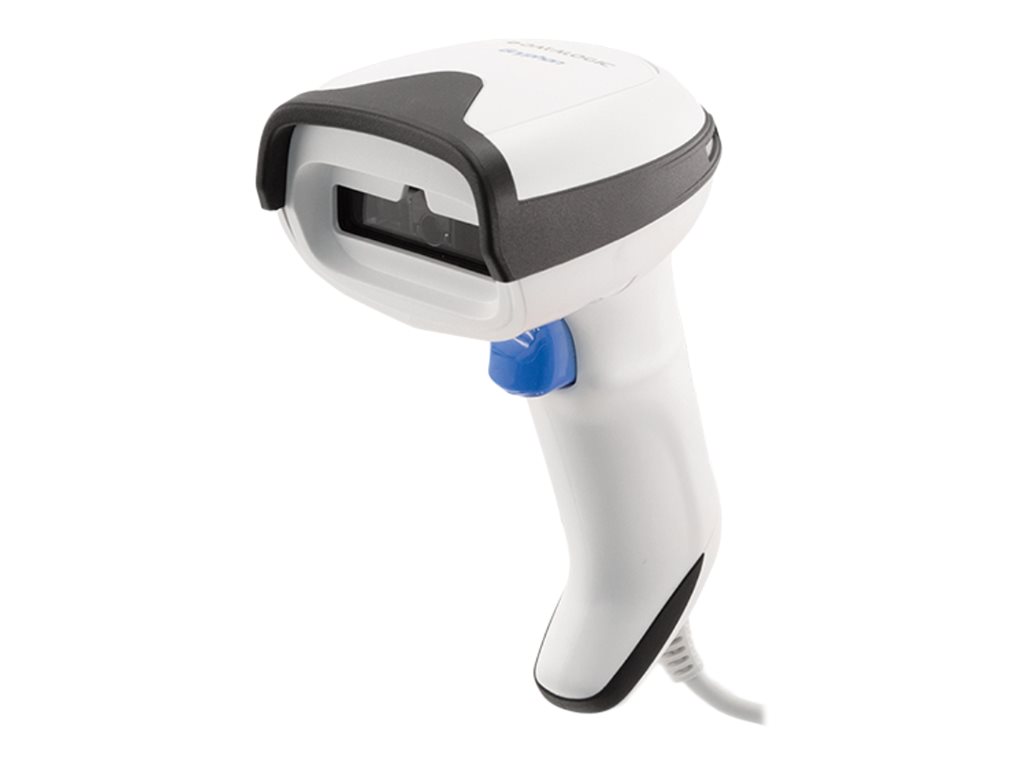

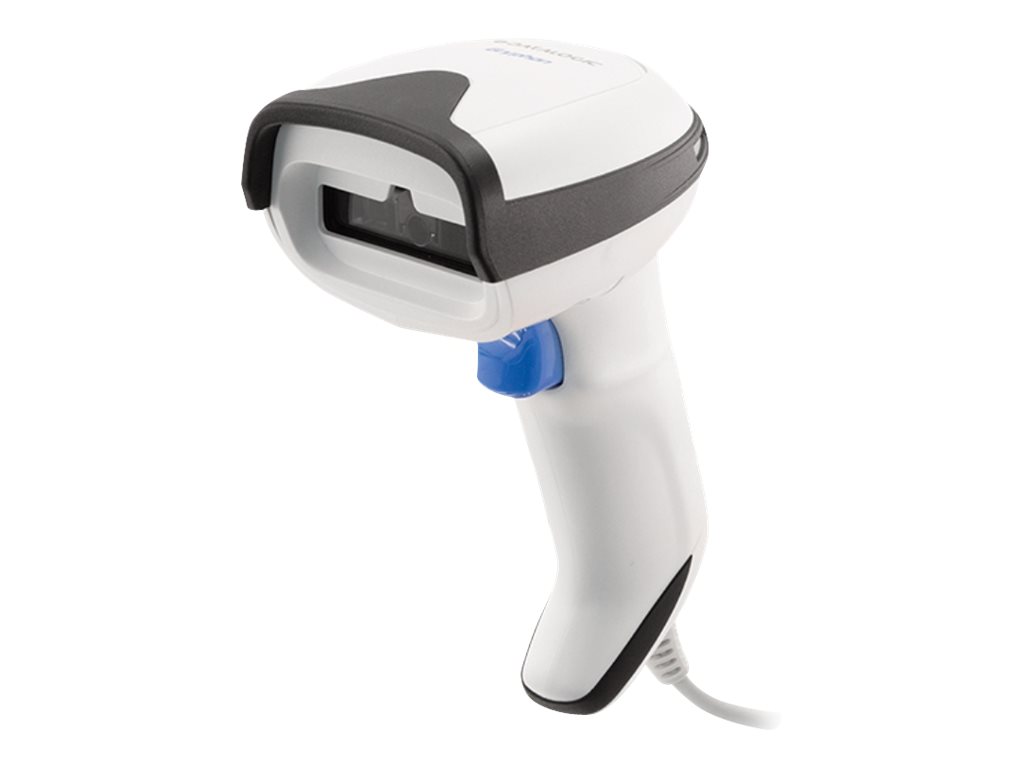

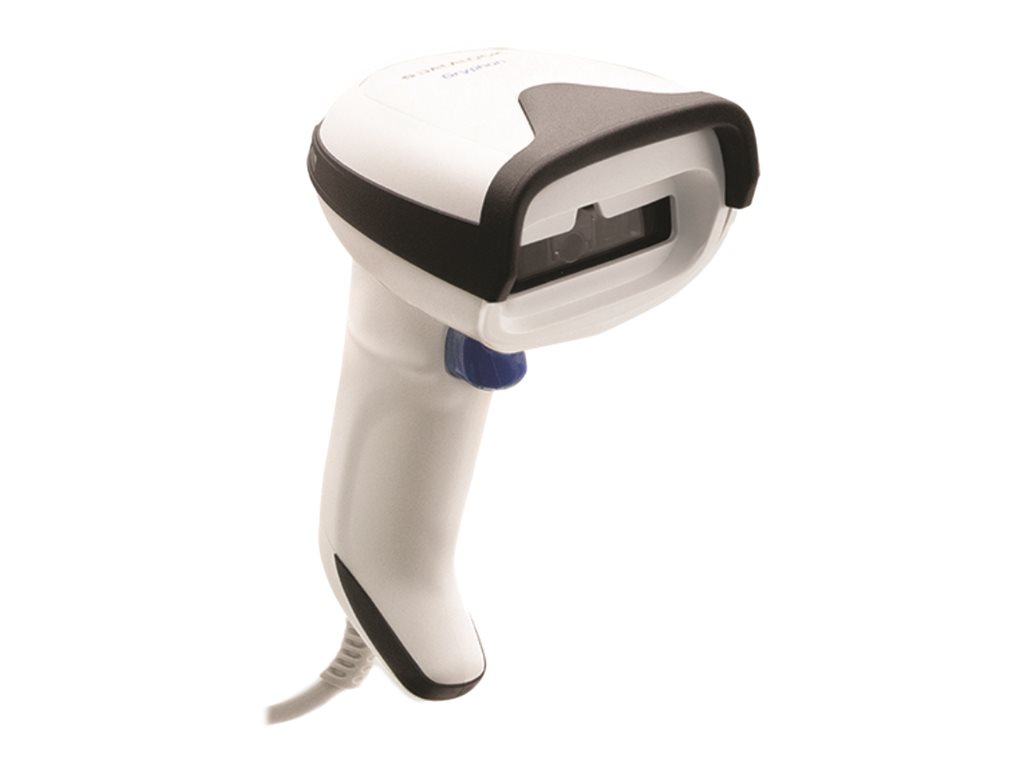

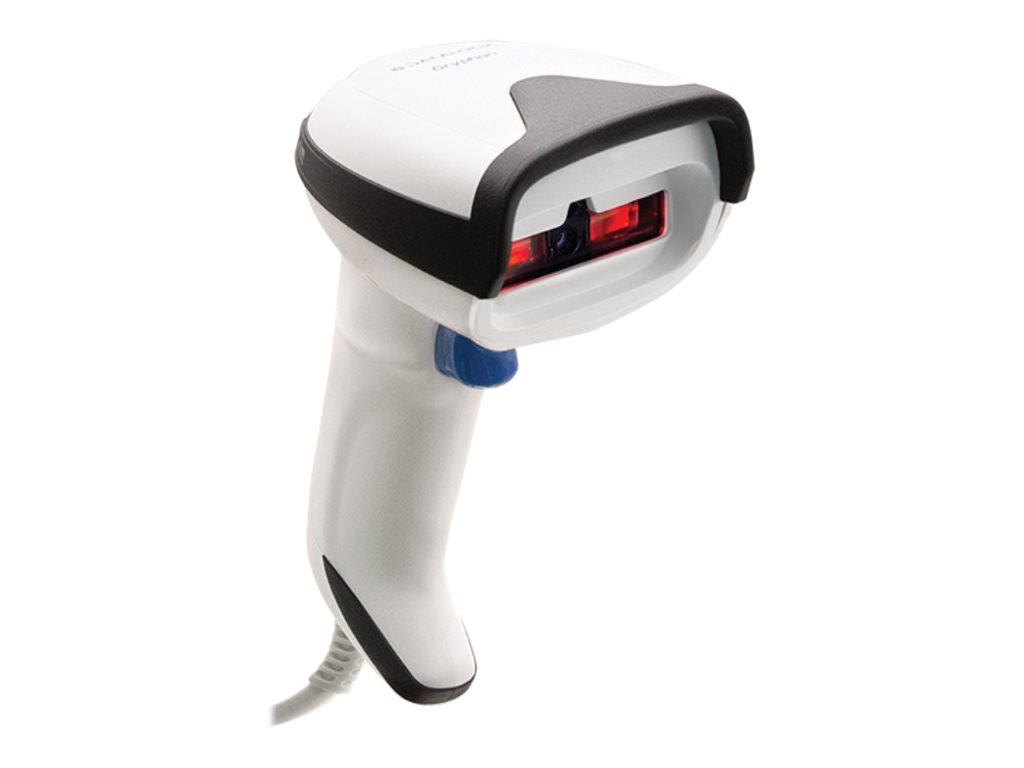

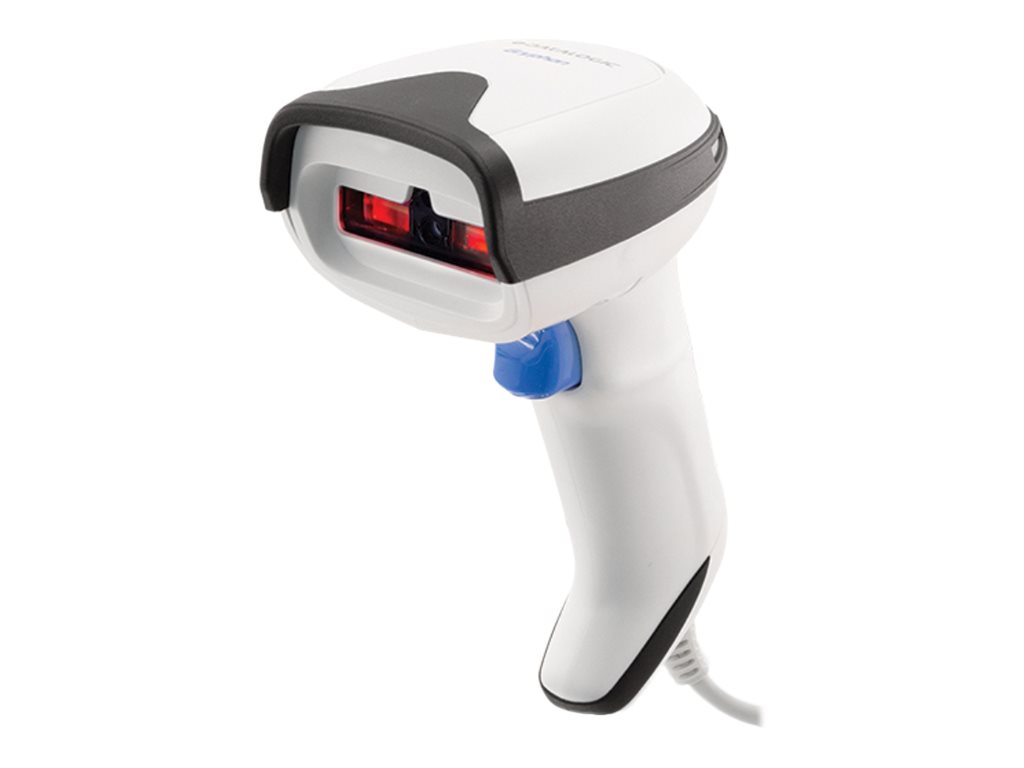

Datalogic Gryphon I GD4220 Stregkodescanner

Datalogic Gryphon I GD4220 - Kit - stregkodescanner - håndmodel - 400 scan / sekund - afkodet - USB

Product no: 996861388
Model: GD4220-WHK1
EAN: 2050007261483
Brand:
Datalogic
Weight: 0.39 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Datalogic Gryphon I GD4220 - Kit - stregkodescanner
Type
Stregkodescanner - håndmodel - USB - afkodet
Farve
Hvid
Min. linjebredde
3 mil
Scanningskomponenttype
CCD - dobbelt LED
Scanningshastighed
400 scan / sekund
Forbindelsesteknologi
Kablet
Effekt
DC 5 V
Dimensioner (B x D x H)
6.8 cm x 10.9 cm x 16.6 cm
Vægt
163 g
Producentgaranti
5 års garanti
Specifications

Full specifications

General
Color
White
Type
Barcode scanner - handheld
Barcode
Connectivity Technology
Wired
Decode Capability
EAN/JAN, Code 39, GS1 DataBar, UPC
Features
Datalogic Three Green Lights (3GL), Green Spot technology, disinfectant ready housing, drop protection, Datalogic Motionix technology, 16 kV ESD protection (air discharge)
Interface Type
USB
Light Source Wave Length
612-630 nm
Max Working Distance
147 cm
Minimum Bar Width
3 mil
OK Notification
Beeper, LED indicator
Pitch (Degrees)
65
Print Contrast Signal (PCS)
15%
Scan Element Type
CCD - dual LED
Scan Mode
Single-pass
Scan Speed
400 scan / sec
Skew (Degrees)
65
TTL Decoding
Decoded
Expansion / Connectivity
Interfaces
1 x USB
Miscellaneous
Cables Included
1 x USB cable - external - 2 m
Compliant Standards
IP52, China RoHS, IEC 62471, EU RoHS
Power
Electric Current Required
60 mA (idle), 350 mA (operating), 60 mA (standby)
Voltage
DC 5 V
Dimensions & Weight
Depth
10.9 cm
Height
16.6 cm
Weight
163 g
Width
6.8 cm
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Drop Specification
1.8 m to concrete
Humidity Range Operating
0 - 95% (non-condensing)
Max Operating Temperature
50 °C
Min Operating Temperature
0 °C
