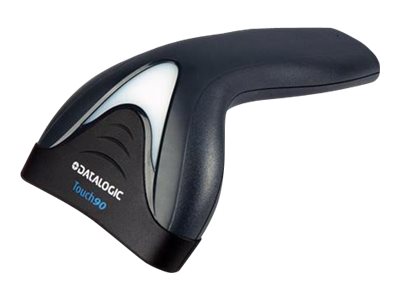

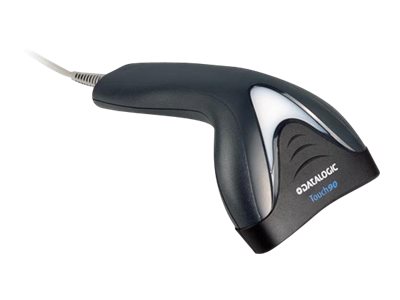

Datalogic Touch TD1100 90 Light Stregkodescanner

Datalogic Touch TD1100 90 Light - Stregkodescanner - håndmodel - 256 scan / sekund - afkodet - USB

Product no: 988189441
Model: TD1120-BK-90K1
EAN: 5711045503375
Brand:
Datalogic
Weight: 0.53 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Datalogic Touch TD1100 90 Light - stregkodescanner
Type
Stregkodescanner - håndmodel - USB - afkodet
Farve
Sort
Min. linjebredde
4 mil
Bredde af skanningsområde
15 cm
Scanningskomponenttype
Synlig laserdiode
Scanningshastighed
256 scan / sekund
Forbindelsesteknologi
Kablet
Dimensioner (B x D x H)
6.7 cm x 10.4 cm x 17 cm
Vægt
153 g
Producentgaranti
5 års garanti
Specifications

Full specifications

General
Color
Black
Type
Barcode scanner - handheld
Barcode
Connectivity Technology
Wired
Decode Capability
Code 39, GS1 DataBar, EAN/JAN-13, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked
Features
ESD (electrostatic discharge) safe
Interface Type
USB
Light Source Wave Length
640 nm
Minimum Bar Width
4 mil
OK Notification
Beeper, LED indicator
Pitch (Degrees)
65
Print Contrast Signal (PCS)
25%
Scan Element Type
Visible laser diode
Scan Field Width
15 cm
Scan Mode
Single-pass
Scan Speed
256 scan / sec
Skew (Degrees)
70
TTL Decoding
Decoded
Expansion / Connectivity
Interfaces
1 x USB - Type A
Miscellaneous
Cables Included
1 x USB cable - 1.8 m
Compliant Standards
RoHS, IP30
Included Accessories
Holder
Power
Electric Current Required
20 mA (standby), 100 mA (typical)
Software
Software Included
Drivers & Utilities, Datalogic Aladdin, OPOS/JavaPOS Drivers
Dimensions & Weight
Depth
10.4 cm
Height
17 cm
Weight
153 g
Width
6.7 cm
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Drop Specification
1.5 m to concrete
Humidity Range Operating
5 - 95% (non-condensing)
Max Operating Temperature
50 °C
Min Operating Temperature
0 °C

Media
