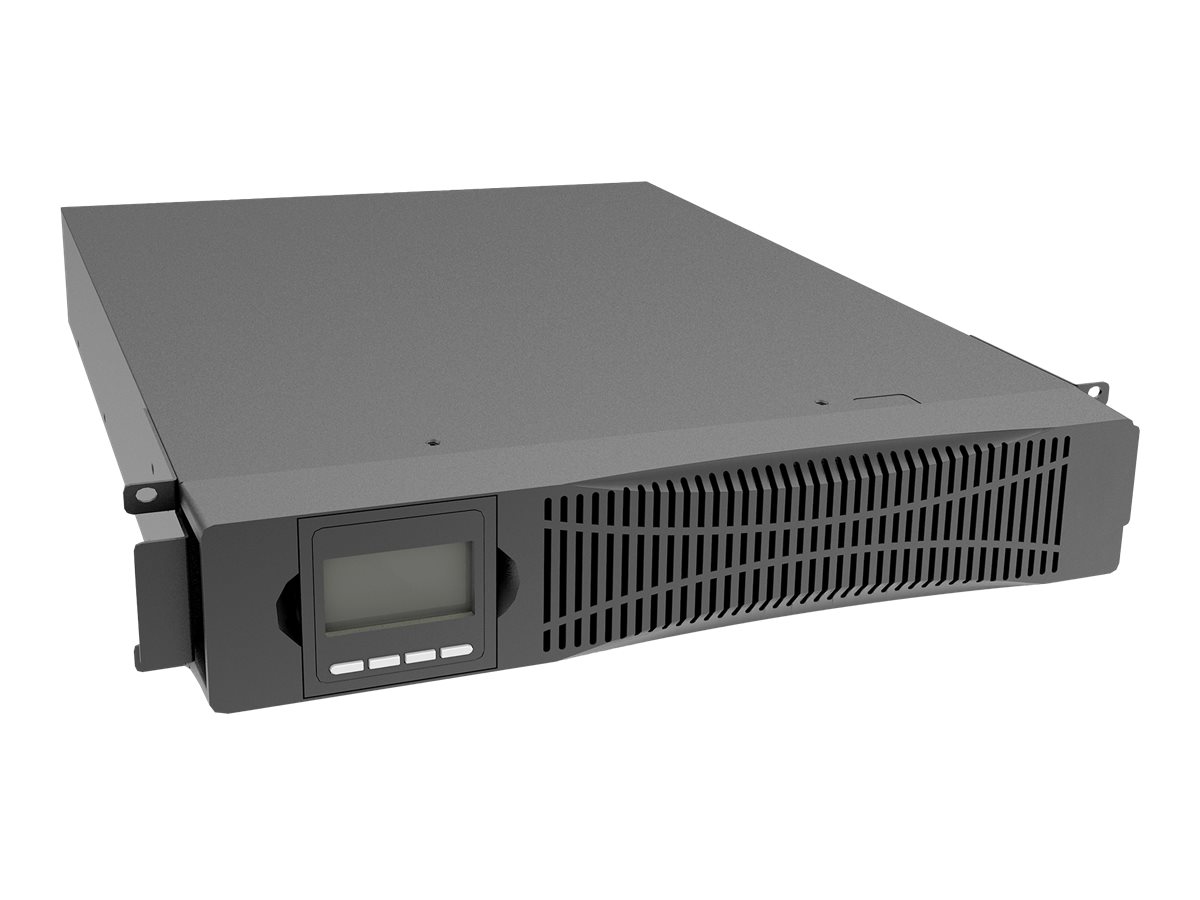

DIGITUS DN-170096 UPS
DIGITUS DN-170096 - UPS (stativ-monterbar / ekstern) - AC 208/220/230/240 V - 3000 Watt - 3000 VA - 1-faset - 9 At - RS-232, USB - output-stikforbindelser: 8 - 2U - 19"
-
Product no 1000583748
Model DN-170096
Brand DIGITUS
EAN 4016032474678
Weight 30.2 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | DIGITUS DN-170096 - UPS - 3000 Watt - 3000 VA |
| Enhedstype | UPS - stativ-monterbar / ekstern |
| Rackstørrelse | 19" - 2U |
| Vægt | 26 kg |
| Indgangskabler | 1-faset |
| Indgangspænding | AC 208/220/230/240 V |
| Udgangspænding | AC 208/220/230/240 V ± 1% |
| Strømkapacitet | 3000 Watt / 3000 VA |
| Input-stik | 1 |
| Output-stikforbindelser | 8 x power IEC 60320 C13<br>1 x strøm IEC 60320 C19 |
| Batteri | - 9 At |
| Antal batterier | 6 |
| Driftstid (op til) | 1.5 min ved fuld belastning |
| Netværk | RS-232, USB |
| Protokol til fjernadministration | SNMP |
| Dimensioner (B x D x H) | 44 cm x 60 cm x 8.65 cm |
| General | |
|---|---|
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Power Device | |
| Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
| Efficiency | 93% AC mode, 87% DC mode |
| Frequency Provided | 50/60 Hz ± 0.1Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 |
| Input Voltage | AC 208/220/230/240 V |
| Input Voltage Range | AC 110 - 290 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 208/220/230/240 V ± 1% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 3000 Watt / 3000 VA |
| Power Factor (PF) | 1.0 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 | 1 x power IEC 60320 C19 |
| Surge Suppression | Yes |
| Total Harmonic Distortion (THD) | 5 % |
| UPS Technology | On-line |
| Battery | |
| Capacity | 9 Ah |
| Quantity | 6 |
| Recharge Time | 4 hours |
| Run Time (Up To) | 1.5 min at full load | 3 min at 75% load | 9 min at half load | 22 min at 25% load |
| Transfer Time | 4 ms |
| Voltage Provided | 12 V |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Remote Management Protocol | SNMP |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) | 1 x USB - 4 pin USB Type B | EPO (emergency power off) |
| Miscellaneous | |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62040-2, IEC 60950-1, EN 60950-1, EN 62040-2, IEC 62040-1, EN 62040-1 |
| Features | Audible alarm, LCD display, overheat protection, internal bypass, overload protection, short-circuit protection, cooling fan, generator compatible, low battery alarm |
| Rack Mounting Kit | Included |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Dimensions & Weight | |
| Depth | 60 cm |
| Height | 8.65 cm |
| Weight | 26 kg |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 55.5 cm |
| Shipping Height | 20.2 cm |
| Shipping Weight | 30.2 kg |
| Shipping Width | 73.2 cm |
