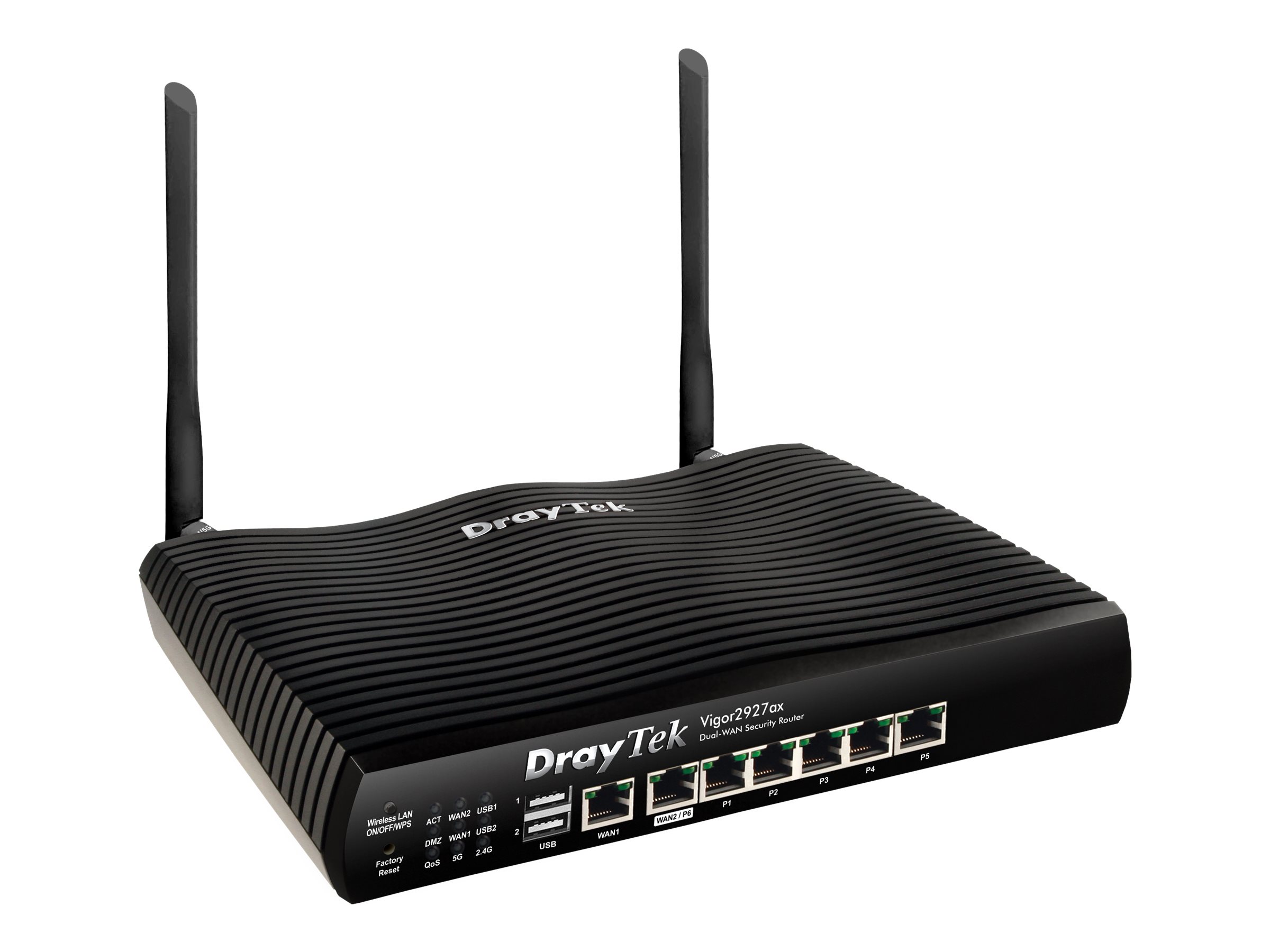

Draytek Vigor 2927ax Trådløs router Desktop
Draytek Vigor 2927ax - Trådløs router 6-ports switch - 1GbE - WAN-porte: 2 - Wi-Fi 6 - Dual Band
-
Product no 999898602
Model VIGOR2927AX
Brand Draytek
EAN 4710484743022
Weight 0.63 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Draytek Vigor 2927ax - trådløs router - Wi-Fi 6 - desktop |
| Enhedstype | Trådløs router - 6-ports switch (integreret) |
| Pakningstype | Desktop |
| Antal WAN porte | 2 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frekvensbånd | 2,4 GHz/5 GHz |
| Præstation | VPN throughput (IPSec): 290 Mbps<br>VPN kapacitet (SSL): 120 Mbps<br>NAT throughput: 800 Mbps<br>NAT-gennemløb til dobbelt WAN med hardwareacceleration: 1,8 Gbps<br>NAT-gennemløb til enkelt WAN med hardwareacceleration: 900 Mbps |
| Kapacitet | VPN-tunneler: 50<br>SSL VPN tunneler: 25<br>VLANs understøttet: 16<br>SSID'er per radio: 4 |
| Netværks/overføselsprotokol | PPTP, L2TP, IPSec, PPPoE, ARP, FTP, DHCP, DNS, Bonjour, SMB, DDNS, DHCPv6, RTSP, IPv4, IPv6 |
| Routingprotokol | RIP, BGP, GRE, statisk IPv4 routing, statisk IPv6 routing, police-baseret routing (PBR) |
| Protokol til fjernadministration | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, TR-069 |
| VoIP-protokoller | H.323, SIP |
| Egenskaber | NAT-understøtning, VPN support, understøttet af ARP, trunking, aktivitet, IGMP snooping, Syslog understøttet, DoS attack beskyttelse, indholdsfiltrering, ALG-understøttet, portspejling, E-mail advarsel, VPN passthrough, Høj rådighedsgrad, WDS support, URL-filtrering, firmware kan opgraderes, WMM support, fildeling, ACL support, QoS, IPSec NAT-T, roaming funktion, WPS, DHCP server, SMS alarmer, skjult SSID, nulstillingsknap, DNS server, port triggering, anti-spoofing beskyttelse, IP-MAC binding, applikationsfiltrering, mærket VLAN, IGMP proxy, Captive Portal, ToS, MU-MIMO teknologi, nøgleordsfiltrering, planlægger, båndstyring, failover-beskyttelse, Web Filtering, Hotspot Access Point Capability, IGMP hurtigafgang, Airtime Fairness, L2TP over IPSec, klientisolation, DMZ-support, VLAN Tagging, portbaseret VLAN, WDS-gentagertilstand, Wireless Mesh-support, WLAN/WPS-knap, Bandwidth Limiter, flere PVC support, DNS-filtrering, DynDNS, budgetkontrol, DNSSEC support, PPP, WLAN-planlægning, DSCP based QoS, Brute Force Protection, DrayDDNS |
| Overensstemmelsesstandarder | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, X.509, UPnP |
| Dimensioner (B x D x H) | 24.1 cm x 16.5 cm x 4.4 cm |
| Vægt | 630 g |
| General | |
|---|---|
| Authentication Method | RADIUS, X.509 certificates, Radio Service Set ID (SSID), TACACS+, LDAP, internal user database, XAUTH authentication |
| Built-in Devices | LED panel |
| Capacity | VPN tunnels: 50 | SSL VPN tunnels: 25 | VLANs supported: 16 | SSIDs per radio: 4 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, X.509, UPnP |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Device Type | Wireless router - 6-port switch (integrated) |
| Enclosure Type | Desktop |
| Encryption Algorithm | DES, Triple DES, MPPE, AES, IKE, SSL, SHA-1, WPA, WPA2, IKEv2, WEP, WPA3, SHA-256 |
| Features | NAT support, VPN support, ARP support, trunking, load balancing, IGMP snooping, Syslog support, DoS attack prevention, content filtering, ALG support, port mirroring, E-mail alert, VPN passthrough, High Availability, Wireless Distribution System (WDS |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, ARP, FTP, DHCP, DNS, Bonjour, SMB, DDNS, DHCPv6, RTSP, IPv4, IPv6 |
| Performance | VPN throughput (IPSec): 290 Mbps | VPN throughput (SSL): 120 Mbps | NAT throughput: 800 Mbps | NAT throughput for dual WAN with hardware acceleration: 1.8 Gbps | NAT throughput for single WAN with hardware acceleration: 900 Mbps |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, TR-069 |
| Routing Protocol | RIP, BGP, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Status Indicators | Active, WAN, link/activity, USB, 5 GHz, 2.4 GHz, QoS |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
| Expansion / Connectivity | |
| Interfaces | LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | USB 2.0: 2 x 4 pin USB Type A | Antenna: 2 x |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Power | |
| Power Device | External power adapter |
| Dimensions & Weight | |
| Depth | 16.5 cm |
| Height | 4.4 cm |
| Weight | 630 g |
| Width | 24.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
