Produktbeskrivelse
|
Elica Lane IX/A/52 - tag - rustfrit stål
|
|
Emhættetype
|
Tag
|
|
Energiklasse
|
Klasse B
|
|
Farve
|
Rustfrit stål
|
|
Styringstype
|
Elektronisk
|
|
Luftudsugningstype
|
Udtrækning og recirkulation (med ekstra recirkulationssæt)
|
|
Intensiv tilstand
|
Ja
|
|
Maksimal udsugningshastighed
|
550 ku.m/t
|
|
Lydtryksniveau (SPL)
|
65 dB(A)
|
|
Dimensioner (B x D x H)
|
51.4 cm x 28.3 cm x 32.2 cm
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
Elica Lane IX/A/52 Rustfrit stål
Elica Lane IX/A/52 - Hætte - tag - bredde: 51.4 cm - dybde: 28.3 cm - udtrækning og recirkulation (med ekstra recirkulationssæt) - rustfrit stål

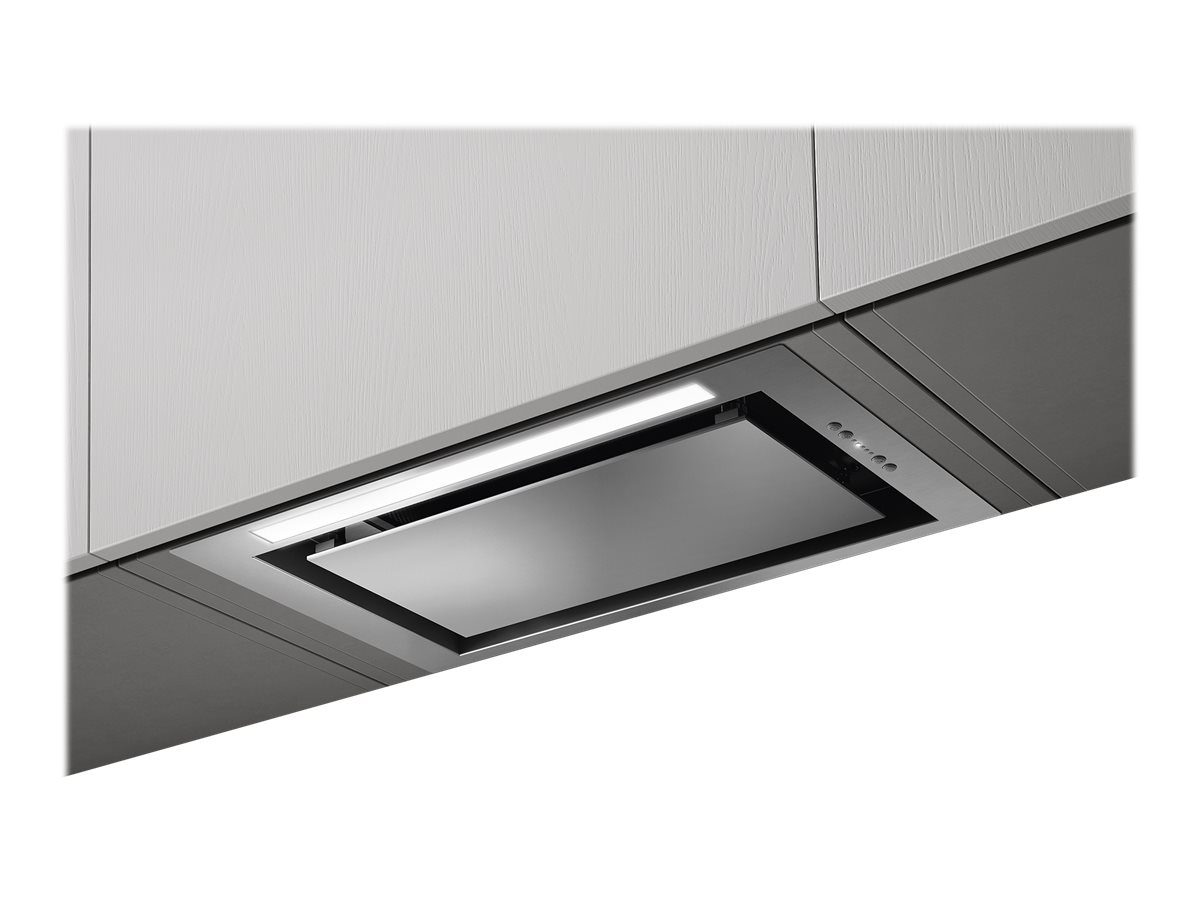

Lane er designet til at blive installeret inde i skabet, så den er usynlig og giver et højt niveau af ydeevne og energieffektivitet.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Air Extraction Type
|
Extraction & recirculation (with additional recirculation kit)
|
|
Air Flow (intensive or boost mode)
|
650 cu.m/h
|
|
Color
|
Stainless steel
|
|
Cooktop Lighting
|
LED - 7 W
|
|
Energy Class
|
Class B
|
|
Extractor Hose Diameter
|
15 cm
|
|
Hood Type
|
Canopy
|
|
Included Filters
|
Aluminum grease filter
|
|
Intensive Mode
|
Yes
|
|
Intensive Modes Qty
|
1
|
|
Lamps Qty
|
1
|
|
Maximum Air Flow (normal mode)
|
550 cu.m/h
|
|
Maximum Extraction Rate
|
550 cu.m/h
|
|
Minimum Air Flow (normal mode)
|
255 cu.m/h
|
|
Settings, Controls & Indicators
|
|
|
Control Type
|
Electronic
|
|
Filter Saturation Alarm
|
Yes
|
|
Speed Settings
|
3 presets
|
|
Miscellaneous
|
|
|
Allowable Height Above Cooktop
|
50 cm
|
|
Compliant Standards
|
Directive 65/2014/EU, Directive 66/2014/EU
|
|
Duct Shape
|
Round
|
|
Included Accessories
|
Reducer (150mm - 125mm)
|
|
Minimum Noise Level
|
49 dB(A)
|
|
Noise Level (intensive or boost mode)
|
68 dB(A)
|
|
Sound Pressure Level (SPL)
|
65 dB(A)
|
|
Power
|
|
|
Annual Energy Consumption
|
68.9 kWh/Year
|
|
Fluid Dynamic Efficiency
|
24.8
|
|
Fluid Dynamic Efficiency Class
|
B
|
|
Grease Filtering Efficiency
|
65.1 %
|
|
Grease Filtering Efficiency Class
|
D
|
|
Lighting Efficiency
|
52.1 lux/Watt
|
|
Lighting Efficiency Class
|
A
|
|
Power Consumption
|
257 W
|
|
Power Consumption Standby Mode
|
0.49 W
|
|
Dimensions & Weight
|
|
|
Depth
|
28.3 cm
|
|
Height
|
32.2 cm
|
|
Width
|
51.4 cm
|
