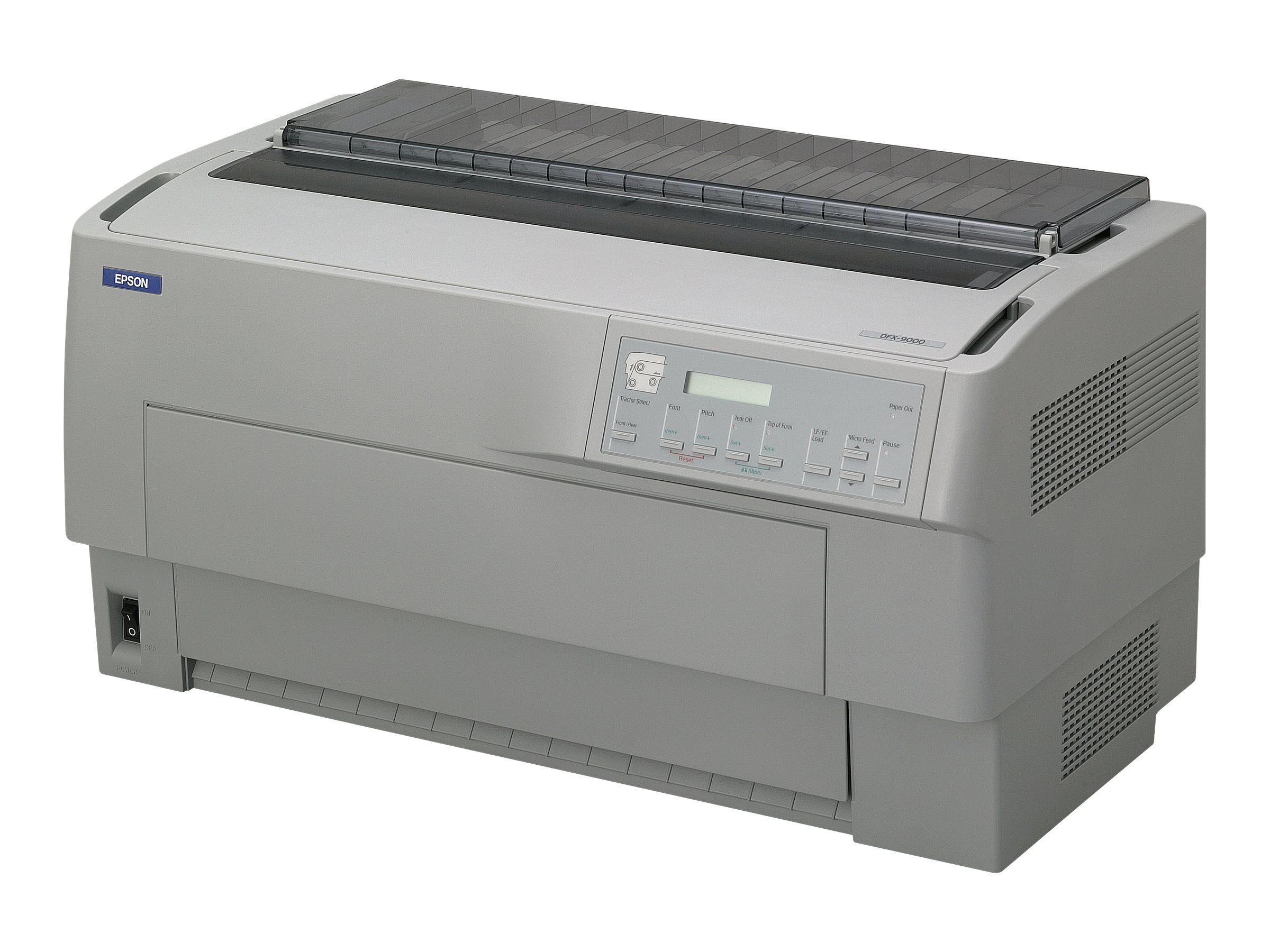

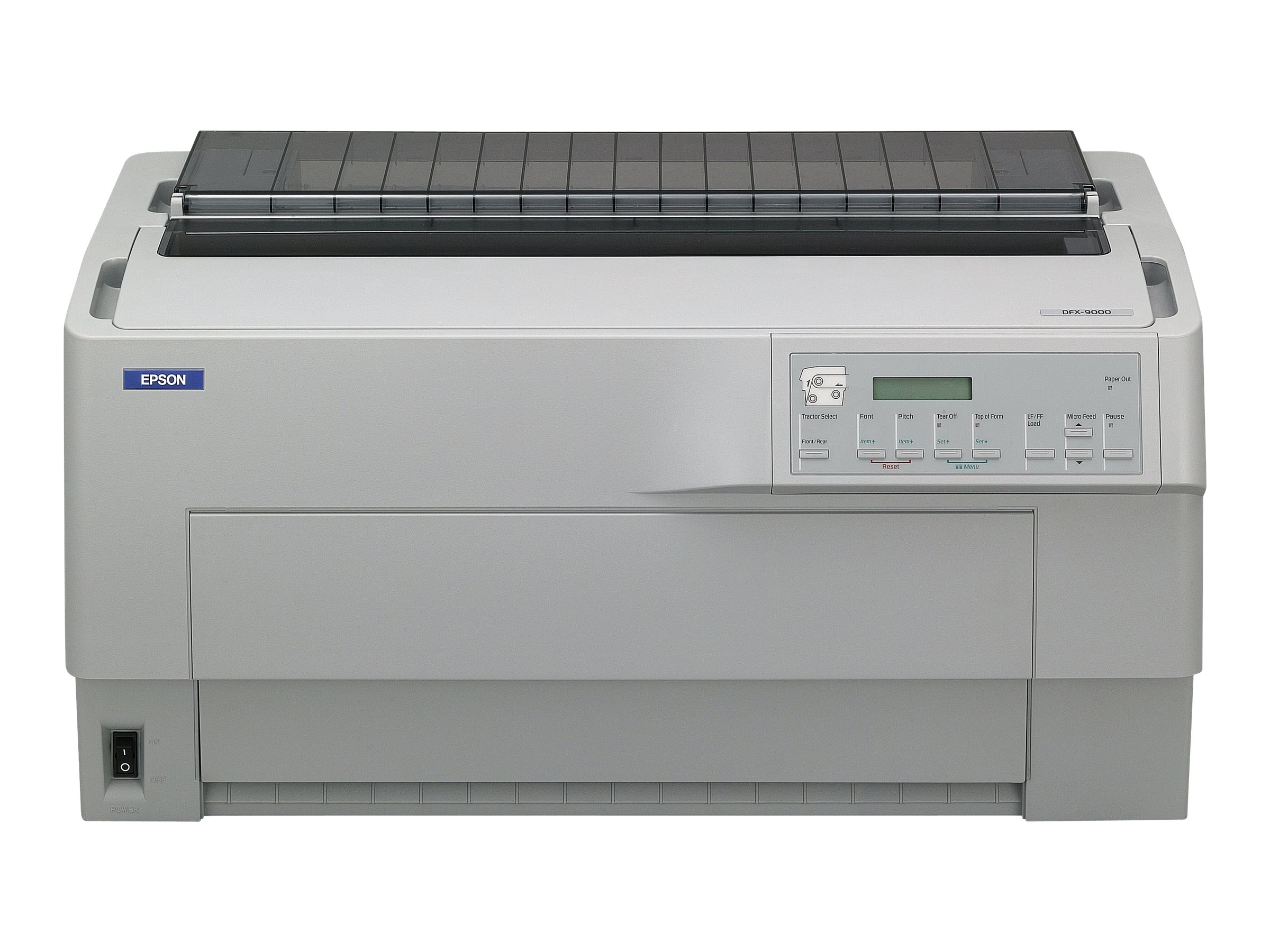

Epson DFX 9000 Dot-matrix

Epson DFX 9000 - Printer - S/H - dot-matrix - Rulle (41,9 cm) - 9 pin - op til 1550 tegn/sek. - parallel, USB, seriel

Epson DFX-900 hører i sin klasse til de hurtigste 9-nåleprintere til stort udskriftsbehov. Printeren overbeviser med sin hastighed og pålidelighed. I virksomheden kan du nu klare selv krævende udskriftsopgaver hurtigt og enormt prisfordelagtigt.

  • Product no 987727048

    Model C11C605011BZ

    Brand Epson

    EAN 8715946275987

    Weight 37.76 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Epson DFX 9000 - printer - S/H - dot-matrix
Printertype Personlig printer - dot-matrix - 9 pin - S/H
Vægt 34 kg
Maks. mediestørrelse Rulle (41,9 cm)
Max. mediestørelse (brugerdefineret) 419 mm x 432 mm
Printerhastighed Op til 1150 tegn/sek - maks. hastighed<br>Op til 1320 tegn/sek - kladdeudskrivning<br>Op til 330 tegn/sek - near letter
Grænseflade Parallel, USB, seriel
Sprogsimulering EPSON ESC/P, IBM PPDS
Stregkoder Kode 39, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Code 128, 2 af 5 interfolieret, Postnet
Medietype Etiketter, endeløse ark
Systemkrav Microsoft Windows 95, Microsoft Windows 98, Microsoft Windows NT 3.51, Microsoft Windows NT 4.0, Microsoft Windows 98 Second Edition, Microsoft Windows 2000, Microsoft Windows Millennium Edition, Microsoft Windows XP
Microsoft Certification Works with Windows Vista
Dimensioner (B x D x H) 70 cm x 37.8 cm x 36.3 cm

DFX-9000

The fastest heavy-duty 9-pin printer in its class handles up to 10 part forms and prints at up to 1550cps for rock-solid, high-volume printing.
DFX-9000
Fastest 9-pin heavy duty dot matrix printer in its class
Hard working with 133 million lines print volume
High durability with MTBF of 20,000 power on hours
Prints up to 10 part forms (1 original + 9 copies)
Standard USB, Serial and Parallel interfaces (optional network, twinax, coax)
Flexible paper handling with two tractors as standard
slide {0} of {1}, zoom in, DFX-9000
slide {0} of {1}, zoom in, DFX-9000
slide {0} of {1}, zoom in, DFX-9000
The Epson DFX-9000 is a high print volume printer providing an unprecedented level of speed and reliability for the most demanding business. Its advanced paper handling accommodates a variety of paper types while the standard front and rear push tractors can be switched easily between different types of continuous paper. An optional perforation cutter provides paper finishing capabilities.
Also available as network version DFX-9000N

Technology
Printing MethodImpact dot matrix
Number of Pins9 pins
Number of columns136 columns
Needles36 Needles (4 x 9)
Print
Printing SpeedHighSpeed-Draft: 10 cpi: 1550 chars/s, 12 cpi: 1450 chars/s, Draft: 10 cpi: 1320 chars/s, NLQ: 10 cpi: 330 chars/s
Carbon Copies9 plus one original
Printing Resolution240 x 144 dpi
Connectivity
InterfacesUSB 2.0 Type B, Ethernet interface (100 Base-TX / 10 Base-T) (optional), Bidirectional parallel, RS-232, Type B interface
Paper / Media Handling
Document FeedContinuous paper front and rear, Paper output rear, bulk measurement: yes
Paper FormatsSheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer)
General
Energy Use185 W, 75 W (standby)
Product dimensions700‎ x 378 x 363 mm (Width x Depth x Height)
Product weight34 kg
TemperatureOperation 5° C - 35° C
HumidityOperation 10% - 80%
Compatible Operating SystemsWindows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Included SoftwareEpson Status Monitor
Mean Time Between Failures20.000 Hours
Print Head Life200 Million Strokes/Wire
Sound PressureOperation: 58 dB (A)
Memory128 kB included
Ribbon Yield15000000 characters Black Draft
What's in the boxDriver and utilities (CD), Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document
Other Features
EmulationsIBM PPDS, ESC/P
Other
Warranty12 months On-site service

  • Main unit
  • Setup guide
  • User manual (CD)
  • Driver and utilities (CD)
  • Software (CD)
  • Warranty document
  • Power cable
  • Ribbon
Se Epson seneste FAQ - løser 90 % af typiske problemer
http://www.epson.dk/dk/da/viewcon/corporatesite/support

Teknisk Support: 70 27 92 73

RMA

For håndtering og oprettelse af Epson garanti.
Kontakt Epson support: 70 27 92 73

DOA: 30 dage fra sidste salgs dato.
I tilfælde af DOA kontakt Epson support.
