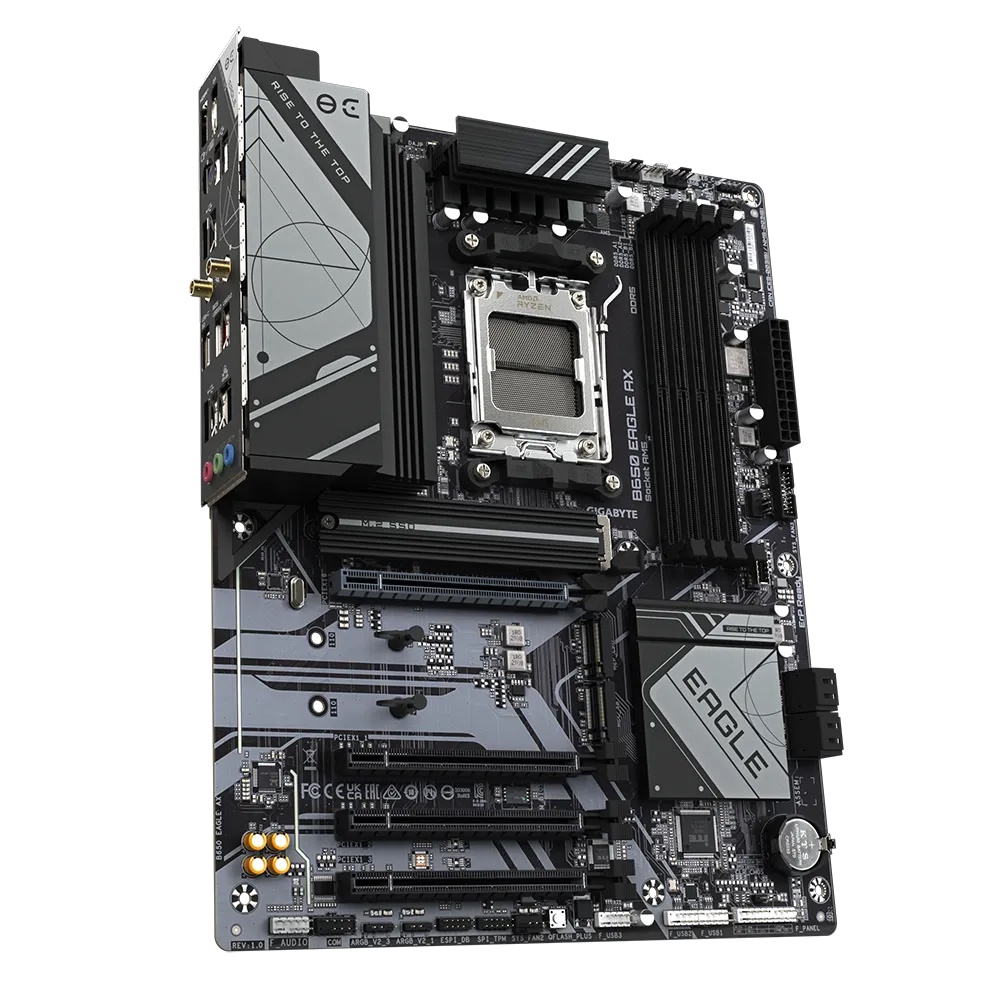

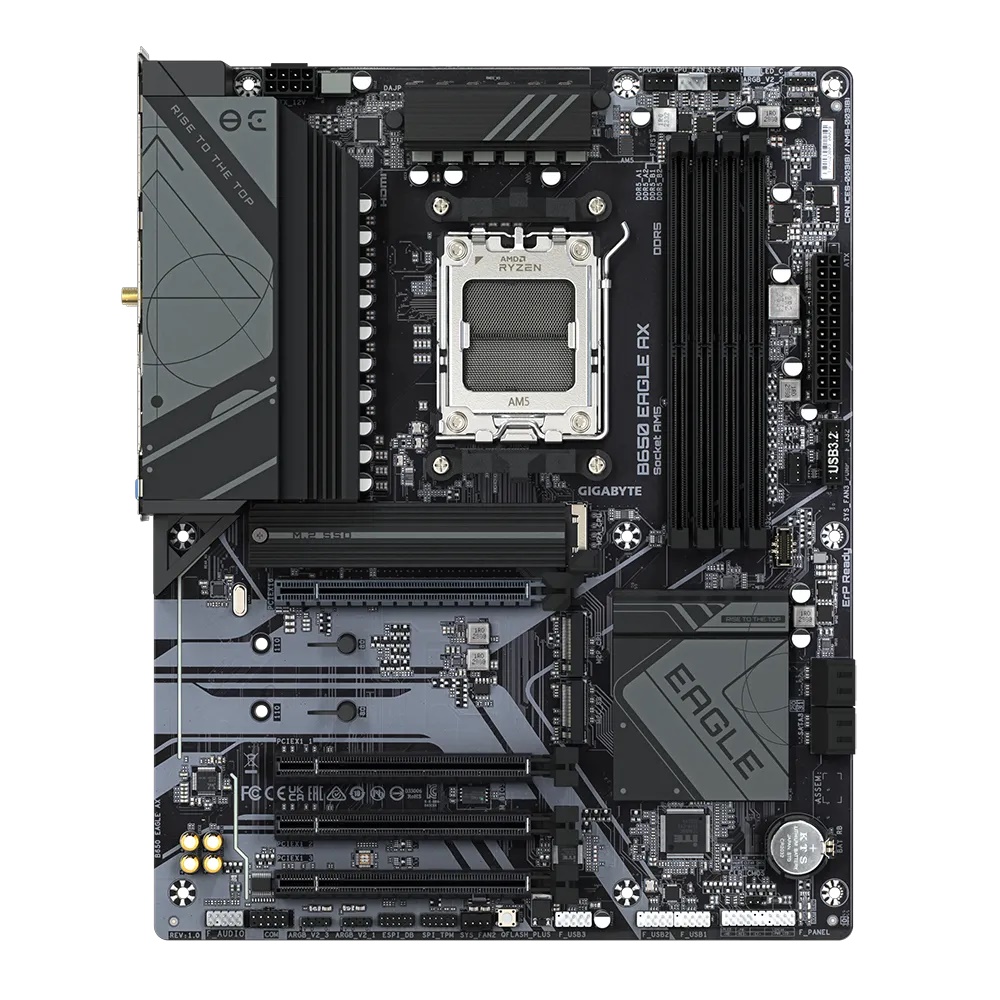

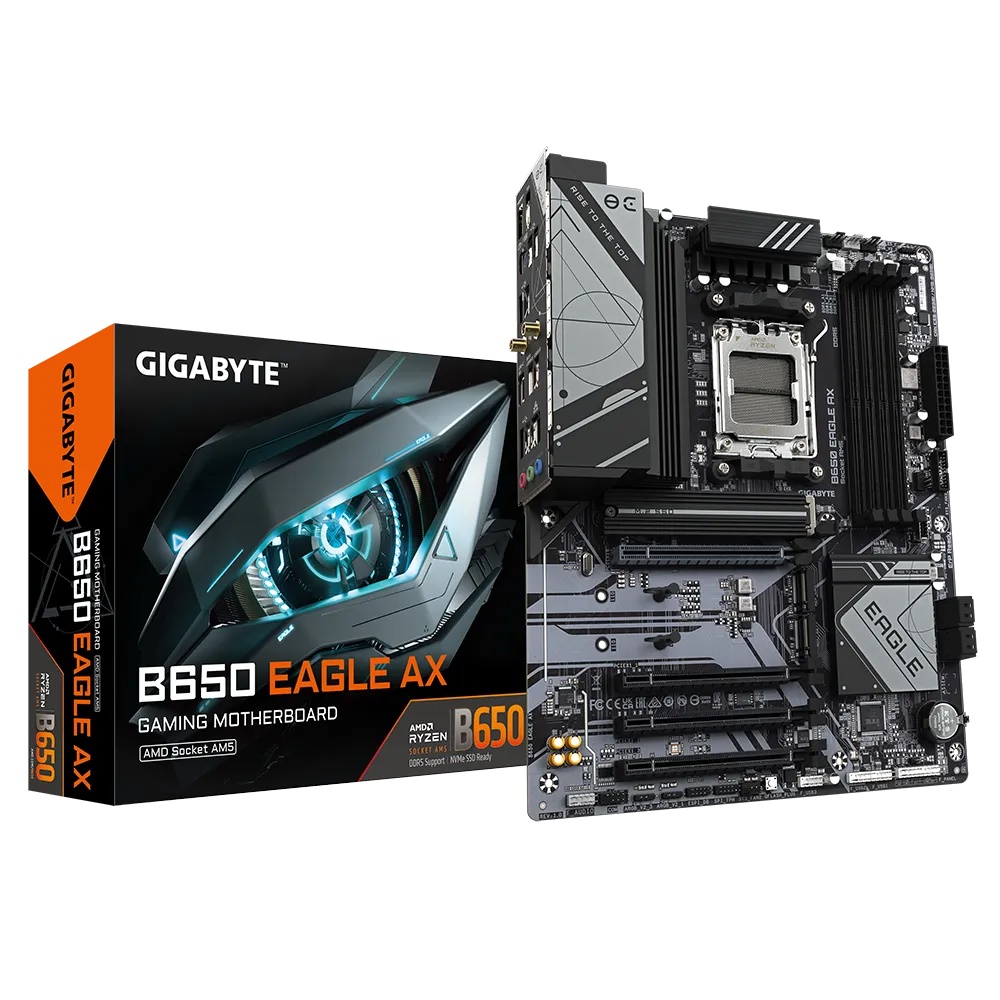

Gigabyte B650 Eagle AX AM5/DDR5/ATX Bundkort
Gigabyte B650 EAGLE AX - Bundkort - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
-
Product no 1001825949
Model B650 EAGLE AX
Brand
Go to brand's websiteEAN 4719331860158
Weight 1.73 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Socket | AMD Socket AM5 |
| CPU | AMD Ryzen™ 7000 Series Processors / AMD Ryzen™ 8000 Series Processors |
| Chipset | AMD B650 |
| Memory | 4x DDR5 DIMM sockets supporting up to 192 GB |
| Onboard Graphics | 1x DisplayPort 1.4, 1x HDMI 2.1 and HDCP 2.3 |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU, 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 |
| Storage Interface | 1x M.2 connector M2A_CPU (up to PCIe 5.0 x4/x2), 1x M.2 connector M2P_CPU (up to PCIe 4.0 x2), 1x M.2 connector M2C_SB (up to PCIe 4.0 x4/x2), 4x SATA 6Gb/s |

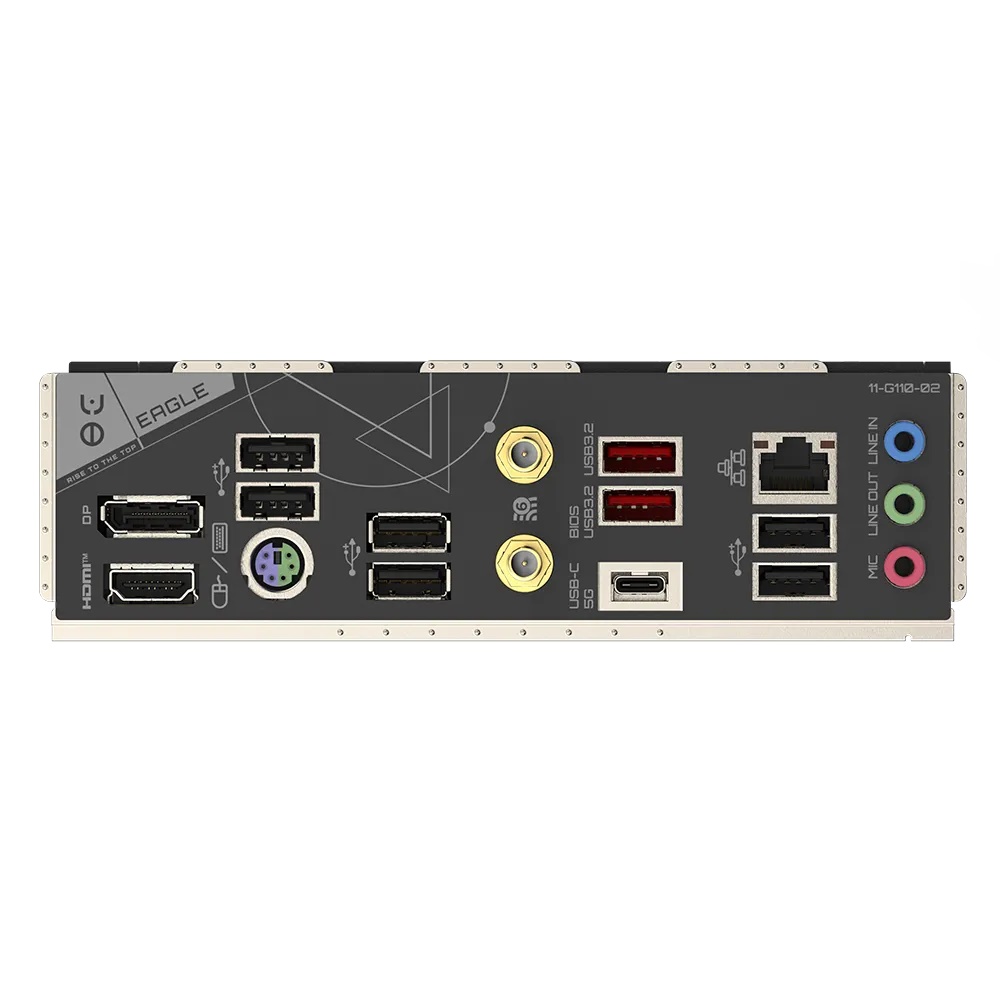

| Rear USB | 2x USB 3.2 Gen 2 Type-A ports, 1x USB Type-C port (USB 3.2 Gen 1), 6x USB 2.0/1.1 |
| Front USB | 2x USB 3.2 Gen 1, 1x USB Type-C (USB 3.2 Gen 1), 2x USB 2.0/1.1 |
| I/O Controller | iTE® I/O Controller Chip |
| BIOS | AMI UEFI BIOS, 256 Mbit flash |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
