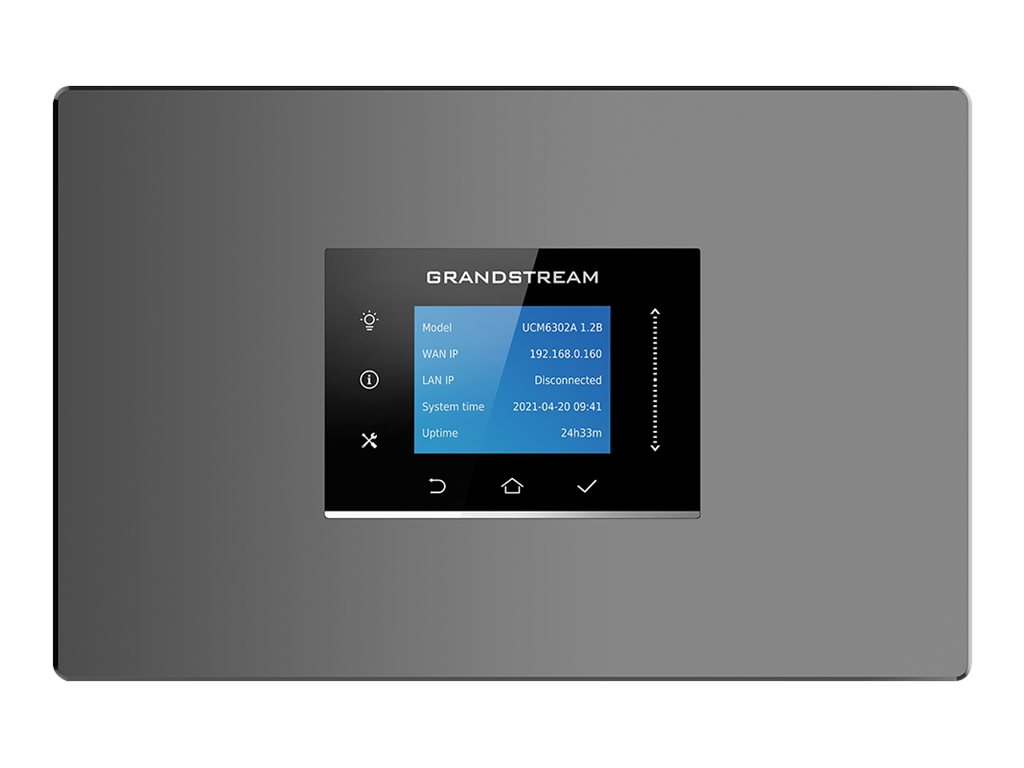

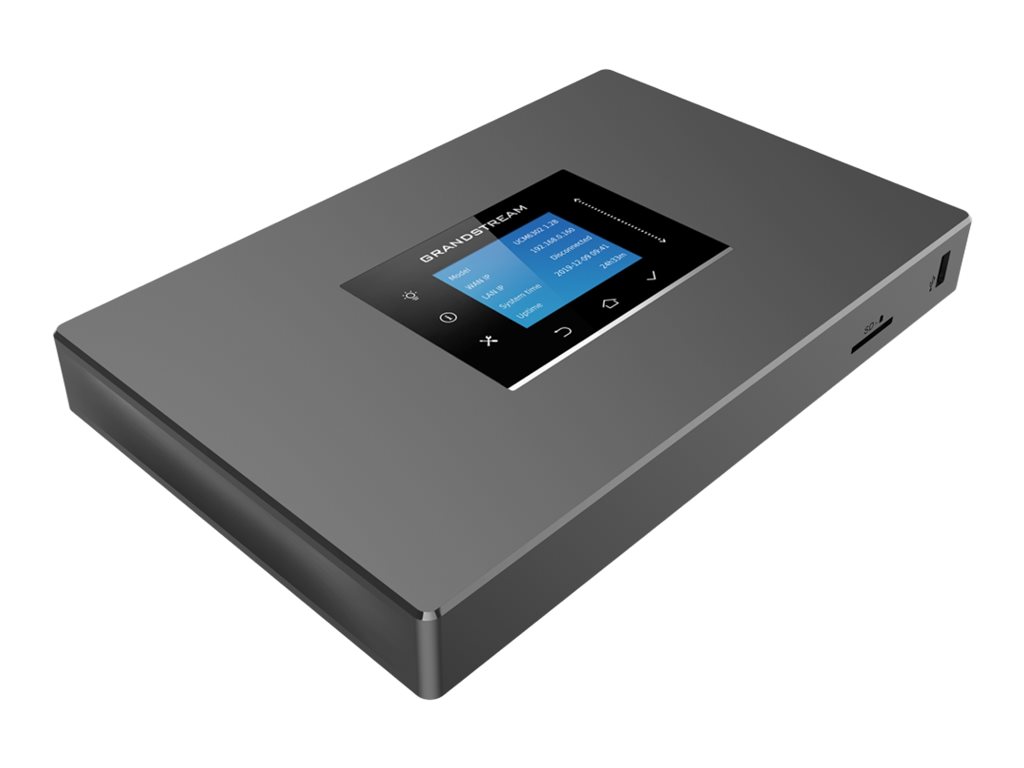

Grandstream UCM6302A IP-PBX

Grandstream UCM6302A - IP-PBX - 2 FXO-porte - 2 FXS-porte - 3 x 10/100/1000

Product no: 998994808
Model: UCM6302A
EAN: 6947273703556
Brand:
Grandstream Networks
Weight: 1.13 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Grandstream UCM6302A IP-PBX
Produkttype
IP-PBX
Antal FXO-porte
2
Antal FXS-porte
2
Netværksporte
3 x 10/100/1000
Opkaldsservice
Opkaldsvideresendelse, opkaldstransfer, opkald venter, kalder-ID, må ikke forstyrres, voidemail, Call Recording, Blacklist, Call Back, Call Routing, Follow me, Call Parking, Whitelist, Music on Hold
VoIP-protokoller
SIP, SRTP
Kapacitet
Samtidige opkald: 75<br>Brugere: 500<br>Maksimale samtidge SRTP-opkald: 75
Power Over Ethernet (PoE)
PoE+
Nødvendig spænding
50/60 Hz
Dimensioner
27 cm x 17.5 cm x 3.6 cm
Vægt
725 g
Specifications

Full specifications

General
Call Services
Call forwarding, call transfer, call waiting, caller ID, do not disturb, voice mail, Call Recording, Blacklist, Call Back, Call Routing, Follow me, Call Parking, Whitelist, Music on Hold
Capacity
Concurrent calls: 75 | Users: 500 | Maximum concurrent SRTP calls: 75
Features
QoS, LDAP, wall-mountable, built-in SD card reader, NAT support, LCD display
FXO Ports Qty
2
FXS Ports Qty
2
Network Ports
3 x 10/100/1000
Product Type
IP-PBX
Networking
Network / Transport Protocol
TCP/IP, UDP/IP, NTP, ICMP/IP, PPPoE, ARP, DHCP, DNS, DDNS, RTP, RTCP, HTTP, HTTPs, IPv6
Power Over Ethernet (PoE)
PoE+
IP Telephony
Voice Codecs
G.722, G.723.1, G.711u, G.711a, iLBC, T.38, G.722.1, G.722.1c, Opus, GSM, G.729A/B, G.726-32
VoIP Protocols
SIP, SRTP
Expansion & Connectivity
Interfaces

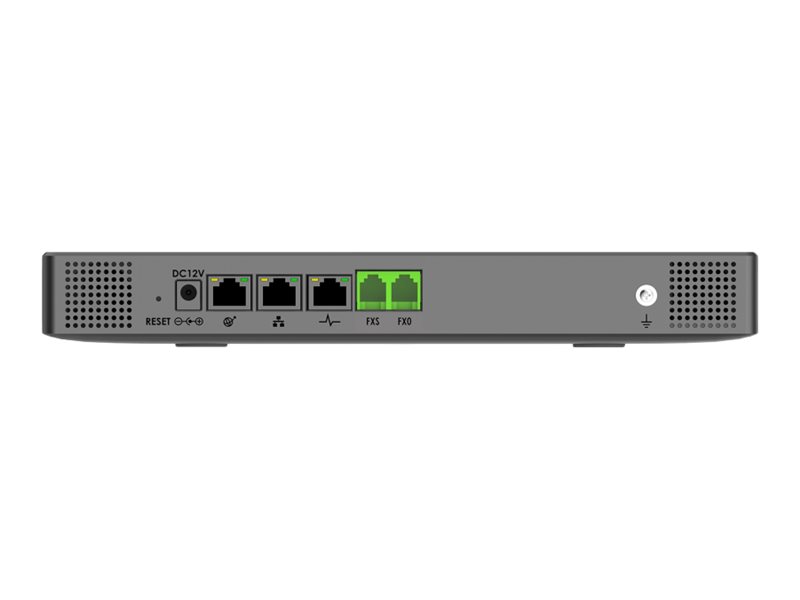

2 x FXO | 2 x FXS | 3 x 1000Base-T (PoE+) | USB 3.0 | USB 2.0
Power Device
Frequency Required
50/60 Hz
Type
External power adapter
Voltage Required
AC 100-240 V
Miscellaneous
Authentication Method
Secure Shell (SSH), LDAP
Compliant Standards
EN 61000-3-2, ICES-003, EN 61000-3-3, CS-03, UL 60950-1, FCC CFR47 Part 15 B, TLS, ITU-T K.21, EN 62368-1, EN 55032, UL 62368-1, ES 203 021, EN 55035, SRTP, AS/NZS CISPR 32, AS/NZS 62368.1
Encryption Algorithm
TLS
Dimensions & Weight
Depth
17.5 cm
Height
3.6 cm
Weight
725 g
Width
27 cm
Dimensions & Weight (Shipping)
Shipping Weight
1.221 kg
Environmental Parameters
Humidity Range Operating
10 - 90% (non-condensing)
Max Operating Temperature
45 °C
Min Operating Temperature
0 °C
