HPE Aruba 6300M Switch 48-porte Gigabit PoE+

HPE Aruba 6300M - Switch - L3 - Administreret - 48 x 10/100/1000 + 4 x 1 Gigabit/10 Gigabit/25 Gigabit/50 Gigabit SFP56 (uplink/stacking) - front og side til ryg - monterbar på stativ

  • Product no 995539702

    Model JL663A

    Brand Hewlett Packard Ente

    EAN 0190017339481

    Weight 7.36 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse HPE Aruba 6300M - switch - 48 porte - Administreret - monterbar på stativ
Enhedstype Switch - 48 porte - L3 - Administreret - kan stables
Pakningstype Front og side til ryg monterbar på stativ 1U
Undertype Gigabit Ethernet
Porte 48 x 10/100/1000 + 4 x 1 Gigabit/10 Gigabit/25 Gigabit/50 Gigabit SFP56 (uplink/stacking)
Præstation Omkoblingskapacitet: 496 Gbps<br>Kapacitet: 369 Mpps<br>Latens (1 Gbps): 2.28 µs<br>Latens (10 Gbps): 1.46 µs<br>Latens (25 Gbps): 1.9 µs<br>Latens (50 Gbps): 3.49 µs<br>Stablende båndbredde: 200 Gbps
Kapacitet Switched virtual interfaces (SVIs): 1000<br>IPv4 værtstabelkapacitet: 32000<br>IPv6 værtstabelkapacitet: 32000<br>IPv4 ruter (Unicast): 64000<br>IPv6 ruter (Unicast): 32000<br>IPv4 ruter (Multicast): 8000<br>IPv6 ruter (Multicast): 8000<br>IGMP-grupper: 8000<br>MLD-grupper: 4000<br>IPv4 ACL-indgange (ingress): 5000<br>IPv6 ACL-poster (indgang): 1250<br>MAC ACL-indgange (ingress): 5000<br>IPv4 ACL-indgange (egress): 2000<br>IPv6 ACL-poster (udgang): 500<br>MAC ACL-indgange (egress): 2000
MAC adresse table størrelse 32.000 optegnelser
Jumborammesupport 9198 byte
Routingprotokol EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, statisk IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD)
Protokol til fjernadministration RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP
Egenskaber DHCP-understøttelse, understøttet af ARP, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, Høj rådighedsgrad, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MDL snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP beskyttelse, dobbelt firmware-billeder, MVRP, pakkestormbeskyttelse, CoS, SP, transmissions-stormbeskyttelse, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA-værn, ZTP, PIM, VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 og IPv6 dobbelt stak, IP multicast, Aruba VSF, dynamisk IPv6 lockdown, ND-snagen, Unicast Storm-beskyttelse, Microsoft NLB
Overensstemmelsesstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt
Dimensioner (B x D x H) 44.2 cm x 38.5 cm x 4.4 cm
Vægt 5.51 kg
Producentgaranti Begrænset livtidsgaranti

HPE Aruba Networking CX 6300M 48-port 1GbE and 4-port SFP56 Switch

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.

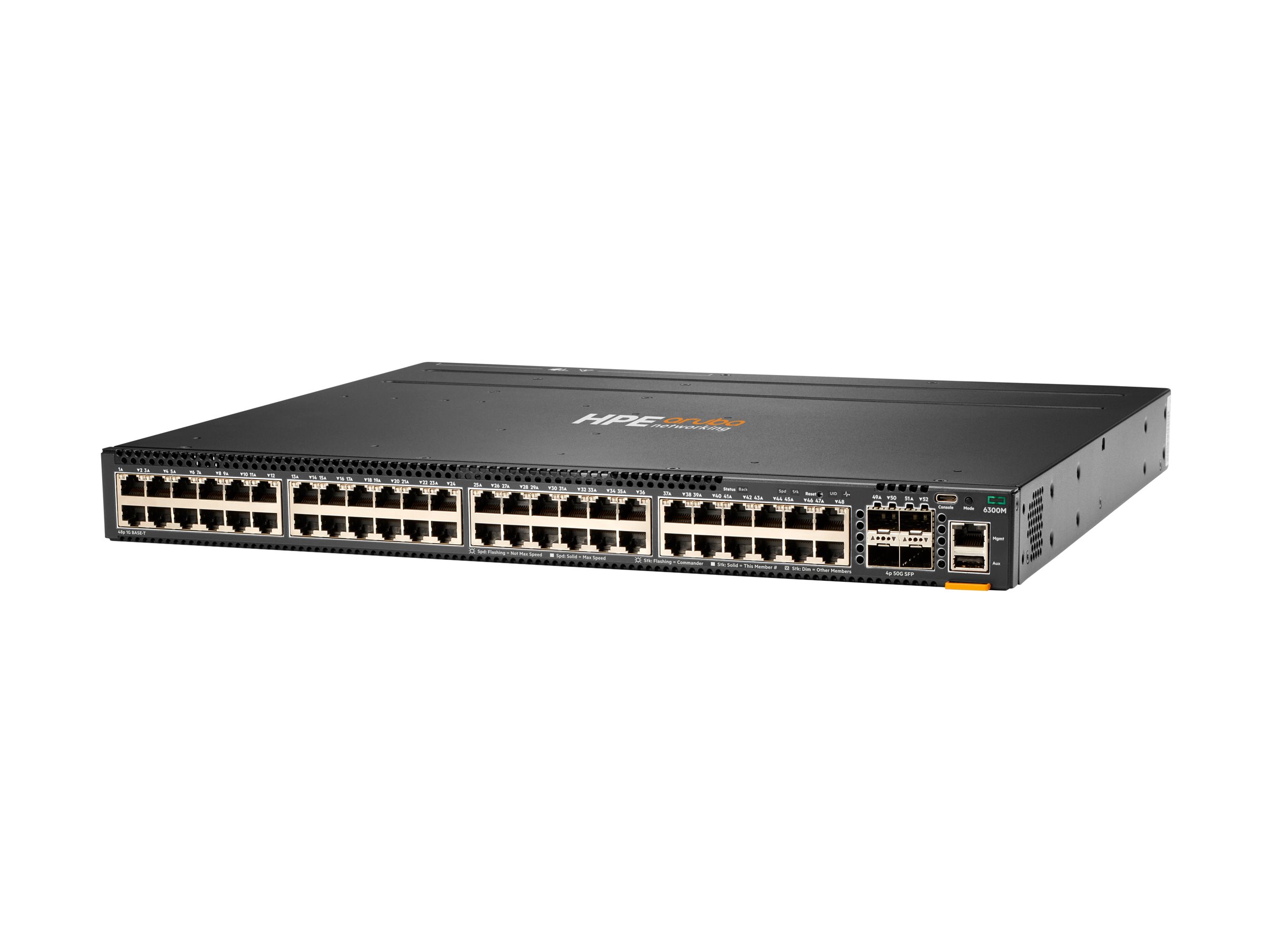

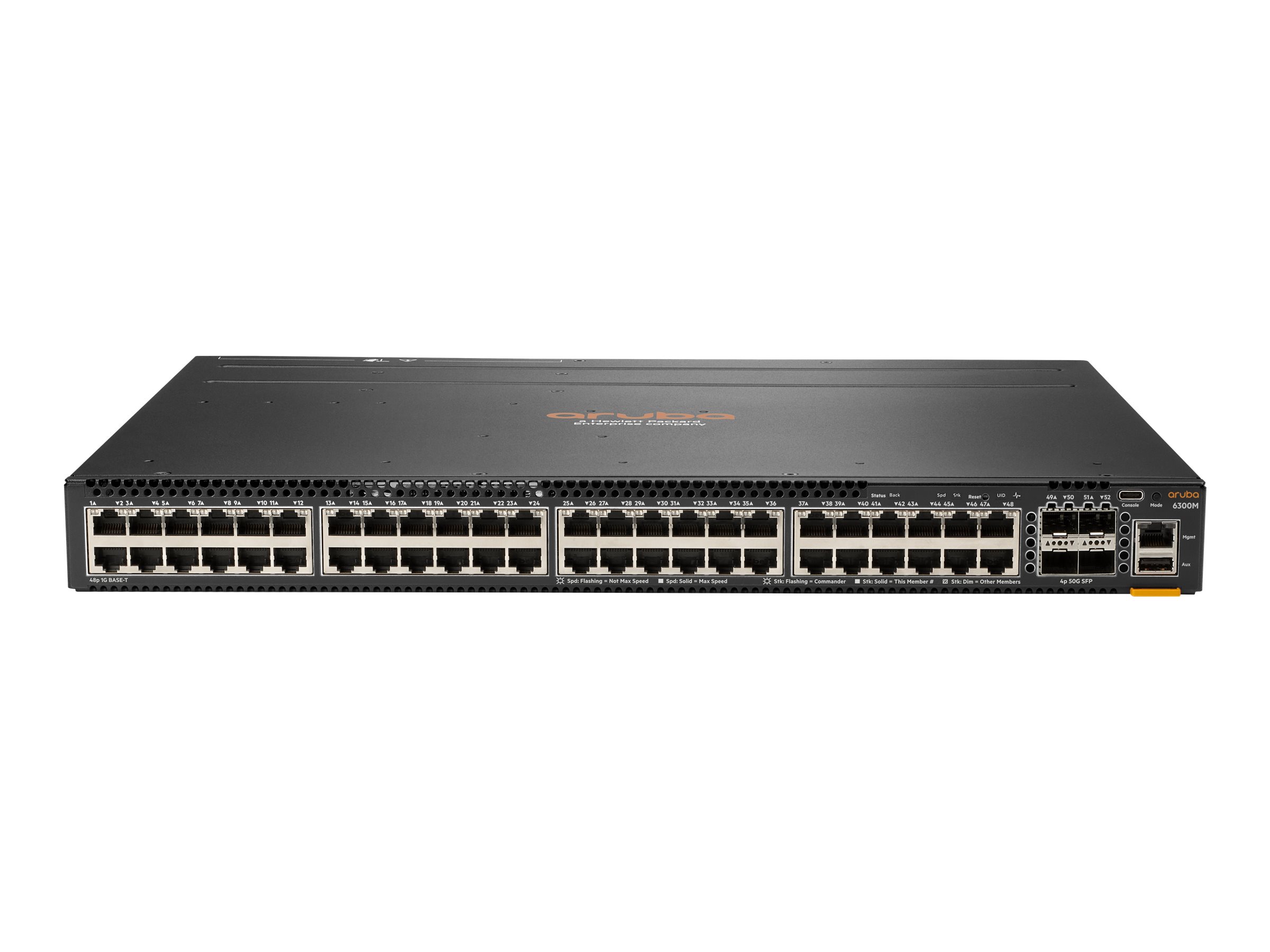

HPE Aruba Networking CX 6300M 48-port 1GbE and 4-port SFP56 Switch
slide {0} of {1}, zoom in, HPE Aruba Networking CX 6300M 48-port 1GbE and 4-port SFP56 Switch
slide {0} of {1}, zoom in, HPE Aruba Networking CX 6300M 48-port 1GbE and 4-port SFP56 Switch
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM1
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
AI-ready performance and power

AI-ready performance and power

  • The HPE Aruba Networking CX 6300 Switch Series is a wire-speed solution that uses a fully distributed architecture with Gen7 ASICs that deliver low latency, increased packet buffering, and intelligent power consumption for AI, Wi-Fi 7, and Internet of Things (IoT) requirements.
  • HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front plane stacking. Four built-in uplinks support speeds of up to 10, 25, 50, and 100GbE for a total of 200 to 400 Gbps of stacking throughput per switch.
  • HPE Aruba Networking Virtual Switching Extension (VSX) and an inter-switch link (ISL) provides for a high availability solution that maintains state synchronization and an independent control plane across a 2-member active-active switch design2.
  • HPE Smart Rate multi-gigabit Ethernet delivers adaptive speed options for Wi-Fi, Internet of Things (IoT), and other clients, alongside Class 4 (30W), Class 6 (60W), and Class 8 (90W) PoE on each port (720W, 1440W, and 2880W maximum PoE budget options).
  • Additional features include a hibernation mode that enables CX 6300 and CX 6300L (Layer 2-only) switches to schedule downtime to conserve energy. Note: CX 6300L stackable switches are Layer 2-only, balancing scalability, high-capacity, and cost-effective connectivity.
Automation and analytics

Automation and analytics

  • The HPE Aruba Networking CX 6300 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and a time series database (TSDB) that stores configuration and operational state data, making it available to quickly resolve network issues.
  • HPE Aruba Networking Central provides secure, AI-native full-stack network management and operations to optimize performance, accelerate troubleshooting, and unify wired networks with Wi-Fi, wide area networks, and more.
  • HPE Aruba Networking CX Network Analytics Engine (NAE) provides real-time insights and actions, analyzing events that can impact network health and even mitigating problems directly through quarantining to support network, application, system and security operations.
  • HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and helps ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.
  • Import switch information into HPE Aruba Networking Switch Multi-Edit Software for simplified configuration management and to continual conformance validation.
Full stack management and security

Full stack management and security

  • The HPE Aruba Networking CX 6300 Switch Series is supported on HPE Aruba Networking Central for single point of control management that delivers enhanced network visibility and an expanded AI toolset, addressing the scale and demands of the most mission-critical environments.
  • Dynamic segmentation that automatically applies and enforces user, device, and application-aware policies on HPE Aruba Networking wired and wireless infrastructures.
  • Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better end-user experience and streamlined IT operations. Application recognition and control are available through CX Advanced Feature Pack1.
  • Switch-to-switch tunnels enable scalable multi-tenancy support with Virtual Extensible Local-Area Networks (VXLAN) to VRF mapping, while allowing policy application through user roles1.
  • Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).
Deploy in data center topologies

Deploy in data center topologies

  • HPE offers customers highly differentiated pre-engineered IT infrastructure solutions that span a wide variety HPE Compute, HPE Storage, HPE Networking that span virtualization, vSAN™, HCI, HPC, MCS, Microsoft, SAP HANA®, VMware®, Nutanix application and IaaS service offerings.
  • The 10/25 and 40/100 G CX switches can be deployed as part of an HPE integrated and mixed compute, storage and networking configuration and deployments.
  • These ready-to-deploy, integrated IT data center solutions help simplify and speed IT service delivery while reducing the time, risk, and expertise needed to deploy complex solutions.

TechnicalSpecifications
Ports48 x 10/100/1000 BaseT ports 4 x 1G/10G/25G/50G SFP ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
Memory and processorCPU: Dual-core Arm® Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
Latency1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs
Throughput369 Mpps
Switching capacity496 Gbps
Stacking capabilitiesUp to 10-members per stack. Note: CX 6300L switches only stack with other CX 6300L switches
Management featuresManagement flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Power supply2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately). Supports JL085A PSU.
Input voltageJL085A PSU: 100V–240V
Power consumptionIdle: 56W 100% Traffic Rate: 75W
Product dimensions (metric)4.4 x 44.2 x 38.5 cm
Weight4.95 kg

HPE Aruba Networking CX 6300 Switch Series QuickSpecs (English)HPE Aruba Networking CX 6300 Switch Series QuickSpecs (English)

1Features not supported on CX 6300L switches (S3L75A, S3L76A, S3L77A)
2The simultaneous use of HPE Aruba Networking Virtual Switching Framework stacking and its cluster is not supported. A switch may either be its member or an HPE Aruba Networking Virtual Switching Extension cluster.
